Cooling System

Water Passage Replacement (cont’d)

A

D

F

G

E

H

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

I

H

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

B
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

C
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

B

A

D

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

C

C

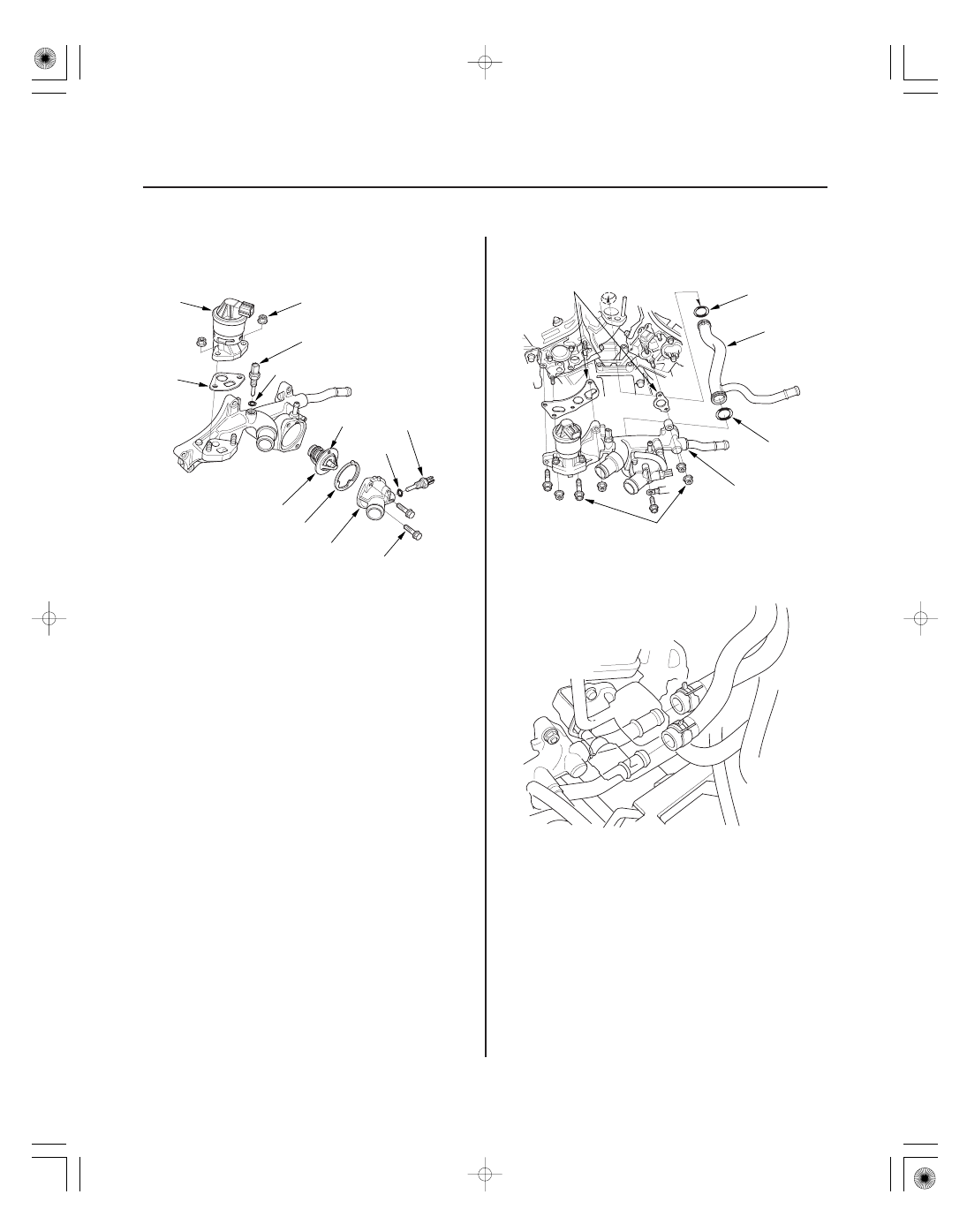

9. Remove the EGR valve (A), ECT sensor 1 (B), ECT

sensor 2 (C), thermostat cover (D), and thermostat
(E).

10. Install the new rubber seal (F) onto the thermostat,

then install the thermostat with pin (G) up, and
install the thermostat cover.

11. Install the ECT sensor 1 and ECT sensor 2, using the

new O-rings (H).

12. Install the EGR valve, using a new gasket (I).

13. Install the connecting pipe (A) and water passage

(B), using the new O-rings (C) and new gaskets (D).

14. Install the heater hoses.

08

09

10-11

C

D

A

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

B
6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

A

B

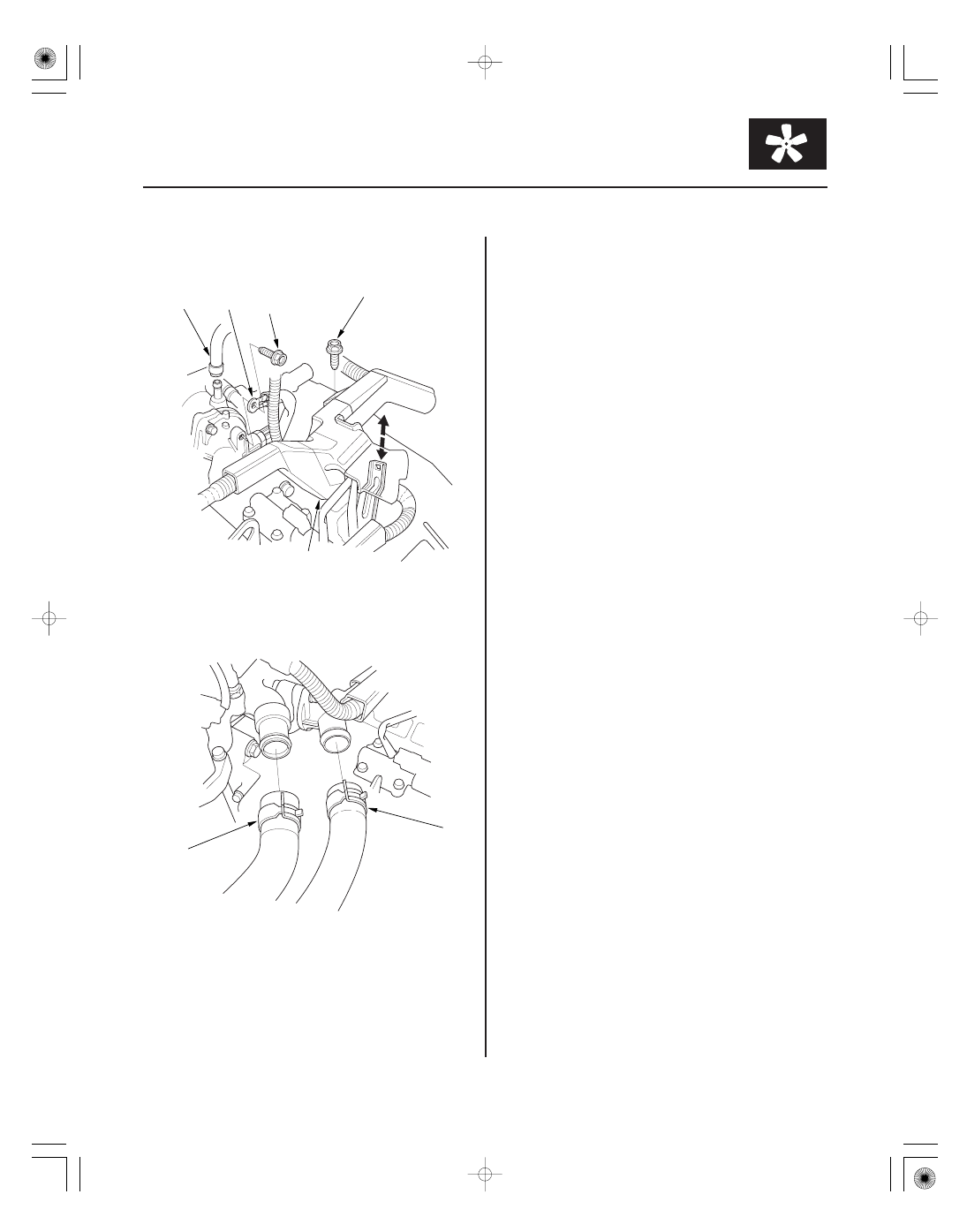

15. Install harness holder (A) to the bracket, then

tighten the mounting bolt (B).

16. Install the water bypass hose (C) and ground cable

(D).

17. Install the upper radiator hose (A) and lower

radiator hose (B).

18. Install the intake manifold (see page 9-5).

19. After installation, check that all tubes, hoses and

connectors are installed correctly.

20. Refill the radiator with engine coolant, then bleed

air from the cooling system (see step 9 on page
10-7).

21. Clean up any spilled engine coolant.

01

02

03

04

SJC8A00A14400049001KBAT00

10-12

Cooling System

Radiator and Fan Replacement

A

C

A

B

B

A

B

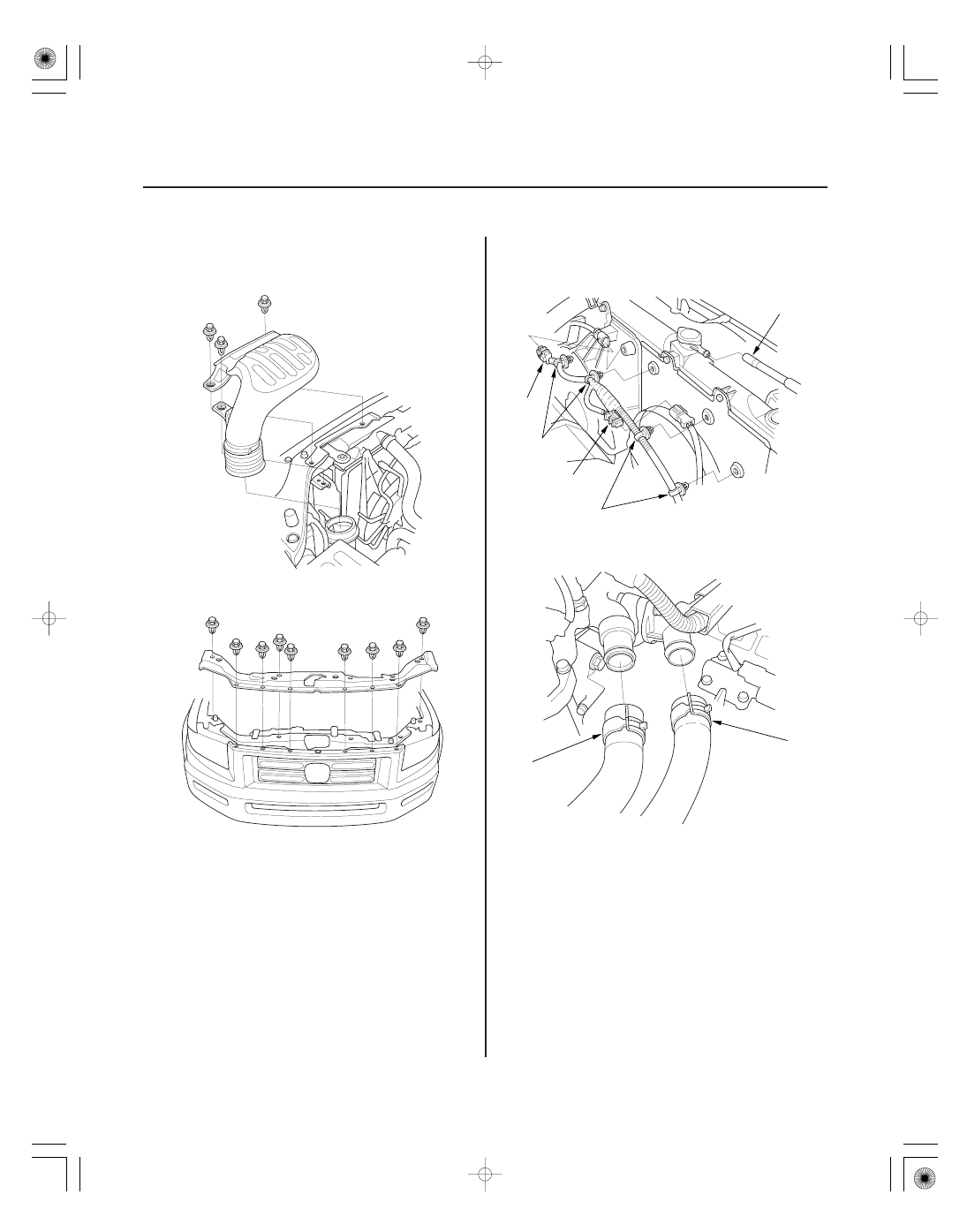

1. Drain the engine coolant (see page 10-6).

2. Remove the front air intake duct.

3. Remove the bulkhead cover.

4. Disconnect the fan motor connectors (A), then

remove the harness clamps (B) and reservoir tank
hose (C).

5. Remove the upper radiator hose (A) and lower

radiator hose (B).

05

06

07

10-13

A

B

A

A

B

A

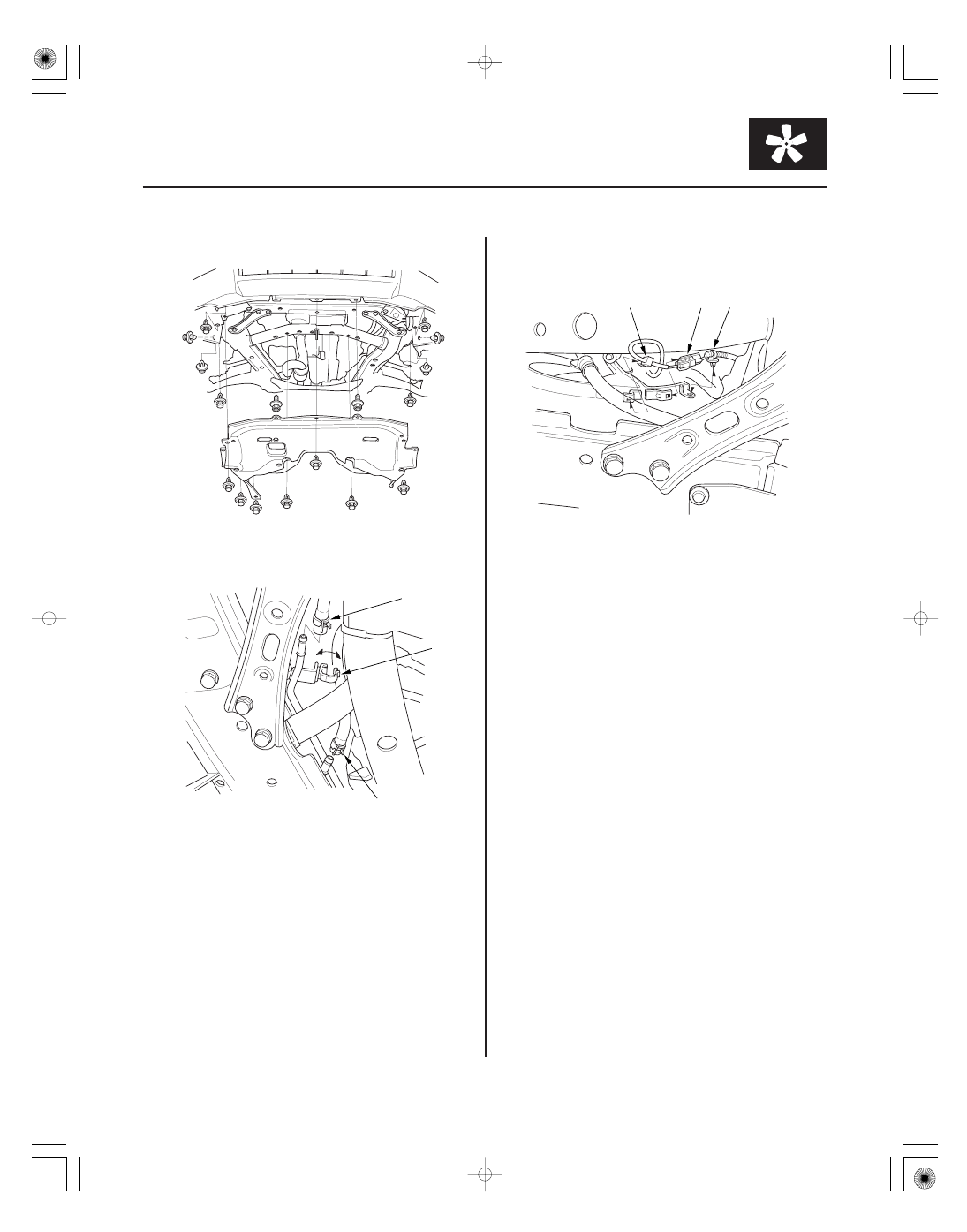

6. Remove the splash shield.

7. Remove the automatic transmission fluid (ATF)

cooler hoses (A) from the radiator, then plug the
line and hose.

8. Unclamp the ATF cooler hoses clamp (B) on the

ATF cooler line.

9. Remove the harness clamps (A) and A/C

compressor clutch connector (B) from the A/C
condenser fan shroud.

(cont’d)
