SJC8A000000000J0901ZCAT00

Engine Mechanical

Intake Manifold and Exhaust System

................

....................

................

....................

Intake Manifold Removal and Installation

. 9-2

Exhaust Pipe and Muffler Replacement

. 9-7

01

SJC8A00A20336335001KDAT00

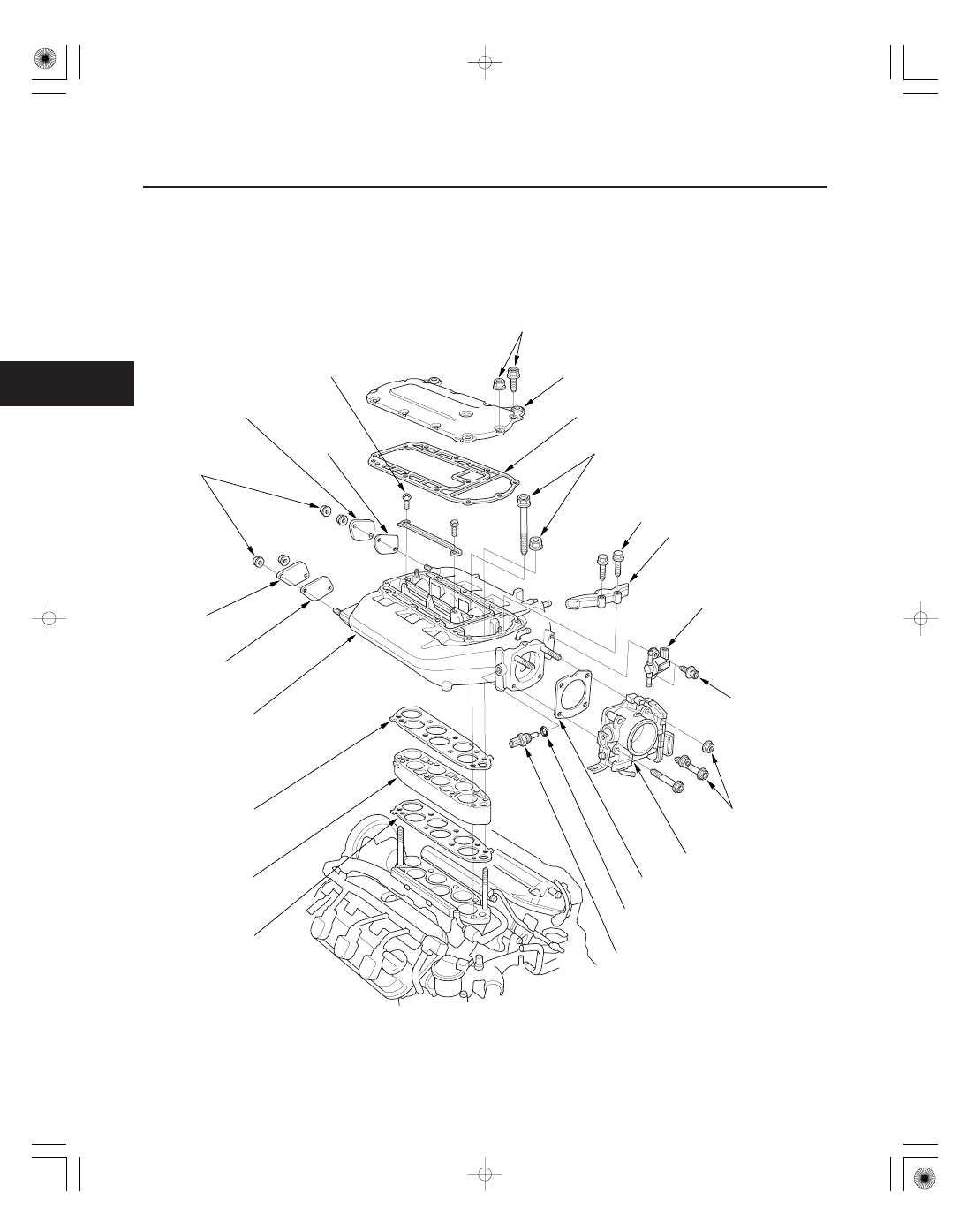

Exploded View

9-2

Intake Manifold and Exhaust System

Intake Manifold Removal and Installation

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

GASKET

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

EVAPORATIVE
EMISSION (EVAP)
CANISTER PURGE
VALVE

THROTTLE BODY

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

INTAKE AIR TEMPERATURE
(IAT) SENSOR
18 N·m
(1.8 kgf·m, 13 lbf·ft)

O-RING

GASKET

INTAKE MANIFOLD
END PLATE

INTAKE MANIFOLD

GASKET

GASKET

SPACER

5 x 0.8 mm
3.4 N·m
(0.35 kgf·m, 2.5 lbf·ft)

UPPER COVER

GASKET

INTAKE MANIFOLD
END PLATE

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

EXHAUST GAS
RECIRCULATION
(EGR) PIPE

GASKET

Replace.

Replace.

Replace.

Replace if it is cracked
or if the mating surface
is damaged.

Replace.

Replace.

Replace if it is cracked or if the
mating surface is damaged.

Replace.

Replace.

02

03

04

Removal

9-3

A

B

A

B

C

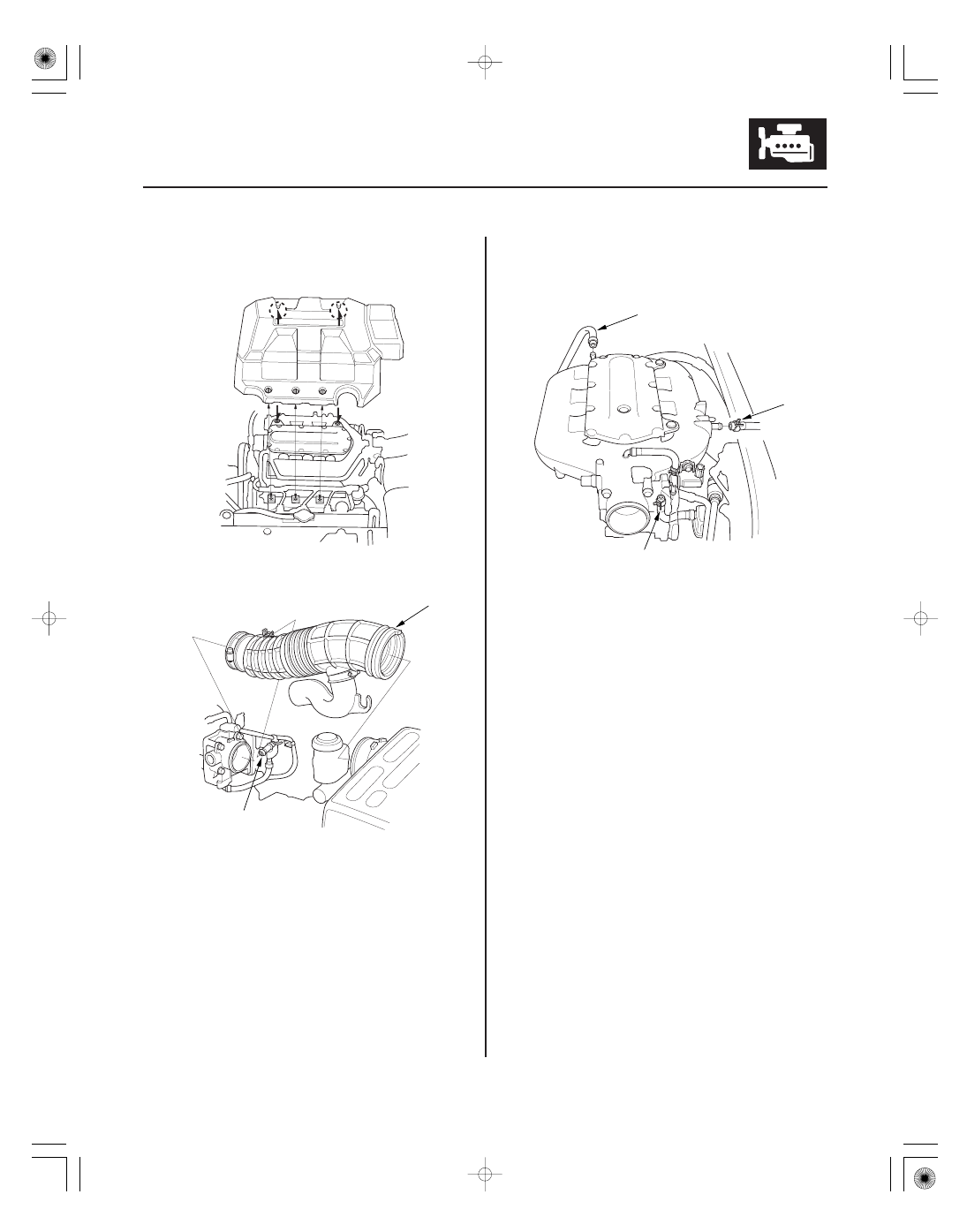

1. Remove the engine cover.

2. Remove the breather pipe (A), then remove the air

intake duct (B).

3. Remove the positive crankcase ventilation (PCV)

hose (A), brake booster vacuum hose (B), and
evaporative emission (EVAP) canister purge hose
(C).

4. Remove the engine wire harness connectors and

wire harness clamps from the intake manifold.

• Intake air temperature (IAT) sensor connector
• Throttle actuator connector
• Manifold absolute pressure (MAP) sensor

connector

• Evaporative emission (EVAP) canister purge

valve connector

• Intake manifold tuning (IMT) valve actuator

connector

(cont’d)

05

06

07

9-4

Intake Manifold and Exhaust System

Intake Manifold Removal and Installation (cont’d)

A

B

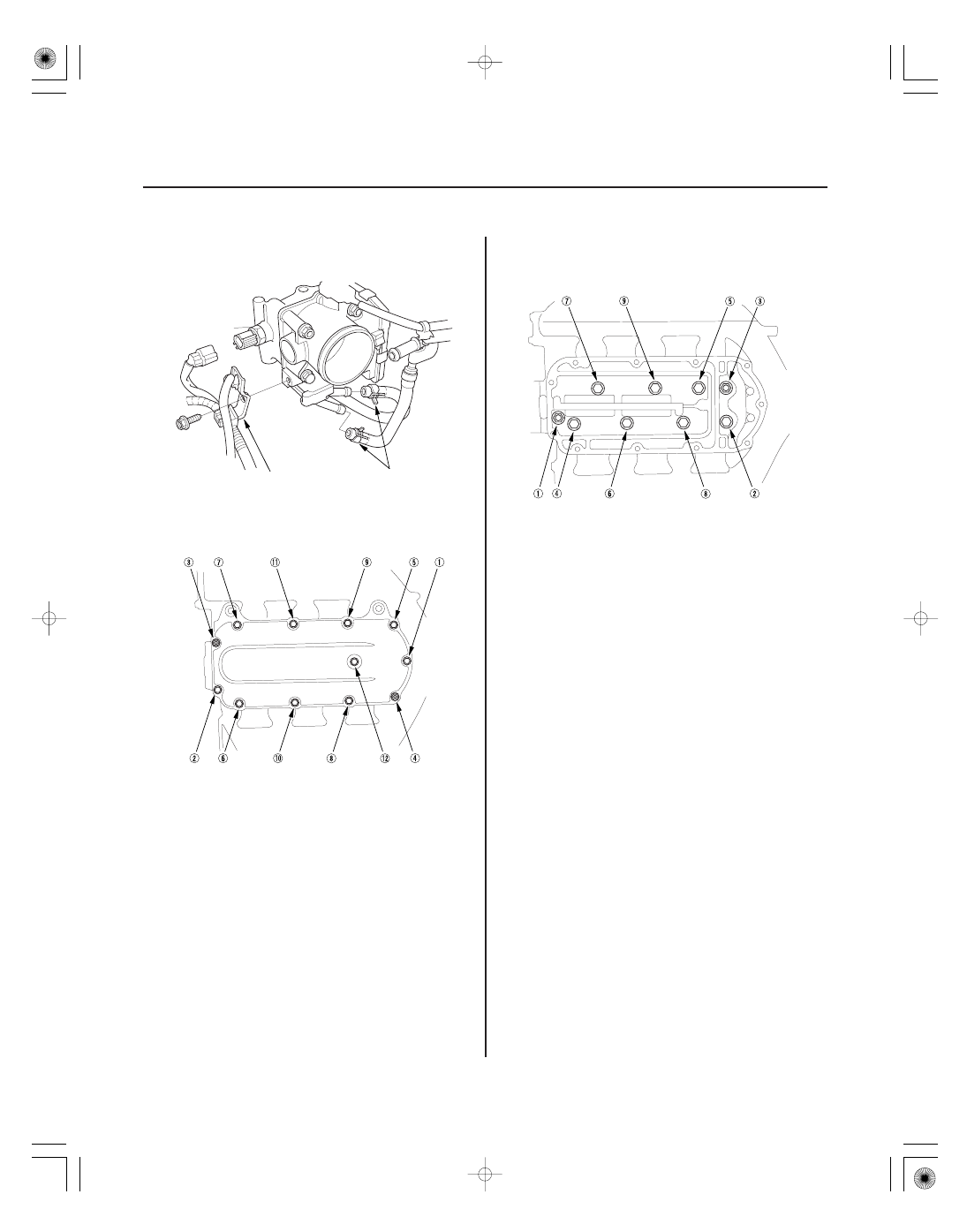

5. Remove the harness clamp bracket (A) and water

bypass hoses (B), then plug the water bypass hoses.

6. Remove the upper cover mounting bolts and nuts

sequentially, in two or three steps, then remove the
upper cover.

7. Remove the intake manifold mounting bolts and

nuts sequentially, in two or three steps, then
remove the intake manifold and spacer.
