Item

Measurement

Qualification

Specification

2-18

Design Specifications

AUTOMATIC

TRANSMISSION

Type

BJFA

Electronically-controlled automatic, 5-speed forward, 1

reverse

Primary reduction

Direct 1:1

Gear ratio

1st

2.693

2nd

1.565

3rd

1.023

4th

0.729

5th

0.530

Reverse

1.888

Final reduction

Type

Single helical gear

Gear ratio

4.533

STEERING

Type

Hydraulic power-assisted rack and pinion

Gear ratio

42.3

Overall ratio

17.9

Turns, lock-to-lock

3.38

Steering wheel diameter

390 mm (15.4 in.)

SUSPENSION

Type

Front

Strut with ‘‘L’’ (lower) arm

Rear

Multi-link with trailing arm

Shock absorber

Front

Twin tube gas

Rear

Twin tube gas

WHEEL

ALIGNMENT

Camber

Front

0 ° 30 ’

Rear

0 ° 30 ’

Camber

(Max difference left to right)

Front

1 ° 00 ’

Caster

Front

1 ° 53 ’

Total toe

Front

0 mm (0 in.)

Rear

0 mm (0 in.)

Front wheel turning angle

Inside wheel

37 ° 54 ’

Outside wheel

30 ° 16 ’

SAI at camber (kingpin axis)

12 ° 24 ’

BRAKES

Type of service brake

Front

Power-assisted self-adjusting ventilated disc

Rear

Power-assisted self-adjusting solid disc

Type of parking brake

Foot type mechanical actuating, rear wheels

Pad friction surface area (swept

area)

Front

59.2 cm (9.18 sq in.) x 2

Rear

34.4 cm (5.33 sq in.) x 2

Parking brake shoe friction surface

area

60.2 cm (9.33 sq in.) x 2

TIRES

Size of front and rear tires

P245/65R17 105S

Size of spare tire

T165/90R17 105M

Tire pressure

Front/Rear

220 kPa (2.2 kgf/cm , 32 psi)

Spare

420 kPa (4.3 kgf/cm , 61 psi)

AIR

CONDITIONING

Cooling capacity

Front

4,375 Kcal/h (17,300 BTU/h)

Rear

3,119 Kcal/h (12,400 BTU/h)

Compressor

Type/Manufacturer

Swash plate/DENSO

Number of cylinders

10

Capacity

214.7 mL/rev. (13.09 cu in./rev.)

Maximum speed

7,600 rpm

Lubricant capacity

180 mL (6 fl·oz)

Lubricant type

DENSO ND-OIL 8

Condenser

Type

Corrugated fin

Evaporator

Type

Corrugated fin

2

2

2

2

2
















±

±

±

±

±

Item

Measurement

Qualification

Specification

2-19

AIR

CONDITIONING

(cont’d)

Blower

Type

Sirocco fan

Motor input (Front)

228 W/12 V

Speed control (Front)

Infinite variable

Maximum capacity (Front)

490 m /h (17,300 cu ft/h)

Temperature control

Air-mix type

Compressor clutch

Type

Dry, single plate, Poly-V belt drive

Electrical power

consumption at 68 °F

(20 °C)

35 W maximum at 12 V

Refrigerant

Type

HFC-134a (R-134a)

Quantity (Dual)

600

650 g (20

22 fl·oz)

ELECTRICAL

RATINGS

Battery

12 V

72 Ah/20 HR (12 V

60 Ah/5 HR)

Fuses

Under-hood fuse/relay box

120 A, 50 A, 40 A, 30 A, 20 A, 15 A, 10 A, 7.5 A

Under-dash fuse/relay box

30 A, 20 A, 15 A, 10 A, 7.5 A

Auxiliary under-hood relay

box

40 A, 20 A, 15 A, 7.5 A

Light bulbs

Headlight high beam

12 V

60 W

Headlight low beam

12 V

55 W

Front turn signal/front side

marker lights

12 V

28/8 W (two filaments)

Amber color

Rear turn signal lights

12 V

21 W

Amber color

Brake/taillights

12 V

21/5 W (two filaments)

High mount brake light

12 V

3 CP

Back-up lights

12 V

18 W

Cargo area lights

12 V

3 CP

License plate light

12 V

3 CP

Ceiling light

12 V

5 W

Map lights

12 V

8 W

Console box light 1

12 V

3.8 W

Console box light 2

12 V

1.4 W

Door courtesy lights

12 V

3.8 W

Glove box light

12 V

3.4 W

Vanity mirror light

12 V

2 W

Gauge lights

12 V

LED (non-replaceable)

Indicator, panel, ambient

light

12 V

LED, 14 V

0.56 W, 0.84 W

Clock non-navigation system

equipped vehicles

Clock standard daily

difference

2.0 seconds per day or less

Electrical characteristics

2.0 seconds per day or less

Temperature characteristics

20

0 degrees C

4.0 seconds per day or less

0

40 degrees C

2.0 seconds per day or less

40

60 degrees C

4.0 seconds per day or less

Washer reservoir

Capacity

4.5 L (4.7 US qt)

3

01

SJC8A00000000000000NCAT00

2-20

Design Specifications

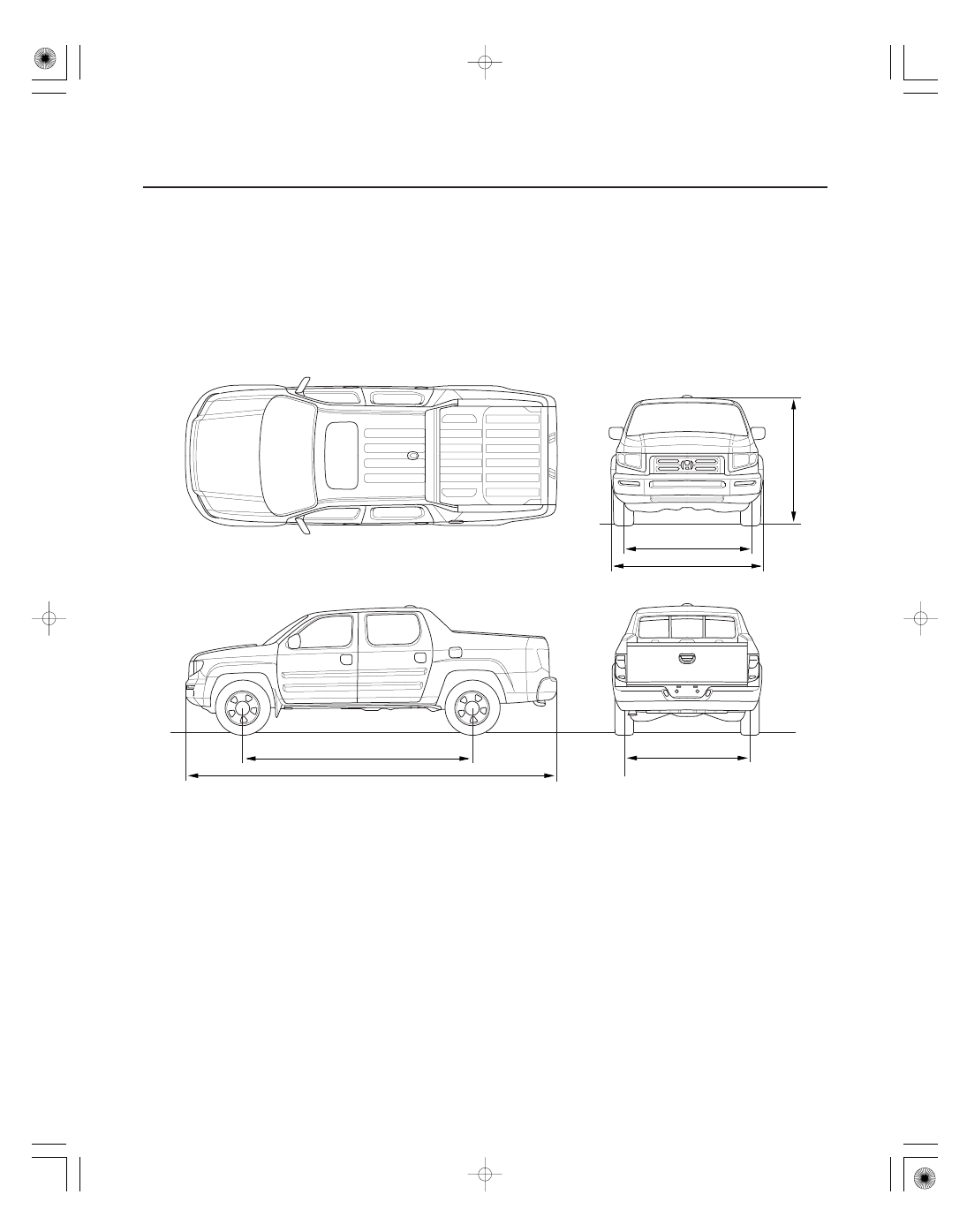

Body Specifications

3,100 mm (122.0 in.)

5,251 mm (206.7 in.)

1,705 mm (67.1 in.)

1,976 mm (77.8 in.)

1,700 mm (66.9 in.)

1,78

5

m

m

(70.3

in

.)

SJC8A000000000J0301ZCAT00

Maintenance

......................................

......................................

Lubricants and Fluids

. 3-2

Maintenance Minder

....................................................

............................................

..............................................

....................................................

............................................

..............................................

General Information

. 3-4

Maintenance Main Items

. 3-7

Maintenance Sub Items

. 3-8
