1-8

General Information

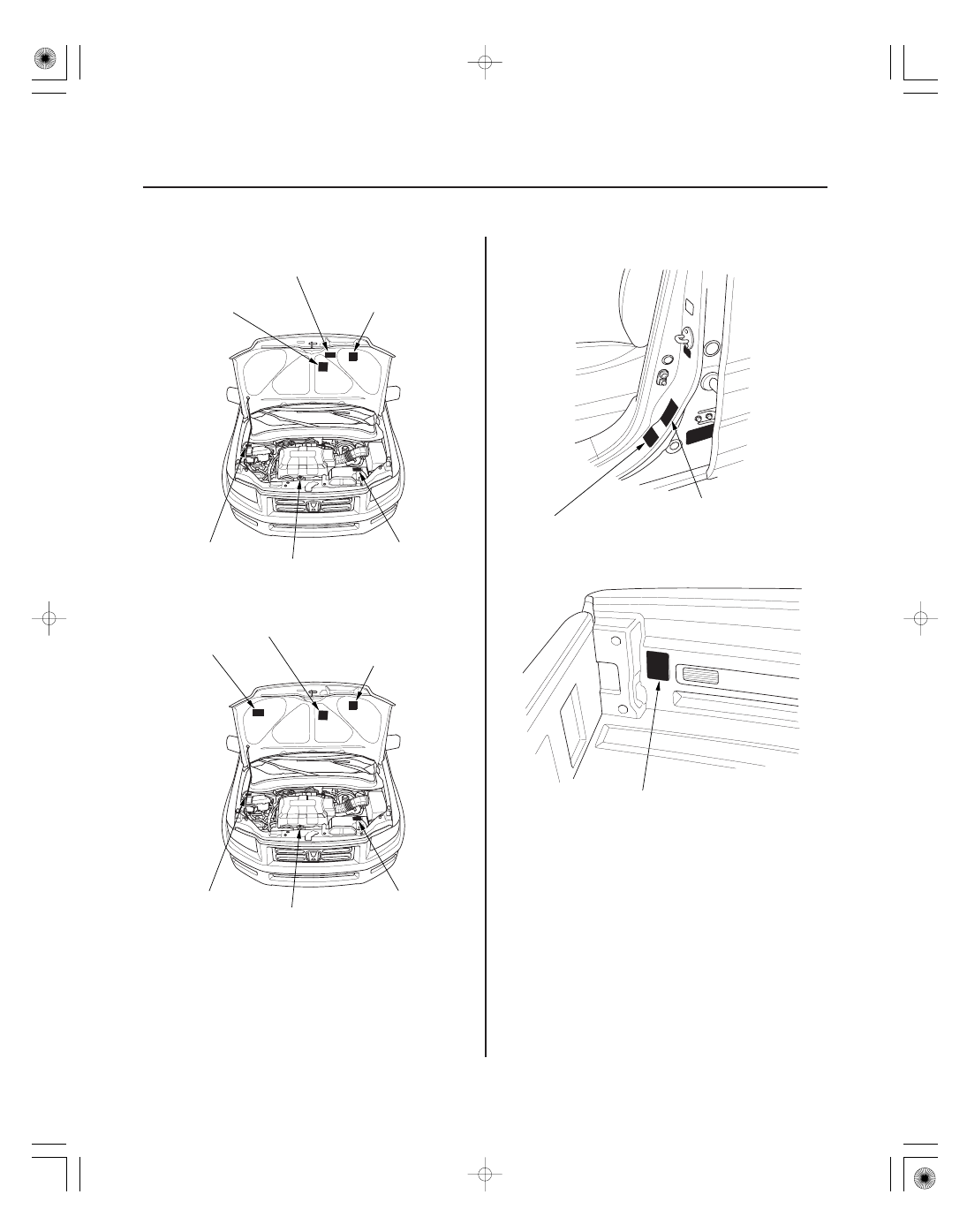

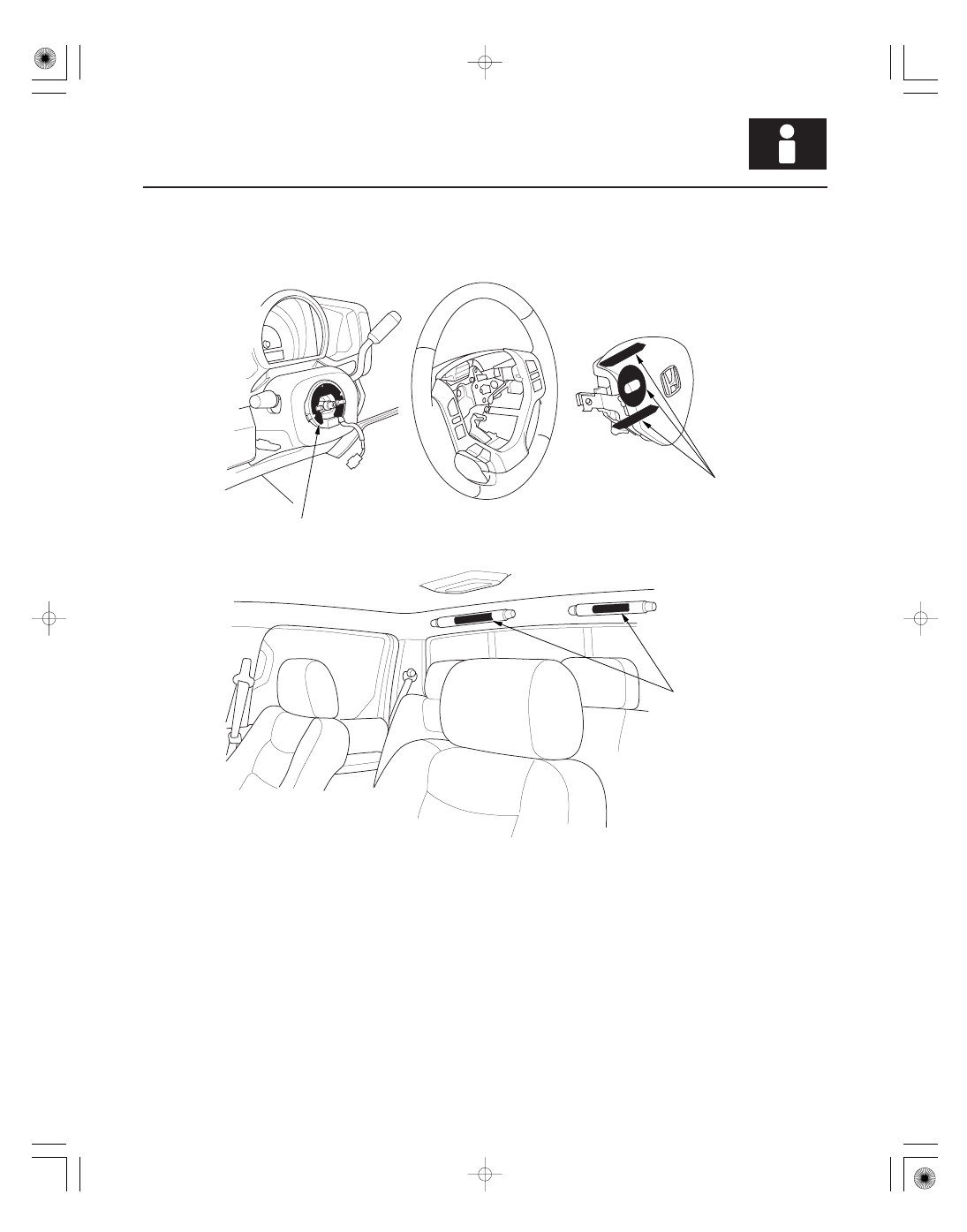

Danger/Warning/Caution Label Locations (cont’d)

SRS WARNING

SERVICE INFORMATION
(Under-hood Emission
Control)

ENGINE COOLANT
INFORMATION

AIR CONDITIONING
INFORMATION

RADIATOR CAP
DANGER

BATTERY
DANGER

SRS WARNING

SERVICE INFORMATION
(Under-hood Emission
Control)

ENGINE COOLANT
INFORMATION

AIR CONDITIONING
INFORMATION

RADIATOR CAP
DANGER

BATTERY
DANGER

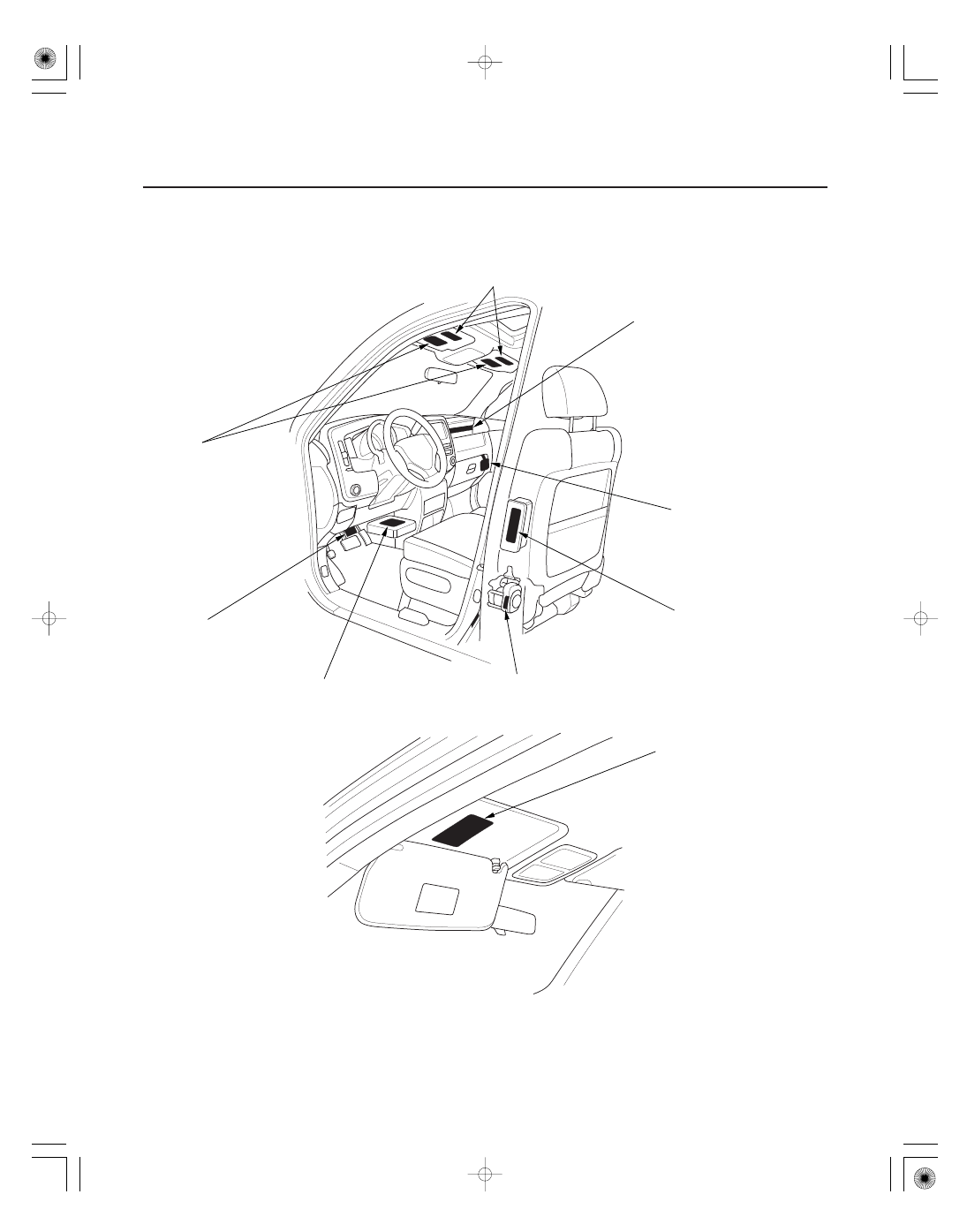

SIDE AIRBAG INFORMATION

TIRE INFORMATION

PORTABLE FUEL TANK WARNING

Located on driver’s doorjamb and
passenger’s doorjamb (not shown)

＊０７

＊０８

＊０３

＊０４

ＳＪＣ８Ａ００００００００００００００ＢＡＡＴ５０

±
±

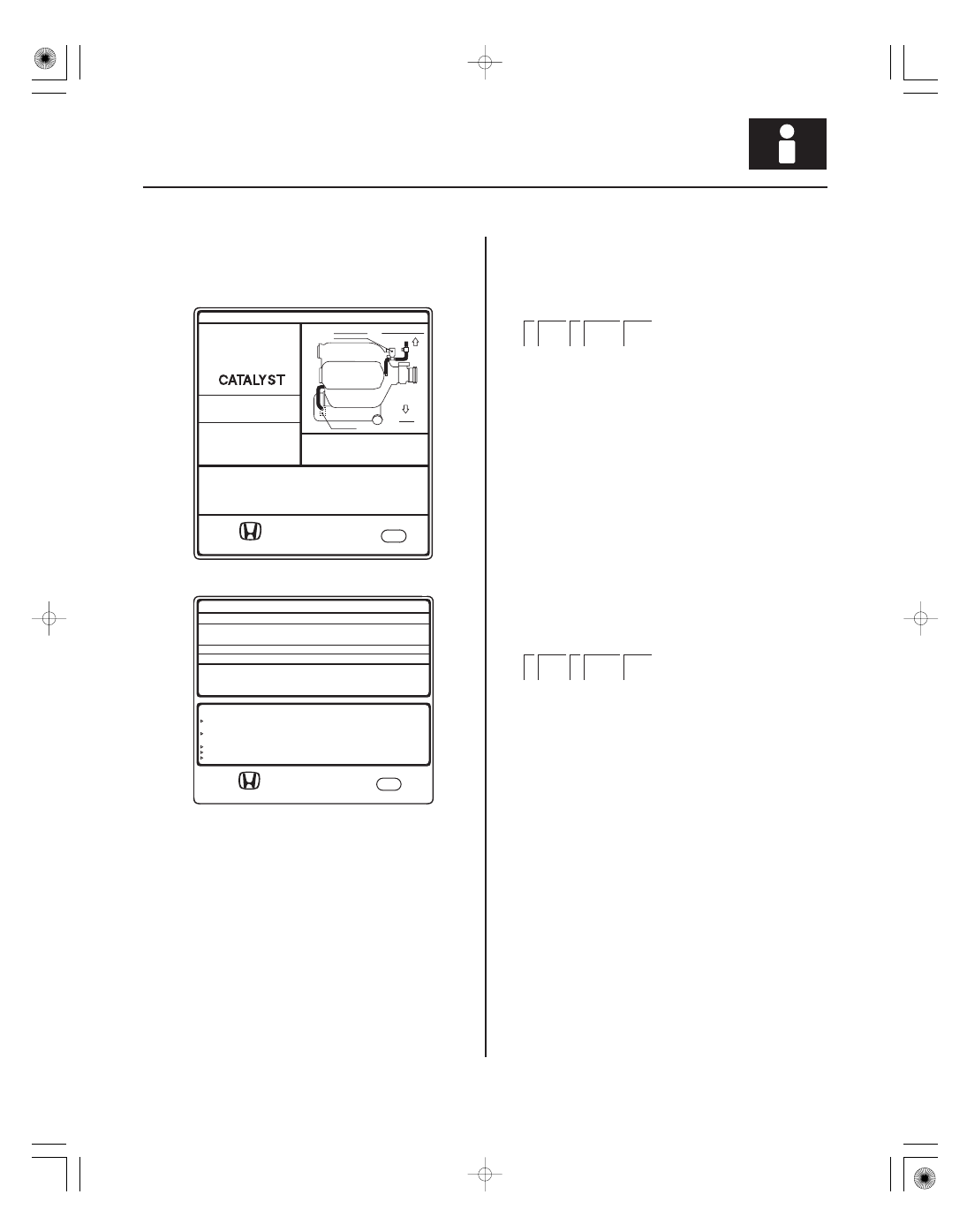

Emission Group Identification

Test Group and Evaporative Family

Example:

’06 Model

’07 Model

Test Group:

a. Model Year

b. Manufacturer Subcode

c. Family Type

d. Displacement
e. Sequence Characters

Evaporative Family:

a. Model Year

b. Manufacturer Subcode

c. Family Type

d. Canister Working Capacity Group

e. Sequence Characters

1-9

Under-hood Emission Control Label

VEHICLE EMISSION CONTROL INFORMATION

•

HON DA M OTOR C O. , LTD.

2WU-TWC, TWC, 2A/F SENSOR, 2HO2S, EGR, SFI

VALVE LASH

(IN)

0.22

0.02mm (COLD)

(EX) 0.30

0.02mm (COLD)

NO OTH ER AD JUSTME NTS NEE DED.

EXHAUST EM ISS IONS S TANDAR DS
AR B: LEV II ULEV (C ER TIFICATION AND IN-USE)
EPA: TIER 2 B IN 5 (C ERTIFIC ATION AND IN-USE)

LOADED I/M TESTING OF THIS VEHICLE MUST BE
CONDUCTED ON A FOUR-WHEEL DRIVE SPEED
SYNCHRONIZED DYNAMOMETER. OTHERWISE, A
NON-LOADED TEST PROCEDURE MUST BE PERFORMED.

OBD II CERTIFIED

6HNXT03.5AKR
6HNXR0156BBA

3.5L

THIS VEHICLE CONFORMS TO U.S. EPA
TIER 2 BIN 5 REGULATIONS APPLICABLE
TO 2006 MODEL YEAR NEW LIGHT-DUTY
TRUCKS AND CALIFORNIA REGULATIONS
APPLICABLE TO 2006 MODEL YEAR NEW
LEV II ULEV LIGHT-DUTY TRUCKS.

RJE-A01

X C

•

PCV VALVE

PURGE VALVE

EVAP CANISTER

TO EVAP CANISTER

FRONT

’06-07 Models

’08 Model

R J E - A 0 3

7 D

LOADEDI/MTESTINGOFTHISVEHICLEMUSTBECONDUCTEDONAFOUR-WHEELDRIVESPEEDSYNCHRONIZED

DYNAMOMETER.OTHERWISE,ANON-LOADEDTESTPROCEDUREMUSTBEPERFORMED.

HONDA MOTOR CO. , LTD.

2 W U -T W C , TW C, 2 A/ F S E N SO R, 2 HO 2 S , E G R , S F I

8HNXT03.5MKR

3 . 5 L

8HNXR0163BBA

CONFORMS TO REGULATIONS : 2008MY

EPA:

U.S.

T2B5 LDT3

OBD: CA OBD II

FUEL: GASOLINE

ARB: LEV II ULEV LDT2

OBD: CA OBD II

FUEL: GASOLINE

THE FACTORY INSTALLED LONG-LIFE COOLANT MUST BE REPLACED ACCORDING TO MAINTENANCE MINDER SUB CODE 5, OR AT 10 YEARS WHICHEVER COMES FIRST.

THEREAFTER EVERY 5 YEARS.

WHEN ADDING OR REPLACING THE COOLANT, ALWAYS USE Honda RECOMMENDED GENUINE LONG-LIFE ANTI-FREEZE/COOLANT TYPE 2. THIS COOLANT IS PRE-MIXED

WITH 50% DISTILLED WATER. IT DOES NOT REQUIRE ANY ADDITIONAL MIXING.

NEVER DILUTE THE COOLANT, OR THE LIFE OF THE ENGINE MAY BE SERIOUSLY SHORTENED.
CHECK OR ADD THE COOLANT AT THE RESERVE TANK, NOT THE RADIATOR.
FOR FURTHER INFORMATION ON THE COOLING SYSTEM, READ THE OWNER’S MANUAL OR CHECK WITH YOUR Honda DEALER.

INFORMATION

VEHICLE EMISSION CONTROL INFORMATION

HNX

03.5

MKR

HNX

0163

BBA

a b

c d

a b

c d

THIS VEHICLE CONFORMS TO U.S. EPA TIER 2 BIN 5
REGULATIONS APPLICABLE TO 2006 MODEL YEAR
NEW LIGHT-DUTY TRUCKS AND CALIFORNIA
REGULATIONS APPLICABLE TO 2006 MODEL YEAR
NEW LEV II ULEV LIGHT-DUTY TRUCKS.

THIS VEHICLE CONFORMS TO U.S. EPA TIER 2 BIN 5
REGULATIONS APPLICABLE TO 2007 MODEL YEAR
NEW LIGHT-DUTY TRUCKS AND CALIFORNIA
REGULATIONS APPLICABLE TO 2007 MODEL YEAR
NEW LEV II ULEV LIGHT-DUTY TRUCKS.

6: ’06
7: ’07
8: ’08

HNX: HONDA

T: LDT

AKR: ’06 model
TKR: ’07 model
MKR: ’08 model

6: ’06
7: ’07
8: ’08

HNX: HONDA

R: EVAP/ORVR

0156: ’06 model
0163: ’07-08 models

BBA: ’06 and ’08 models
BBY: ’07 model
