Installation (’99-01 models)

23-379

A

B

A

B

D

C

B

A

D

D

C

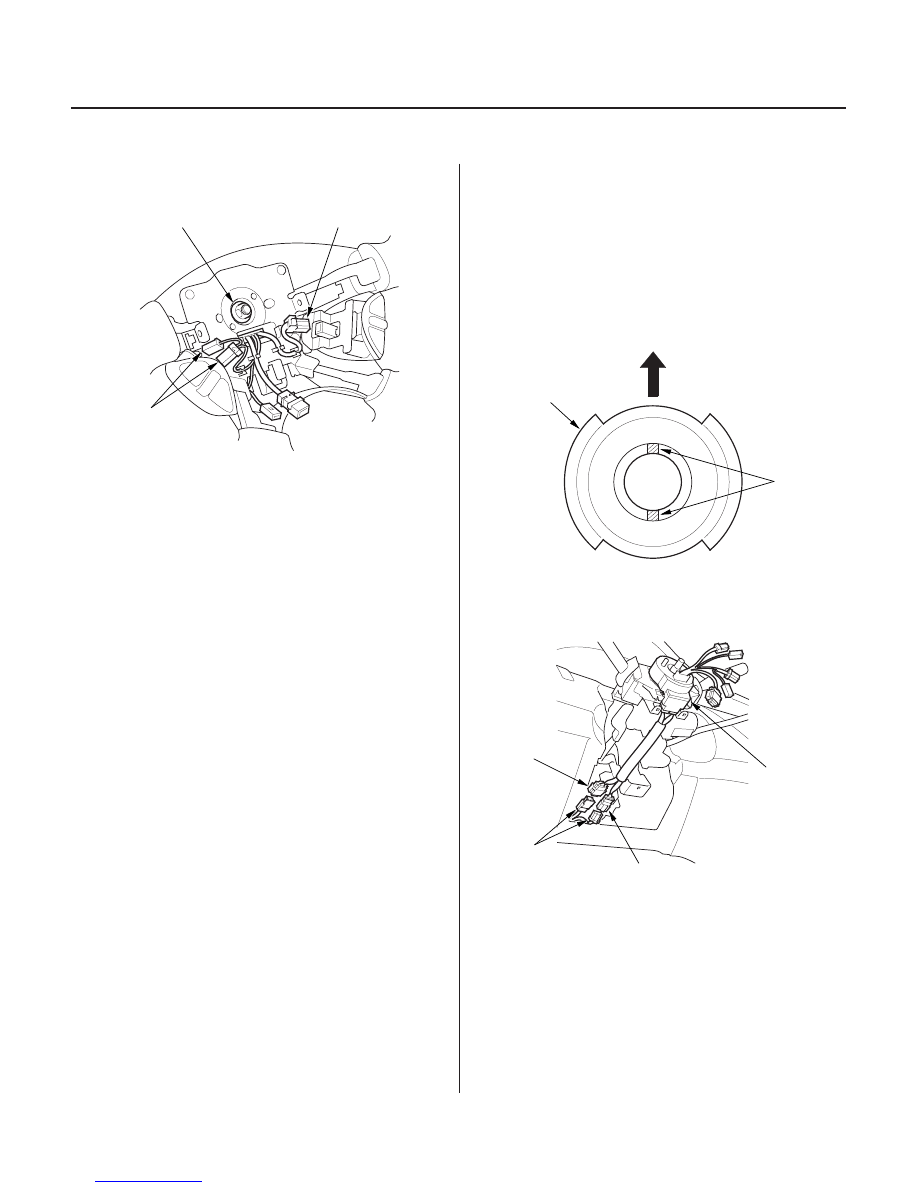

1. Before installing the steering wheel, the front

wheels should be aligned straight ahead.

2. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait at least 3 minutes.

3. Set the cancel sleeve (A) so that the projections (B)

are aligned vertically.

4. Carefully install the cable reel (A) on the steering

column shaft. Then connect the 4P connector (B) to
the cable reel, and connect the 2P connector (C) to
the SRS main harness 2P connector (D).

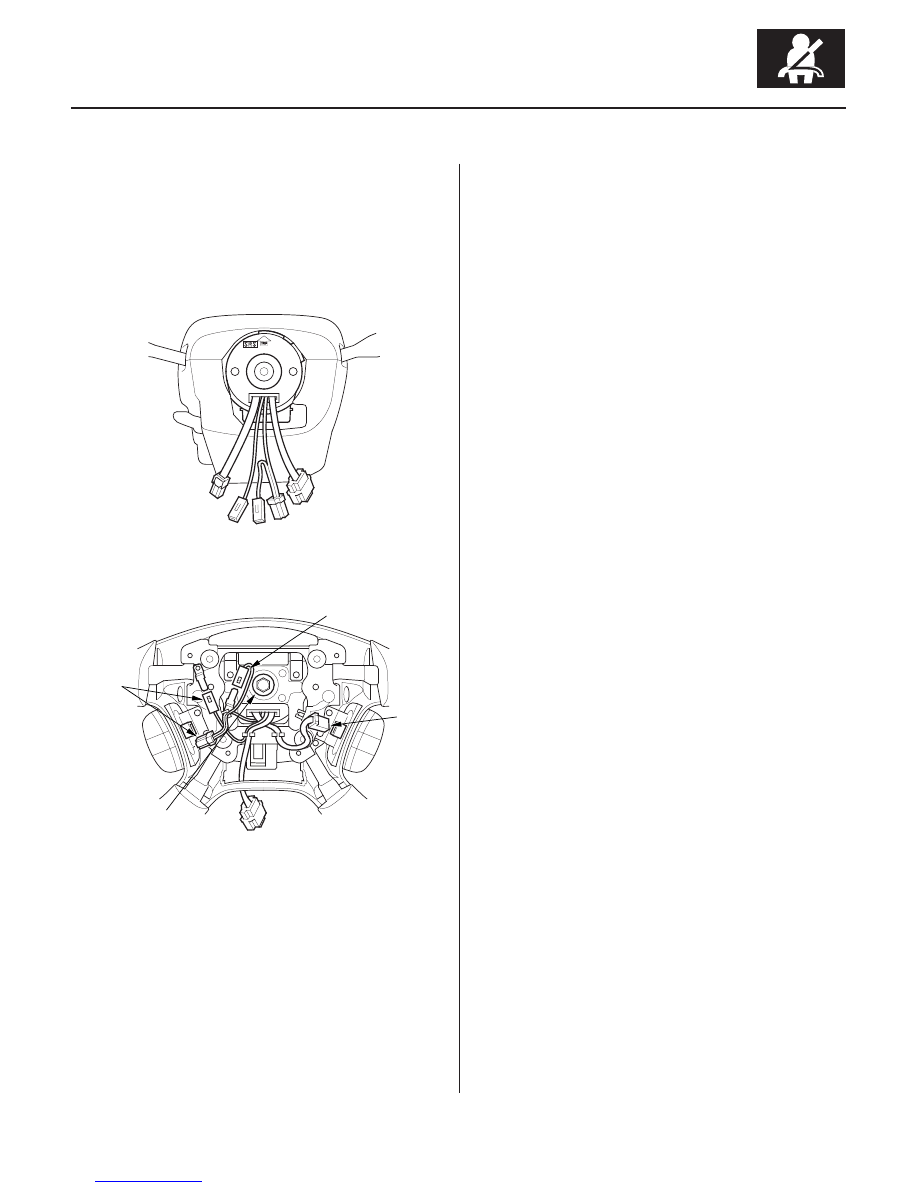

5. Install the steering column covers.

6. If necessary, center the cable reel. (New

replacement cable reels come centered.) Do this by
first rotating the cable reel clockwise until it stops.
Then rotate it counterclockwise about 2 1/2 turns
until the arrow mark on the cable reel label points
straight up.

7. Position the two tabs (A) of the turn signal cancel

sleeve (B) as shown, and install the steering wheel
on to the steering column shaft, making sure the
steering wheel hub (C) engages the pins (D) of the
cable reel and tabs of the canceling sleeve. Do not
tap on the steering wheel or steering column shaft
when installing the steering wheel.

(cont’d)

03/07/29 10:42:52 61S0X050_230_0379

*02

*03

*04

Installation (’02-04 Models)

23-380

SRS

Cable Reel Replacement (cont’d)

C

B

A

A

B

B

C

C

A

8. Install the steering wheel nut (A) and tighten it to

49 N·m (5.0 kgf·m, 36 lbf·ft).

9. Connect the radio remote switch connectors (B),

and cruise control switch connector (C).

10. Install the driver’s airbag (see step 1 on page 23-

369).

11. Reconnect the battery negative cable.

12. After installing the cable reel, confirm proper

system operation:

• Turn the ignition switch ON (II); the SRS indicator

should come on for about 6 seconds and then go
off.

• After the SRS indicator has turned off, turn the

steering wheel fully left and right to confirm the
SRS indicator does not come on.

13. Check the horn, radio remote switch, cruise control

set/resume switch, and turn signal cancel for
proper operation.

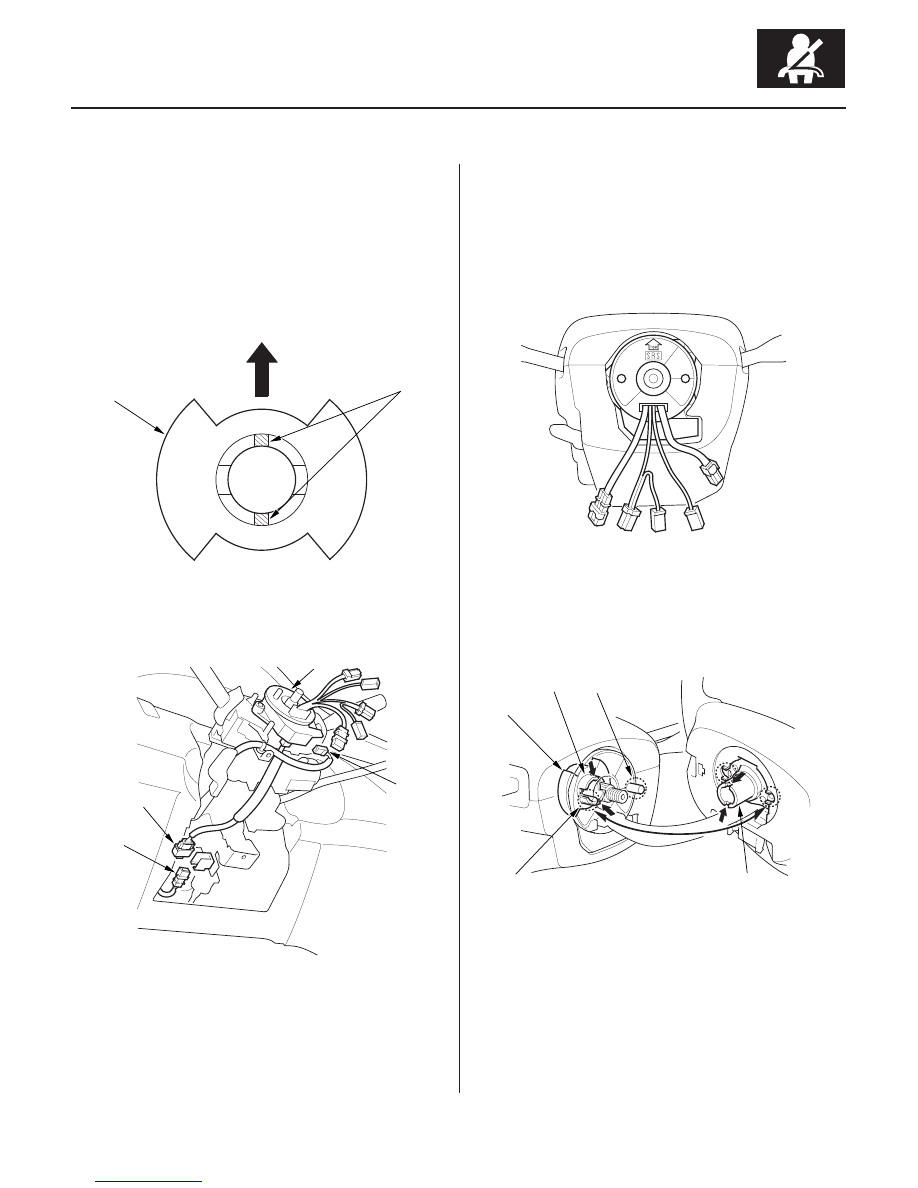

1. Before installing the steering wheel, align the front

wheels straight ahead.

2. If not already done, disconnect the battery negative

cable, and wait at least 3 minutes.

3. Set the cancel sleeve (A) so that the projections (B)

are aligned vertically.

4. Carefully install the cable reel (A) on the steering

column shaft. Then connect the SRS main harness
4P connectors (B) to the cable reel connectors (C).

03/07/29 10:42:53 61S0X050_230_0380

07

*05

23-381

A
38 N·m
(3.9 kgf·m, 28 lbf·ft)

C

B

D

5. Install the steering column covers.

6. If necessary, center the cable reel. (New

replacement cable reels come centered.) Do this by
first rotating the cable reel clockwise until it stops.
Then rotate it counterclockwise (about 2 1/2 turns)
until the arrow mark on the cable reel label points
straight up.

7. Align the projections on the cable reel with the

holes on the steering wheel, and install the steering
wheel with a new steering wheel bolt (A).

8. Reconnect the cruise control set/resume switch (B),

radio remote switch (C), and the horn switch (D).

9. Install the driver’s airbag (see page 23-369).

10. Reconnect the battery negative cable.

11. After installing the cable reel, confirm proper

system operation:

• Turn the ignition switch ON (II); the SRS indicator

should come on for about 6 seconds and then go
off.

• After the SRS indicator has turned off, turn the

steering wheel fully left and right to confirm the
SRS indicator does not come on.

• Make sure the horn button works.

12. Check the horn, radio remote switch, cruise control

set/resume switch, and turn signal cancel for
proper operation.

03/07/29 10:42:53 61S0X050_230_0381

01

02

03

04

S0X4A00H46400056801KBAT00

Removal (’99-01 Models)

Removal (’02 Model)

23-382

SRS

SRS Unit Replacement

A

A

A

A

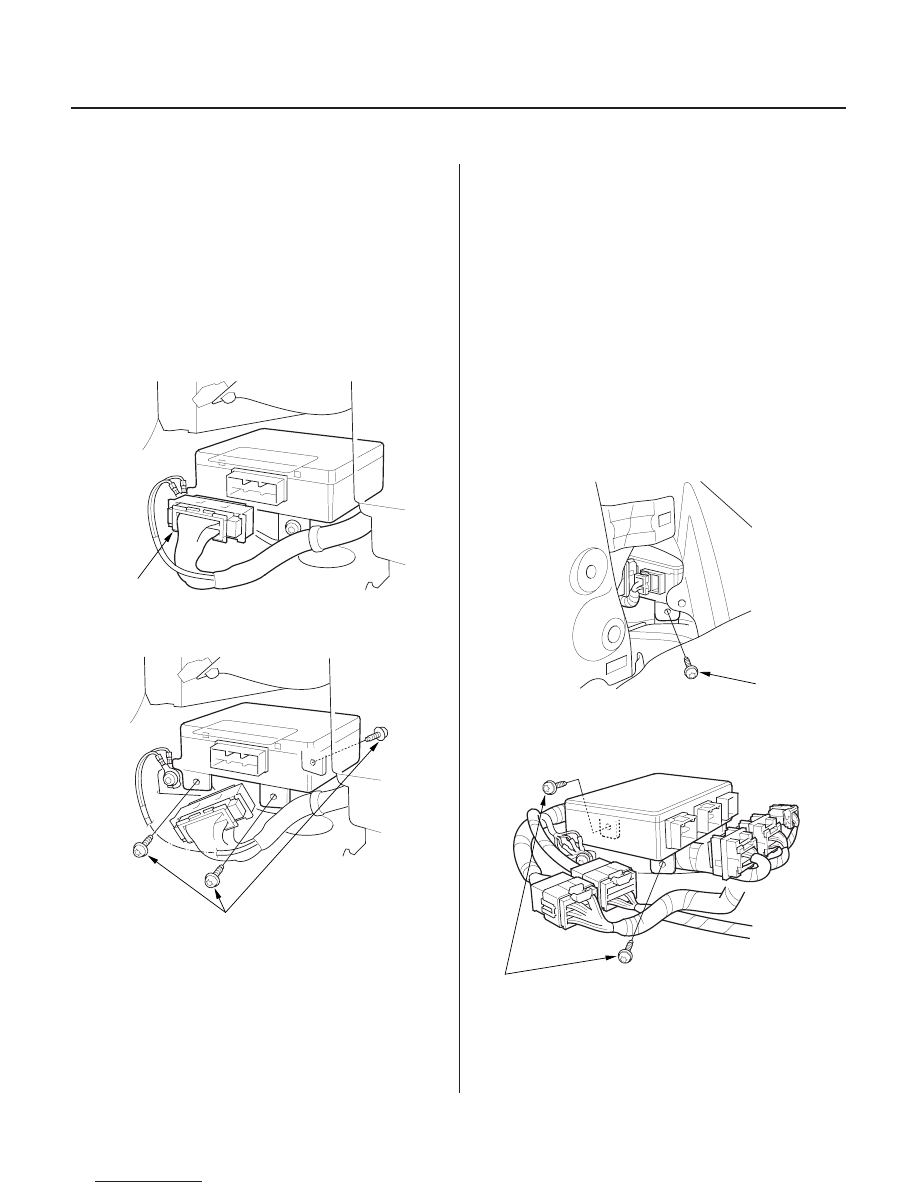

1. Disconnect the battery negative cable, and wait at

least 3 minutes before beginning work.

2. Disconnect the airbag connectors (see page 23-29)

and seat belt tensioner connectors (see page 23-29).

3. Remove the center lower pocket (see page 20-67).

4. Disconnect the SRS main harness 18P connector

(A) from the SRS unit.

5. Remove the three Torx bolts (A) from the SRS unit,

then pull out the SRS unit from the bracket.

1. Disconnect the battery negative cable, and wait at

least 3 minutes before beginning work.

2. Disconnect the driver’s and front passenger’s

airbag connectors (see page 23-30).

3. Disconnect the side airbag connectors (see page

23-31).

4. Disconnect both seat belt tensioner connectors (see

page 23-31).

5. Remove the center lower pocket (see page 20-67).

6. Pull down the carpet, then remove the Torx bolt (A)

from the SRS unit.

7. Disconnect the connectors and remove the two

Torx bolts (A), then pull out the SRS unit from the
right side.

03/07/29 10:42:54 61S0X050_230_0382
