Honda Odyssey 2004. Manual - part 579

−

０３

＊０２

０５

YES

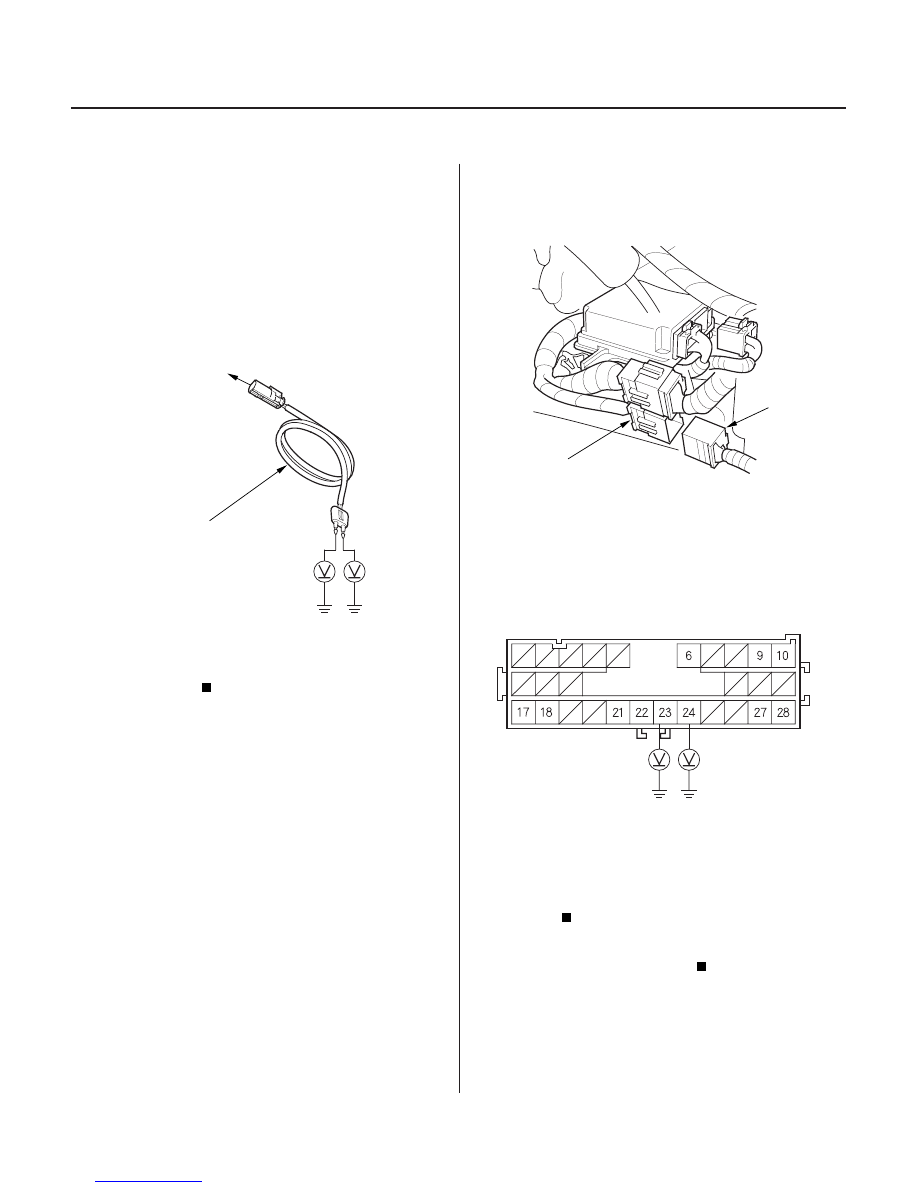

23-258

SRS

DTC Troubleshooting (cont’d)

RIGHT SIDE WIRE HARNESS
2P CONNECTOR

07XAZ-S1A0200

C852

RED

RED/YEL

SRS FLOOR HARNESS 28P CONNECTOR

12. Reconnect the battery negative cable.

13. Disconnect the SRS inflator simulator from SRS

simulator lead E.

14. Turn the ignition switch ON (II).

15. Check for voltage between each terminal of SRS

simulator lead E and body ground. There should be
0.5 V or less.

Faulty SRS unit; replace the SRS unit (see

page 23-384).

Go to step 16.

16. Turn the ignition switch OFF.

17. Disconnect the SRS floor harness 28P connector (A)

from SRS floor subharness C852.

18. Turn the ignition switch ON (II).

19. Check for voltage between the No. 23 terminal of

the SRS floor harness 28P connector and body
ground, and between the No. 24 terminal and body
ground. There should be 0.5 V or less.

Short to power in the SRS floor subharness

or right side wire harness; replace the faulty
harness.

Short to power in the SRS floor harness;

replace the SRS floor harness.

Terminal side of male terminals

Is the voltage as specif ied?

03/07/29 10:39:32 61S0X050_230_0258

−

＊０１

０１

０２

Ｓ０Ｘ４ＡＳＩＫ７９１０００Ｒ３２９ＸＦＡＡＴ００

’03-04 Models

DTC 32-9x (32-90 to 32-99, 32-9A to 32-9F):

Special Tools Required

YES

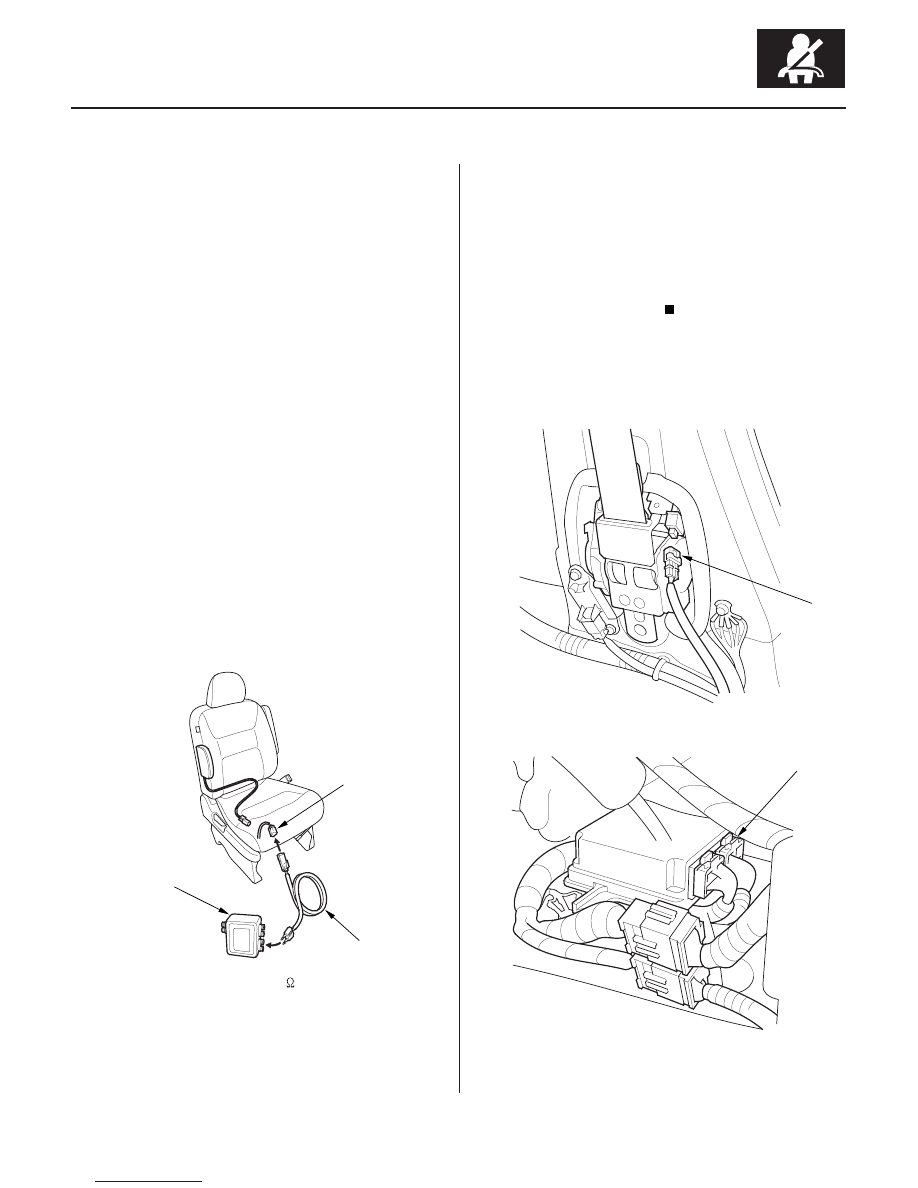

23-259

07XAZ-S1A0200

07SAZ-TB4011A

Short to Ground in Front Passenger’s Side
Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the right side wire harness 2P

connector (A) from the front passenger’s side
airbag.

5. Connect the special tool (2

connector) to the

right side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-38).

Go to step 9.

Short to ground in the front passenger’s side

airbag inflator; replace the front passenger’s side
airbag (see page 23-372).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect both seat belt tensioner 2P connectors

from the side wire harness (A).

11. Disconnect SRS unit connector B (28P) from the

SRS unit.

(cont’d)

Does the SRS indicator stay on?

Is DT C 32-9x indicated?

03/07/29 10:39:33 61S0X050_230_0259

−

０３

＊０２

＊０３

YES

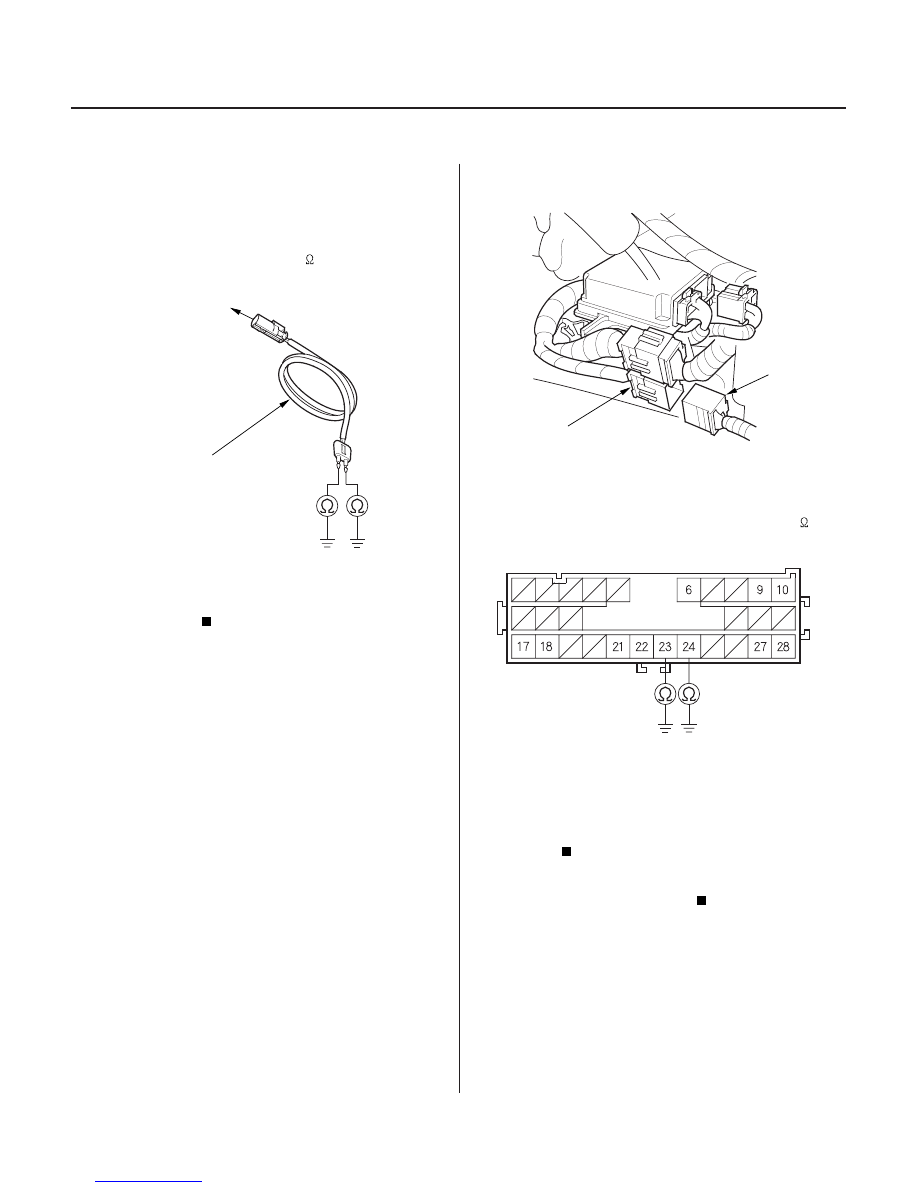

23-260

SRS

DTC Troubleshooting (cont’d)

RIGHT SIDE WIRE HARNESS
2P CONNECTOR

07XAZ-S1A0200

C852

RED/YEL

RED

SRS FLOOR HARNESS 28P CONNECTOR

12. Disconnect the SRS inflator simulator from SRS

simulator lead E.

13. Check resistance between each terminal of SRS

simulator lead E and body ground. There should be
an open circuit, or at least 1 M

Faulty SRS unit; replace the SRS unit (see

page 23-384).

Go to step 14.

14. Disconnect the SRS floor harness 28P connector (A)

from SRS floor subharness C852 .

15. Check resistance between the No. 23 terminal of

the SRS floor harness 28P connector and body
ground, and No. 24 terminal and body ground.
There should be an open circuit, or at least 1 M

Short to ground in the SRS floor subharness

or right side wire harness; replace the faulty
harness.

Short to ground in the SRS floor harness;

replace the SRS floor harness.

Terminal side of male terminals

Is the r esistance as specif ied?

03/07/29 10:39:33 61S0X050_230_0260

−

０１

０２

０１

Ｓ０Ｘ４ＡＺＢＫ７９１０００Ｒ４１１ＸＦＡＡＴ２０

’03-04 Models

DTC 41-1x (41-10 to 41-19, 41-1A to 41-1F):

Special Tools Required

YES

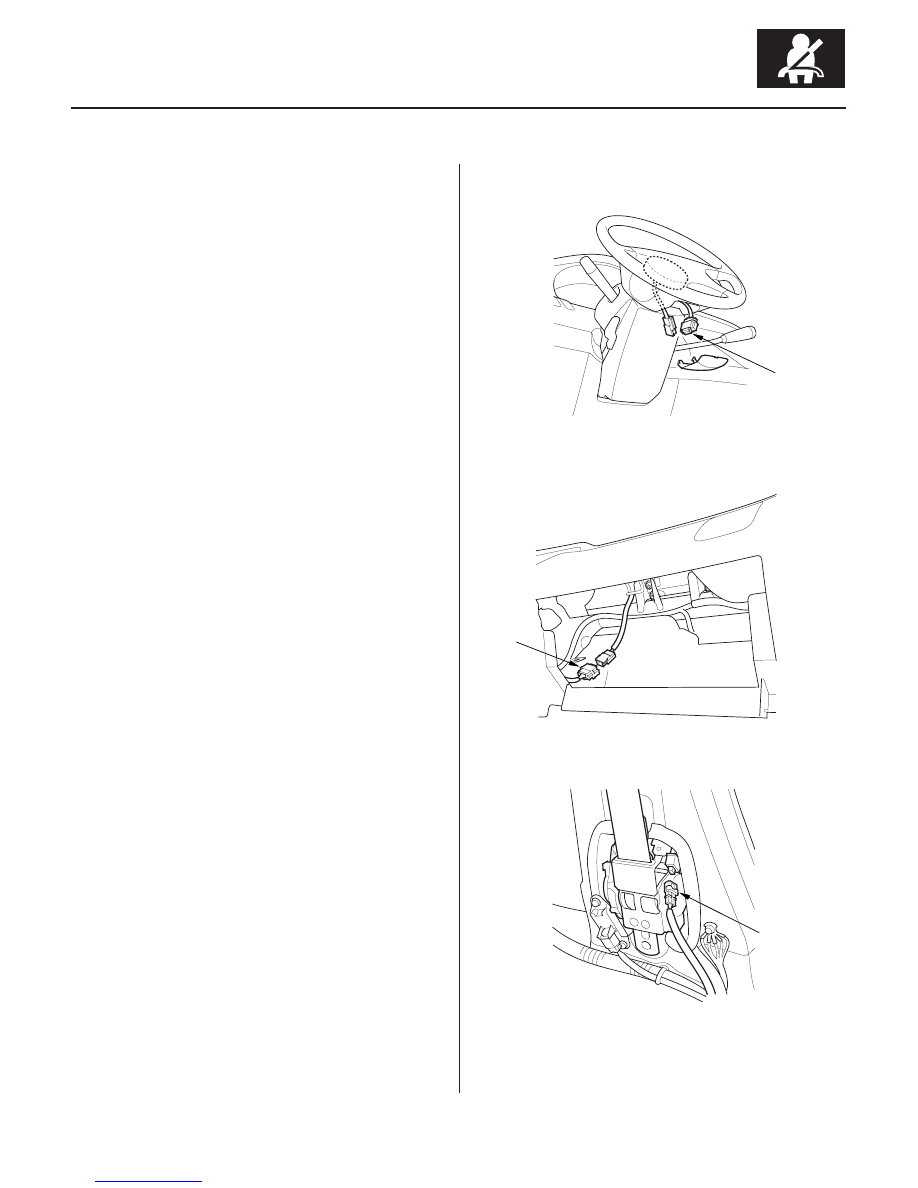

23-261

No Signal from the Left Front Impact Sensor

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead H 07YAZ-S3AA100

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Check the

connections between SRS unit connector A (28P)
and the SRS unit, and between the left engine
compartment wire harness 2P connector and the
left front sensor (see page 23-20), and at
connectors C851 and C304.

Go to step 4.

Repair the poor connections and retest. If DTC

41-1x is still present, go to step 4.

4. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

5. Disconnect the driver’s airbag 4P connector from

the cable reel (A).

6. Disconnect the front passenger’s airbag 4P

connector from the SRS main harness (A).

7. Disconnect both seat belt tensioner 2P connectors

from the side wire harness (A).

(cont’d)

Does the SRS indicator stay on?

Ar e the connections OK ?

03/07/29 10:39:34 61S0X050_230_0261
