Honda Odyssey 2004. Manual - part 570





02

03

04

YES

NO

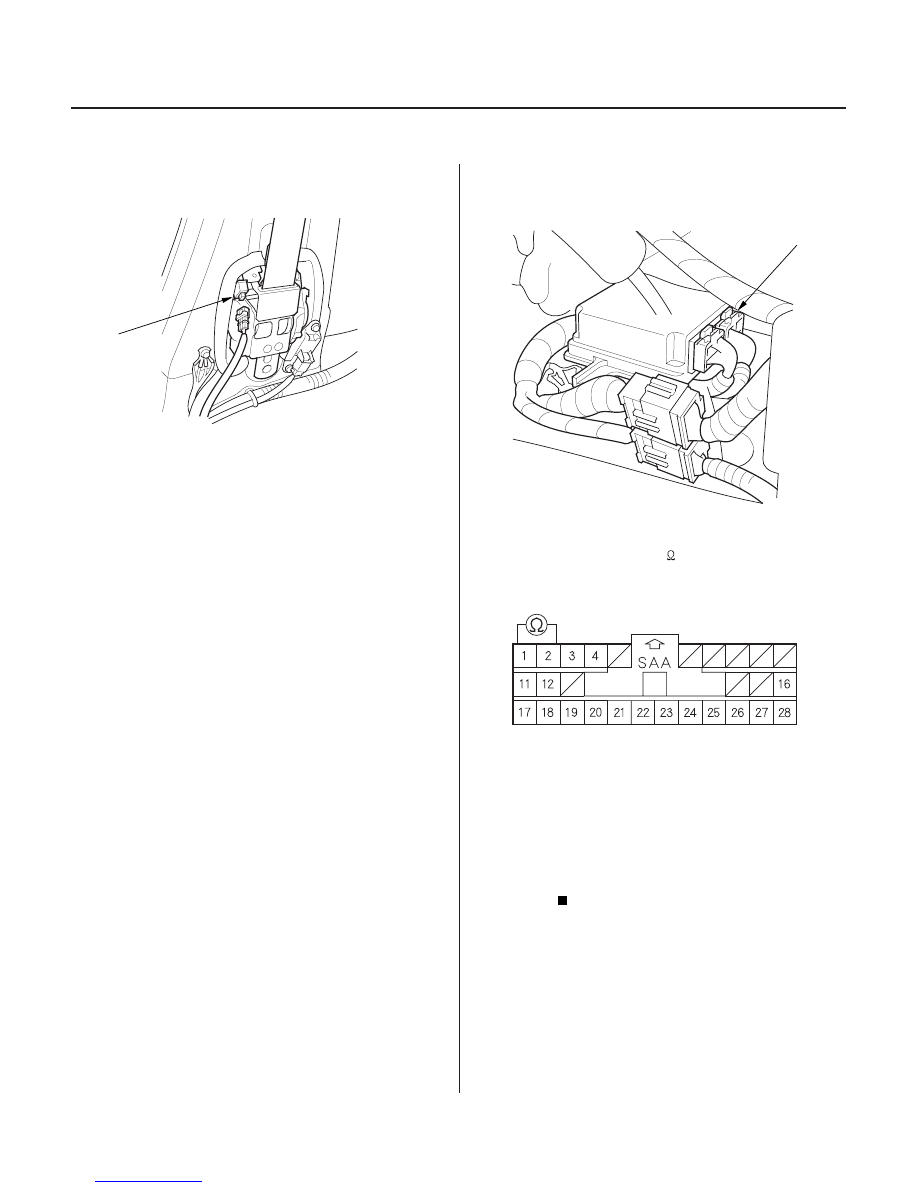

23-222

SRS

DTC Troubleshooting (cont’d)

A

B

RED/WHT

RED/
BLU

SRS UNIT CONNECTOR B (28P)

16. Disconnect the front passenger’s seat belt

tensioner connector (A).

17. Disconnect SRS unit connector B (28P) from the

SRS unit. Do not disconnect the special tool from
the SRS main harness 2P connector.

18. Check resistance between the No. 1 terminal and

the No. 2 terminal of SRS unit connector B (28P).
There should be 2.0

3.0

.

Faulty SRS unit or poor contact at SRS unit

connector B (28P). Check the connection; if the
connection is OK, replace the SRS unit (see page
23-384).

Go to step 19.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:37:57 61S0X050_230_0222

*02

06

YES

NO

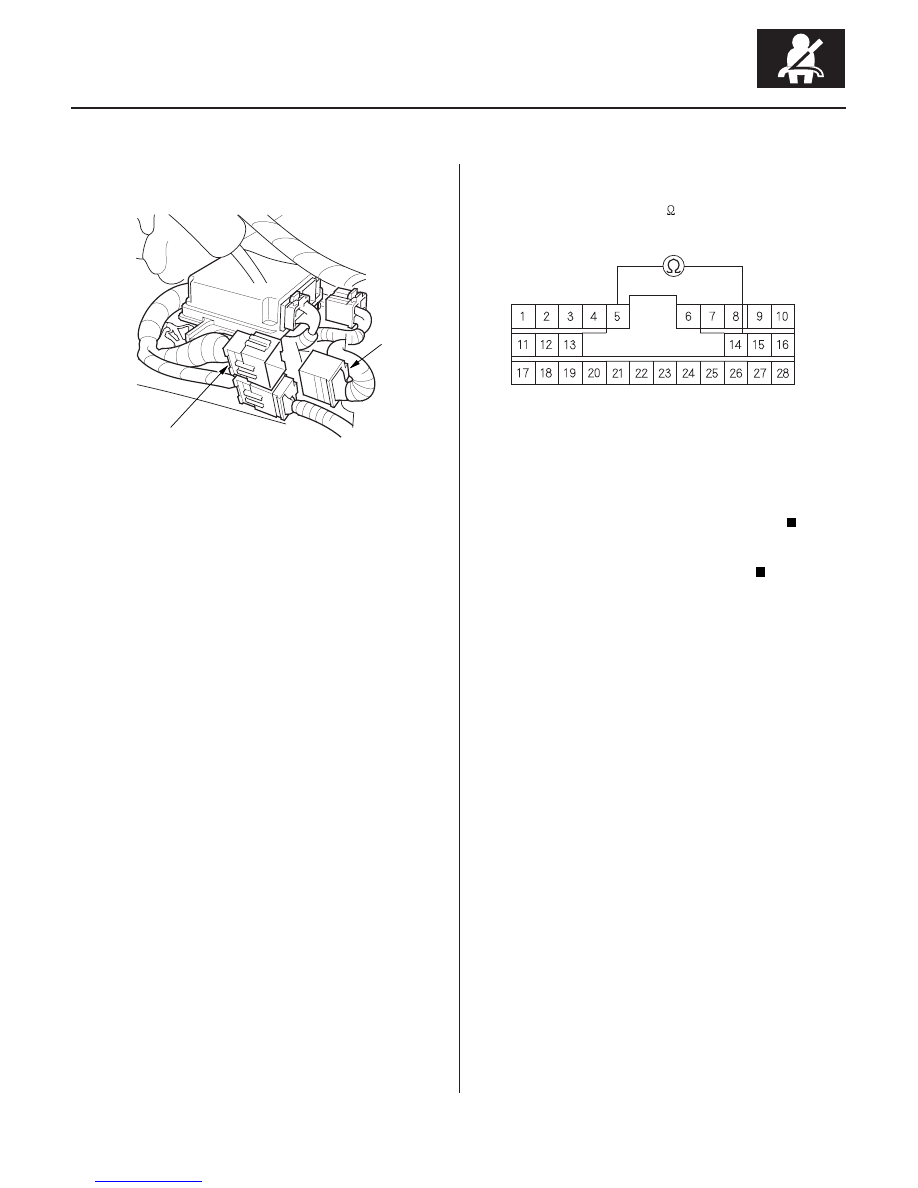

23-223

A

C851

RED/BLU

RED/WHT

SRS MAIN HARNESS 28P CONNECTOR

19. Disconnect the SRS floor harness 28P connector (A)

from SRS main harness connector C851.

20. Check resistance between the No. 5 and No. 14

terminals of the SRS main harness 28P connector.
There should be 2.0

3.0

.

Open or increased resistance in the SRS

floor harness; replace the SRS floor harness.

Open or increased resistance in the SRS main

harness; replace the SRS main harness.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:37:57 61S0X050_230_0223

01

*01

S0X4AZBK791000R213XFAAT00

’03-04 Models

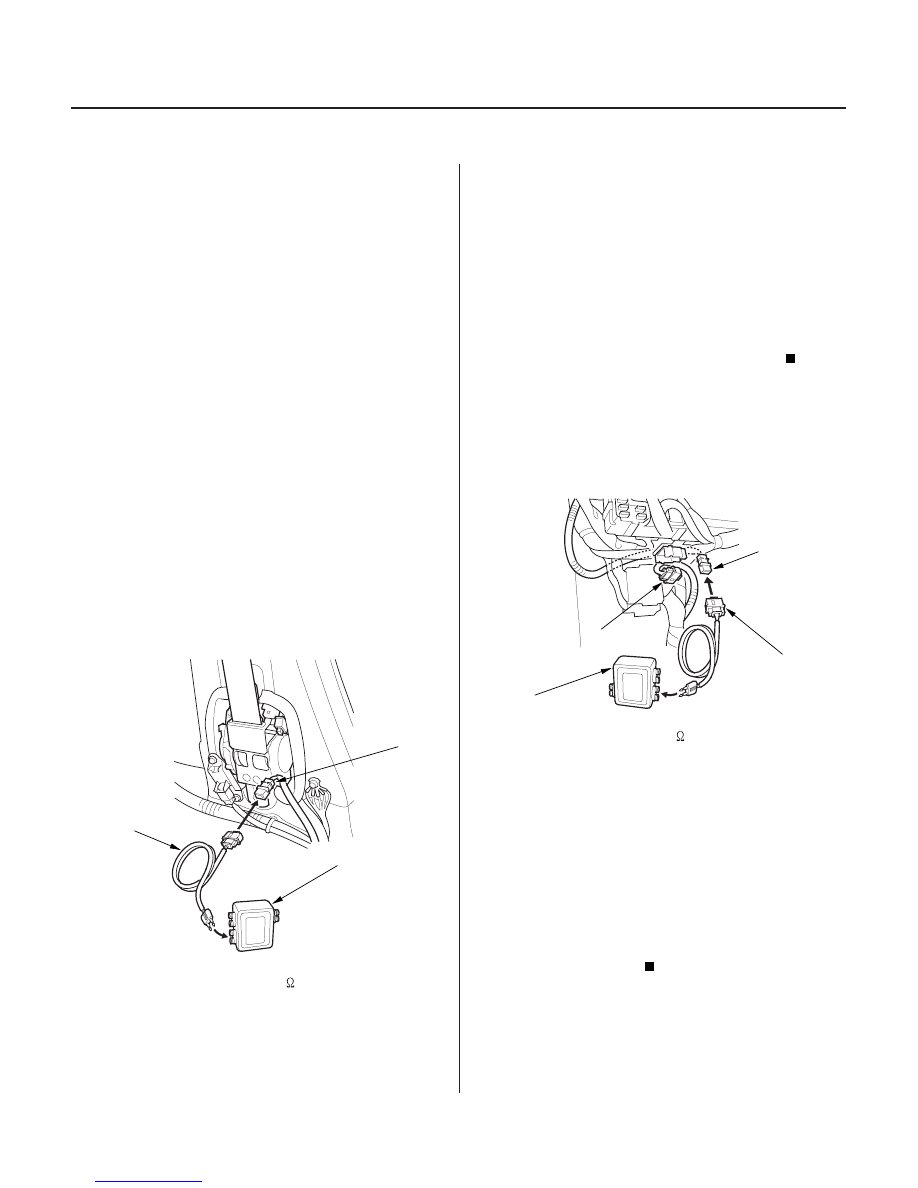

DTC 21-3x (21-30 to 21-39, 21-3A to 21-3F):

Special Tools Required

YES

NO

YES

NO

YES

NO

23-224

SRS

DTC Troubleshooting (cont’d)

07SAZ-TB4011A

07TAZ-SZ5011A

A

A

07TAZ-SZ5011A

07SAZ-TB4011A

C551

Short to Another Wire or Decreased
Resistance in Driver’s Seat Belt Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s seat belt tensioner 2P

connector from the left side wire harness (A).

5. Connect the special tool (2

connector) to the left

side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-38).

Go to step 9.

Short in the driver’s seat belt tensioner;

replace the driver’s seat belt (see page 23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the SRS main harness 2P connector

C551 from the left side wire harness 2P connector
(A).

11. Connect the special tool (2

connector) to the SRS

main harness 2P connector.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short in the left side wire harness; replace the

left side wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

Does the SRS indicator stay on?

Is DT C 21-3x indicated?

Is DT C 21-3x indicated?

03/07/29 10:37:58 61S0X050_230_0224

02

03

04

YES

NO

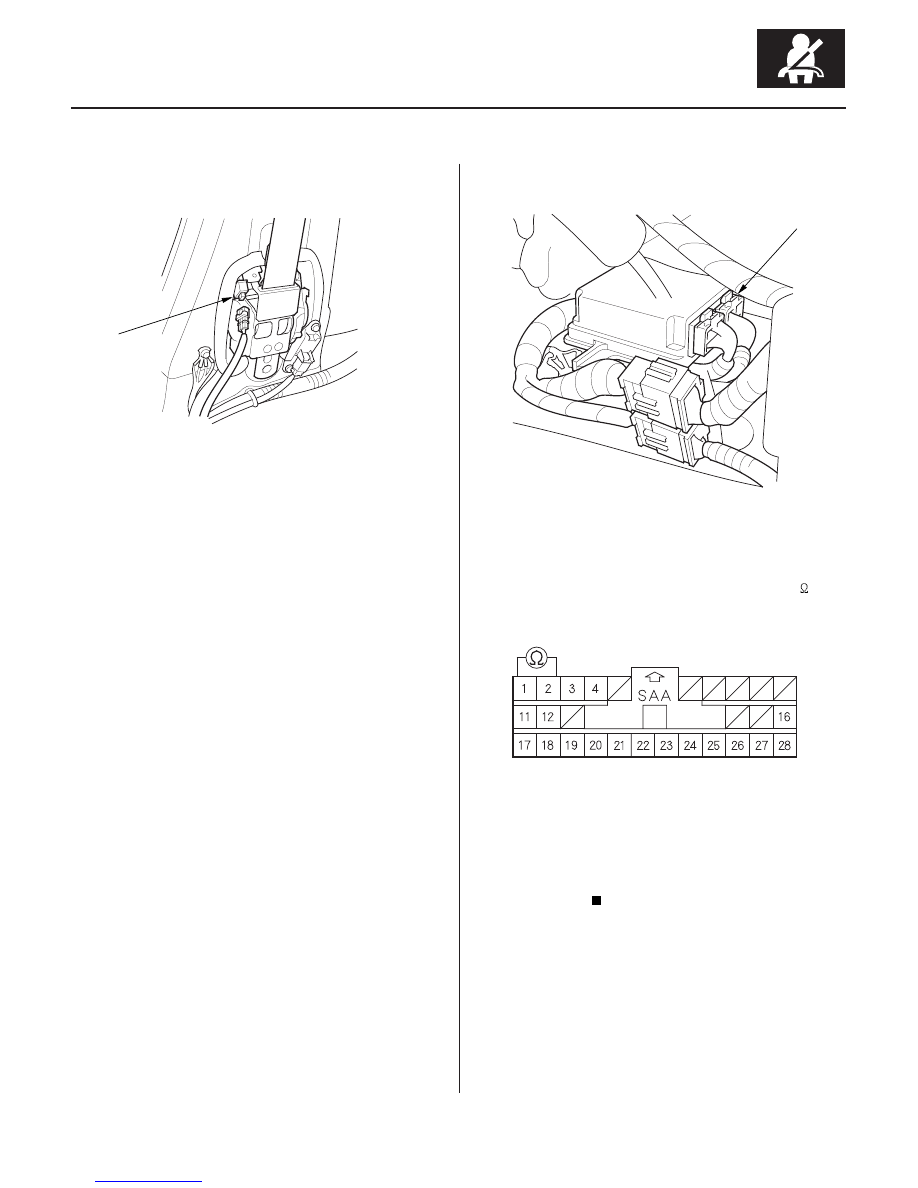

23-225

A

B

RED/WHT

RED/
BLU

SRS UNIT CONNECTOR B (28P)

16. Disconnect the front passenger’s seat belt

tensioner connector (A).

17. Disconnect SRS unit connector B (28P) from the

SRS unit.

18. Disconnect the special tool from the SRS main

harness 2P connector.

19. Check resistance between the No. 1 terminal and

No. 2 terminals of SRS unit connector B (28P).
There should be an open circuit, or at least 1 M

.

Faulty SRS unit; replace the SRS unit (see

page 23-384).

Go to step 20.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:37:59 61S0X050_230_0225
