Honda Odyssey 2004. Manual - part 567

−

０１

Ｓ０Ｘ４ＡＺＢＫ７９１０００Ｒ１１９ＸＦＡＡＴ００

’03-04 Models

DTC 11-9x (11-90 to 11-99, 11-9A to 11-9F):

DTC 11-Bx (11-B0 to 11-B9, 11-BA to 11-BF):

Special Tools Required

YES

23-210

SRS

DTC Troubleshooting (cont’d)

07XAZ-SZ30100

07SAZ-TB4011A

Short to Ground in Driver’s Airbag First
Inflator

Short to Ground in Driver’s Airbag Second
Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

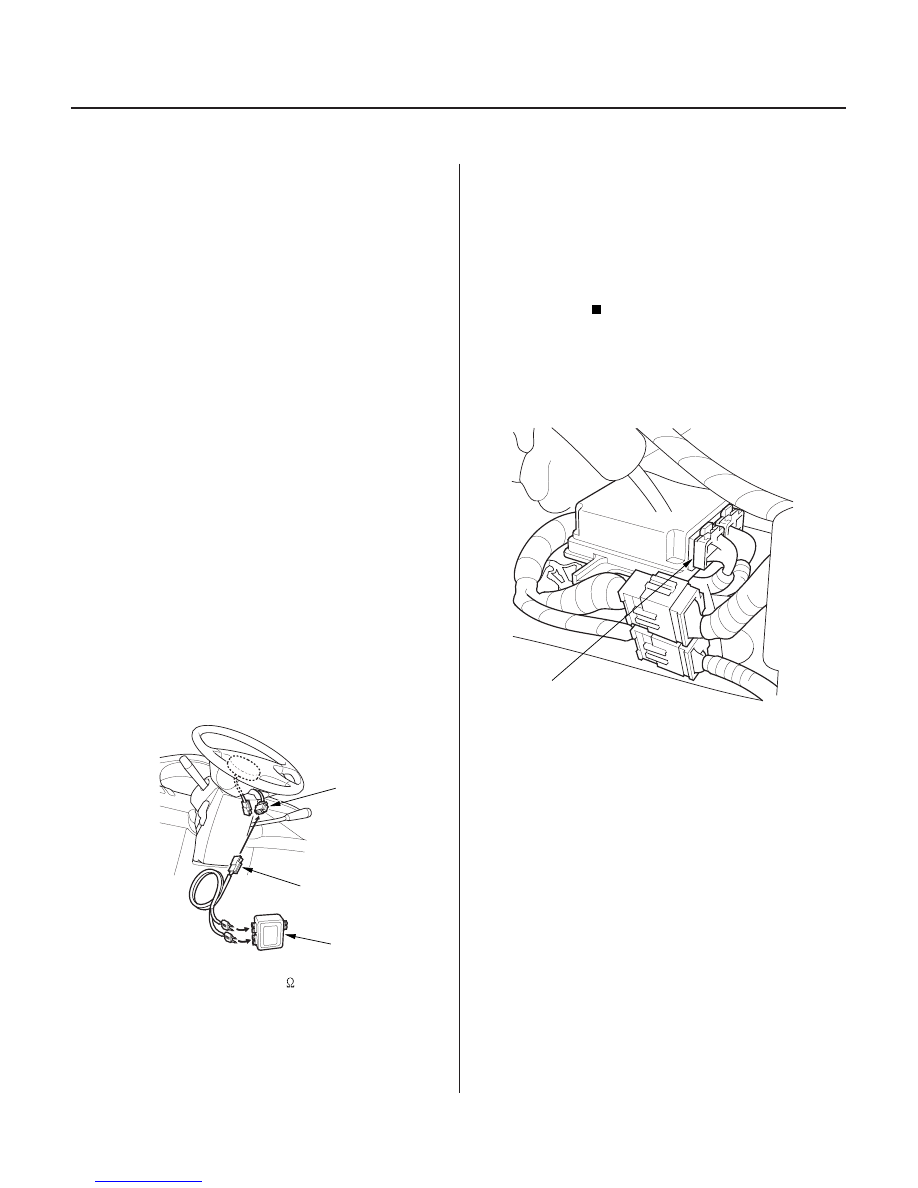

4. Disconnect the driver’s airbag 4P connector from

the cable reel (A).

5. Connect the special tool (2

connectors) to the

cable reel 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-38).

Go to step 9.

Short to ground in the driver’s airbag first or

second inflator; replace the driver’s airbag (see
page 23-368).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect SRS unit connector A (28P) from the

SRS unit.

11. Disconnect the SRS inflator simulator from SRS

simulator lead F.

Does the SRS indicator stay on?

Is DT C 11-9x, or 11-Bx indicated?

03/07/29 10:37:49 61S0X050_230_0210

−

０２

０３

YES

23-211

CABLE
REEL 4P CONNECTOR

07XAZ-SZ30100

CABLE
REEL 4P CONNECTOR

07XAZ-SZ30100

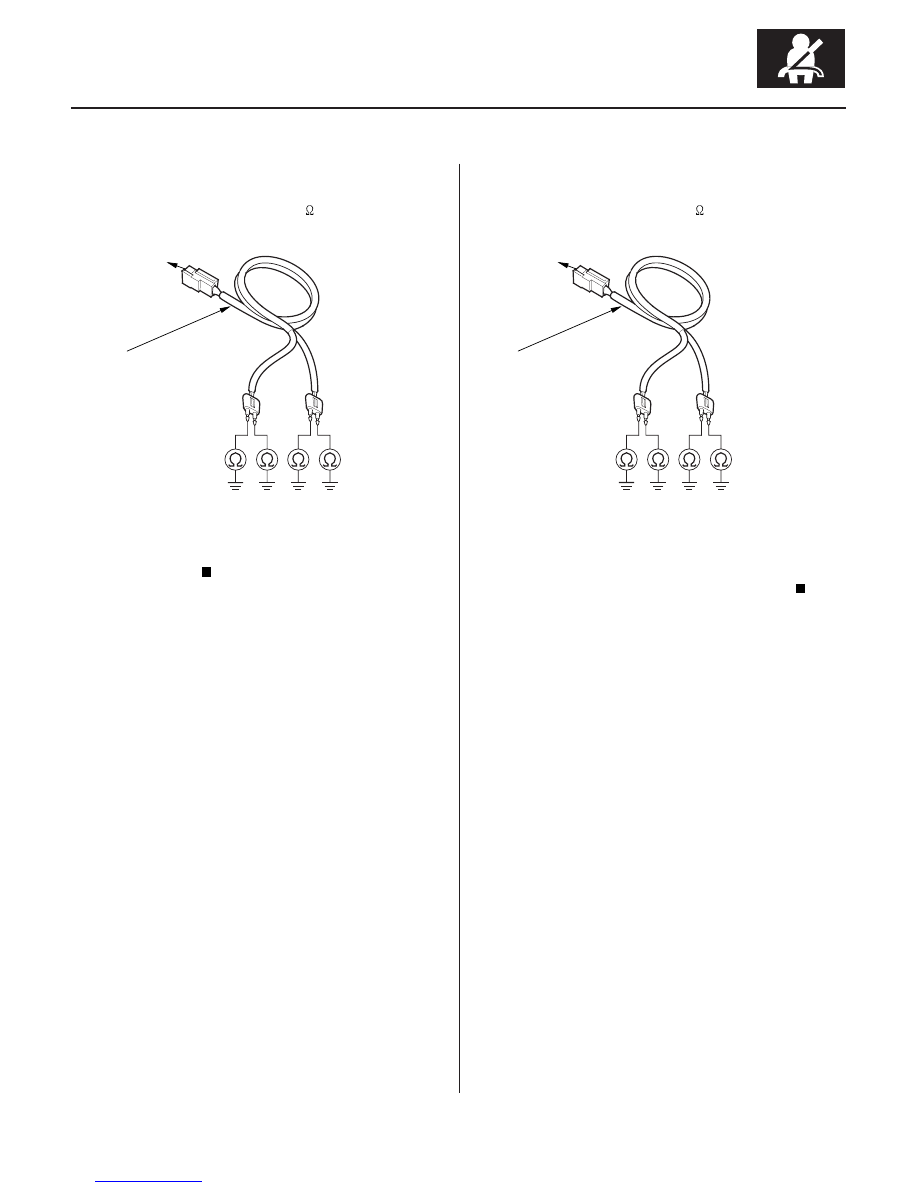

12. Check resistance between each terminal of SRS

simulator lead F and body ground. There should be
an open circuit, or at least 1 M

Faulty SRS unit; replace the SRS unit (see

page 23-384).

Go to step 13.

13. Disconnect the SRS main harness 4P connector

from the cable reel 4P connector.

14. Check resistance between each terminal of SRS

simulator lead F and body ground. There should be
an open circuit, or at least 1 M

Go to step 15.

Replace the cable reel (see page 23-377).

(cont’d)

Is the r esistance as specif ied?

03/07/29 10:37:50 61S0X050_230_0211

−

＊０１

０５

YES

23-212

SRS

DTC Troubleshooting (cont’d)

C851

SRS FLOOR HARNESS 28P CONNECTOR

GRN/YEL

GRN/WHT

GRN

GRN/BLK

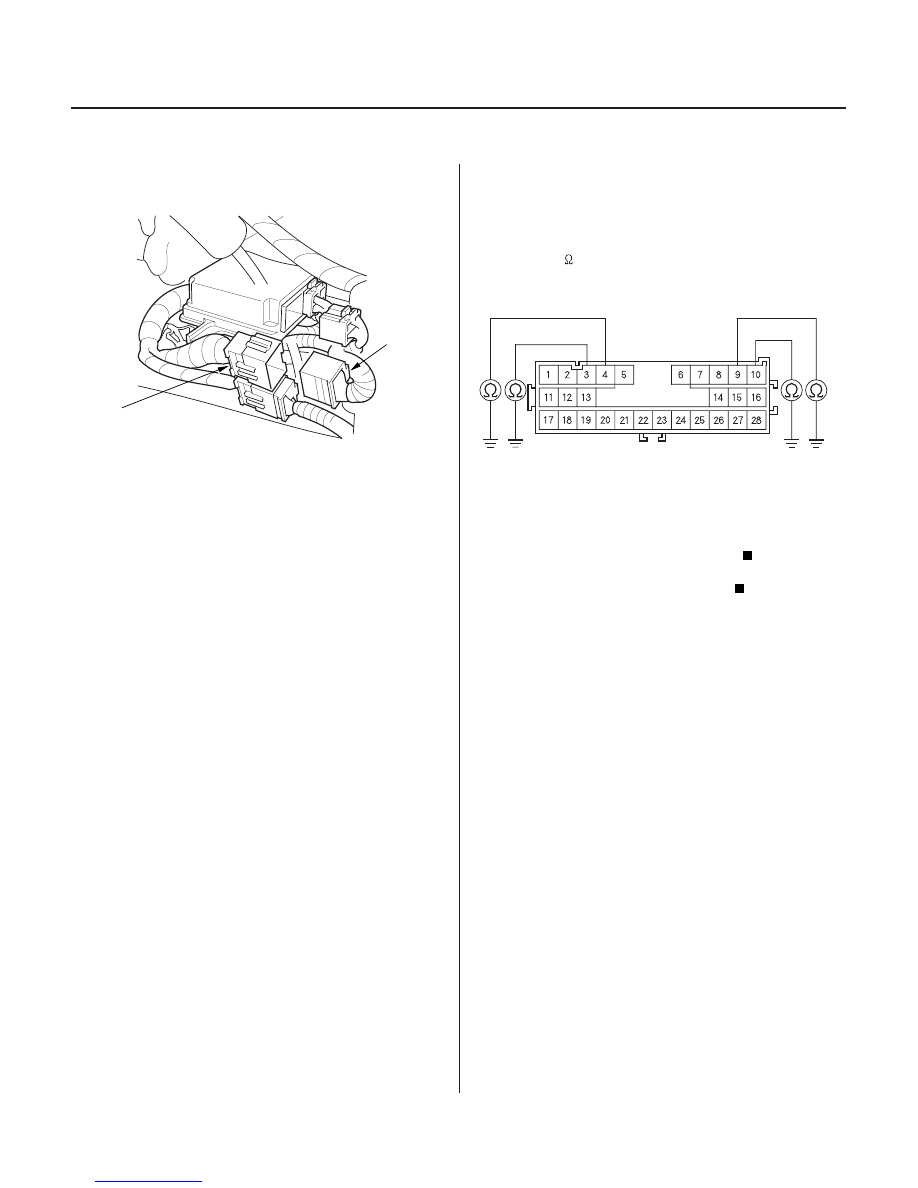

15. Disconnect the SRS floor harness 28P connector (A)

from SRS main harness connector C851.

16. Check resistance between the No. 9 terminal of the

SRS floor harness 28P connector and body ground,
the No. 10 terminal and body ground, the No. 3
terminal and body ground, and No. 4 terminal and
body ground. There should be an open circuit, or at
least 1 M

Replace the SRS main harness.

Replace the SRS floor harness.

Terminal side of male terminals

Is the r esistance as specif ied?

03/07/29 10:37:50 61S0X050_230_0212

−

０１

Ｓ０Ｘ４ＡＺＢＫ７９１０００Ｒ１２１ＸＦＡＡＴ２０

’03-04 Models

DTC 12-1x (12-10 to 12-19, 12-1A to 12-1F):

DTC 12-4x (12-40 to 12-49, 12-4A to 12-4F):

Special Tools Required

YES

23-213

07XAZ-SZ30100

07SAZ-TB4011A

Open or Increased Resistance in Front
Passenger’s Airbag First Inflator

Open or Increased Resistance in Front
Passenger’s Airbag Second Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s airbag 4P

connector from the SRS main harness (A).

5. Connect the special tool (2

connectors) to the

SRS main harness 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-38).

Go to step 9.

Open or increased resistance in the front

passenger’s airbag first or second inflator; replace
the front passenger’s airbag (see page 23-370).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect SRS unit connector A (28P) from the

SRS unit. Do not disconnect the special tool from
the SRS main harness.

11. Disconnect the SRS Inflator simulator from SRS

simulator lead F.

(cont’d)

Does the SRS indicator stay on?

Is DT C 12-1x or 12-4x indicated?

03/07/29 10:37:51 61S0X050_230_0213
