23-174

SRS

DTC Troubleshooting (cont’d)

B

SRS UNIT CONNECTOR B (18P)

C852

A

SRS FLOOR SUBHARNESS 28P CONNECTOR

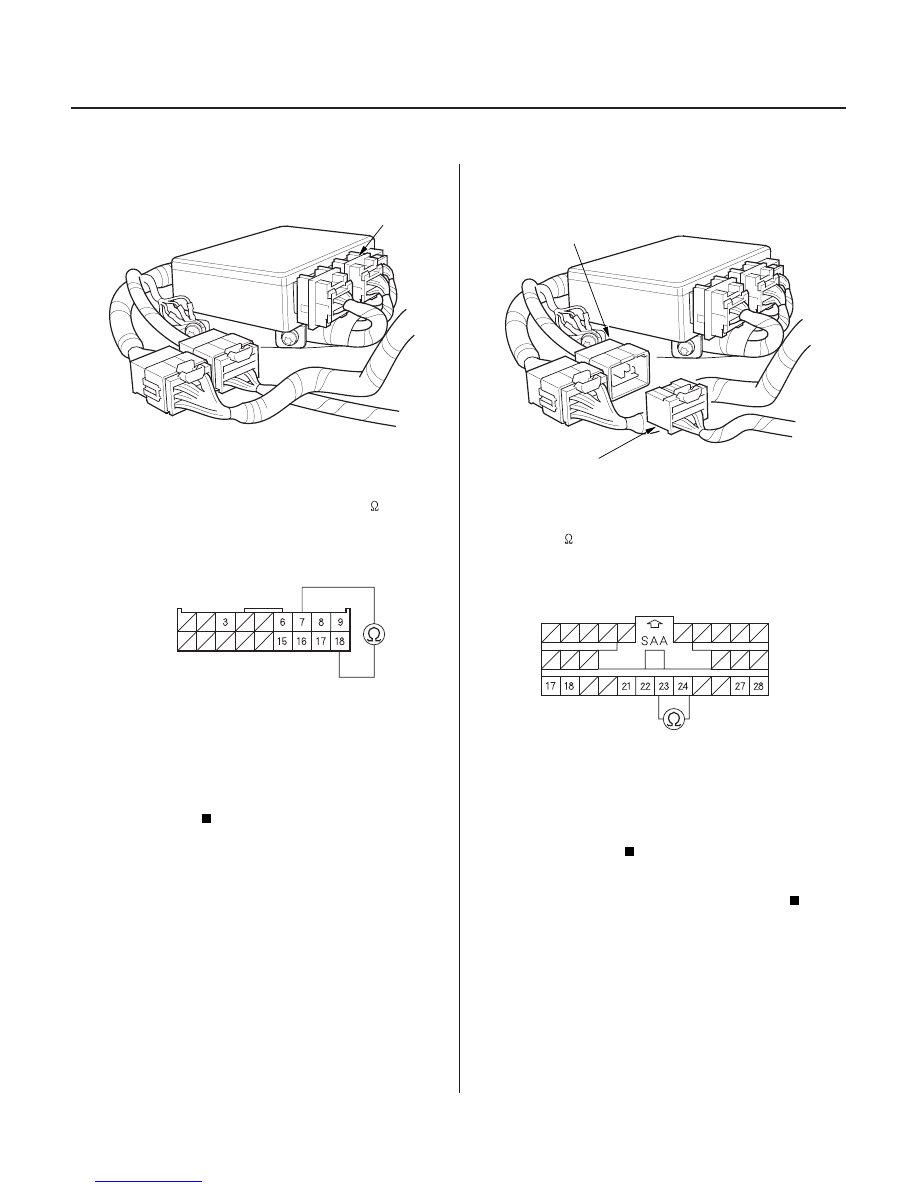

12. Disconnect SRS unit connector B (18P) from the

SRS unit.

13. Check resistance between the No. 7 and No. 18

terminals of SRS unit connector B (18P). There
should be an open circuit, or at least 1 M

.

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 14.

14. Disconnect the SRS floor subharness 28P

connector (A) from the SRS floor harness 28P
connector C852.

15. Check resistance between the No. 23 and No. 24

terminals of the SRS floor subharness 28P
connector. There should be an open circuit, or at
least 1 M

.

Short in the SRS floor harness; replace the

SRS floor harness.

Short in the SRS floor subharness or right

side wire harness; replace the faulty harness.

Wire side of female terminals

Wire side of female terminals

Is the r esistance as specif ied?

Is the r esistance as specif ied?

03/07/29 10:36:19 61S0X050_230_0174

01

02

S0X4AC5K79100081124FAAT00

’02 Model

DTC 12-4:

Special Tools Required

YES

NO

YES

NO

23-175

07XAZ-S1A0200

07SAZ-TB4011A

B

A

A

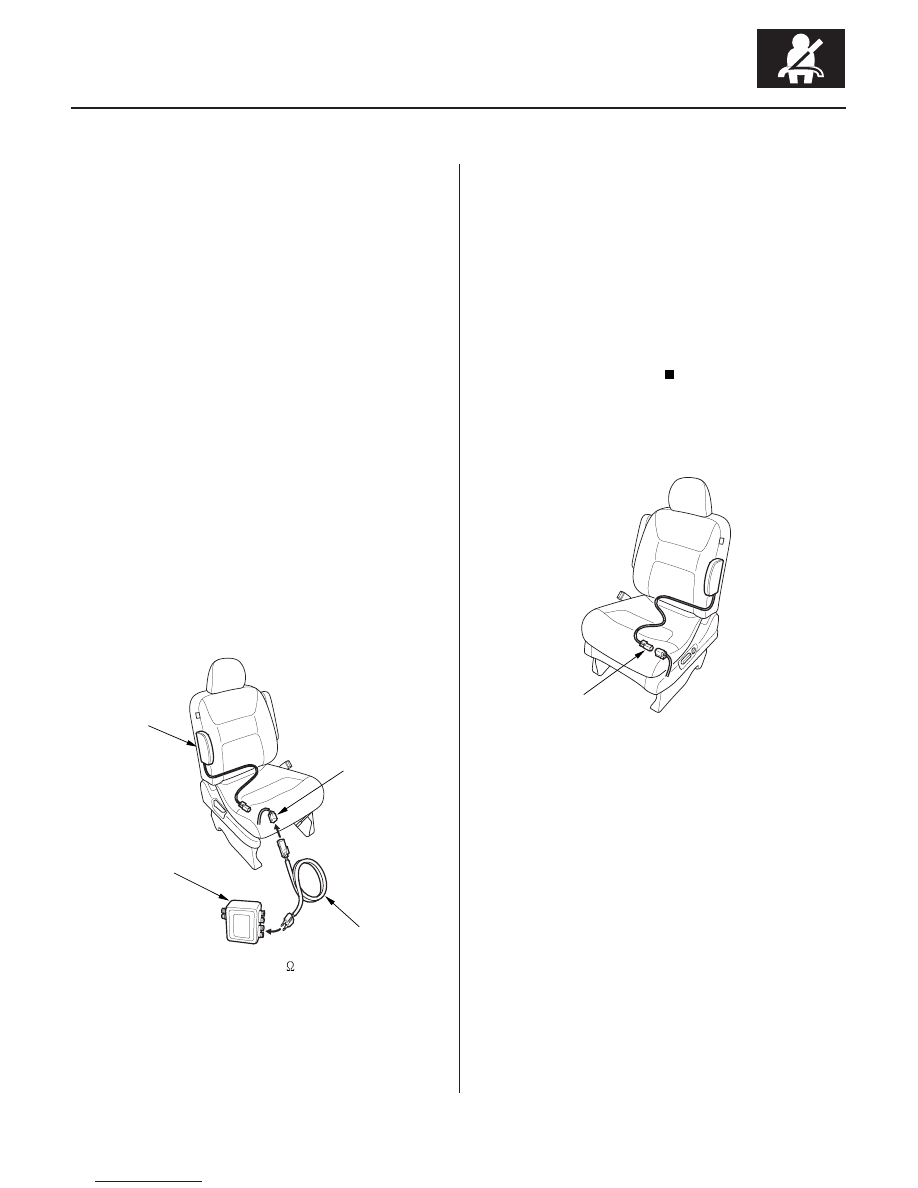

Short to Power in Front Passenger’s

Side Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the right side wire harness 2P

connector (A) from the front passenger’s side
airbag (B).

5. Connect the special tool (2

connector) to the

right side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short to power in the front passenger’s side

airbag inflator; replace the front passenger’s side
airbag (see page 23-372).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the driver’s side airbag 2P connector (A).

(cont’d)

Does the SRS indicator stay on?

Is DT C 12-4 indicated?

03/07/29 10:36:20 61S0X050_230_0175

03

01

*01

02

YES

NO

YES

NO

23-176

SRS

DTC Troubleshooting (cont’d)

B

SRS UNIT CONNECTOR B (18P)

C852

A

SRS FLOOR SUBHARNESS 28P CONNECTOR

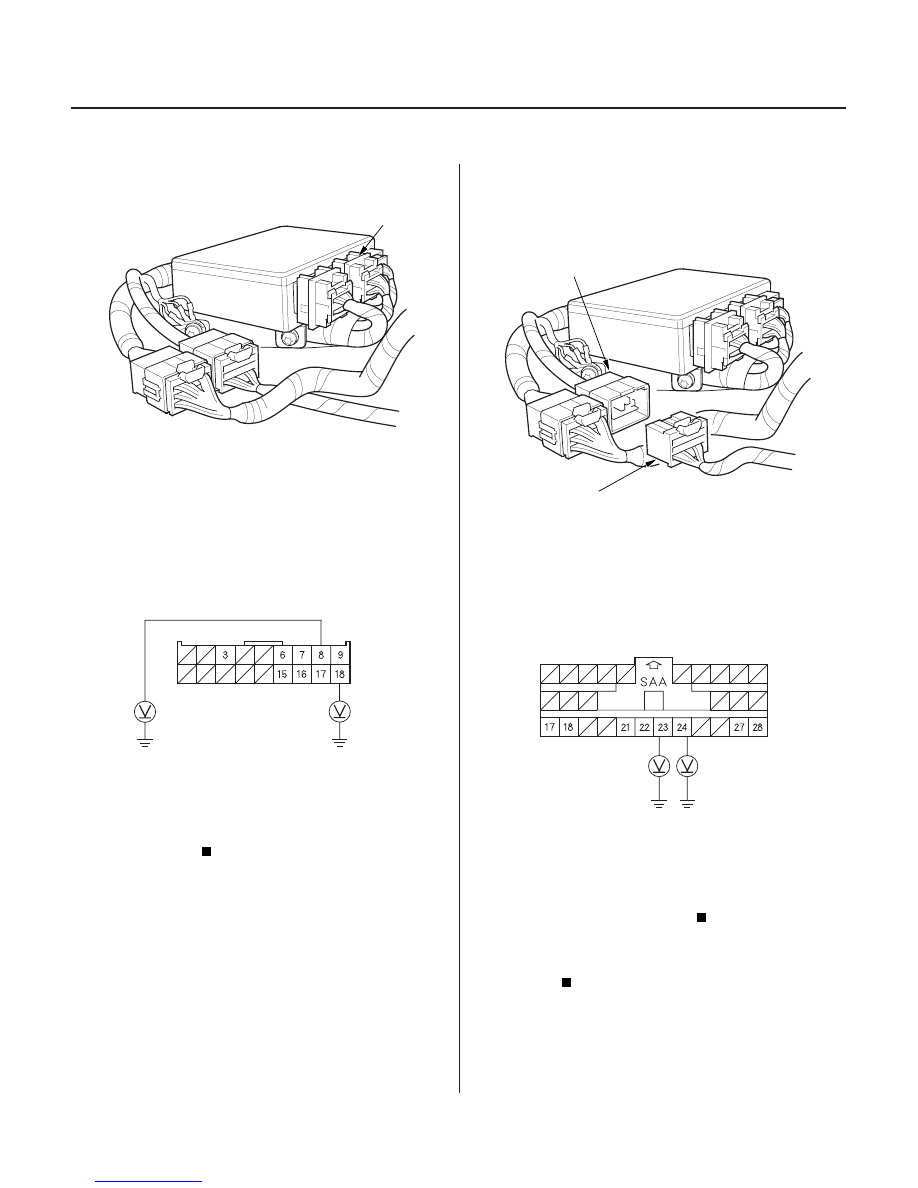

11. Disconnect SRS unit connector B (18P) from the

SRS unit.

12. Turn the ignition switch ON (II).

13. Check for voltage between the No. 8 terminal of

SRS unit connector B (18P) and body ground, and
between the No. 18 terminal and body ground.
There should be 0.5 V or less.

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 14.

14. Turn the ignition switch OFF.

15. Disconnect the SRS floor subharness 28P

connector (A) from the SRS floor harness 28P
connector C852.

16. Turn the ignition switch ON (II).

17. Check for voltage between the No. 23 terminal of

the SRS floor subharness 28P connector and body
ground, and between the No. 24 terminal and body
ground. There should be 0.5 V or less.

Short to power in the SRS floor harness;

replace the SRS floor harness.

Short to power in the SRS floor subharness or

right side wire harness; replace the faulty
harness.

Wire side of female terminals

Wire side of female terminals

Is the voltage as specif ied?

Is the voltage as specif ied?

03/07/29 10:36:21 61S0X050_230_0176

01

02

S0X4AC5K79100081125FAAT00

’02 Model

DTC 12-5:

Special Tools Required

YES

NO

YES

NO

23-177

07XAZ-S1A0200

07SAZ-TB4011A

B

A

A

Short to Ground in Front

Passenger’s Side Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the right side wire harness 2P

connector (A) from the front passenger’s side
airbag (B).

5. Connect the special tool (2

connector) to the

right side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short to ground in the front passenger’s side

airbag inflator; replace the front passenger’s side
airbag (see page 23-372).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the driver’s side airbag 2P connector (A).

(cont’d)

Does the SRS indicator stay on?

Is DT C 12-5 indicated?

03/07/29 10:36:21 61S0X050_230_0177
