23-126

SRS

DTC Troubleshooting (cont’d)

A

B

C

A

SRS UNIT CONNECTOR A (18P)

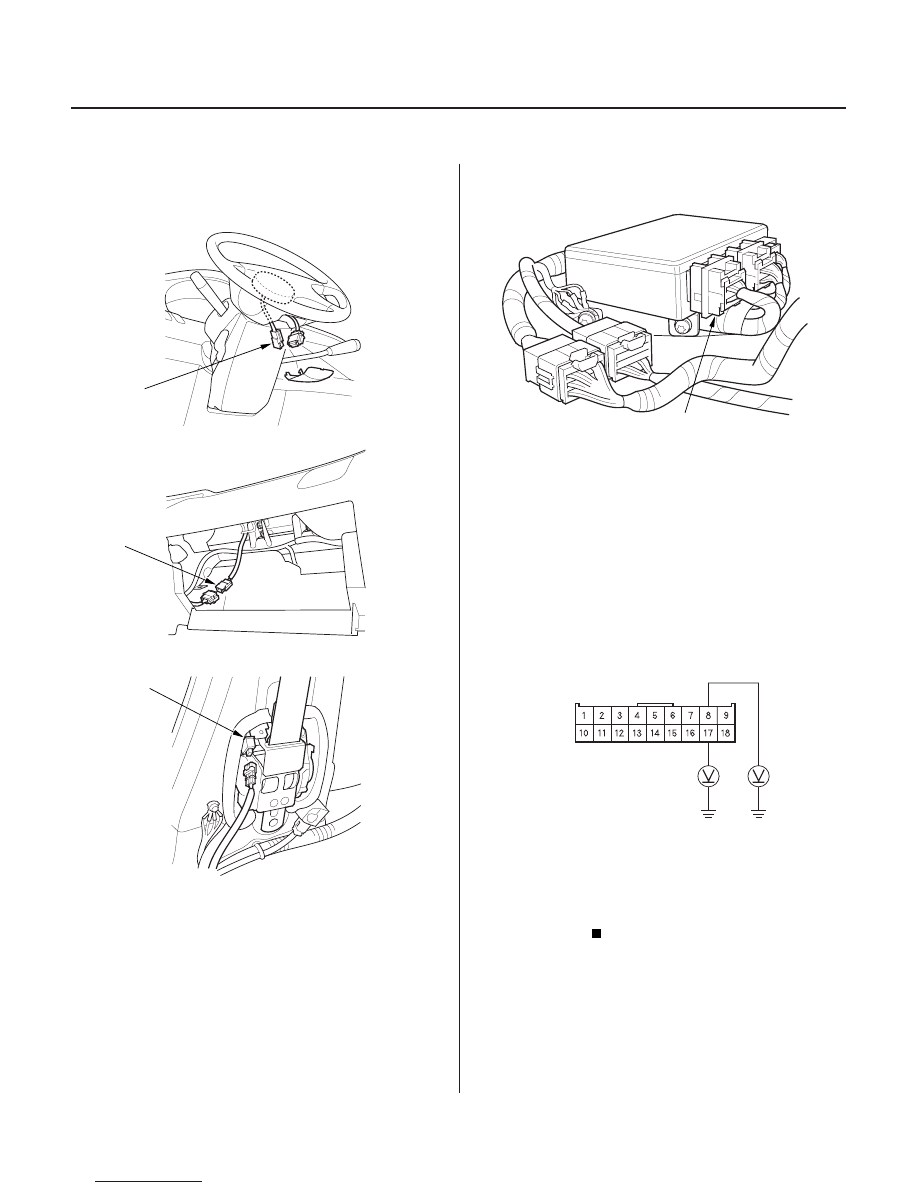

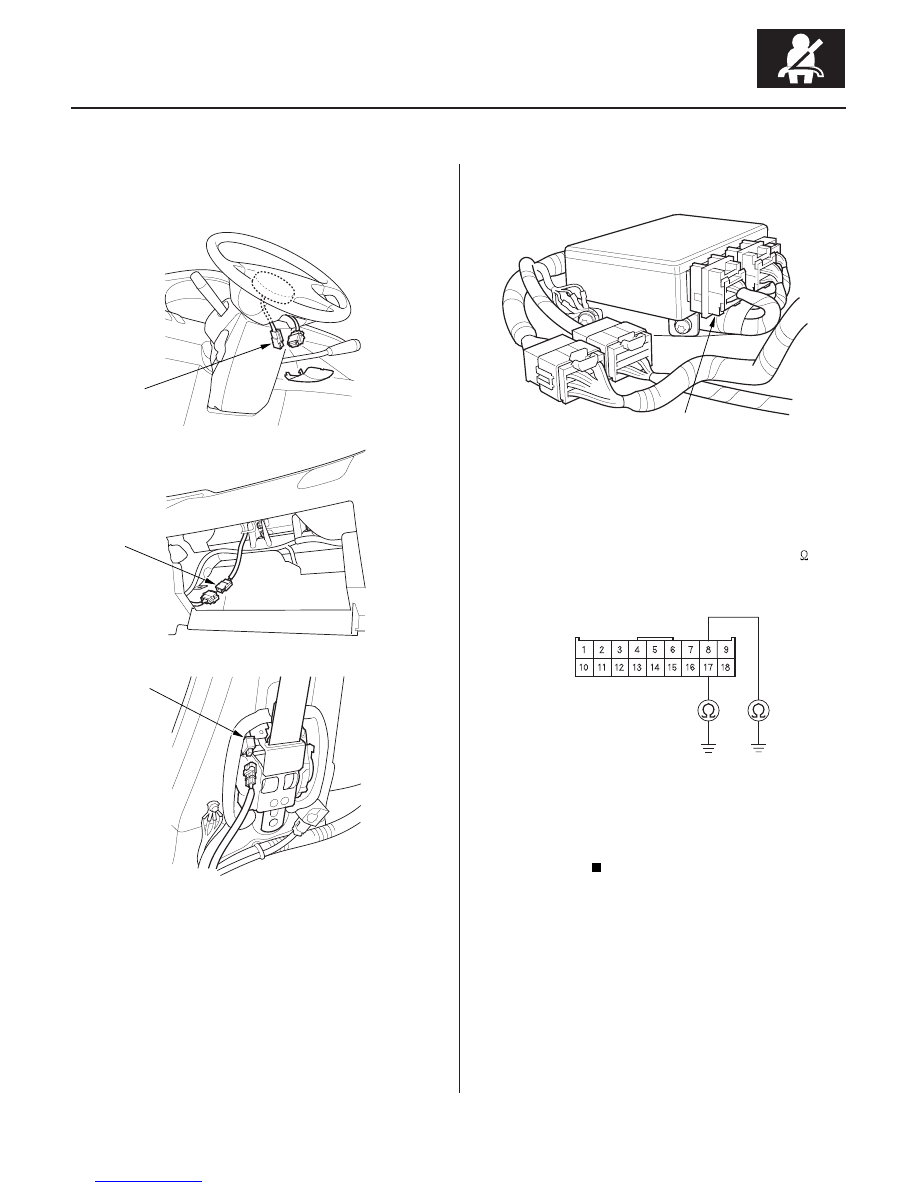

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and front
passenger’s seat belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit.

18. Disconnect the special tool from the SRS main

harness 2P connector.

19. Reconnect the battery negative cable.

20. Turn the ignition switch ON (II).

21. Check for voltage between the No. 8 terminal of

SRS unit connector A (18P) and body ground, and
between the No. 17 terminal and body ground.
There should be 0.5 V or less.

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 22.

Wire side of female terminals

Is the voltage as specif ied?

03/07/29 10:34:43 61S0X050_230_0126

*02

07

YES

NO

23-127

C851

A

SRS MAIN HARNESS 28P CONNECTOR

22. Turn the ignition switch OFF.

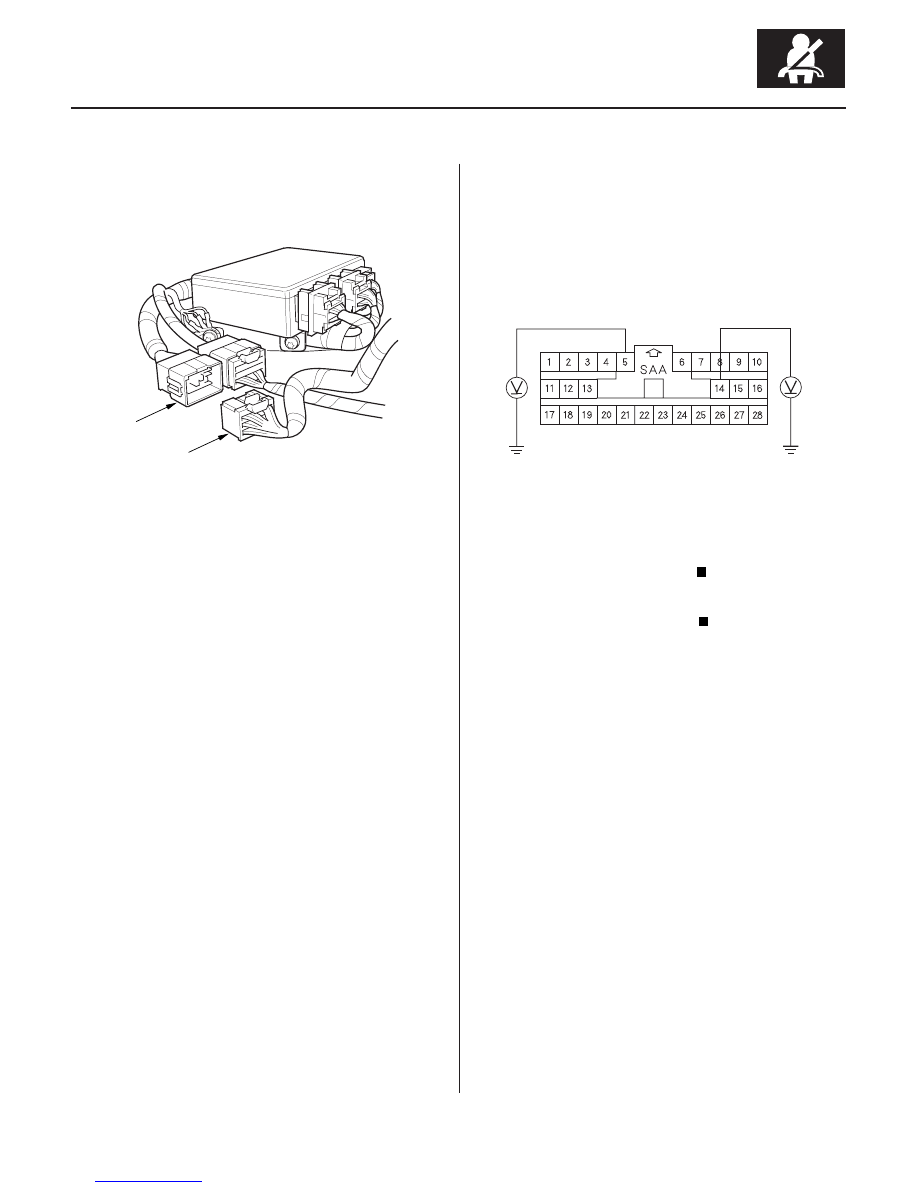

23. Disconnect the SRS main harness 28P connector

(A) from the SRS floor harness 28P connector C851.

24. Turn the ignition switch ON (II).

25. Check for voltage between the No. 5 terminal of the

SRS main harness 28P connector and body ground,
and between the No. 14 terminal and body ground.
There should be 0.5 V or less.

Short to power in the SRS floor harness;

replace the SRS floor harness.

Short to power in the SRS main harness;

replace the SRS main harness.

Wire side of female terminals

Is the voltage as specif ied?

03/07/29 10:34:43 61S0X050_230_0127

01

*01

S0X4AZ3K79100081035FAAT00

’02 Model

DTC 3-5:

Special Tools Required

YES

NO

YES

NO

YES

NO

23-128

SRS

DTC Troubleshooting (cont’d)

A

07TAZ-SZ5011A

07SAZ-TB4011A

A

C551

07TAZ-
SZ5011A

07SAZ-TB4011A

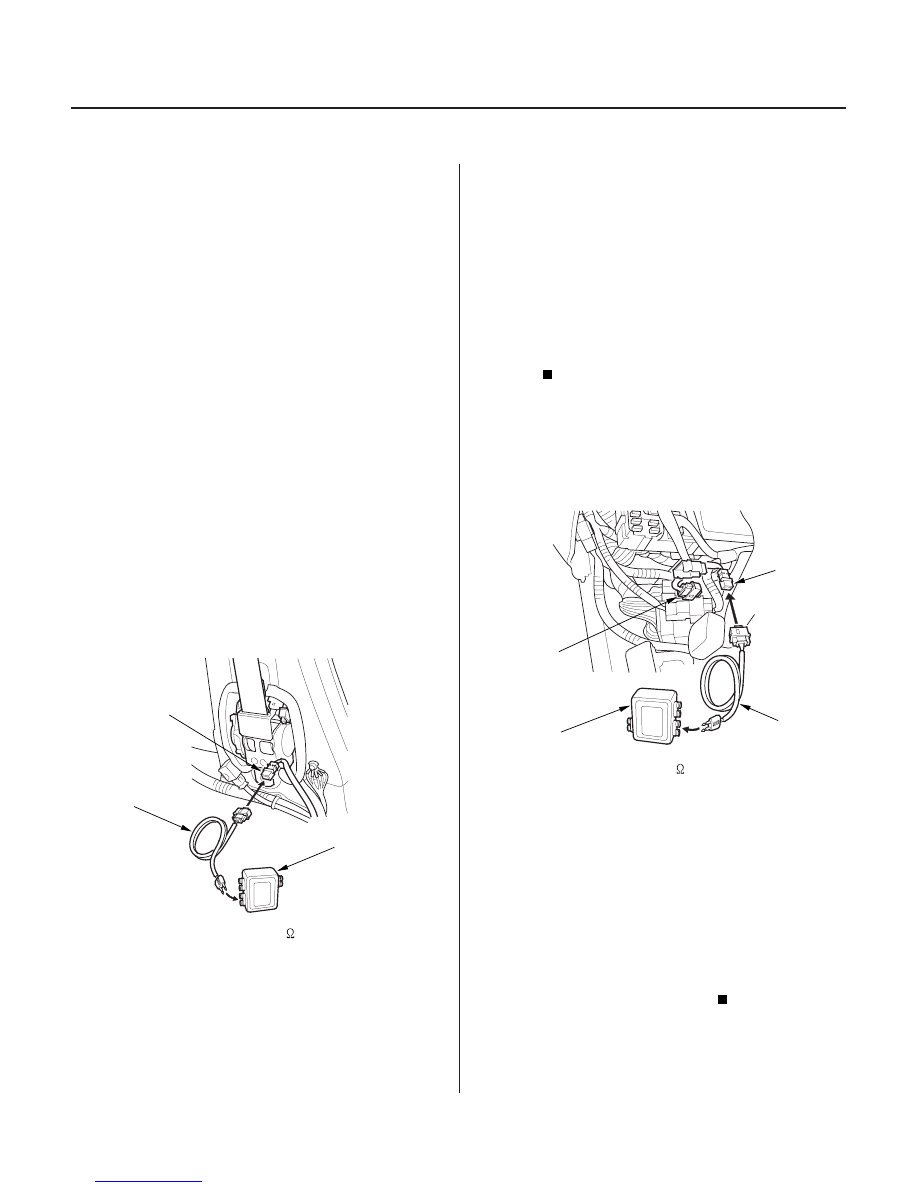

Short to Ground in Driver’s Seat Belt

Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s seat belt tensioner 2P

connector from the left side wire harness 2P
connector (A).

5. Connect the special tool (2

connector) to the left

side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short to ground in the driver’s seat belt

tensioner; replace the driver’s seat belt (see page
23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the SRS main harness 2P connector

C551 from the left side wire harness 2P
connector (A).

11. Connect the special tool (2

connector) to the SRS

main harness 2P connector.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short to ground in the left side wire harness;

replace the left side wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

Does the SRS indicator stay on?

Is DT C 3-5 indicated?

Is DT C 3-5 indicated?

03/07/29 10:34:44 61S0X050_230_0128

03

04

05

YES

NO

23-129

A

B

C

A

SRS UNIT CONNECTOR A (18P)

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and front
passenger’s seat belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit.

18. Disconnect the special tool from the SRS main

harness 2P connector.

19. Check resistance between the No. 8 terminal of

SRS unit connector A (18P) and body ground, and
between the No. 17 terminal and body ground.
There should be an open circuit, or at least 1 M

.

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 20.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:34:45 61S0X050_230_0129
