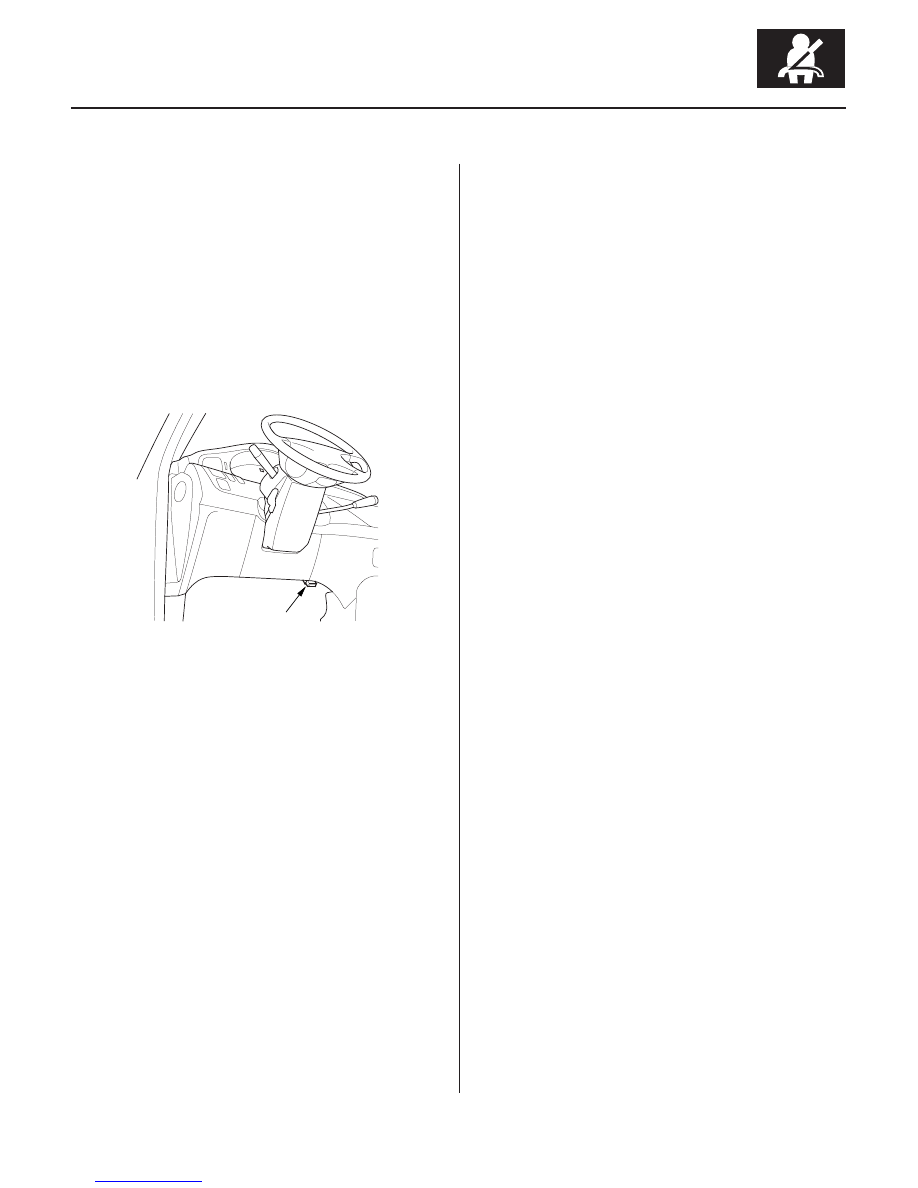

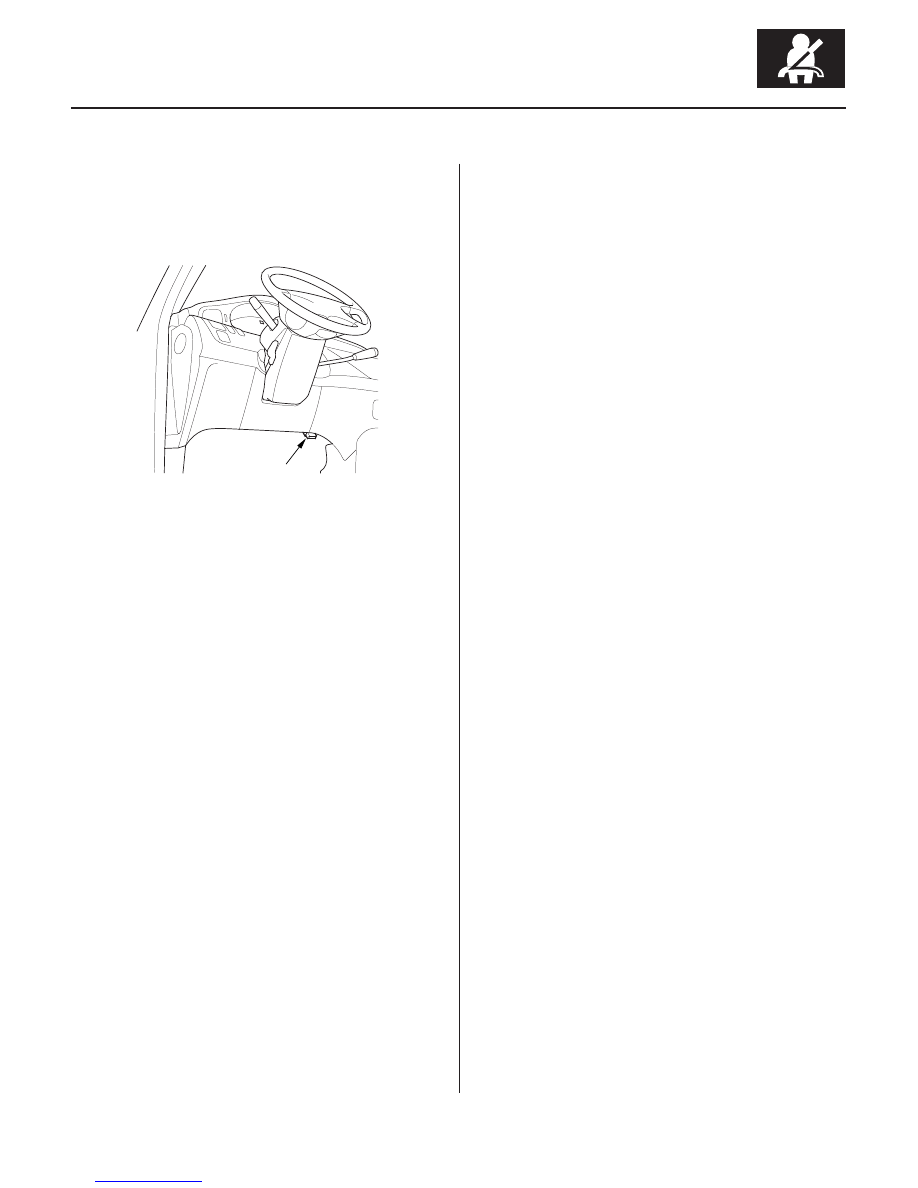

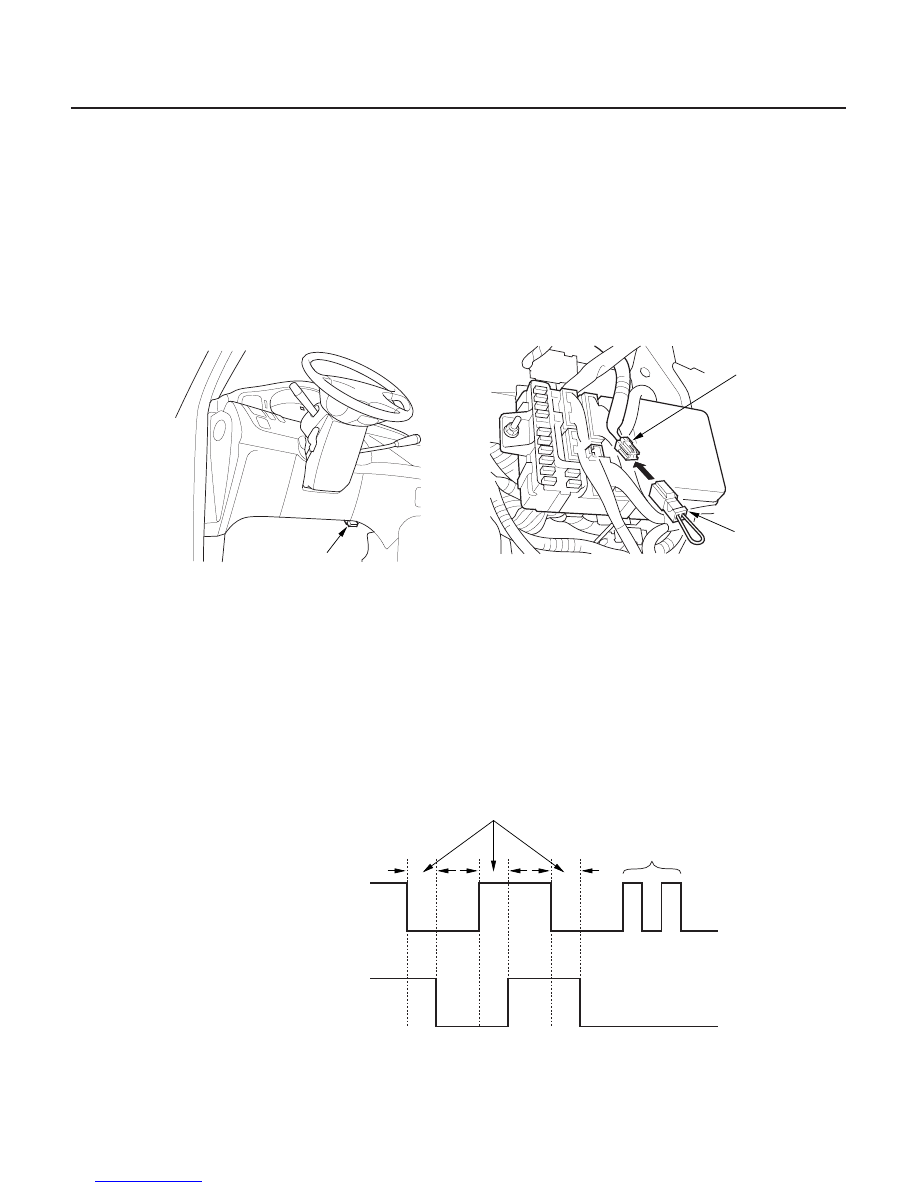

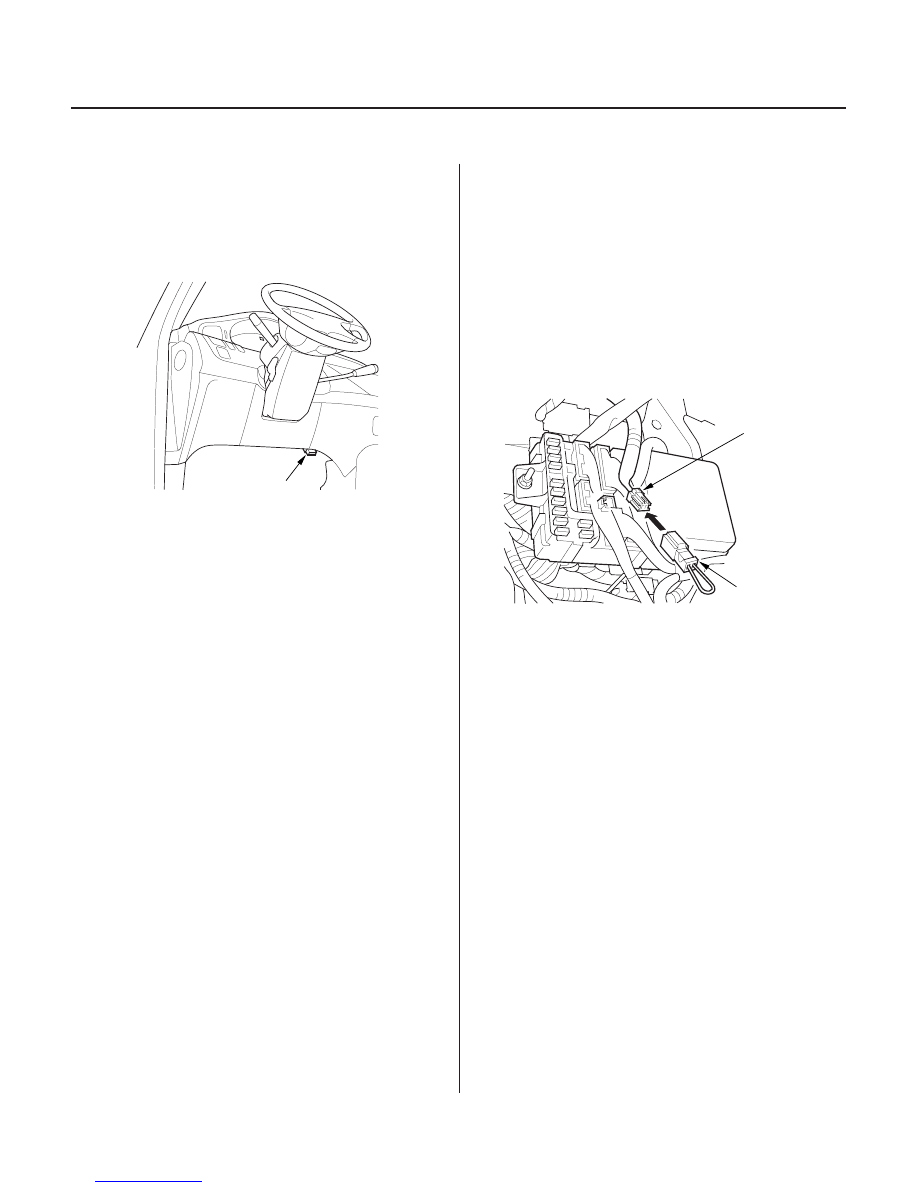

*03 06 Reading the DTC (’03-04 Models) Erasing the DTC Memory (’99-02 Models) Special Tools Required 23-38 SRS General Troubleshooting Information (cont’d) A B A 1. Make sure the ignition switch is OFF. 2. Connect the HDS to the DLC (A). 3. Turn the ignition switch ON (II). 4. Select the DTC(s) in the DTC MENU of the HDS. 5. Read the DTC. 6. Turn the ignition switch OFF, and wait for 10 seconds. 7. Disconnect the HDS from the DLC. 8. Do the troubleshooting procedure for the DTC. SCS service connector 07PAZ-0010100 To erase the DTC(s) from the SRS unit, use the HDS or 1. Make sure the ignition switch is OFF. 2. Connect the SCS service connector (A) to the MES connector (2P) (B). Do not use a jumper wire. 3. Turn the ignition switch ON (II). 4. The SRS indicator will come on for about 6 seconds, and then go off. Remove the SCS service connector 5. The SRS indicator will come on again. Reconnect the SCS service connector to the MES connector 6. When the SRS indicator goes off, remove the SCS service connector from the MES connector within 4 7. The SRS indicator will blink two times indicating that the memory has been erased. 8. Turn the ignition switch OFF, and wait for 10 seconds. 9. Turn the ignition switch ON (II) again. The SRS is OK if the SRS indicator comes on for 6 seconds, 03/07/29 10:31:09 61S0X050_230_0038 |
