Honda Odyssey 2004. Manual - part 516





04

05

06

*03

*04

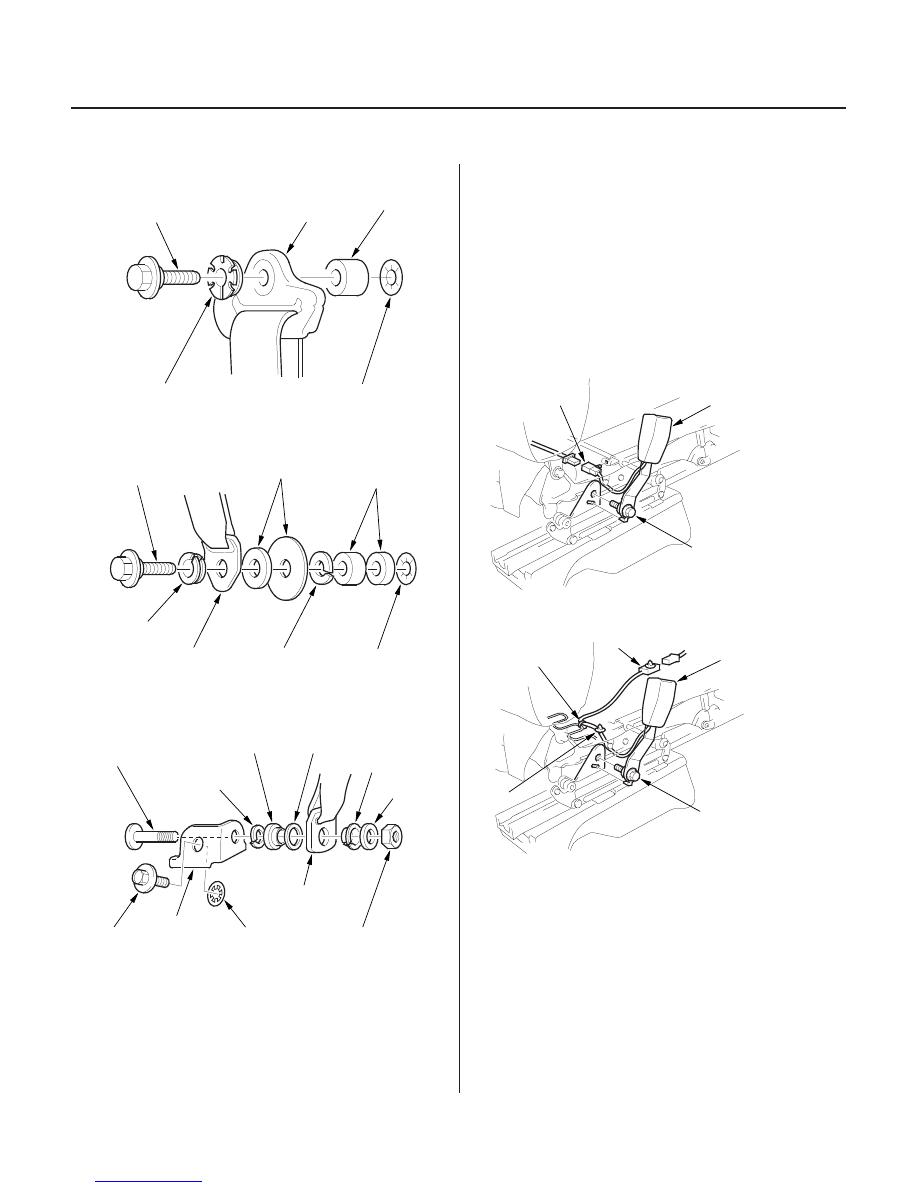

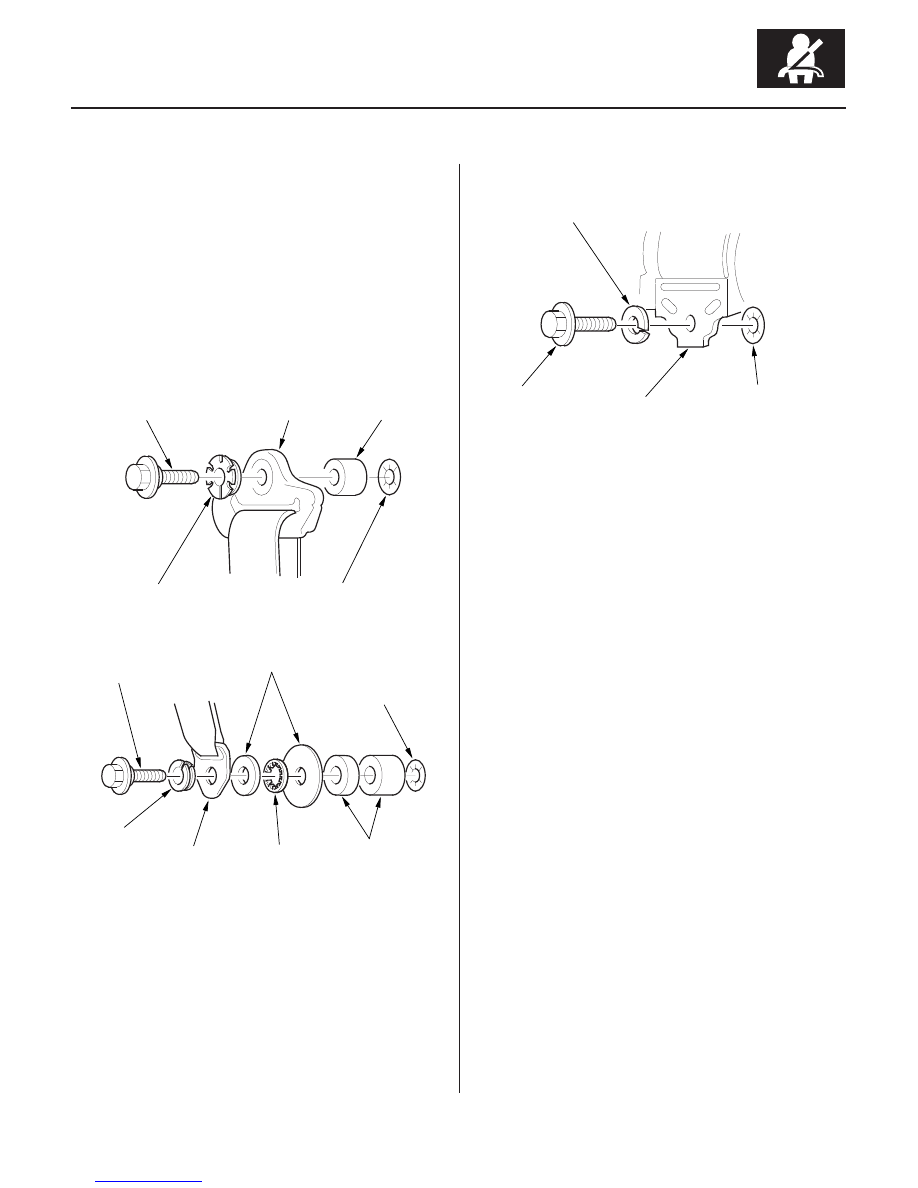

Upper anchor bolt construction

Lower anchor bolt construction

Lower anchor bolt construction ( ’03-04 models
passenger’s seat belt)

8-way power seat (’99-02 models)

8-way power seat (’03-04 models)

Seat Belt Buckle

23-6

Seat Belts

Front Seat Belt Replacement (cont’d)

UPPER ANCHOR
BOLT

UPPER
ANCHOR

COLLAR

TOOTHED
LOCK WASHER

BUSHING

LOWER ANCHOR
BOLT

WASHERS

SPRING
WASHER

BUSHING

LOWER
ANCHOR

COLLARS

TOOTHED
LOCK WASHER

LOWER ANCHOR
BOLT

SPRING
WASHER

COLLAR

WASHER

BUSHING

WASHER

BOLT

LOWER
ANCHOR
BRACKET

TOOTHED
LOCK WASHER

LOWER
ANCHOR

LOWER ANCHOR
NUT

D
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A

E

A

D
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

C

E

B

1. Remove the center cover, 8-way power seat (see

page 20-86), manual height adjustable seat (see
page 20-88), and manual seat (see page 20-91).

2. For ’99-04 models driver’s seat and ’03-04 models

passenger’s seat: Disconnect and detach the seat
belt switch connector (A). Detach the wire harness
clip (B), and release the wire tie (C).

03/07/29 10:30:35 61S0X050_230_0006

*05

*06

*07

08

01

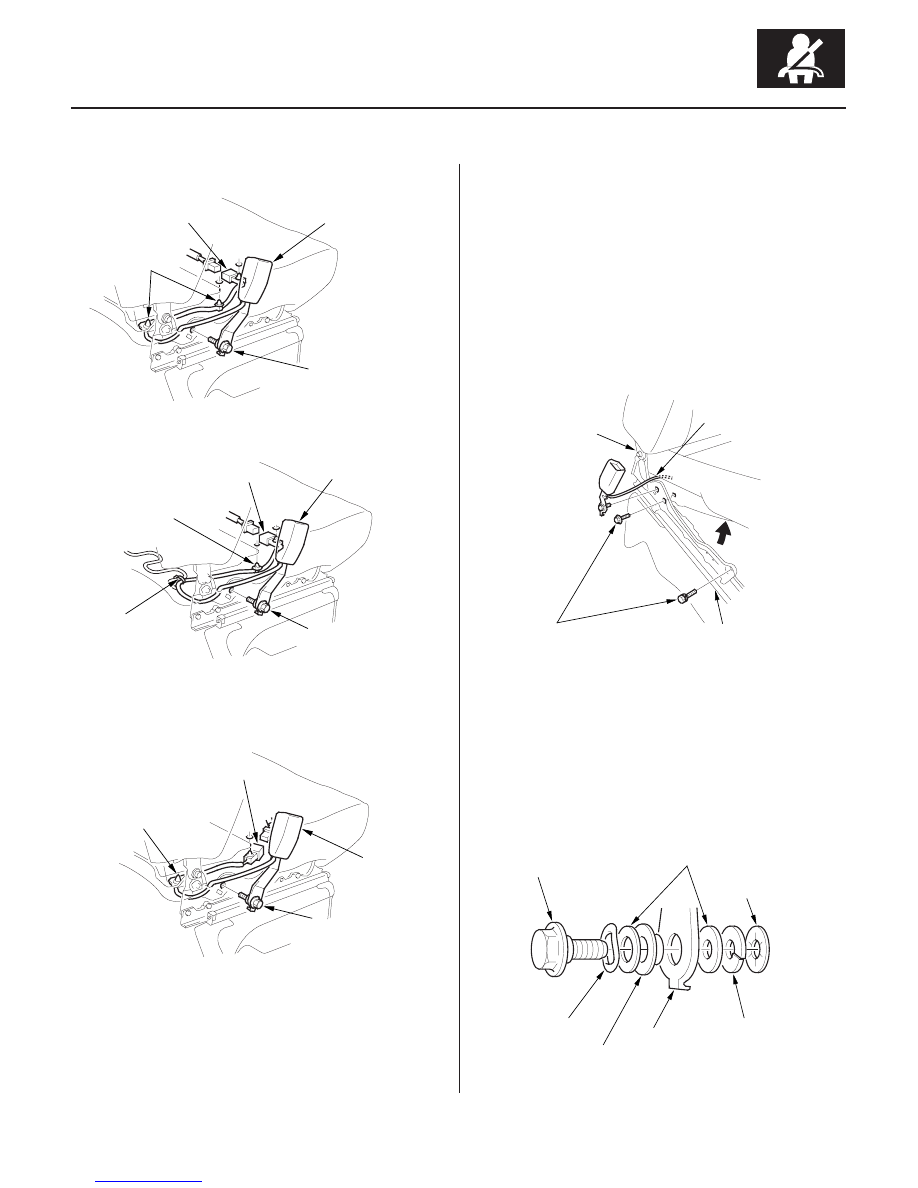

Manual height adjustable seat (’01-02 models)

Manual height adjustable seat (’03-04 models)

Manual seat

Center anchor bolt installation

23-7

D
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A

E

B

A

D
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

C

E

B

D
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A

E

B

B
10 x 1.25 mm
47 N·m (4.8 kgf·m, 35 lbf·ft)

C

D

A

CENTER ANCHOR
BOLT

WASHERS

TOOTHED LOCK
WASHER

WAVE
WASHER

CENTER
ANCHOR

SPRING
WASHER

BUSHING

3. Remove the center anchor bolt (D), and remove the

seat belt buckle (E).

4. For ’99-04 models driver’s seat and ’03-04 models

passenger’s seat, remove the seat belt switch
harness (A):

• Power seat: Adjust the seat cushion to its

maximum height, and remove the harness.

• Manual seat: Remove the seat cushion mounting

bolts (B) from the inner seat track (C), then lift the
seat cushion halfway from the inner seat track,
and remove the harness. Take care not to
damage the hinge bracket (D).

• ’03-04 models passenger’s seat is similar to the

illustration shown.

5. Install the buckle in the reverse order of removal,

and note these items:

• Apply liquid thread lock to the anchor bolt before

reinstallation.

• Assemble the washers on the center anchor bolt

as shown.

• Move the seat up and down to make sure the

buckle harness is not pinched.

’03-04 models passenger’s seat is similar
to the illustration shown.

03/07/29 10:30:37 61S0X050_230_0007

01

02

03

S0X4A00H46200053404KBAT00

Second Row Seat Belt

23-8

Seat Belts

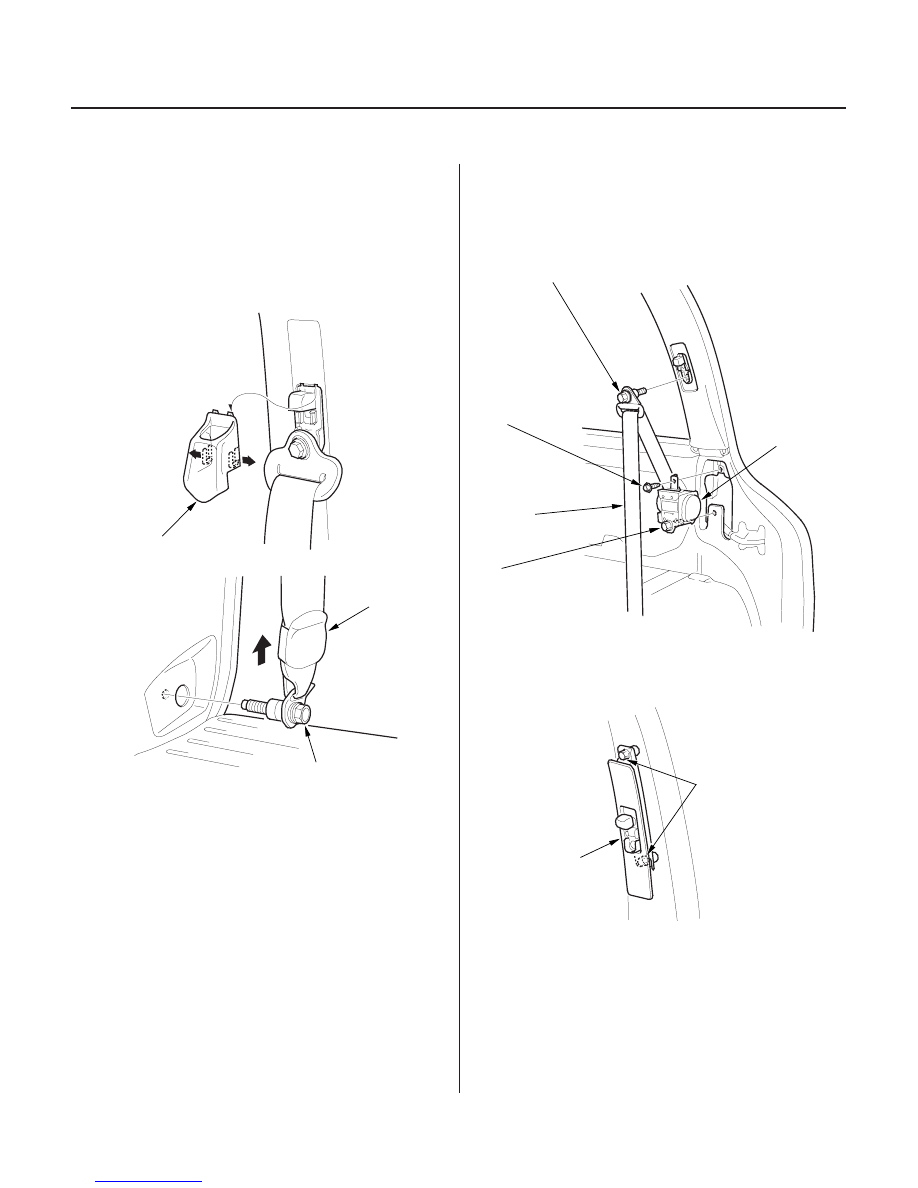

Second Row Seat Belt Replacement

B

C
7/16-20 UNF
32 N·m (3.3 kgf·m,
24 lbf·ft)

A

A
7/16-20 UNF
32 N·m (3.3 kgf·m, 24 lbf·ft)

B
6 x 1.0 mm
4 N·m (0.4 kgf·m,
3 lbf·ft)

C
7/16-20 UNF
32 N·m (3.3 kgf·m,
24 lbf·ft)

D

E

8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

A

NOTE: Check the second row seat belts for damage,
and replace them if necessary.

1. Remove the upper anchor cover (A), pull the lower

anchor cover (B) back, and remove the lower
anchor bolt (C).

2. Remove the rear side trim panel (see page 20-60).

3. Remove the upper anchor bolt (A), the retractor

mounting ET screw (B), the retractor bolt (C), then
remove the second row seat belt (D) and retractor
(E).

4. Remove the quarter pillar trim (see page 20-59).

5. Remove the shoulder anchor adjuster (A).

03/07/29 10:30:37 61S0X050_230_0008

04

05

06

Upper anchor bolt construction

Lower anchor bolt construction

Retractor bolt construction

23-9

UPPER ANCHOR
BOLT

UPPER
ANCHOR

COLLAR

BUSHING

TOOTHED
LOCK WASHER

LOWER ANCHOR
BOLT

WASHERS

BUSHING

LOWER
ANCHOR

LOCKING
WASHER

TOOTHED
LOCK WASHER

COLLARS

SPRING
WASHER

RETRACTOR
BOLT

RETRACTOR

TOOTHED
LOCK WASHER

6. Install seat belt and retractor in the reverse order of

removal, and note these items:

• Apply liquid thread lock to the anchor bolts

before reinstallation.

• Check that the retractor locking mechanism

functions (see page 23-15).

• Assemble the washers, collar and bushing on the

upper and lower anchor bolts as shown.

• Before installing the anchor bolts, make sure

there are no twists or kinks in the seat belt.

(cont’d)

03/07/29 10:30:38 61S0X050_230_0009
