Honda Odyssey 2004. Manual - part 501





S0X4A84J10300000000CAAT50

System Components

Audio Unit

DVD Player Unit

Rear Controller and Screen

Wireless Headphone

Wireless Remote Control

Auxiliary Input Jacks

Radio Remote Switch

22-332

Rear Entertainment System (DVD)

System Description

The rear entertainment system is composed of a special audio unit, a DVD player unit, a rear controller, wireless
headphones, wireless remote control, anxiliary input jacks, and a screen.

• Provides rear system power
• Provides control for the rear functions
• Allows the rear display to show information about the rear system status
• Provides a method to stop the rear from having control of the rear system

• Offers simple operation (control in the audio unit)
• Has the ability to play DVDs or CDs
• Automatically turns off when battery voltage drops below 12 volts

• Has flip down 7’’ display
• Allows full operation of the rear system through the controller and information on the LCD
• Display is inoperative when pushed beyond the detent

• Has ON/OFF button
• Has volume control
• Has automatic shut off when not in use
• Operational only in the second and third row seats, not outside the vehicle or in the front seats

Allows remote operation of the audio and DVD units.

• Allows input from standard video game and video equipment using RCA connectors
• Provides three headphone connectors and separate volume controls

Allows operation of the audio and DVD units at the steering wheel.

03/07/29 10:27:36 61S0X050_220_0334

*01

*02

*03

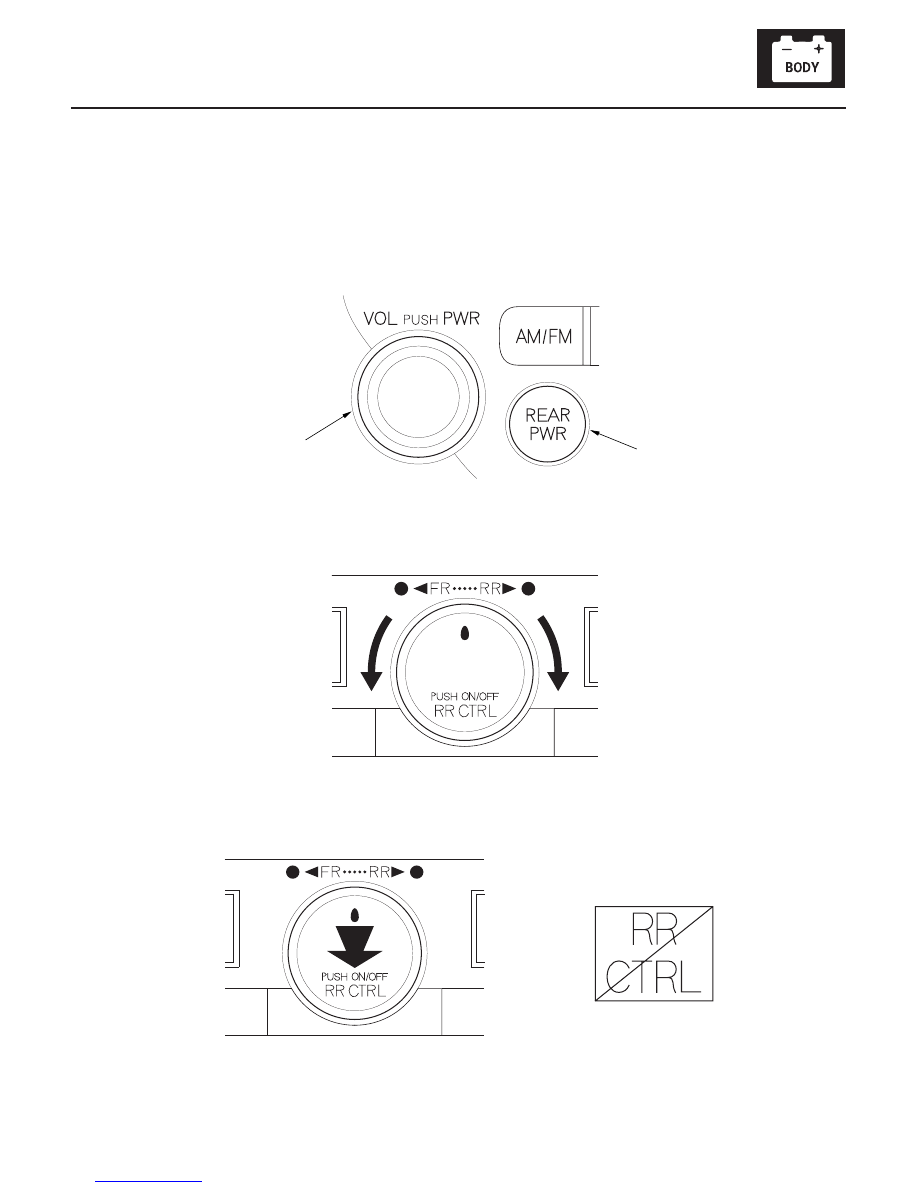

Operating Method

Audio Unit

22-333

A

B

1. Turn the rear entertainment system ON.

• After the main power switch ‘‘VOL PUSH PWR’’ (A) is turned ON, push ‘‘REAR PWR’’ switch (B) to turn the rear

system ON. To turn the rear system OFF, push ‘‘REAR PWR’’, and to turn the whole system OFF, push ‘‘VOL
PUSH PWR’’.

2. Using the selector knob.

• Turn left to select the front controls (Audio).
• Turn right to select the rear controls (After rear operation is finished, selector will automatically return to the

front control in 10 seconds).

3. Rear control enable/disable.

• By pushing the selector knob, the driver can prevent the rear passengers from operating the system. Each push

of the selector knob cycles the switch between ON-OFF (Rear Control Enable/Rear Control Disabled). When rear
operation is prohibited, the LCD on the audio unit displays ‘‘RR CONT OFF’’.

(cont’d)

03/07/29 10:27:37 61S0X050_220_0335

*04

07

*05

*06

RR SP OFF:

Rear Controller

Rear Control

22-334

Rear Entertainment System (DVD)

System Description (cont’d)

A

B

Play/Pause/Reverse

DVD Menu/Enter

Selection
(music, station)

Source selection

DVD functions
• 10Key control pad
• Audio/Subtitle selection
• Angle selection
• MENU screen
• Title screen, etc.

Selection (music, station),
play, pause, etc.

Source selection

RR SP OFF:

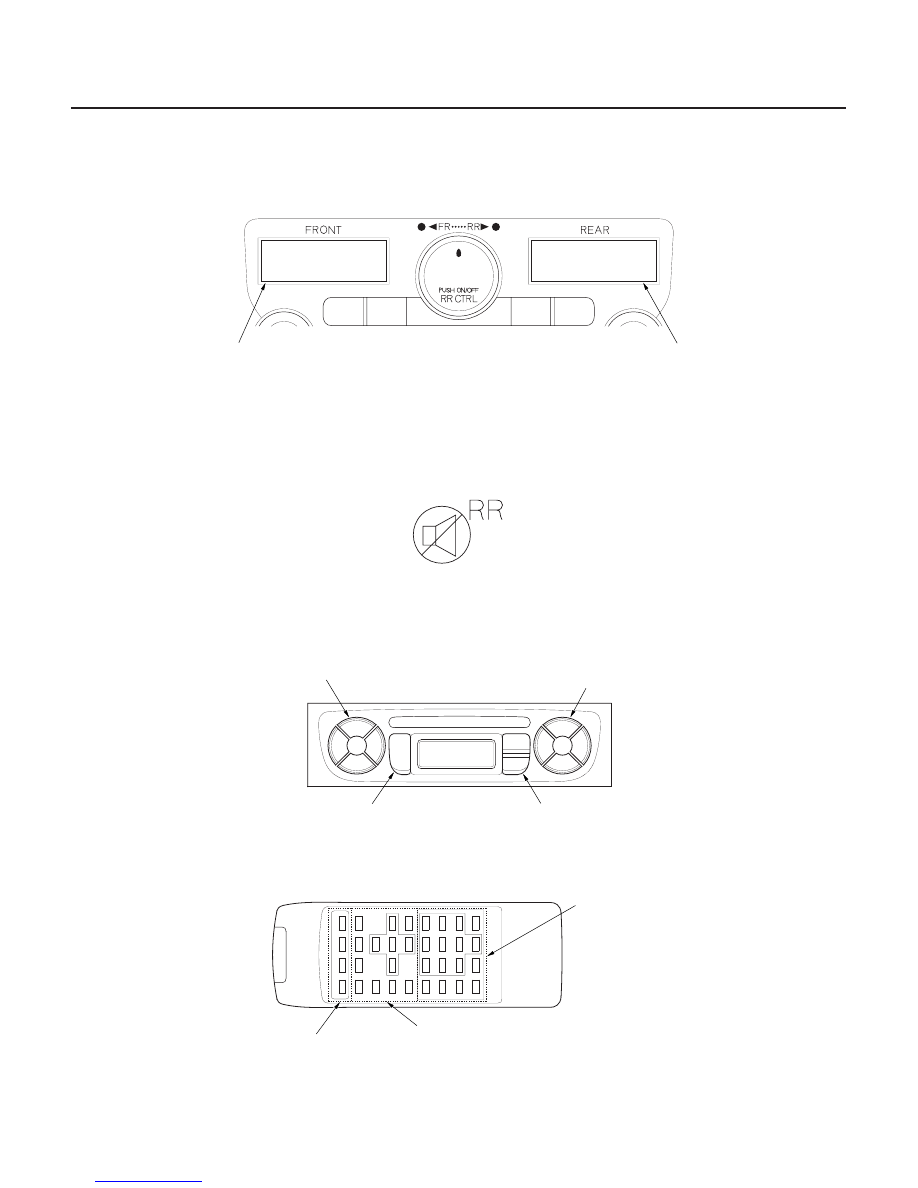

4. Viewing the twin displays.

• The two displays indicate the status of the front (A) and rear (B) systems.

5. Rear speaker automatic OFF function.

• By turning the rear speaker OFF you can reduce the interference between the front source and the rear source

(Headphone). The speaker will be turned ON/OFF automatically when the front and rear have different sources
selected. When the rear speaker is in the OFF mode, the LCD display on the audio unit displays ‘‘RR SP OFF’’.

Using the control switch from the rear seat.

• With ‘‘Rear Power ON’’ the rear passenger can control the functions, unless the rear control has been turned off in

the front.

Remote control switch use and function.

• With ‘‘Rear Power ON’’ and rear control enabled, the rear passengers can control the functions with the remote,

except volume.

03/07/29 10:27:38 61S0X050_220_0336

―――

―――
―――

―――
―――

01

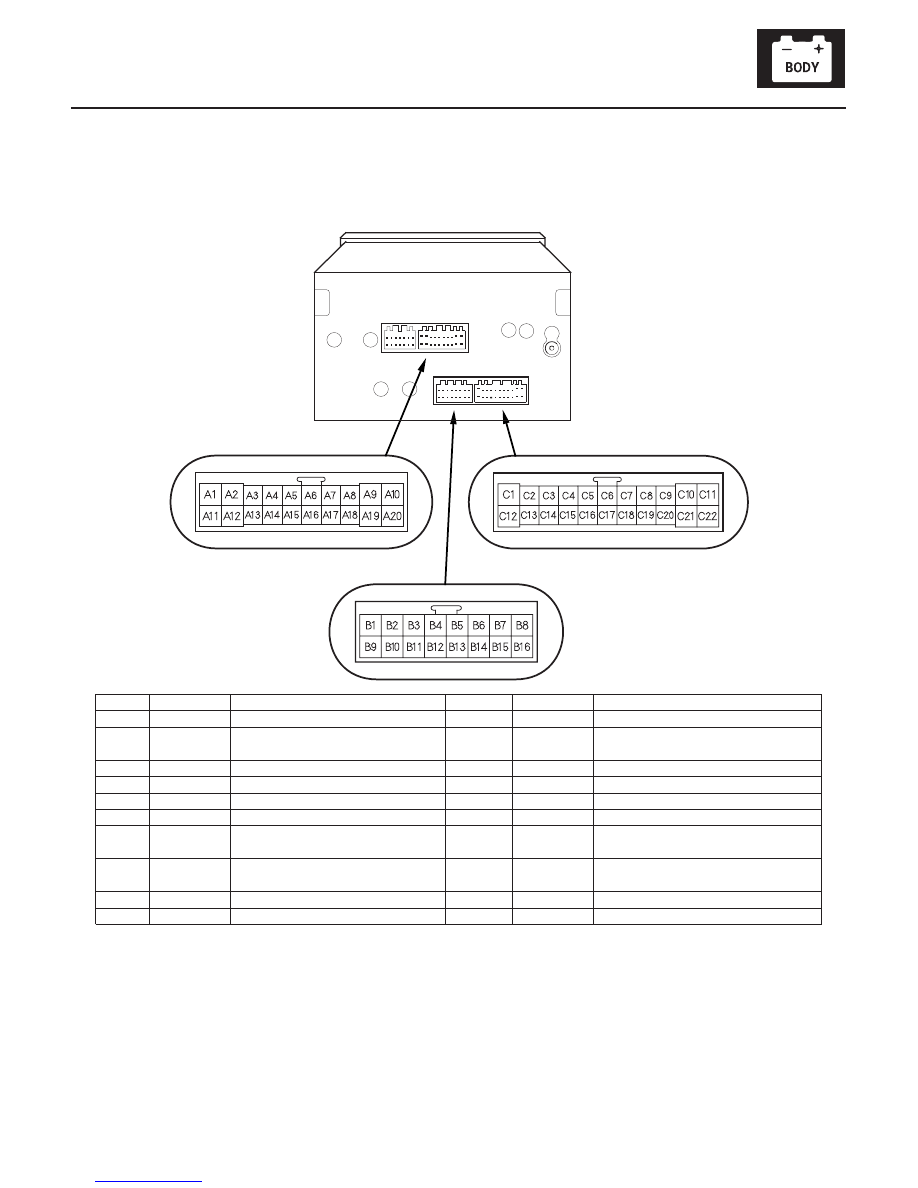

Audio Unit Connector Inputs and Outputs

Cavity

Wire

Connect to

Cavity

Wire

Connect to

22-335

When replacing an audio unit connector, match the wires to the cavities listed in the following table.

A1

Not used

A11

Not used

A2

WHT/RED

ACC (Main stereo power
supply)

A12

Not used

A3

GRN/RED

Radio remote switch

A13

Not used

A4

BLU

DVD player unit (Security input)

A14

Not used

A5

RED/YEL

Right rear speaker (

)

A15

BRN/WHT

Right rear speaker (

)

A6

BLU/YEL

Left rear speaker (

)

A16

GRY/WHT

Left rear speaker (

)

A7

RED/GRN

Passenger’s door speaker (

),

Right tweeter (

)

A17

BRN/BLK

Passenger’s door speaker (

),

Right tweeter (

)

A8

BLU/GRN

Driver’s door speaker (

), Left

tweeter (

)

A18

GRY/BLK

Driver’s door speaker (

), Left

tweeter (

)

A9

RED/BLK

Lights-on signal

A19

RED

Dash lights brightness controller

A10

WHT/BLU

Constant power

A20

BLK

Ground (G502)

(cont’d)

03/07/29 10:27:38 61S0X050_220_0337
