Door Side (’01-04 EX and ’02-04 EXL models)

22-316

Power Sliding Doors

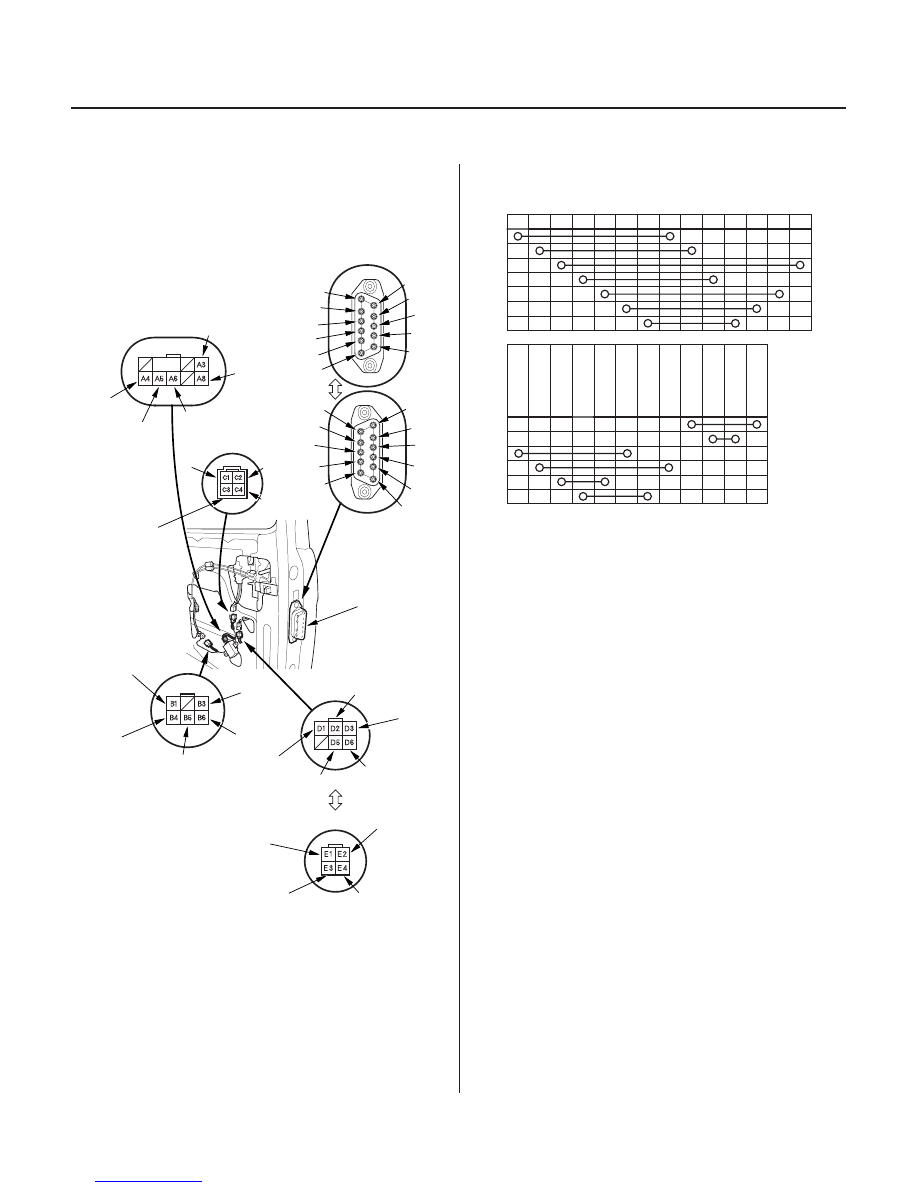

Sliding Door Junction Switch Test (cont’d)

YEL/
RED

BLK

WHT/
RED

Right:

Left:

BLU/
BLK

LT GRN/
RED

BLK

GRN/BLK

GRN/RED

BLK

YEL/GRN

BLU/YEL

WHT/RED

BLU/RED

BLK

BLU/WHT

GRY

Left:

YEL/RED

BLK

RED/BLU

WHT/RED

Right:

A

B

C

D

E

F

G

H

I

J

F

D

C

B

A

K

J

I

H

G

BLU/
RED

BLU/
WHT

E

K

RED/
WHT

A

A

B

C

D

E

F

G

B1 B3 B4

H

I

J

K A3, A5, A6, D1, A4 A8

B6

D3

C2

D5

C3 C4

E2 D2, B5, E3

E1 C1,

D6,
E4

1. Remove the sliding door panel (see page 20-13).

2. Disconnect the connectors from the switch (A).

3. Check for continuity between the terminals

according to the tables.

4. If the continuity is not as specified, replace the

switch.

Wire side of female terminals

Terminal side of
male terminals

Wire side of
female terminals

03/07/29 10:27:22 61S0X050_220_0318

01

02

S0X4A00J16160755655FEAT00

22-317

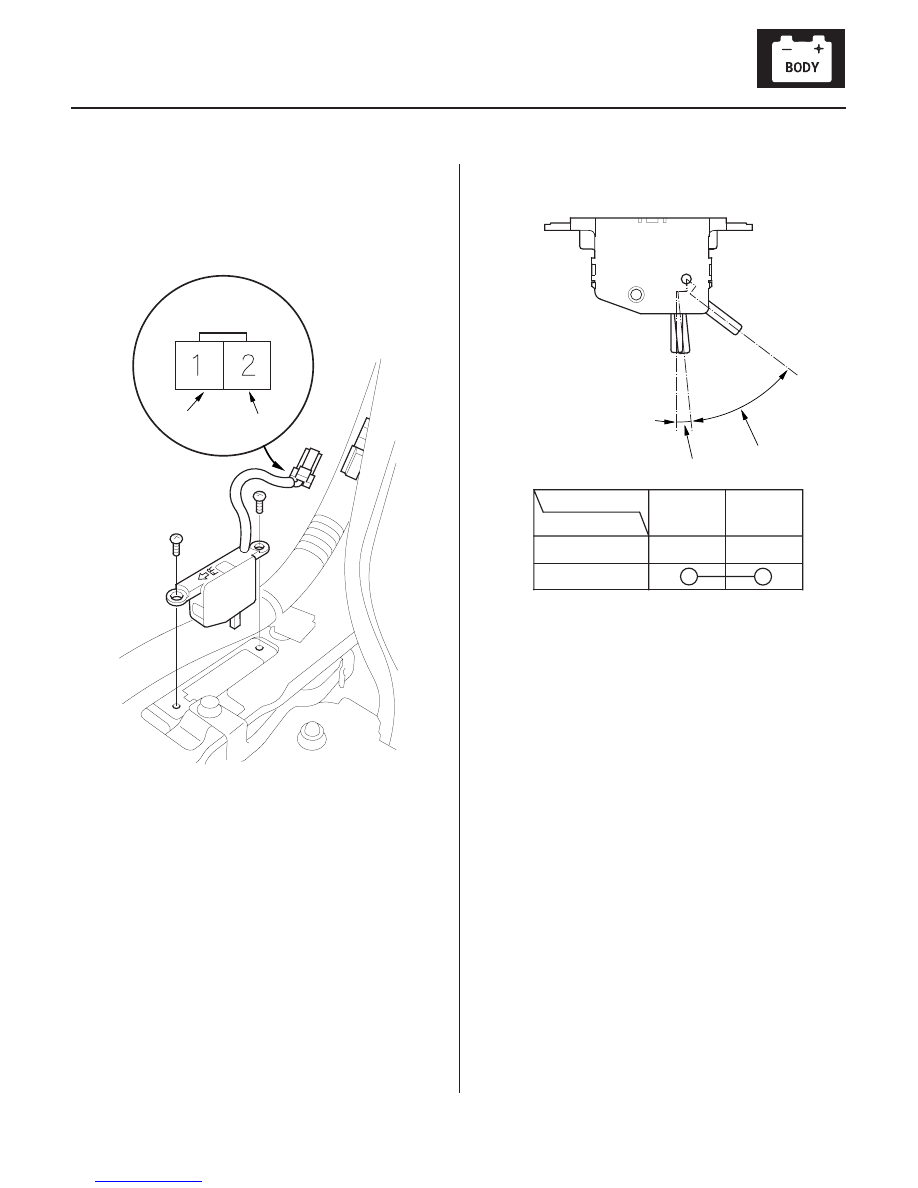

Sliding Door Handle Switch Test

BLK

BLU

Terminal

Position

A

B

1

2

B

A

1. Disconnect the 2P connector from the sliding door

handle switch (A).

2. Remove the two mounting screws from the switch.

3. Check for continuity between the terminals in each

switch position according to the table.

4. If the continuity is not as specified, replace the

switch.

Wire side of famale terminals

03/07/29 10:27:23 61S0X050_220_0319

01

02

01

02

S0X4A00J16160755631FEAT00

22-318

Power Sliding Doors

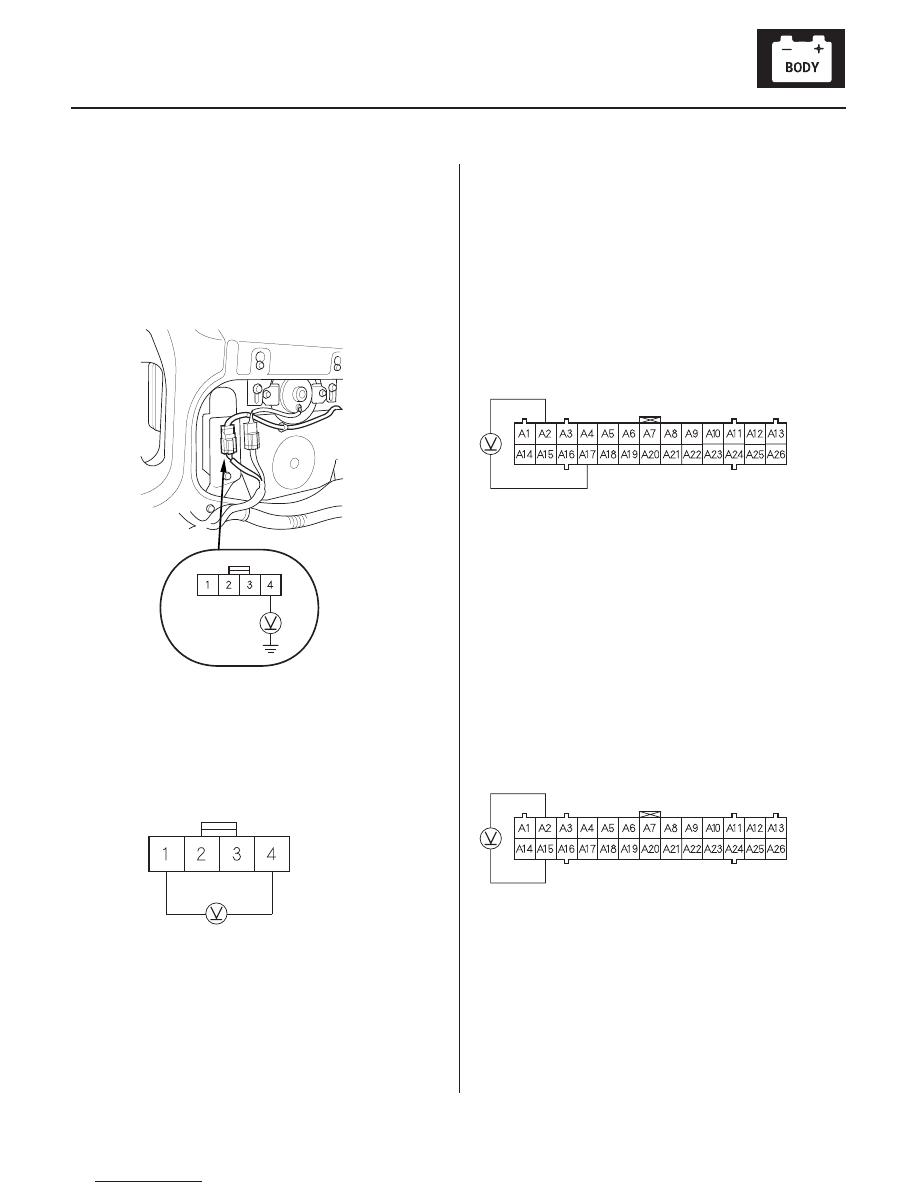

Left Slide Motor Revolution Sensor Test

1. Remove the rear side trim panel (see page 20-60).

2. Check for voltage between the No. 4 terminal and

body ground. There should be battery voltage.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– an open in the RED wire.
– a short in the wire.

3. Check for voltage between the No. 4 and No. 1

terminals. There should be battery voltage.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– an open in the PNK/BLK wire.

4. Turn the power sliding door main switch OFF.

5. While slowly sliding the door manually, check for

voltage between the power sliding door control
unit terminals A26 and A24.
There should be 0 to about 5 V repeatedly.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– a faulty left slide motor revolution sensor.
– an open or a short in the LT GRN/BLK wire.

6. While slowly sliding the door manually, check for

voltage between the power sliding door control
unit terminals A12 and A24.
There should be 0 to about 5 V repeatedly.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– a faulty left slide motor revolution sensor.
– an open or a short in the RED/BLK wire.

Wire side of
female terminals

Wire side of
female terminals

Wire side of female terminals

Wire side of female terminals

03/07/29 10:27:24 61S0X050_220_0320

01

02

01

02

S0X4A00J16160755632FEAT00

22-319

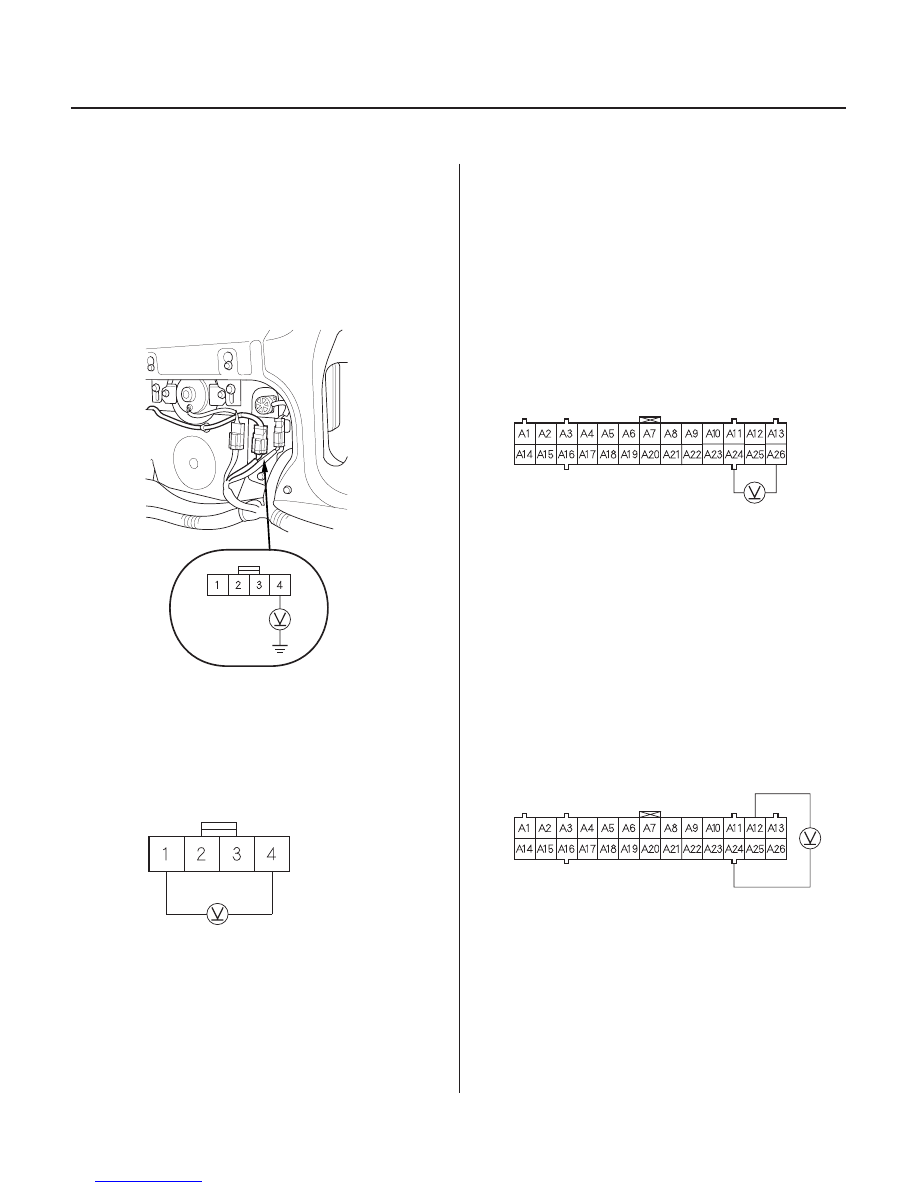

Right Slide Motor Revolution Sensor Test

1. Remove the rear side trim panel (see page 20-60).

2. Check for voltage between the No. 4 terminal and

body ground. There should be battery voltage.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– an open in the RED wire.
– a short in the wire.

3. Check for voltage between the No. 4 and No. 1

terminals. There should be battery voltage.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– an open in the PNK/BLK wire.

4. Turn the power sliding door main switch OFF.

5. While slowly sliding the door manually, check for

voltage between the power sliding door control
unit terminals A17 and A2.
There should be 0 to about 5 V repeatedly.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– a faulty right slide motor revolution sensor.
– an open or a short in the RED/BLK wire.

6. While slowly sliding the door manually, check for

voltage between the power sliding door control
unit terminals A2 and A15.
There should be 0 to about 5 V repeatedly.

• If there is no voltage, check the following:

– a faulty power sliding door control unit.
– a faulty right slide motor revolution sensor.
– an open or a short in the LT GRN/BLK wire.

Wire side of
female terminals

Wire side of
female terminals

Wire side of female terminals

Wire side of female terminals

03/07/29 10:27:24 61S0X050_220_0321
