Tailgate (With Security System)

22-284

22-284

Power Door Locks/Factory Keyless/Factory Security

Door/Tailgate Key Cylinder Switch
Test (cont’d)

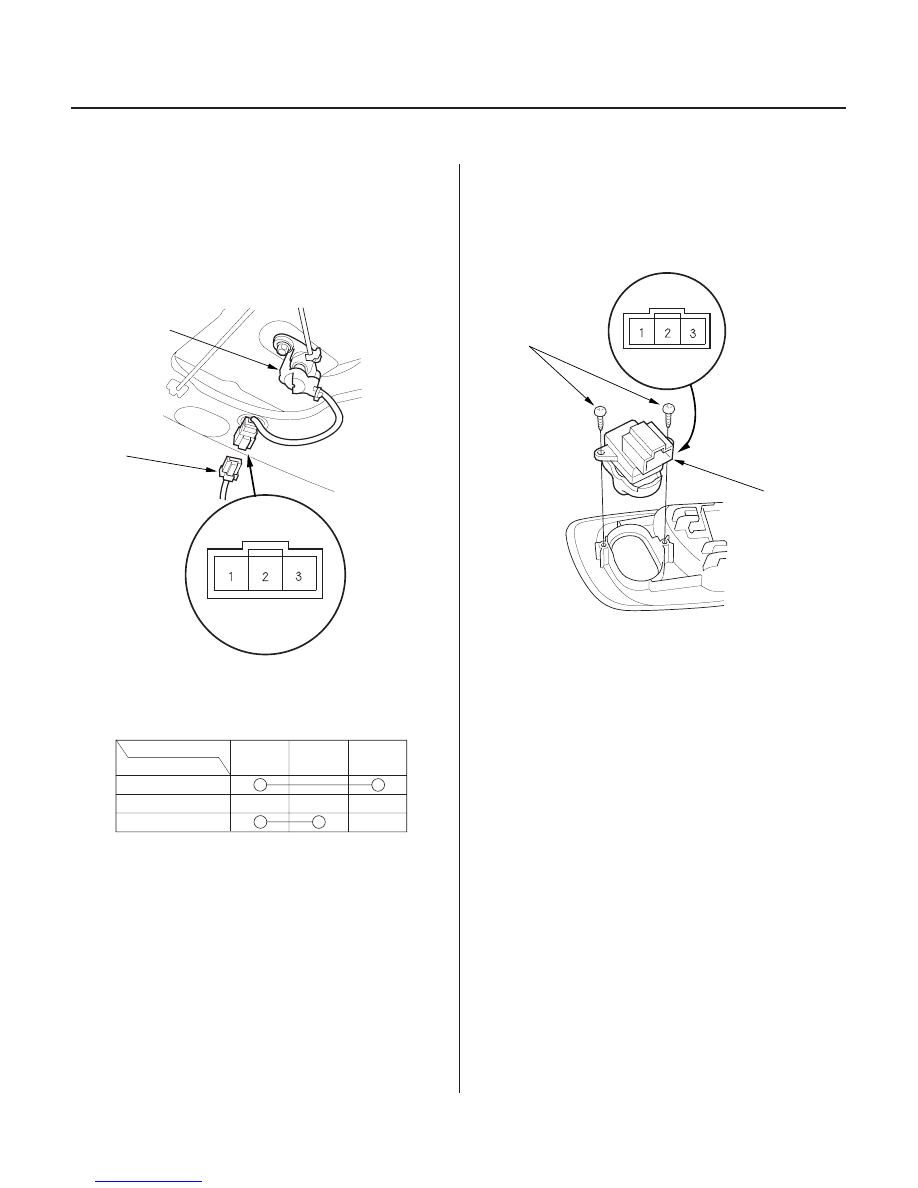

Door Lock Switch Test

B

A

A

B

Terminal

Position

OFF

1

2

UNLOCK

3

LOCK

1. Remove the tailgate trim panel (see page 20-61).

2. Disconnect the 3P connector (A) from the switch (B).

3. Check for continuity between the terminal in each

switch position according to the table.

4. If the continuity is not as specified, replace the

switch.

1. Remove the inner door handle (see page 20-7).

2. Remove the two screws (A), then remove the door

lock switch (B).

3. Check for continuity between the No. 1 and No. 2

terminals in each switch position.

• There should be no continuity with the door lock

switch in neutral or LOCK.

• There should be continuity with the door lock

switch in UNLOCK.

4. Check for continuity between the No. 2 and No. 3

terminals in each switch position.

• There should be continuity with the door lock

switch in UNLOCK.

• There should be no continuity with the door lock

switch in neutral or LOCK.

5. If the continuity is not as specified, replace the

switch.

03/07/29 10:25:59 61S0X050_220_0286

01

02

S0X4A00J46660558345FEAT01

05

S0X4A00J46660558361FEAT40

22-285

22-285

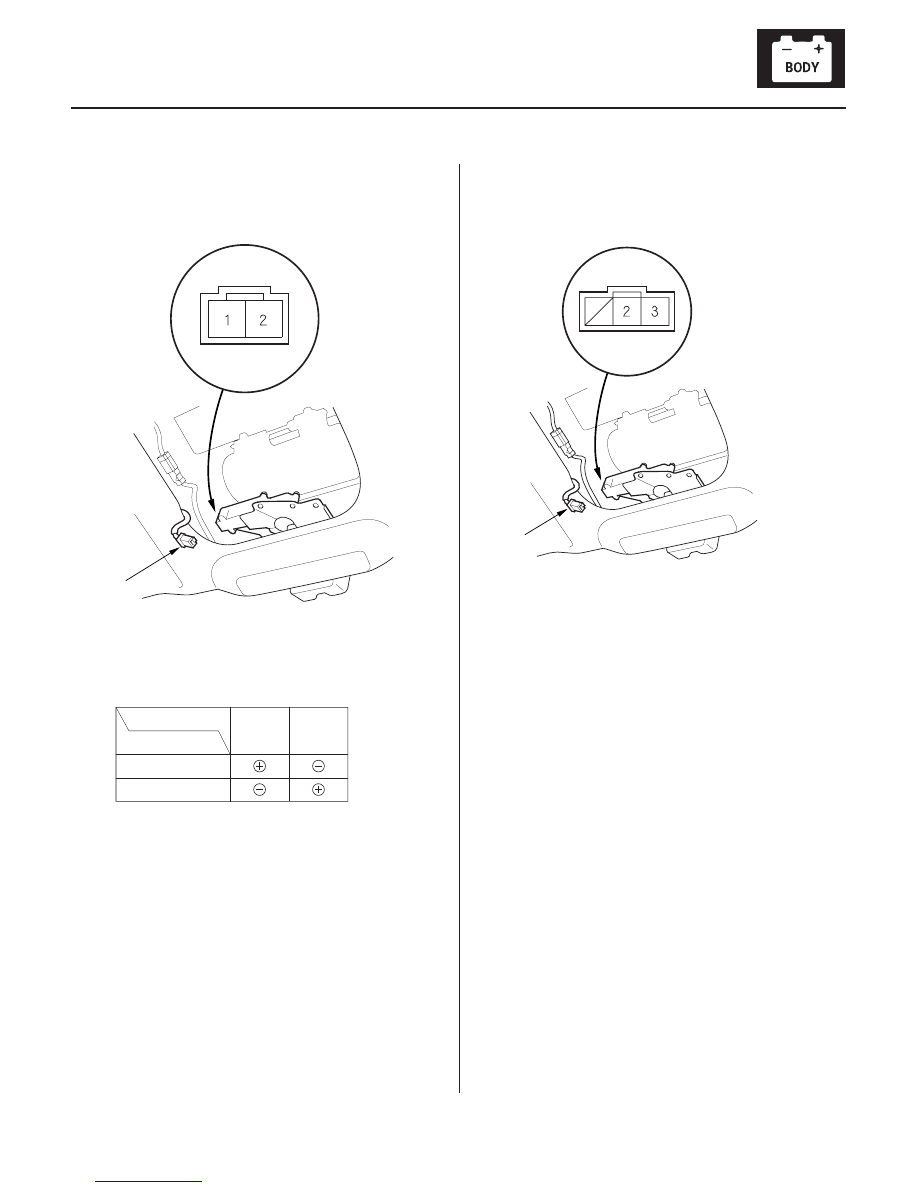

Tailgate Lock Actuator Test

A

A

Terminal

Position

LOCK

1

2

UNLOCK

1. Remove the tailgate trim panel (see page 20-61).

2. Disconnect the 2P connector (A) from the actuator.

3. Check actuator operation by connecting power and

ground according to the table. To prevent damage
to the actuator, apply battery voltage only
momentarily.

4. If the actuator does not operate as specified,

replace it.

1. Remove the tailgate trim panel (see page 20-61).

2. Disconnect the 3P connector (A) from the actuator

(B).

3. Check for continuity between the 2 and 3 terminals

in each switch position.

• There should be continuity with the knob switch

in UNLOCK.

• There should be no continuity with the knob

switch in LOCK.

4. If the continuity is not as specified, replace the

switch.

03/07/29 10:26:00 61S0X050_220_0287

Tailgate Lock Knob Switch Test

01

S0X4A00J46643432301FEAT30

22-286

Power Door Locks/Factory Keyless/Factory Security

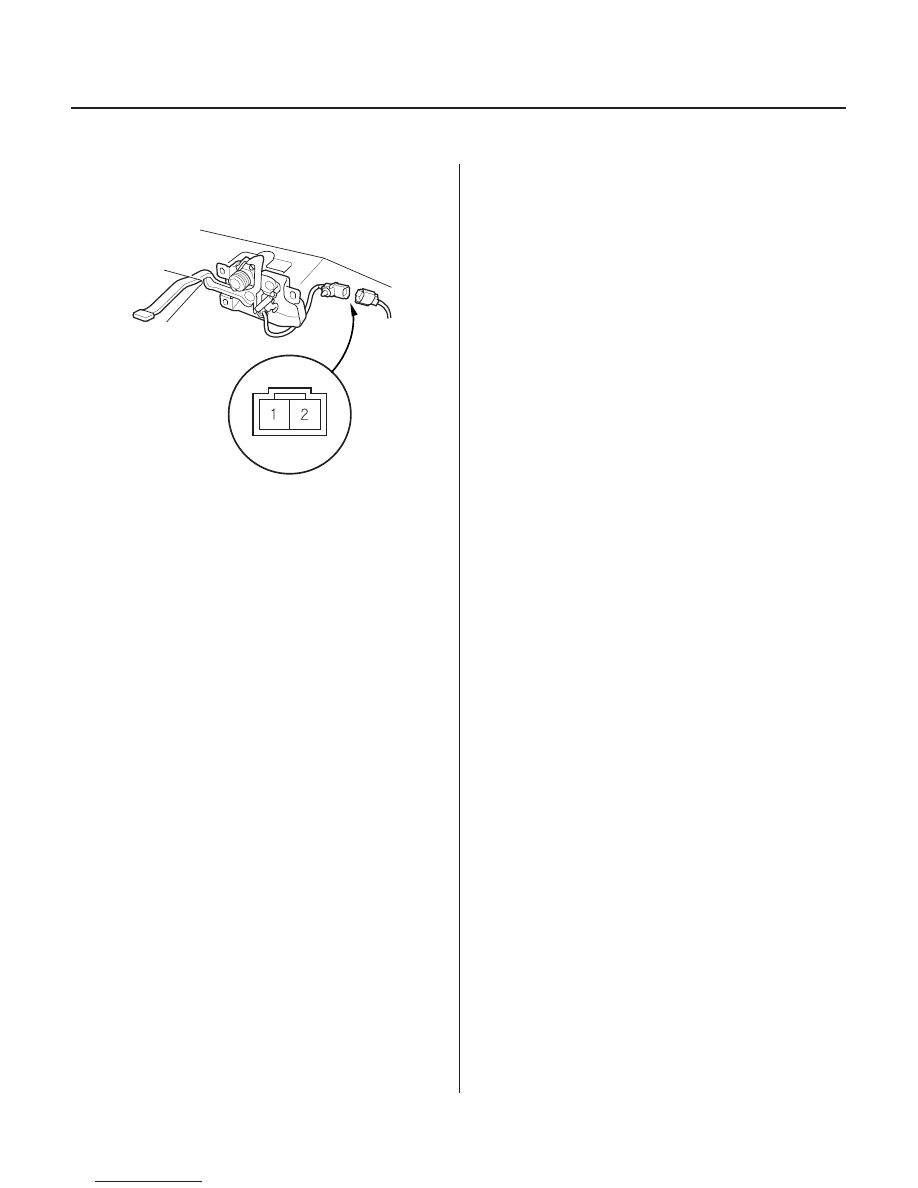

Hood Switch Test

1. Open the hood.

2. Disconnect the 2P connector from the hood switch.

3. Check for continuity between the terminals.

• There should be continuity between the No. 1

and No. 2 terminals when the hood is opened
(lever released).

• There should be no continuity between the No. 1

and No. 2 terminals when the hood is closed
(lever pushed down).

4. If the continuity is not as specified, replace the

switch.

03/07/29 10:26:00 61S0X050_220_0288

*01

S0X4A00J16160700000DAAT00

22-287

Power Sliding Doors

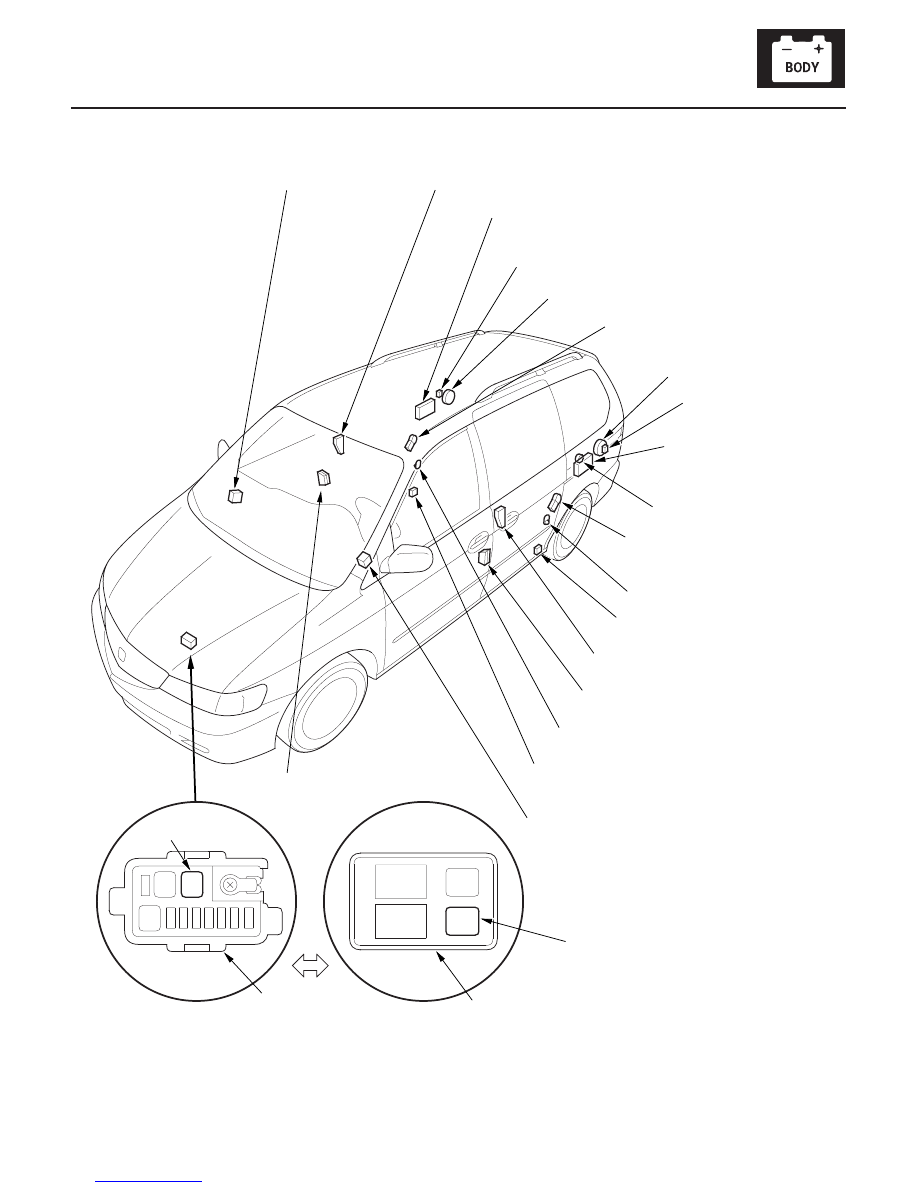

Component Location Index

SLIDE MOTOR

RIGHT SLIDING DOOR
HANDLE SWITCH

RIGHT POWER SLIDING DOOR CONTROL UNIT

SLIDE MOTOR

RIGHT SLIDE MOTOR
REVOLUTION SENSOR

RIGHT SLIDING DOOR SWITCH

LEFT SLIDE MOTOR REVOLUTION SENSOR

SLIDING DOOR BUZZER

LEFT SLIDING DOOR SWITCH

LEFT SLIDING DOOR HANDLE SWITCH

RIGHT JUNCTION
SWITCH

KEYLESS DOOR LOCK
CONTROL UNIT

LEFT JUNCTION SWITCH

SLIDING DOOR SWITCH

No. 61 (30A) FUSE

MULTI-FUSE/RELAY BOX A
(’99-02 models)

REMOTE CONTROL SWITCH

REMOTE CONTROL SWITCH

No. 81 (30A) FUSE

UNDER-HOOD
SUB FUSE BOX
(’03-04 models)

LEFT POWER SLIDING
DOOR CONTROL UNIT

• LATCH POSITION SWITCH

• RELEASE MOTOR
• CLOSER MOTOR

• LATCH POSITION SWITCH

• RELEASE MOTOR
• CLOSER MOTOR

Test, page 22-309

Test, page 22-317

Input Test, page 22-304

Removal/Installation,
page 22-320

Test, page 22-309

Test, page 22-319

Test, page 22-318

Test, page 22-309

Test, page 22-317

Test, page 22-313

Input Test,

page 22-267

Test, page 22-313

Test, page 22-312

Test, page 22-311

Test, page 22-311

Input Test, page 22-300
Removal/Installation,

page 22-320

Test, page 22-310

Test, page 22-310
