Motor Test

Pulser Test

Motor Test

22-212

22-212

Power Windows

Driver’s Window Motor Test

Terminal

Direction

UP

1

2

DOWN

UP

DOWN

Terminal

Direction

A1

A2

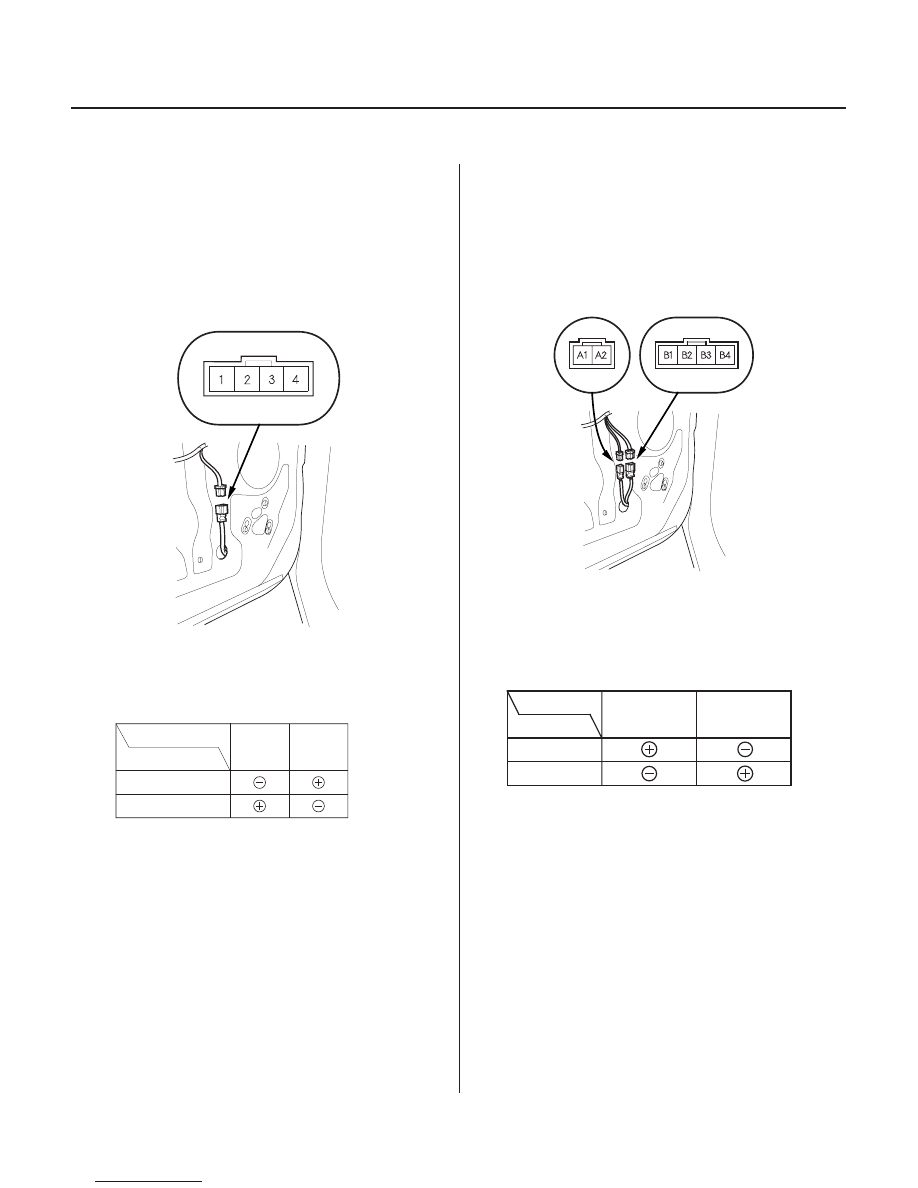

1. Remove the driver’s door panel (see page 20-7).

2. Disconnect the 4P connector from the window

motor.

3. Test the motor in each direction by connecting

battery power and ground according to the table.
When the motor stops running, disconnect one
lead immediately.

4. If the motor does not run or fails to run smoothly,

replace it.

5. Connect the test leads of an analog ohmmeter to

the No. 3 and No. 4 terminals.

6. Run the motor by connecting power and ground to

the No. 1 and No. 2 terminals. The ohmmeter
needle should move back and forth alternately.

7. If the test is not as specified, replace the driver’s

window motor.

1.

2. Disconnect the 2P and 4P connectors from the

window motor.

3. Test the motor in each direction by connecting

battery power and ground according to the table.
When the motor stops running, disconnect one
lead immediatery.

4. If the motor does not run or fails to run smoothly,

replace it.

Terminal side of male terminals

03/07/29 10:24:11 61S0X050_220_0214

Remove the driver’s door panel (see page 20-7).

01

02

S0X4A00J54460647102FEAT00

Pulser Test

22-213

22-213

Passenger’s Window Motor Test

Terminal

Direction

UP

1

2

DOWN

5. Reconnect the 4P connector to the window motor.

6. Check for voltage between the terminals.

• There should be battery voltage between the

B4 (

) and B2 (

) terminals when the ignition

switch ON (II).

• Connect an analog voltmeter between the B3 (

)

and B2 (

) terminals, and run the window motor

at down or up. The voltmeter needle should
move back and forth alternately (a digital
voltmeter should show the average voltage
between 0

5 V).

• Connect an analog voltmeter between the B1 (

)

and B2 (

) terminals, and run the window motor

at down or up. The voltmeter needle should
move back and forth alternately. (a digital
voltmeter should show the average voltage
between 0

5 V).

7. If the test is not as specified, replace the driver’s

window motor.

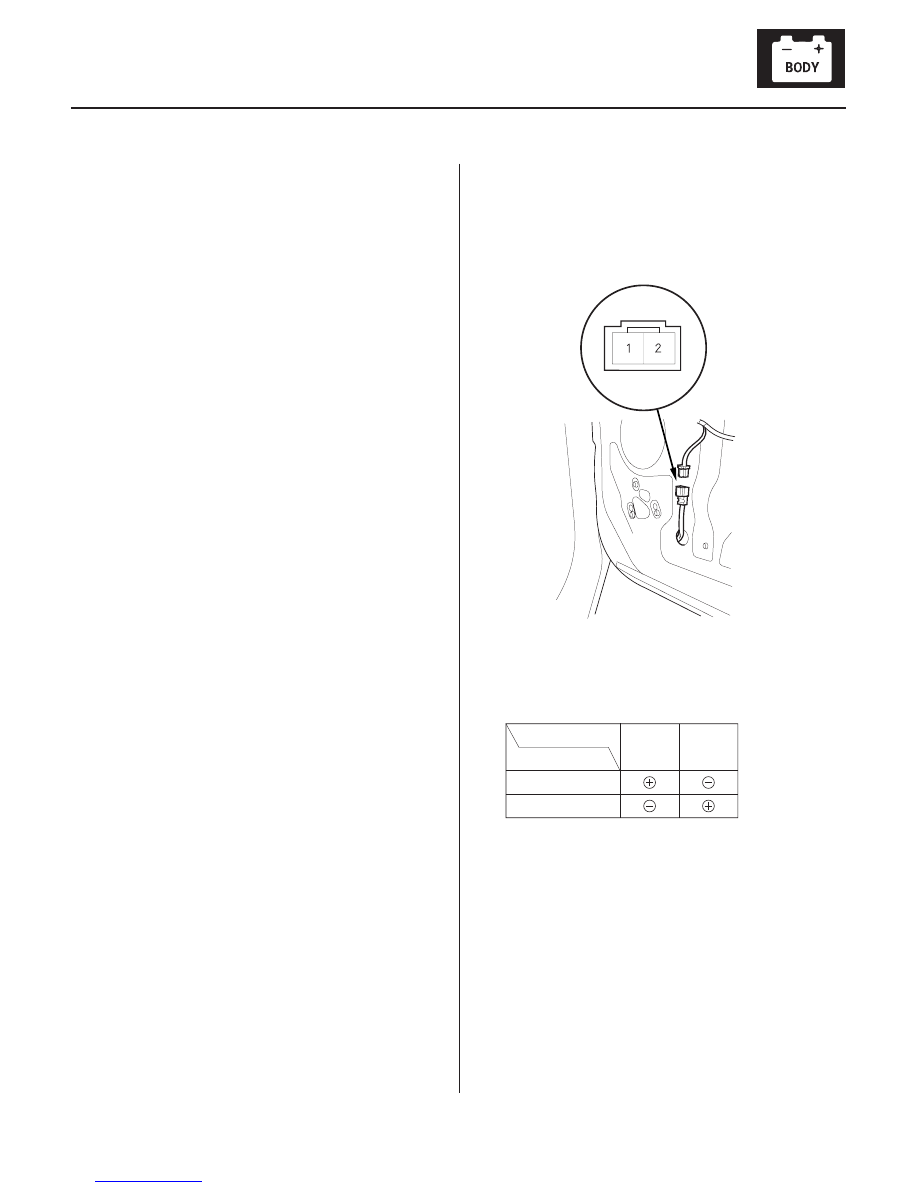

1. Remove the passenger’s door panel (see page 20-

7).

2. Disconnect the 2P connector from the window

motor.

3. Check window motor operation by connecting

power and ground according to the table. When the
motor stops running, disconnect one lead
immediately.

4. If the motor does not run or fails to run smoothly,

replace it.

Terminal side of male terminals

03/07/29 10:24:12 61S0X050_220_0215

01

02

S0X4A00J54460646101FEAT01

01

*01

S0X4A00J54460647124FEAT02

[ ] [ ] [ ] [ ] [ ] [ ]

[ ]

22-214

22-214

Power Windows

Rear Window Motor Test

Passenger’s Window Switch Test

Terminal

Direction

OPEN

1

2

CLOSE

Terminal

Position

UP

OFF

DOWN

1

2

3

4

5

6

2

4

5

6

3

1

: ’01-04 models

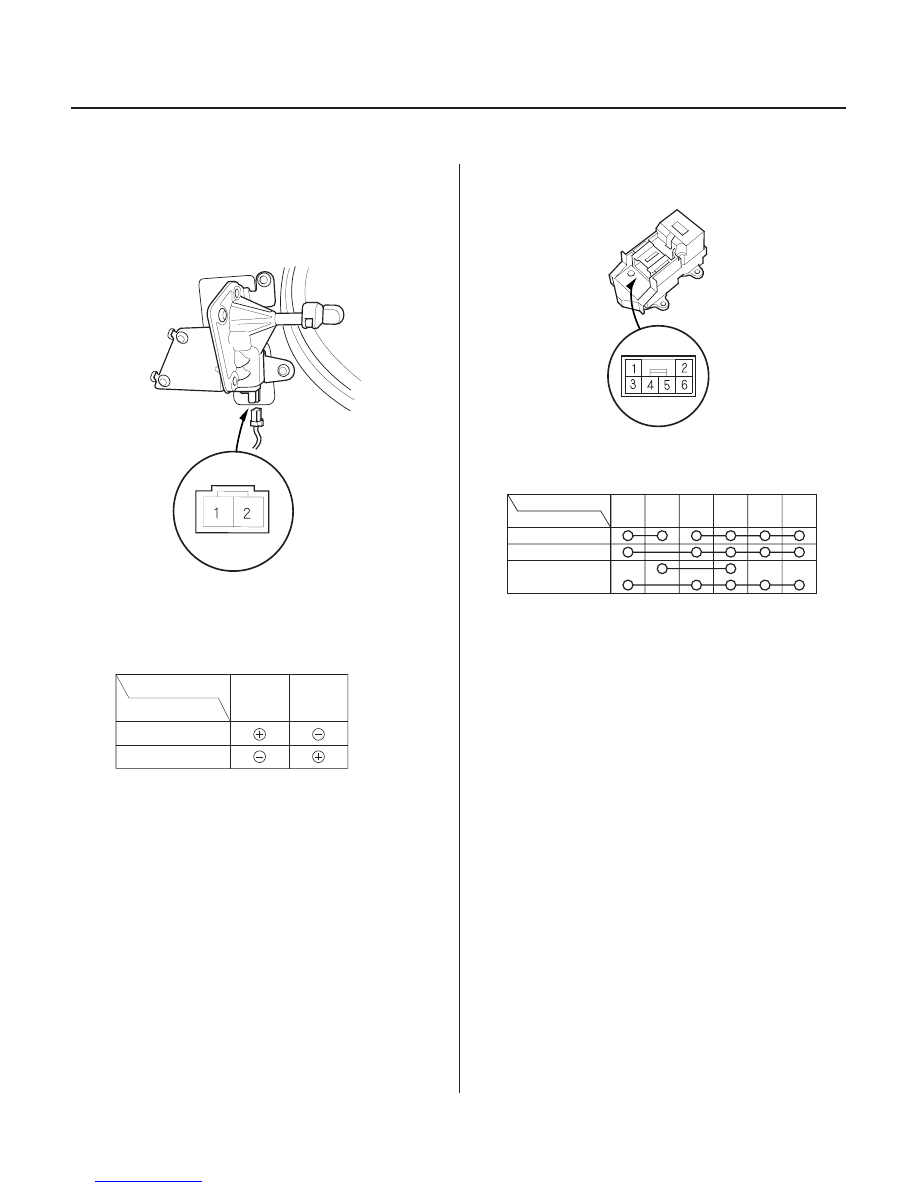

1. Remove the side trim panel (see page 20-60).

2. Disconnect the 2P connector from the rear window

motor.

3. Check window motor operation by connecting

power and ground according to the table. When the
motor stops running, disconnect one lead
immediately.

4. If the motor does not run or fails to run smoothly,

replace it.

1. Remove the front passenger’s switch from front

passenger’s door panel (see page 20-7).

2. Check for continuity between the terminals in each

switch position according to the table.

3. If the continuity is not as specified, replace the

switch.

03/07/29 10:24:13 61S0X050_220_0216

01

02

S0X4A00J54460647123KBAT01

01

02

S0X4A00J54460647124KBAT02

22-215

22-215

Master Switch Replacement

Passenger’s Window Switch
Replacement

B

A

A

B

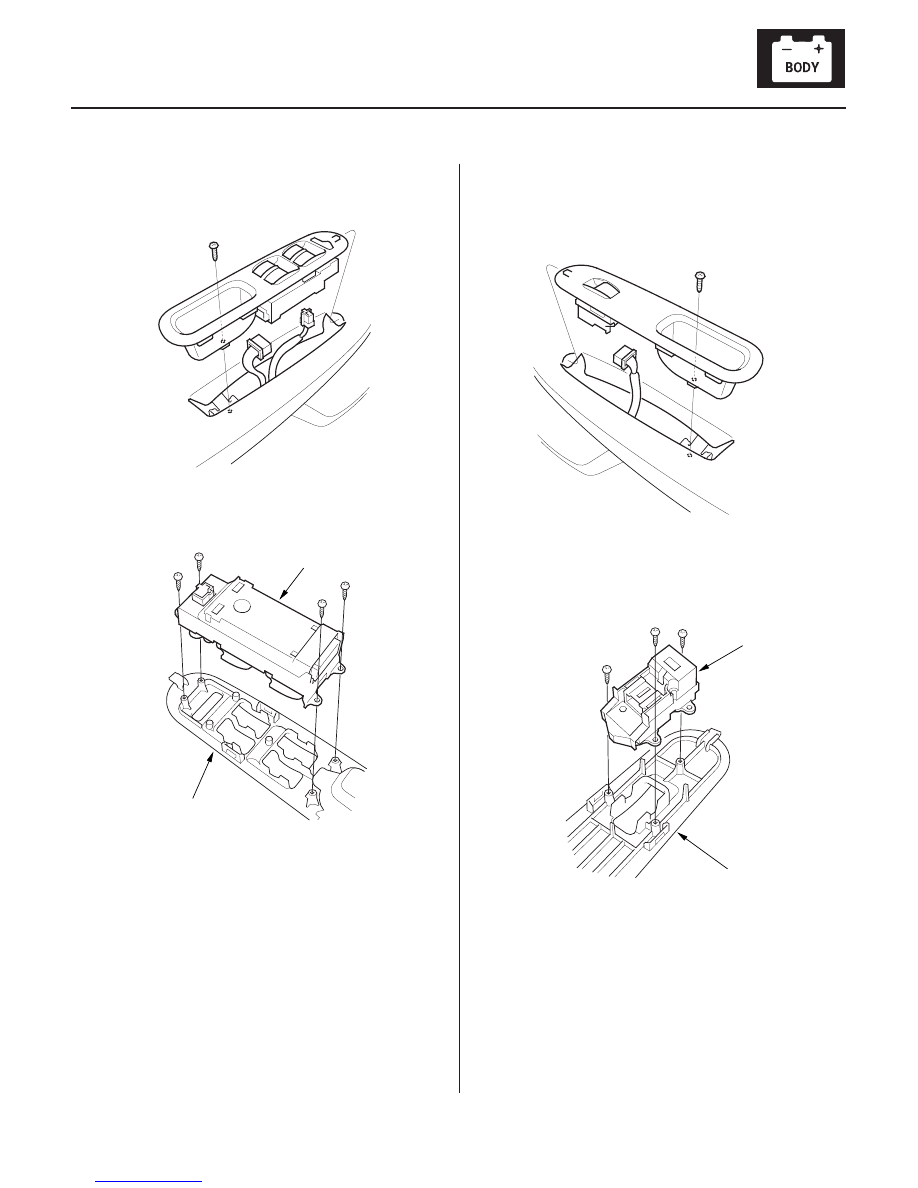

1. Remove the screw and master switch assembly

from the door panel.

2. Remove the four mounting screws, then remove

the master switch (A) from the panel (B).

1. Remove the screw and passenger’s window switch

assembly from the door panel.

2. Remove the three mounting screws, then remove

the passenger’s window switch (A) from the panel
(B).

03/07/29 10:24:13 61S0X050_220_0217
