*01

S0X4A00J32173660731FEAT00

Cavity

Test condition

Test: Desired result

Possible cause if result is not obtained

22-136

Turn Signal/Hazard Flasher

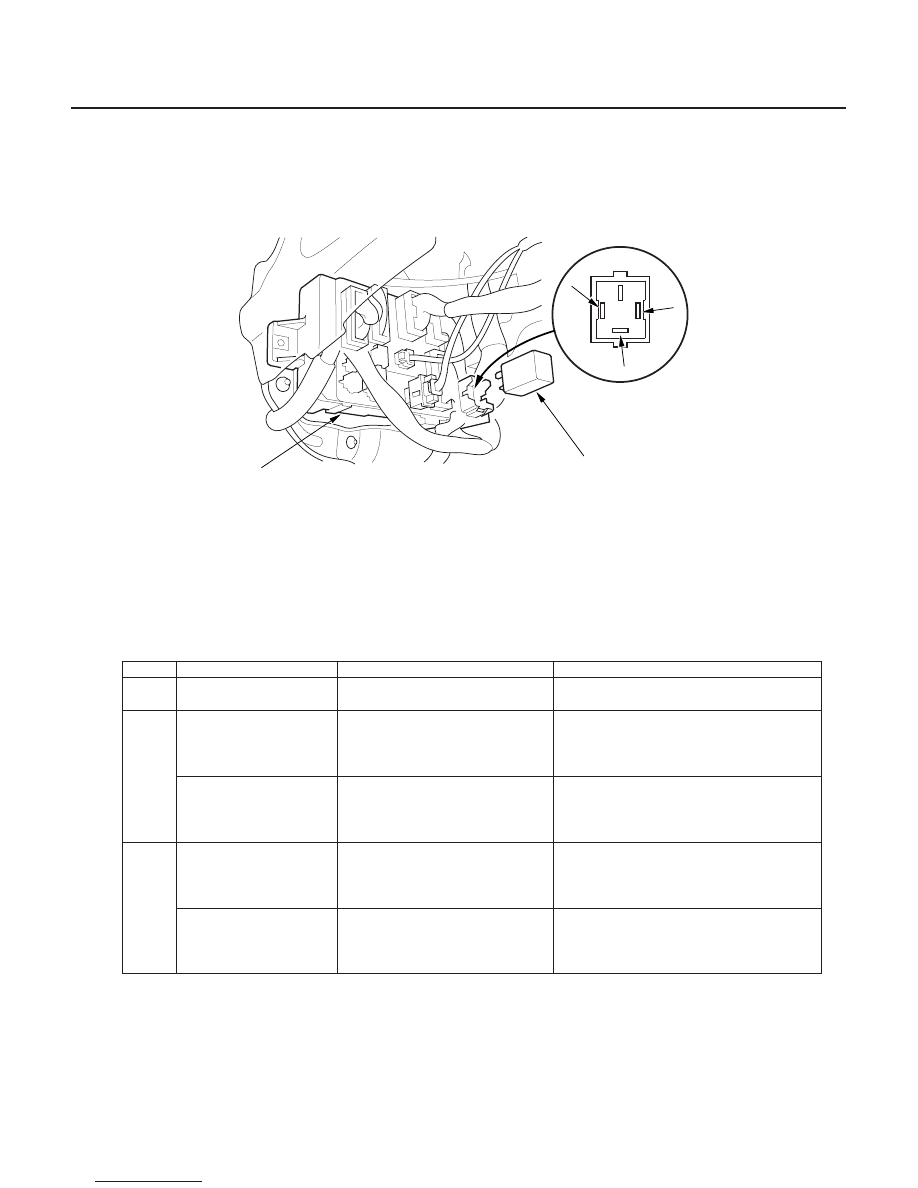

Turn Signal/Hazard Relay Input Test

B

A

1

3

2

1. Remove the driver’s under-dash fuse/relay box (see page 22-86).

2. Remove the turn signal/hazard relay (A) from the driver’s under-dash fuse/relay box (B).

3. Inspect the relay and fuse/relay box socket terminals to be sure they are all making good contact.

• If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
• If the terminals look OK, go to step 4.

4. Make these input tests at the fuse/relay box.

• If any test indicates a problem, find and correct the cause, then recheck the system.
• If all the input tests prove OK, the turn signal/hazard relay must be faulty; replace it.










1

Under all conditions

Check for continuity to ground:
There should be continuity.

Poor ground (G401)
An open in the wire

2

Ignition switch ON (II)

Check for voltage to ground:
There should be battery voltage.

Blown No. 10 (7.5A) fuse in the driver’s
under-dash fuse/relay box
Faulty hazard warning switch
An open in the wire

Hazard warning switch
ON

Check for voltage to ground:
There should be battery voltage.

Blown No. 49 (15A) fuse in the under-
hood fuse/relay box
Faulty hazard warning switch
An open in the wire

3

Ignition switch ON (II)
and turn signal switch
in Right or Left position

Connect No. 2 terminal to No. 3
terminal:
Right or left turn signal lights
should come on.

Poor ground (G201, G301, G552,
G582)
Faulty hazard warning switch
An open in the wire

Hazard warning switch
ON

Connect No. 2 terminal to No. 3
terminal:
Hazard warning lights should
come on.

Poor ground (G201, G301, G552,
G582)
Faulty hazard warning switch
An open in the wire

03/07/29 10:21:27 61S0X050_220_0138

01

01

S0X4A82J32173631001FEAT01

01

01

S0X4A83J32173631001FEAT02

With Navigation System

Without Navigation System

22-137

22-137

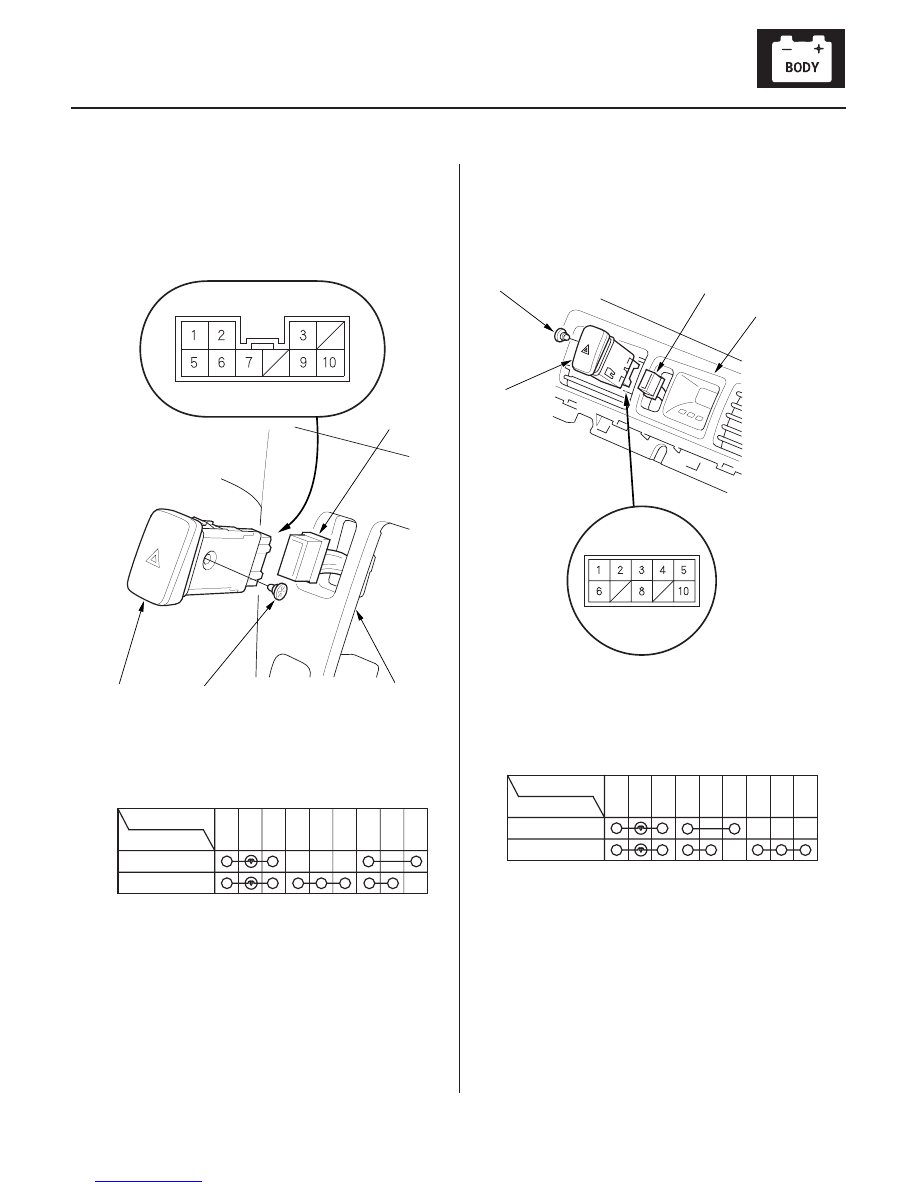

Hazard Warning Switch Test

B

C

A

D

A

B

C

D

Terminal

Position

ON

OFF

6

7

1

2

10

9

3

5

Terminal

Position

ON

OFF

6

1

2

10

3

5

4

8

1. Remove the center panel (see page 20-70).

2. Disconnect the 10P connector (A) from the hazard

warning switch (B).

3. Push out the hazard warning switch from behind

the center panel (C).

4. Check for continuity between the terminals in each

switch position according to the table.

5. If the continuity is not as specified, replace the bulb

(D) or the switch.

1. Remove the instrument panel (see page 20-69).

2. Disconnect the 10P connector (A) from the hazard

warning switch (B).

3. Pull the hazard warning switch out from the clock

(C).

4. Check for continuity between the terminals in each

switch position according to the table.

5. If the continuity is not as specified, replace the bulb

(D) or the switch.

03/07/29 10:21:28 61S0X050_220_0139

*01

S0X4A00J32323300000DAAT00

22-138

Entry Lights Control System

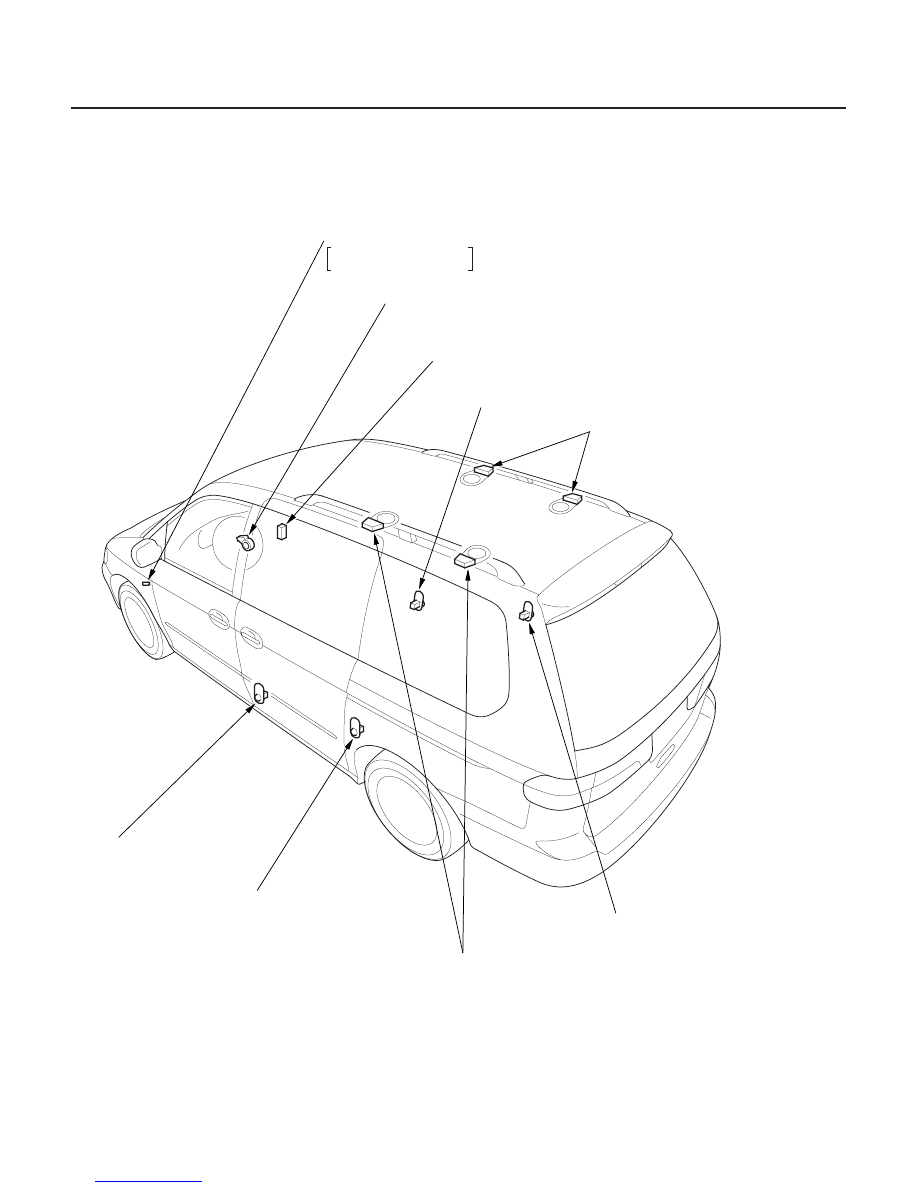

Component Location Index

PASSENGER’S DOOR SWITCH

RIGHT REAR INDIVIDUAL MAP LIGHTS

DRIVER’S DOOR SWITCH

IGNITION KEY SWITCH

INTERIOR LIGHTS RELAY

LEFT SLIDING DOOR SWITCH

LEFT REAR INDIVIDUAL MAP LIGHTS

RIGHT SLIDING DOOR SWITCH

INTERIOR LIGHTS SWITCH

IGNITION KEY LIGHT

Test, page 22-150

Test, page 22-145

Wire colors: BLK/BLU,
WHT/BLU, LT GRN, BLK

Test, page 22-88

Test, page 22-150

Test, page 22-148

NOTE: Entry Light Control System is on EX and EXL models.

Test, page 22-145

03/07/29 10:21:30 61S0X050_220_0140

For LX model, refer to Safety Indicator System page 22-103.

*01

S0X4A00J32323300000EAAT00

22-139

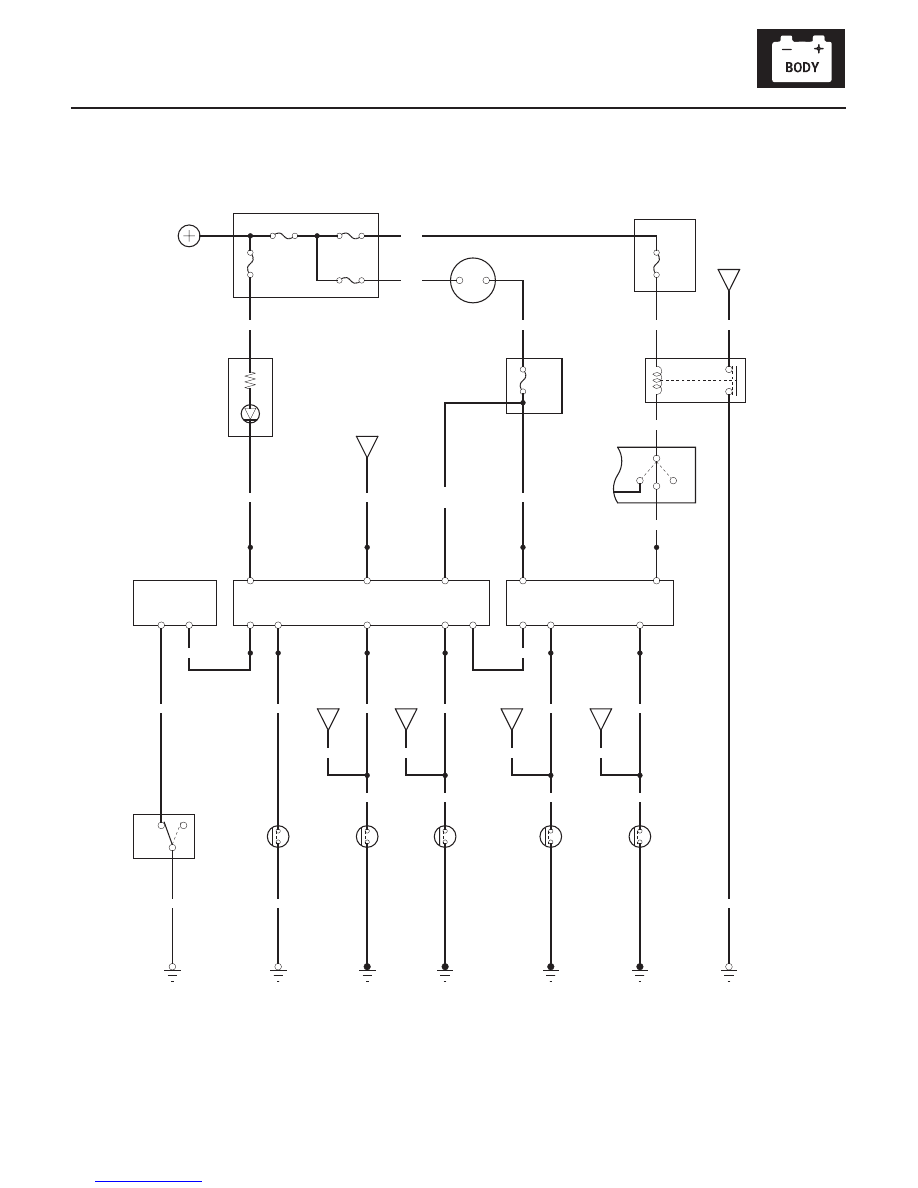

Circuit Diagram

GRN/WHT

GRN

GRY/YEL

GRY/YEL

GRN

GRN/WHT

GRN/ORN

GRN/ORN

BLK/BLU

BLK

G401

B9

B1

PNK

BRN

A2

A15

LT GRN

DOOR

G401

BLK

2

3

A17

BLK/RED

GRY/YEL

A17

A14

GRN/WHT

YEL

A22

A21

A24

A6

A1

RED/BLK

(10A)

No.9

No.11
(10A)

BLK/YEL

IG1

BAT

IGNITION SWITCH

WHT

YEL

6

7

No.42 (50A)

No.47
(20A)

GRN

A16

GRN/ORN

BLU/WHT

3

1

BLK

G401

A16

A13

WHT/BLK

WHT/YEL

UNDER HOOD FUSE/RELAY BOX

No.54 (40A)

No.41 (120A)

BATTERY

BLK/WHT

WHT/BLU

OFF

ON

PASSENGER’S
UNDER DASH
FUSE/RELAY BOX

DRIVER’S
UNDER DASH
FUSE/RELAY
BOX

INTERIOR
LIGHTS
RELAY

INTERIOR
LIGHTS
SWITCH

IGNITION
KEY
LIGHT
(LED)

(Fuse/relay
box socket)

DOOR
MULTIPLEX
CONTROL UNIT

DRIVER’S MULTIPLEX
CONTROL UNIT

PASSENGER’S MULTIPLEX
CONTROL UNIT

SAFETY
INDICATOR
SYSTEM

SAFETY
INDICATOR
SYSTEM

SAFETY
INDICATOR
SYSTEM

SAFETY
INDICATOR
SYSTEM

DRIVER’S
DOOR LOCK
KNOB
SWITCH

UN
LOCK

IGNITION
KEY
SWITCH
(Closed :
Key inserted)

DRIVER’S
DOOR
SWITCH
(Closed :
Door open)

LEFT SLIDING
DOOR
SWITCH
(Closed :
Door open)

PASSENGER’S
DOOR
SWITCH
(Closed :
Door open)

RIGHT SLIDING
DOOR
SWITCH
(Closed :
Door open)

CEILING
LIGHTS

TAILLIGHT RELAY
COMBINATION
LIGHT SWITCH

03/07/29 10:21:31 61S0X050_220_0141
