How to Reset

Blinking Pattern:

Miles (km)

Maintenance Reminder Light

22-100

22-100

Gauges

Gauge Assembly Replacement

D

B

A

C

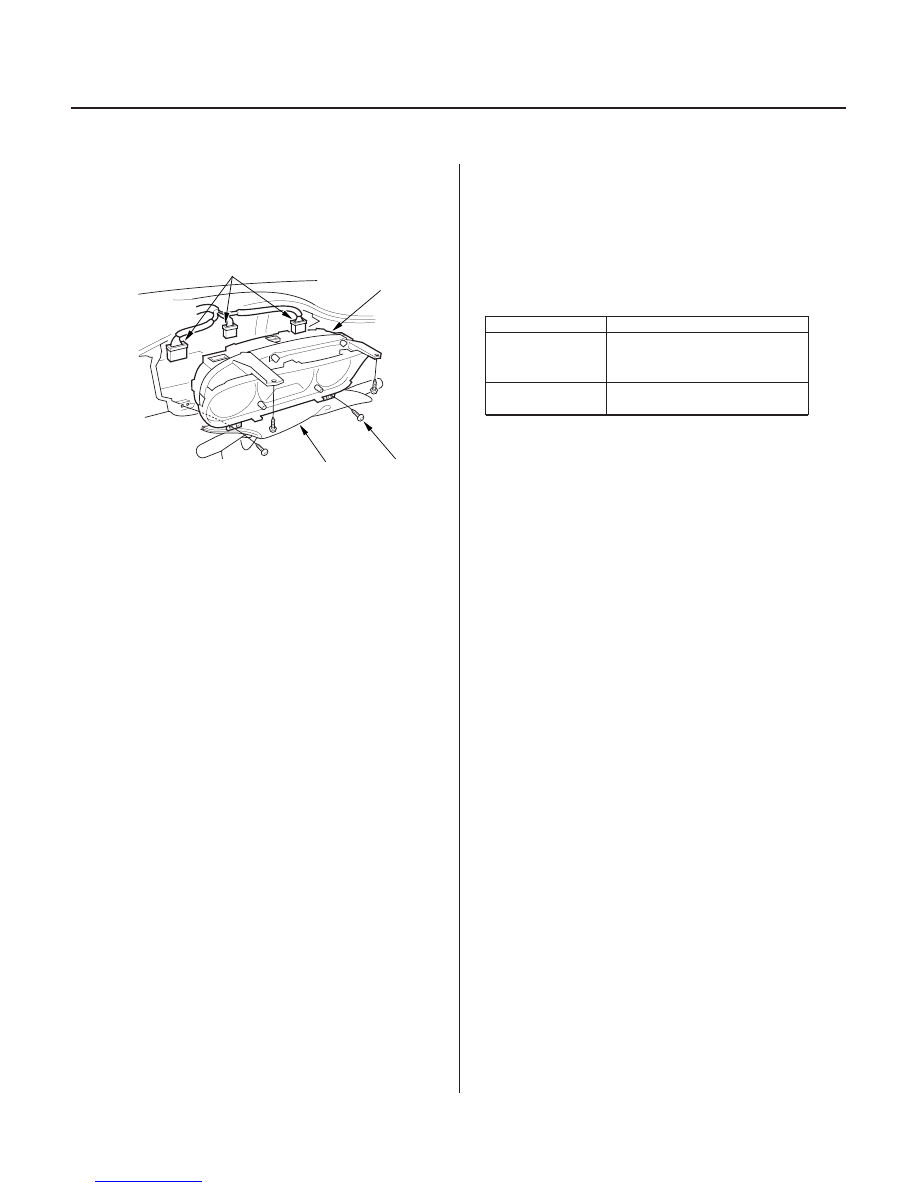

1. Remove the instrument panel (see page 20-69).

2. Remove the screws (A) from the gauge assembly

(B), and spread a protective cloth (C) on the upper
column cover.

3. Disconnect the connectors (D), and remove the

gauge assembly.

4. Install in the reverse order of removal.

Press the select switch and reset switch at the same
time, turn the ignition switch ON (II), and hold them
more than 10 seconds.

At 5,900 (9,440)
to 6,100 (9,760)

Blinks for 10 seconds when
the ignition switch is turned
ON (II).

At 7,400 (11,840)
to 7,600 (12,160)

Comes on and stays on while
the ignition switch is ON (II).

03/07/29 10:21:03 61S0X050_220_0102

Indicator

Resetting the Maintenance Required

01

02

01

S0X4A00J22170863203FAAT00

Before testing

YES

NO

Except ’01 model:

’01 model:

YES

NO

22-101

Vehicle Speed Signal Circuit Troubleshooting

GAUGE ASSEMBLY CONNECTOR B (22P)

BLU/WHT

PCM CONNECTOR A (32P) (Connected)

BLU/WHT

BLU/WHT

PCM CONNECTOR E (31P) (Connected)

• Check to see if diagnostic trouble code P0720 (9) is

indicated. If it is, troubleshoot the DTC (see page 14-
321).

• Inspect the No. 9 (10A) fuse in the driver’s under-dash

fuse/relay box.

• Check for continuity between the B16 terminal and

body ground (G503).

1. Raise the vehicle, and make sure it is securely

supported.

2. Disconnect the connector B (22P) from the gauge

assembly.

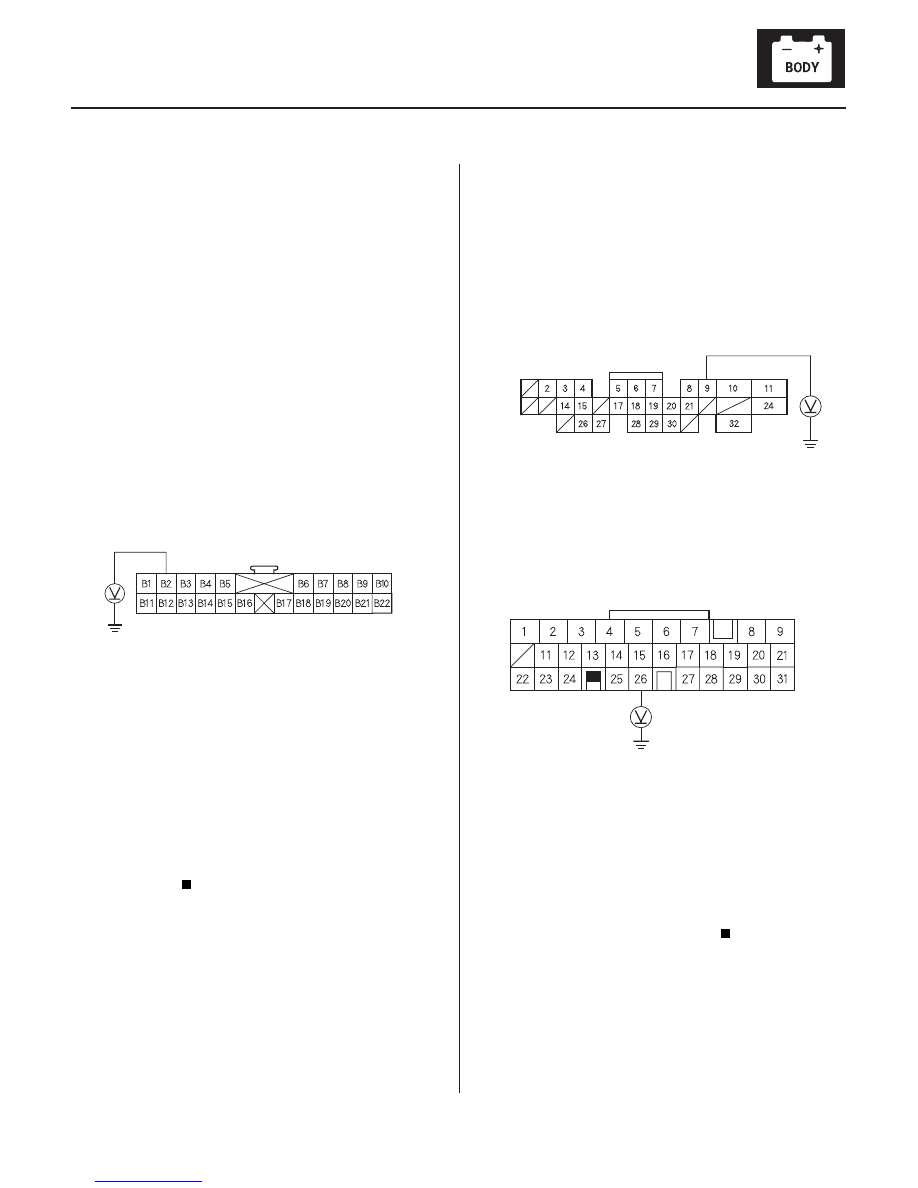

3. Connect the B2 terminal to the positive probe of a

voltmeter, and connect the negative probe to body
ground. To prevent damage to the gauge assembly,
lay the gauge assembly on a shop rag.

4. Put the vehicle in neutral position with the ignition

switch ON (II).

5. Slowly rotate (over 3 mph (2 km/h)) one wheel with

the other wheel blocked.

Substitute a known-good gauge assembly. If

the problem is gone, replace the gauge
assembly.

Go to step 6.

6. Turn the ignition switch off.

7. Connect the No. 9 terminal of the PCM connector A

(32P) (except ’01 model) or the No. 26 terminal of
the PCM connector E (31P) (’01 model) to the
positive probe of a voltmeter, and connect the
negative probe to body ground.

8. Turn the ignition switch ON (II).

9. Slowly rotate (over 3 mph (2 km/h)) one wheel with

the other wheel blocked.

Repair open in the BLU/WHT wire between

the PCM and the gauge assembly.

Go to step 10.

10. Turn the ignition switch OFF.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Wire side of
female terminals

Does voltage pulse f r om 0 to appr ox. 5 V or mor e?

Does voltage pulse f r om 0 to appr ox. 5 V or mor e?

03/07/29 10:21:03 61S0X050_220_0103

01

02

Except ’01 model:

’01 model:

YES

NO

22-102

Gauges

Vehicle Speed Signal Circuit Troubleshooting (cont’d)

PCM CONNECTOR A (32P) (Connected)

BLU/WHT

BLU/WHT

PCM CONNECTOR E (31P) (Disconnected)

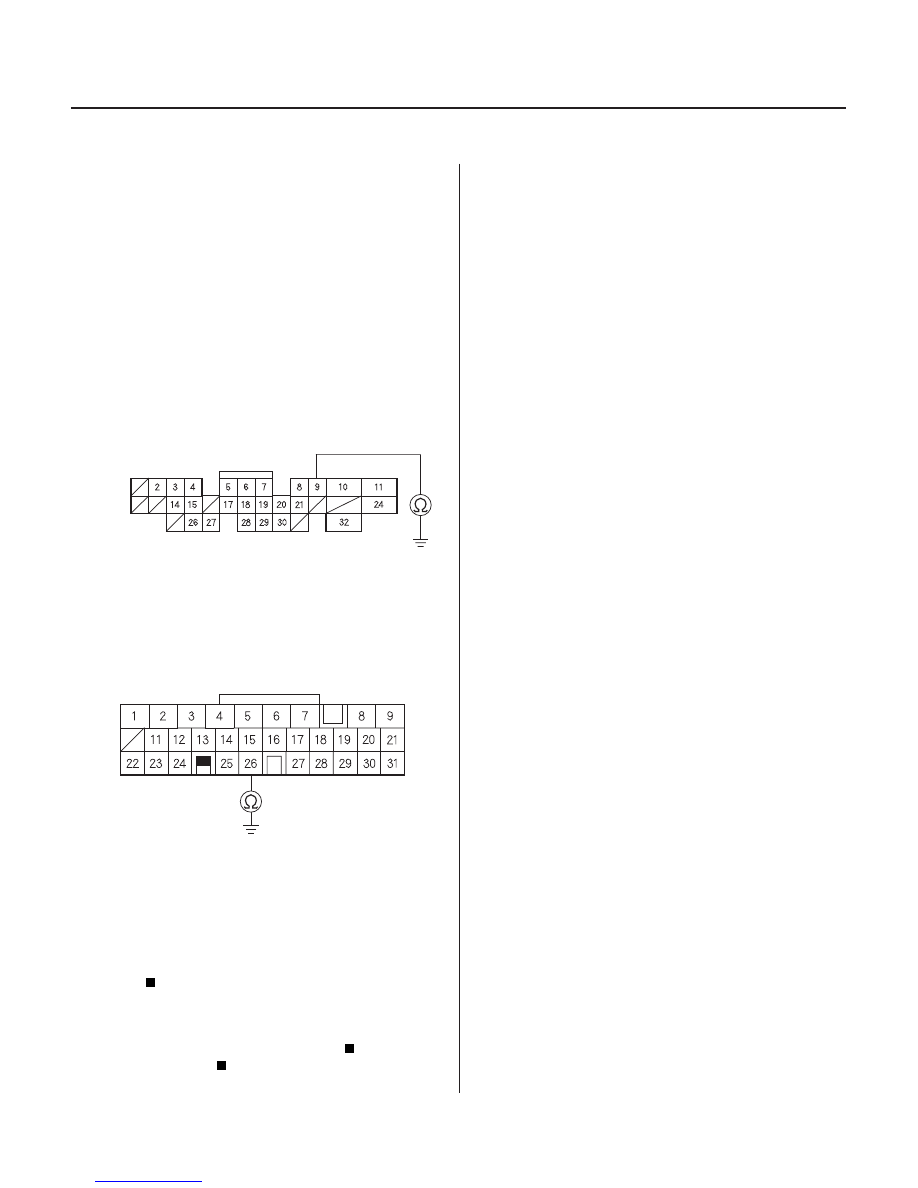

11. Disconnect the PCM connector A (32P) (except ’01

model) or E (31P) (’01 model).

12. Disconnect the driver’s multiplex control unit

connector B, and the cruise control unit.
On EX and EXL models: disconnect the left and
right power sliding door control units.

13. Check for continuity between PCM connector A

No. 9 terminal or PCM connector E No. 26 terminal
and body ground.

Repair short to ground in the BLU/WHT wire

between the PCM and the gauge assembly, the
cruise control unit, or the driver’s multiplex control
unit.

Check for these problems:

• Bent, loose or corroded terminals.
• A faulty PCM.

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

03/07/29 10:21:04 61S0X050_220_0104

*01

S0X4A00J26370100000DAAT00

22-103

Safety Indicator System

Component Location Index

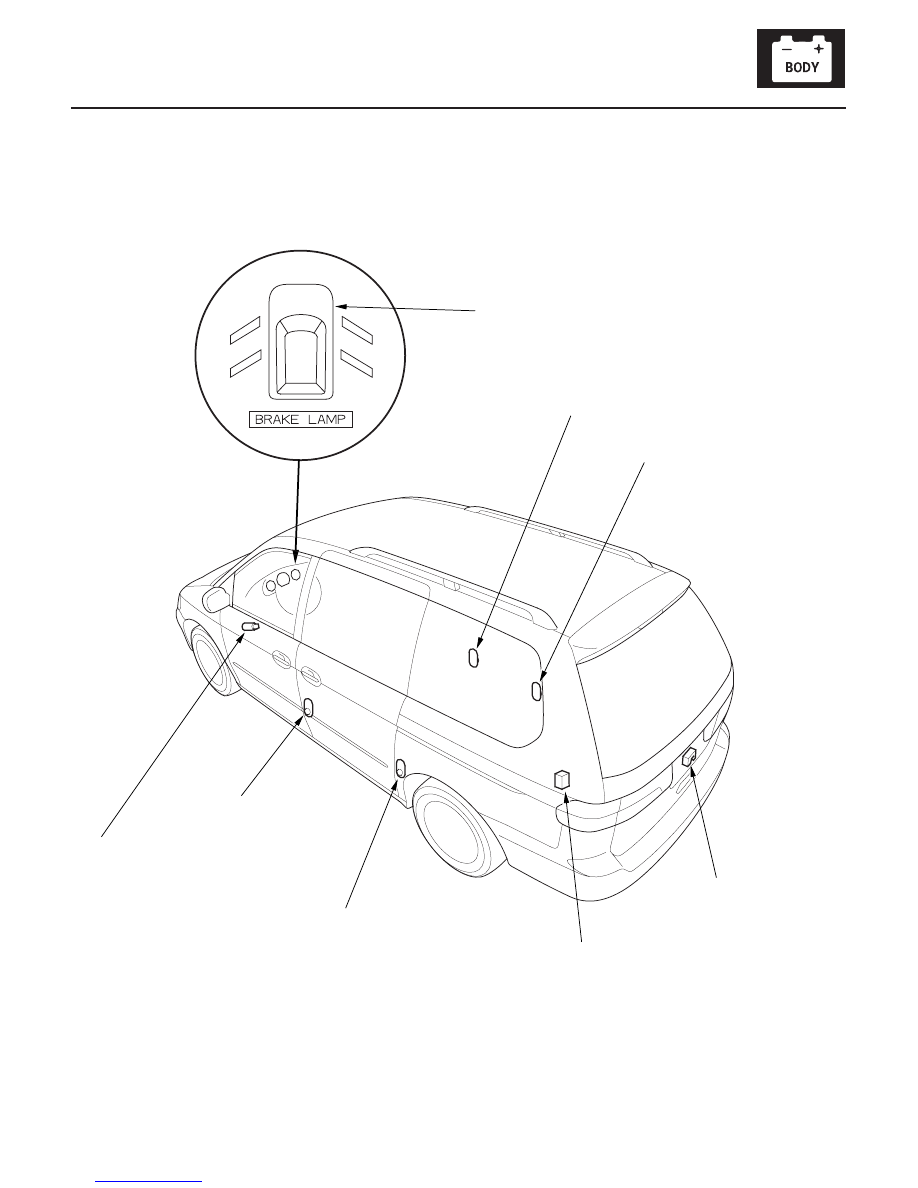

FRONT PASSENGER’S DOOR SWITCH

RIGHT REAR DOOR SWITCH

TAILGATE LATCH
SWITCH

BRAKE LIGHT FAILURE SENSOR

LEFT REAR DOOR SWITCH

DRIVER’S DOOR SWITCH

BRAKE PEDAL POSITION SWITCH

SAFETY INDICATOR

Test, page 22-148

Test, page 22-108

Test, page 19-6
Pedal Height Adjustment,

page 19-6

Input Test, page 22-106

03/07/29 10:21:05 61S0X050_220_0105
