Honda Odyssey 2004. Manual - part 439





―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

01

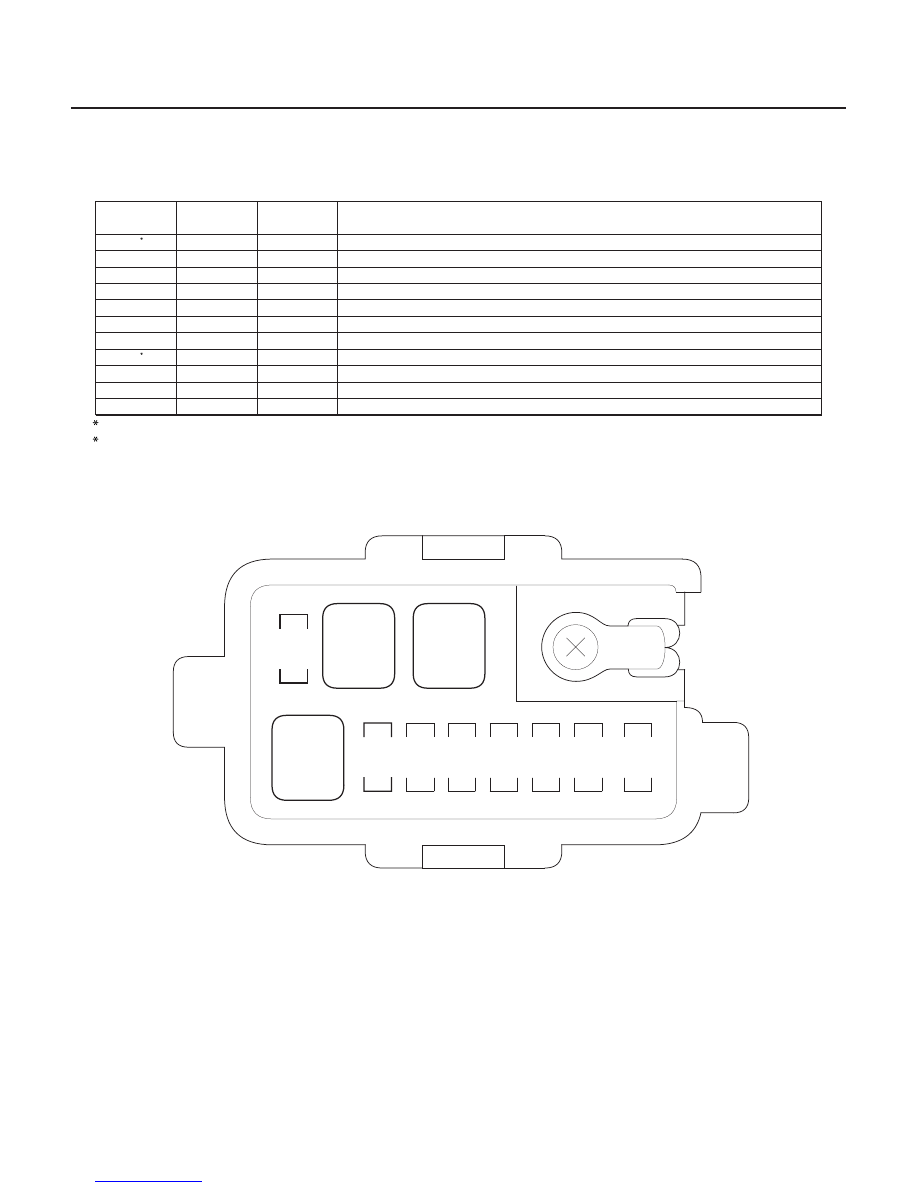

Under-hood Sub Fuse (’03-04 models)

Fuse

Number

Amps

Wire Color

Component(s) or Circuit(s) Protected

22-84

Power Distribution

Fuse to Components Index (cont’d)

79

80

81

71

72

73

74

75

76

77

78

71

20A

WHT/BLU

Audio unit, DVD unit, Rear controller and screen

72

Not used

73

Not used

74

Not used

75

Not used

76

Not used

77

Not used

78

20A

WHT/GRN

Seat heater (EXL)

79

20A

WHT/RED

Power window control unit

80

40A

RED

Rear A/C blower motor

81

30A

WHT/BLK

Left power sliding door control unit

1: With rear entertainment system
2: With seat heater

1

2

03/07/29 10:19:54 61S0X050_220_0086

S0X4A00J54230100000CCAT00

Ground

Component or circuit grounded

22-85

Ground Distribution

Ground to Components Index

G1

Battery, Transmission housing

G2

Engine block

G101

and

G102

PCM (PG1 and PG2 are BLK; LG1 and LG2 are BRN/BLK), ABS/TCS control unit, Transmission range
switch, Data link connector (DLC), (BRN/BLK), EGR valve, IAC valve, Ignition coils, Immobilizer
receiver unit (BRN/BLK), PGM-FI main relay, Radiator fan switch A and B, Shift control solenoid valve
B and C , Vehicle speed sensor (with navigation system) , VTEC pressure switch (BRN/BLK)
Shielding between the PCM and these components have BRN/BLK wires: Countershaft speed sensor,
CKP sensor, Knock sensor, Mainshaft speed sensor, Primary and secondary HO2S, TDC sensors

G151

Shift control solenoid valve A, B and C, Lock-up control solenoid valve

G201

ABS fail-safe relay, Blower motor relay, ELD unit, Cruise control actuator, Fan control relay, Hood
switch, Power steering pressure switch, Radiator fan motor, Rear window washer motor, Right turn
signal/side marker lights, Washer fluid level switch (Canada), Windshield washer motor

G301

Brake fluid level switch, Intermittent wiper relay, Left turn signal/side marker lights, Windshield
wiper motor, Seat heater relay

G302

ABS pump motor, ABS/TCS modulator unit

G303

ABS control unit (4 wires), ABS/TCS control unit (3 wires)

G401

Park pin switch, Blower motor high relay, Center pocket light, Climate control panel, Climate control
unit, Combination light switch (2 wires), Daytime running lights control unit (Canada) (2 wires),
Driver’s door key cylinder switch, Driver’s door lock switch, Driver’s door lock knob switch, Heater
control panel, Heater fan switch, Ignition key switch, Interior light relay, Left power mirror defogger
(Canada), Multiplex control inspection connector, Driver’s multiplex control unit, Power transistor,
Power window master switch, Rear A/C fan switch, Rear window wiper/washer switch (2 wires), Turn
signal/hazard relay, Windshield wiper/washer switch, Driver’s seat heater switch

G501

Clock, Cruise control unit, Cruise control main switch, Data link connector (DLC), Front accessory
power socket, Interior lights switch, Driver’s multiplex control unit, Navigation display unit,
Navigation unit, Power mirror switch, Power sliding door switch

G502

Audio unit, Shielding between Navigation display unit and Navigation unit have BRN/WHT wires,
DVD unit

G503

Gauge assembly, Keyless receiver unit, Passenger’s multiplex control unit

G551

Driver’s power window motor, Driver’s seat belt switch, Fuel gauge sending unit, Fuel pump, Left
power sliding door control unit, Left power sliding door latch position switch, Left power sliding door
release actuator, Power window master switch (2 wires), Sliding door lock control unit, Driver’s seat
heater , Door multiplex control unit, Power seat adjustment switch, Power window control unit (’03
model)

G552

Back-up lights, Brake light failure sensor, Fuel fill door relay , Fuel fill door switch

High mount

brake light, Inner taillights, Left power sliding door control unit (2 wires), Left taillight (2 wires),
License plate light, Rear accessory power socket, Rear window wiper motor, Rear window defogger,
Sliding door buzzer, Tailgate key cylinder switch, Tailgate latch switch, Tailgate lock knob switch,
Trailer lighting connector, Rear window wiper intermittent control unit , Rear controller and screen
(2 wires) , AUX-IN jack , Rear window defogger

G581

Front passenger’s door key cylinder switch, Front passenger’s door lock switch, Right power mirror
defogger (Canada), Right power sliding door control unit, Right power sliding door latch position
switch, Right power sliding door release actuator, Front passenger’s seat heater and switch , OPDS
unit , Front passenger’s seat belt switch , Power window relay, Accessory power socket relay,
Passenger’s multiplex control unit, Front passenger’s weight sensor, Homelink unit

G582

Cargo area light, Front individual map lights, Rear A/C blower motor relays, Rear A/C mode motor,
Right power sliding door control unit (2 wires), Right taillight (2 wires), Vanity mirror lights

G801

SRS unit (2 wires)

G851

SRS unit (2 wires), Memory erase signal (MES) connector, SRS front sensors

1: ’00-04 models
2: ’99-01 models
3: ’02-04 models
4: ’01-04 models
5: ’00-01 models

1

2

5

3

3

3

3

3

2

3

4

3

3

3

3

3

2

3

03/07/29 10:19:55 61S0X050_220_0087

01

S0X4A00J54226562011KDAT00

Removal

Installation

22-86

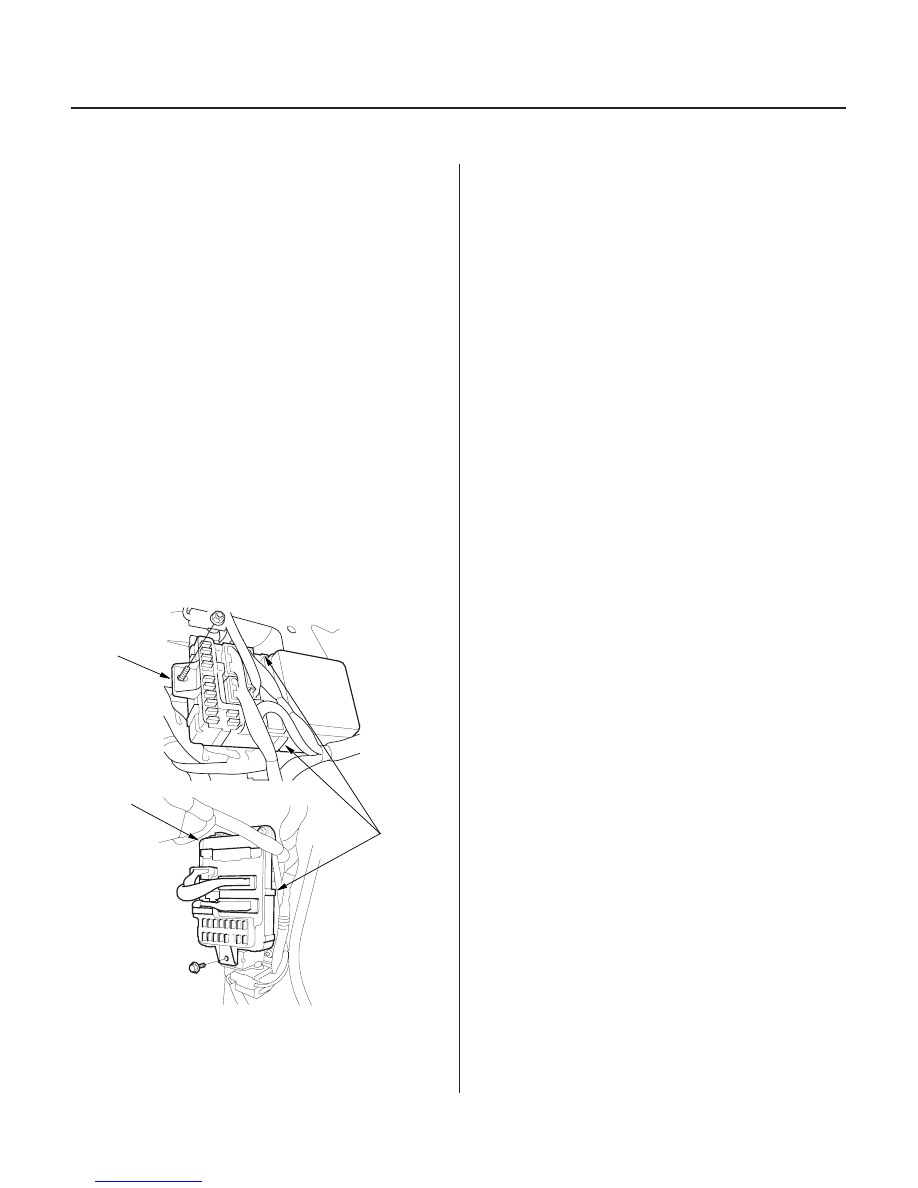

Under-hood Fuse/Relay Box

Removal and Installation

C

B

A

SRS components are located in this area. Review the
SRS component locations, ’99-01 models (see page 23-
18), ’02 model (see page 23-19), ’03-04 models (see
page 23-20), and the precautions and procedures (see
page 23-21) in the SRS before performing repairs or
service.

1. Make sure you have the anti-theft codes for the

radio and the navigation system, then write down
the frequencies for the radio’s preset buttons.

2. Disconnect the battery negative cable, then

disconnect the positive cable, and wait at least 3
minutes.

3. Remove the driver’s dashboard lower cover (see

page 20-69).

4. Remove the door sill molding and left or right kick

panel (see page 20-58).

5. Disconnect the connectors from the fuse side of the

driver’s fuse/relay box (A) or the passenger’s fuse/
relay box (B).

6. Remove the mounting bolt release the clips (C) at

the middle on both sides of the box, and pull the
fuse/relay box away from the body.

7. Disconnect the driver’s or passenger’s under-dash

fuse/relay box connectors, and remove the driver’s
or passenger’s under-dash fuse/relay box.

NOTE: Some part of the SRS harness connector is a
spring-loaded lock type (see page 23-25).

1. Connect the connectors to the driver’s or

passenger’s under-dash fuse/relay box, then install
the driver’s or passenger’s under-dash fuse/relay
box in the reverse order of removal.

2. Install the left or right kick panel and the door sill

molding.

3. Install the dashboard lower cover.

4. Connect both the positive cable and negative cable

to the battery, enter the anti-theft codes for the
radio and the navigation system, then enter the
customer’s radio station presets.

5. Do the power window control unit reset procedure

(see page 22-200).

6. Confirm that all systems work properly.

03/07/29 10:19:55 61S0X050_220_0088

S0X4A00J54200014401FEAT00

22-87

Battery

Battery Test

A battery can explode if you do not follow the
proper procedure, causing serious injury to anyone
nearby. Follow all procedures carefully and keep
sparks and open flames away from the battery.

Use either a JCI or Bear ARBST tester, and follow the
manufacturer’s procedures. If you don’t have one of
these computerized testers, follow this conventional
test procedure:

1. Be sure the temperature of the electrolyte is

between 70°F (21°C) and 100°F (38°C).

2. Inspect the battery case for cracks or leaks.

• If the case is damaged, replace the battery.
• If the case looks OK, go to step 3.

3. Check the indicator EYE.

• If the EYE indicates the battery is charged, go to

step 4.

• If the EYE indicates a low charge, go to step 7.

4. Apply a 300 amp load for 15 seconds to remove the

surface charge.

5. Wait 15 seconds, then apply a test load of 280 amps

for 15 seconds.

6. Record battery voltage.

• If voltage is above 9.6 volts, the battery is OK.
• If voltage is below 9.6 volts, go to step 7.

7. Charge the battery on High (40 amps) until the EYE

shows the battery is charged, plus an additional 30
minutes. If the battery charge is very low, it may be
necessary to bypass the charger’s polarity
protection circuitry.

• If the EYE indicates the battery is charged within

three hours, the battery is OK.

• If the EYE indicates the battery is not charged

within three hours, replace the battery.

03/07/29 10:19:56 61S0X050_220_0089
