22-8

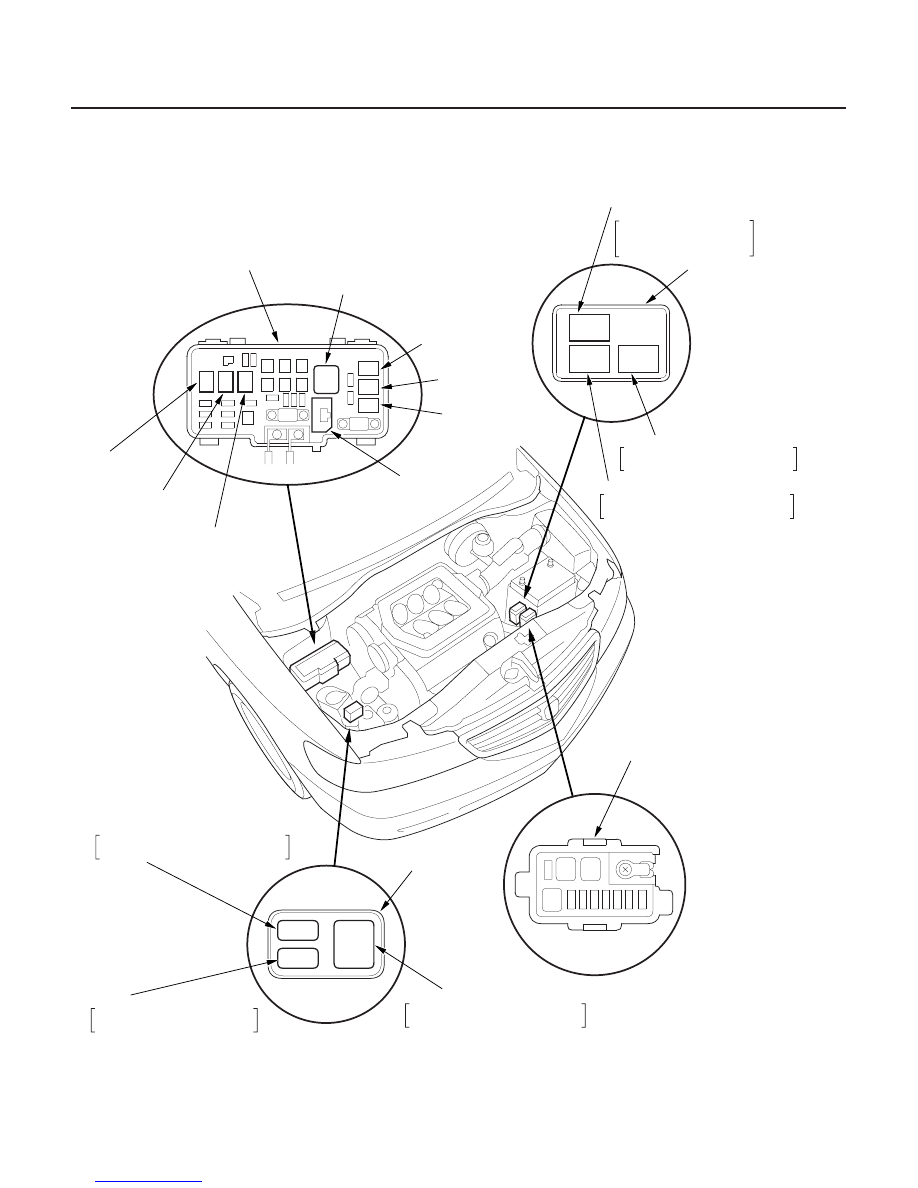

Relay and Control Unit Locations

Engine Compartment (cont’d)

ABS PUMP MOTOR RELAY

ABS RELAY BOX

UNDER-HOOD
FUSE/RELAY BOX

HORN RELAY

BLOWER MOTOR RELAY

HEADLIGHT
RELAY 2

HEADLIGHT
RELAY 1

CONDENSER FAN
RELAY

RADIATOR
FAN RELAY

A/C COMPRESSOR
CLUTCH RELAY

ELD UNIT

INTERMITTENT
WIPER RELAY

FAIL-SAFE RELAY

MULTI-RELAY BOX

FAN CONTROL RELAY

TCS RELAY

SEAT HEATER RELAY (EXL)

UNDER-HOOD SUBFUSE BOX

Wire colors: YEL/RED,
BRN/BLK, WHT/BLU and WHT

Wire colors: GRN/BLK,
WHT, BLK, GRN/RED
and BLU/WHT

Wire colors: YEL/GRN, BLK,
BRN/BLK and WHT/GRN

Wire colors: BLK/YEL, BLU/BLK,
BLU/RED, BLK and BLU/RED

Wire colors: BRN/BLK, GRN/YEL,
RED/BLU and BLU/BLK

Wire colors: WHT/GRN,
WHT/BLK, YEL/BLK and BLK

03/07/29 10:17:53 61S0X050_220_0010

０１

０２

Ｓ０Ｘ４Ａ００Ｊ５４２００００００００ＤＥＡＴ２０

With navigation System:

Without navigation System:

22-9

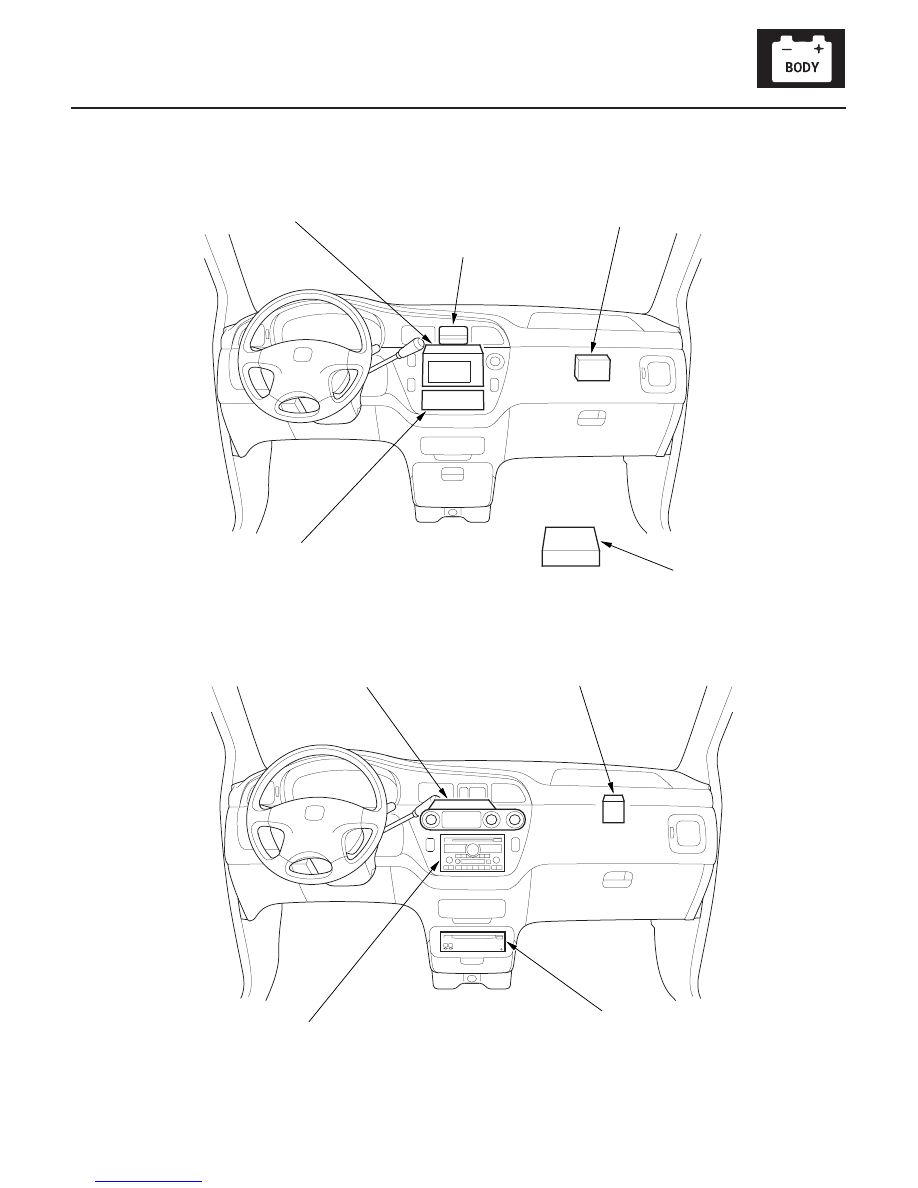

Dashboard

NAVIGATION DISPLAY UNIT

AUTOMATIC CLIMATE
CONTROL UNIT

NAVIGATION UNIT

CLIMATE CONTROL PANEL

AUDIO UNIT

CLIMATE CONTROL UNIT or
HEATER CONTROL PANEL

AUDIO UNIT

DAYTIME RUNNING LIGHTS
CONTROL UNIT

DVD UNIT

(cont’d)

(Under front passenger’s seat)

(Canada)

(With rear entertainment system)

03/07/29 10:17:53 61S0X050_220_0011

０３

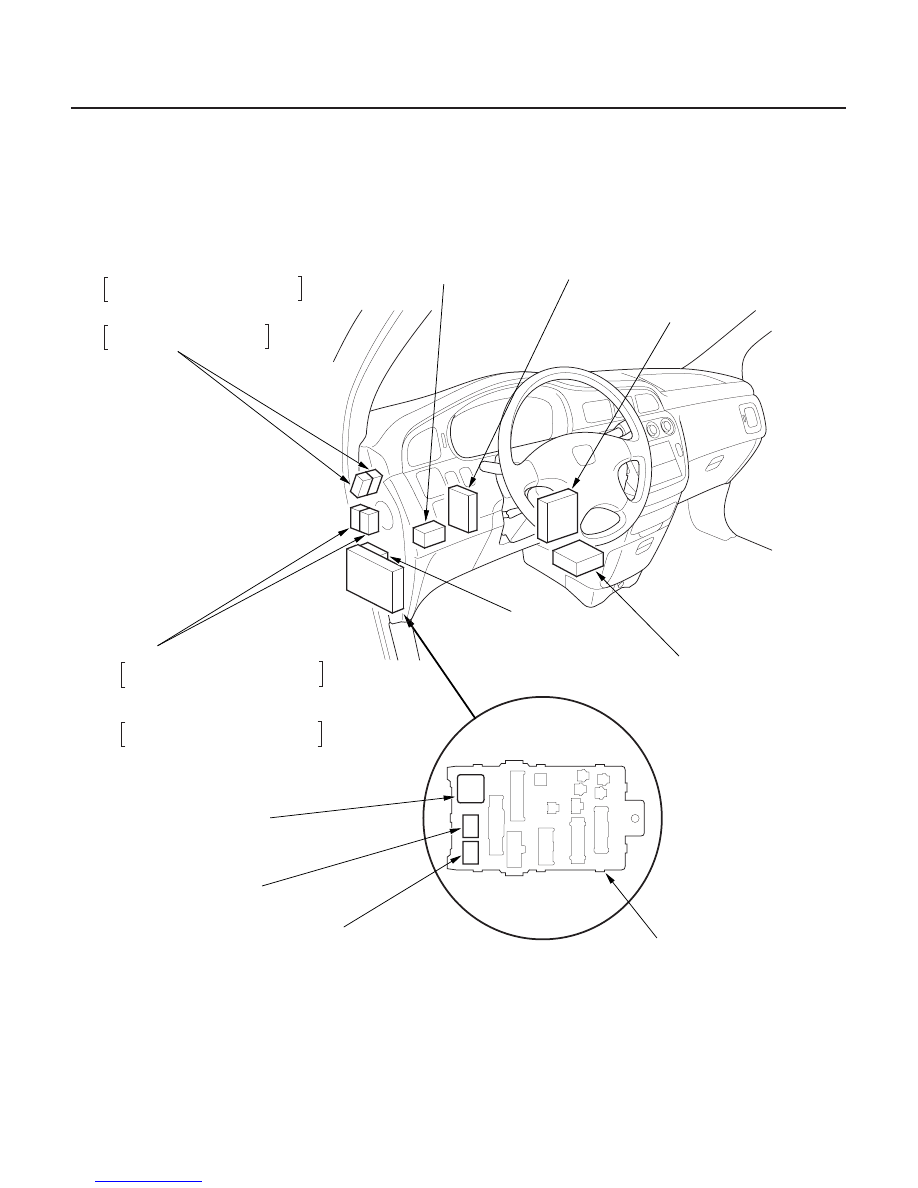

22-10

Relay and Control Unit Locations

Dashboard (cont’d)

PGM-FI
MAIN RELAY

DRIVER’S MULTIPLEX CONTROL
UNIT

SRS UNIT

STARTER CUT RELAY

A/T REVERSE RELAY

TURN SIGNAL/HAZARD RELAY

DRIVER’S UNDER-DASH
FUSE/RELAY BOX

INTERIOR LIGHTS RELAY

TAILLIGHT RELAY

DAYTIME RUNNING LIGHTS RELAY

PCM

ABS CONTROL UNIT or
ABS/TCS CONTROL UNIT

LOW BEAM CUT RELAY

Wire colors: RED/GRN, RED/YEL,
RED/GRN and RED/BLK

(With auto-off headlight)

Wire colors: WHT/BLU,
LT GRN, BLK/BLU and BLK

Wire colors: RED/ORN, WHT/RED,
RED/WHT and ORN/BLK

(Canada)

Wire colors: RED/ORN, RED/WHT,
RED/GRN and RED/YEL

(Canada)

03/07/29 10:17:54 61S0X050_220_0012

＊０１

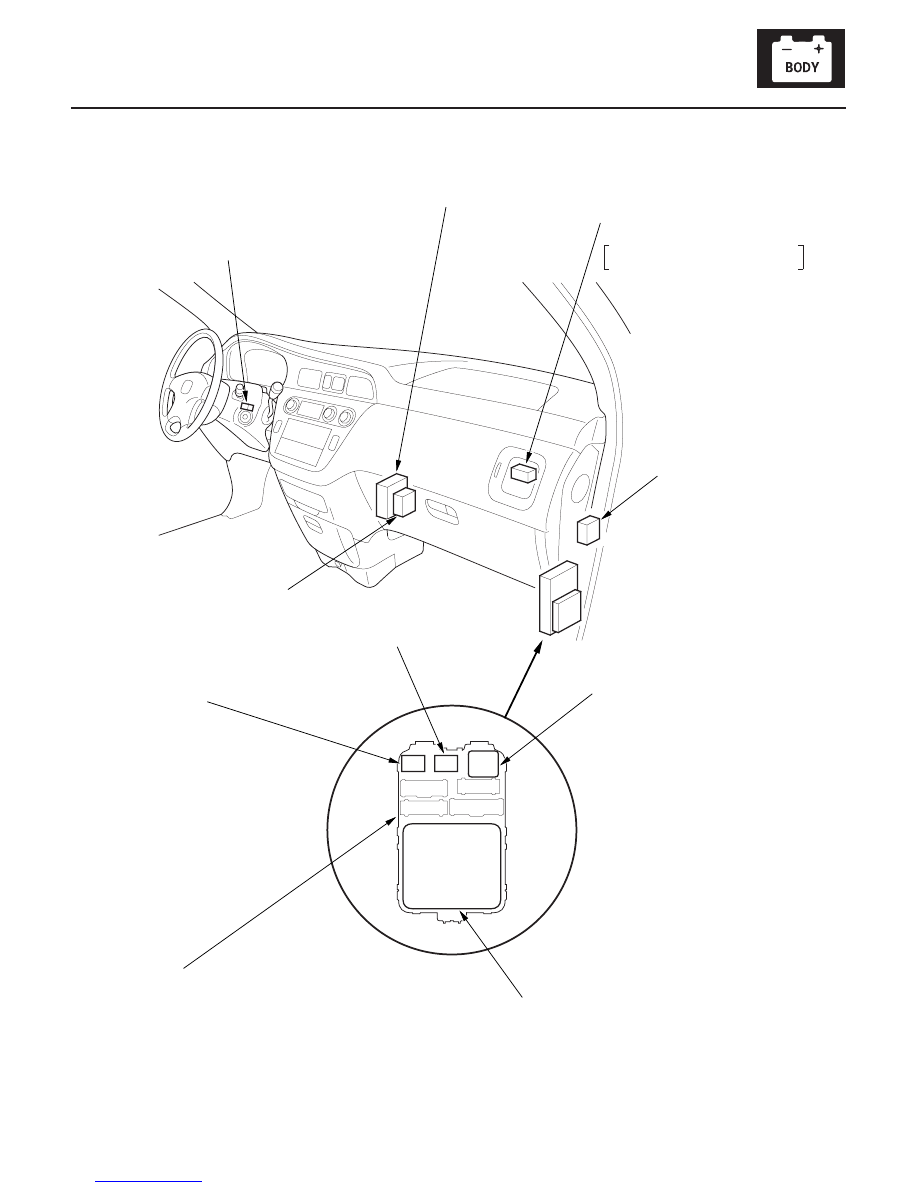

22-11

PASSENGER’S UNDER-DASH
FUSE/RELAY BOX

POWER WINDOW RELAY

ACCESSORY POWER SOCKET RELAY

REAR WINDOW DEFOGGER RELAY

PASSENGER’S MULTIPLEX CONTROL
UNIT

BLOWER MOTOR HIGH RELAY

KEYLESS RECEIVER UNIT
(’99-01 and ’03-04 models)

CRUISE CONTROL UNIT

IMMOBILIZER RECEIVER UNIT

KEYLESS RECEIVER UNIT
(’02 model)

(Wiht climate control)

Wire colors: BLK/YEL, BLU/ORN,
BLU/RED and BLK

03/07/29 10:17:54 61S0X050_220_0013
