Climate Control

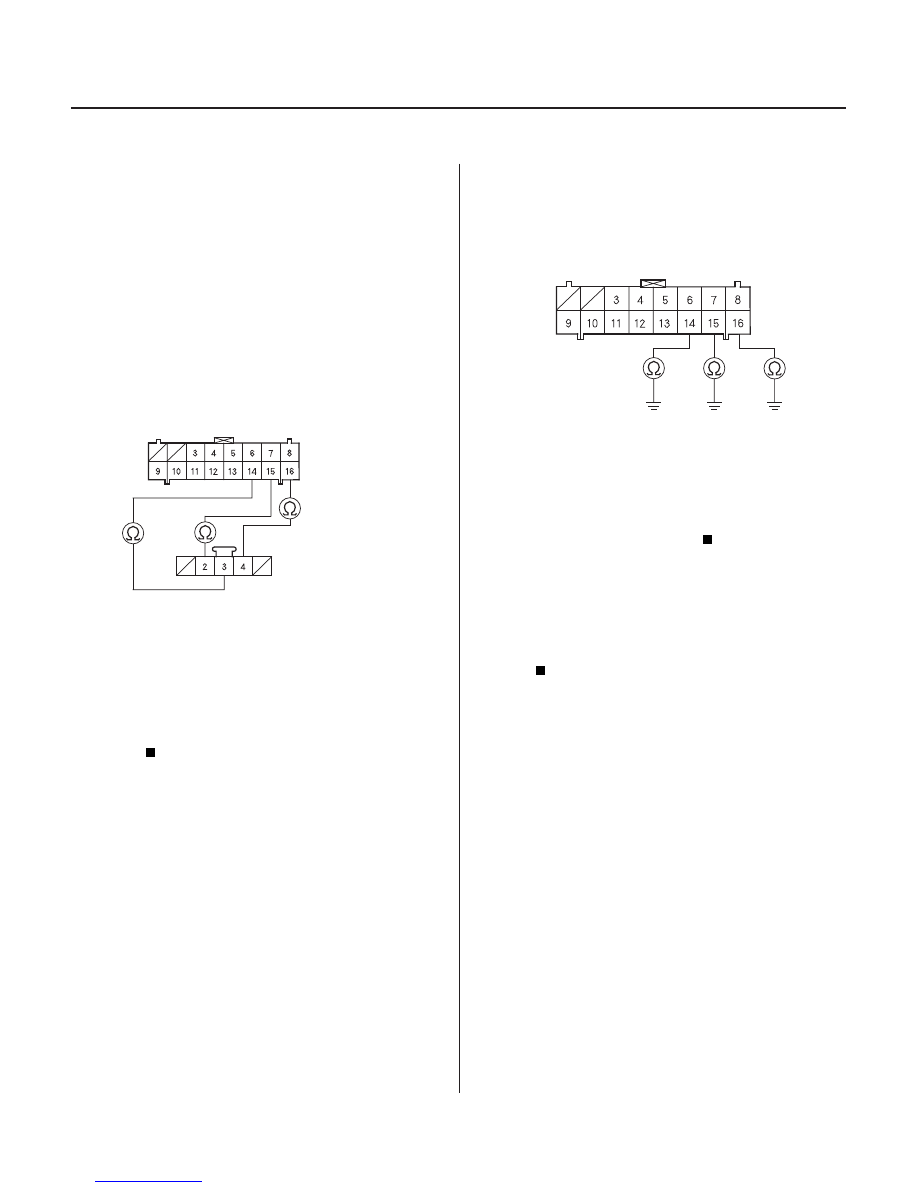

Manual Switch (Navigation System Display) Troubleshooting

NAVIGATION SYSTEM DISPLAY UNIT CONNECTOR A (5P)

GRN/ORN

YEL/BLU

RED/GRN

GRN/ORN

YEL/BLU

RED/GRN

CLIMATE CONTROL UNIT CONNECTOR A (16P)

GRN/
ORN

YEL/
BLU

RED/GRN

CLIMATE CONTROL UNIT CONNECTOR A (16P)

1. Disconnect navigation system display unit

connector A (5P).

2. Disconnect climate control unit connector A (16P).

3. Check for continuity between the following

terminals of climate control unit connector A (16P)
and navigation system display unit connector A
(5P).
16P

5P

No. 14

No. 3

No. 15

No. 2

No. 16

No. 4

Go to step 4.

Repair any open in the wire(s) between the

climate control unit and the navigation display
unit.

4. Check for continuity between the No. 14, 15 and 16

terminals of climate control unit connector A (16P)
and the body ground individually.

Repair any short to body ground in the

wire(s) between the climate control unit and the
navigation system display unit.

Check for loose wires or poor connections at

climate control unit connector A (16P) and at
navigation system display unit connector A (5P). If
the connections are good, substitute a known-good
climate control unit, and recheck. If the problem
still exists, replace the navigation system display
unit.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

03/07/29 10:13:35 61S0X050_210_0117

01

S0X4A10G10500035301FEAT00

01

S0X4A10G10500035301KBAT00

21-117

21-117

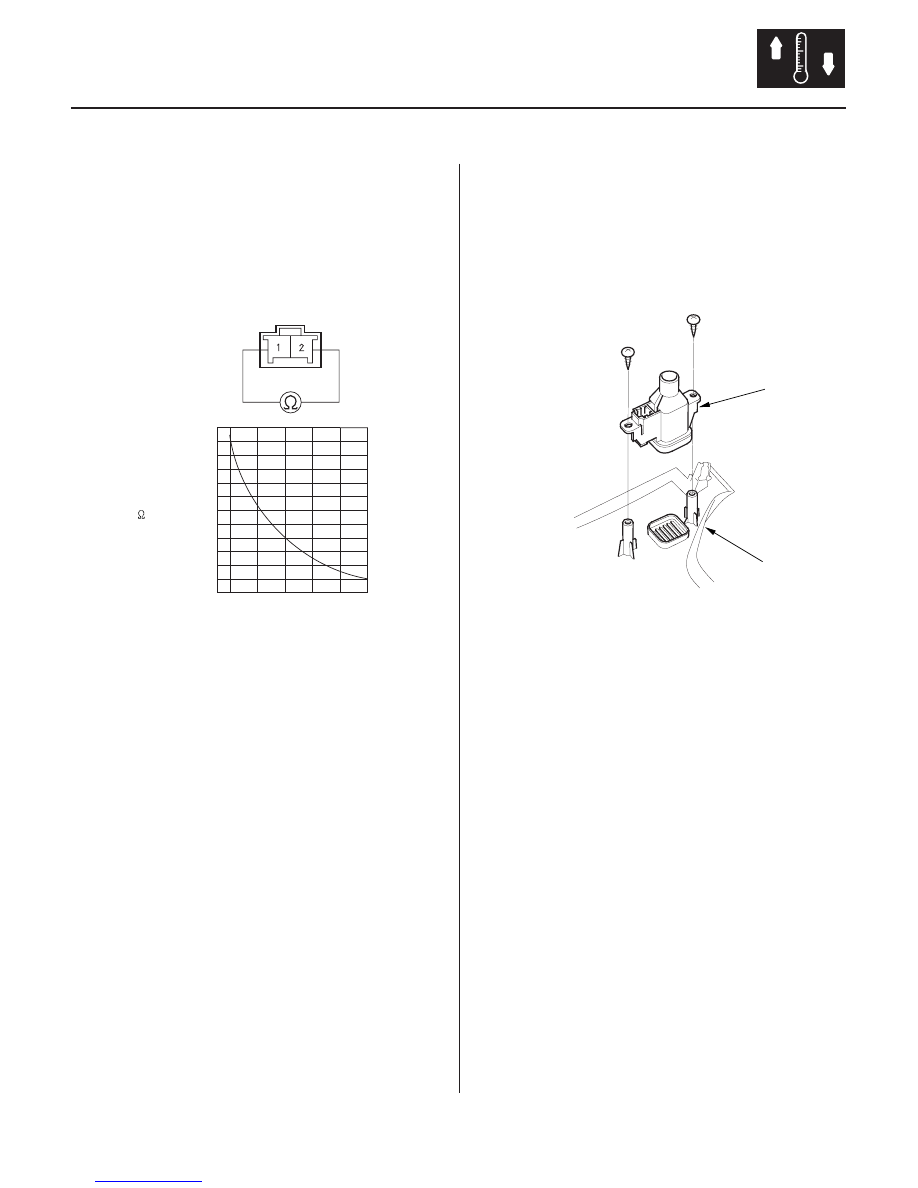

In-car Temperature Sensor Test

In-car Temperature Sensor
Replacement

IN-CAR TEMPERATURE SENSOR

14

10

32

0

50
10

68
20

86
30

104 °F
40 °C

TEMPERATURE

RESISTANCE
(k

)

12
11
10

9
8
7
6
5
4
3
2
1

A

B

Check for a change in resistance by heating or cooling
the sensor with a hair drier.

Compare the resistance reading between the No. 1 and
No. 2 terminals of the in-car temperature sensor with
the specifications shown in the graph; the resistance
should be within the specifications.

1. Remove the dashboard lower cover (see page 20-

69).

2. Remove the self-tapping screws and the in-car

temperature sensor (A) from the dashboard lower
cover (B).

3. Install the sensor in the reverse order of removal.

Be sure to connect the air hose securely.

03/07/29 10:13:36 61S0X050_210_0118

01

S0X4A10G10500043901FEAT00

01

S0X4A10G10500043901KBAT00

21-118

21-118

Climate Control

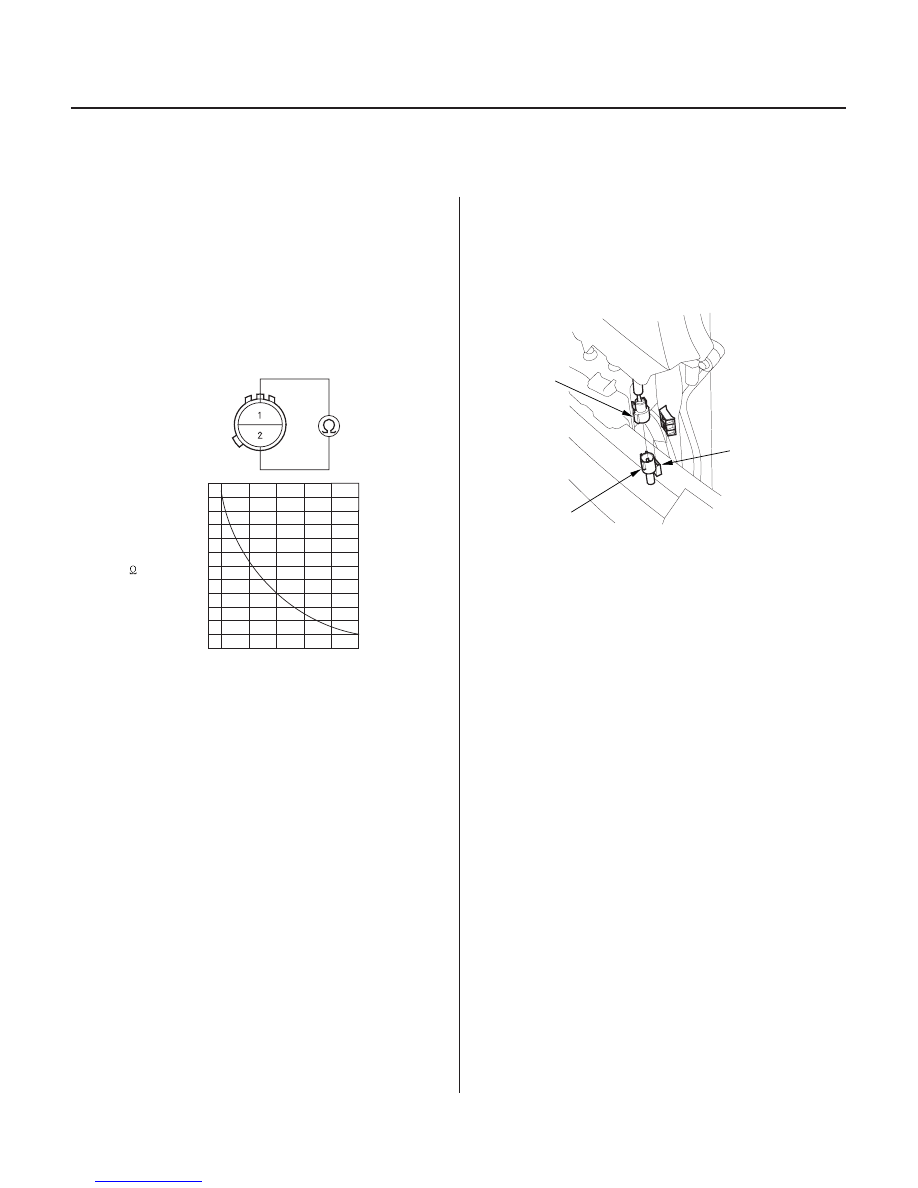

Outside Air Temperature Sensor
Test

Outside Air Temperature Sensor
Replacement

OUTSIDE AIR TEMPERATURE SENSOR

14

10

32

0

50
10

68
20

86
30

104 °F
40 °C

TEMPERATURE

RESISTANCE
(k

)

12
11
10

9
8
7
6
5
4
3
2
1

A

B

C

Dip the sensor in ice water, and measure the resistance.
Then pour hot water on the sensor, and check for a
change in resistance.

Compare the resistance reading between the No. 1 and
No. 2 terminals of the outside air temperature sensor
with the specifications shown in the graph; the
resistance should be within the specifications.

1. Remove the front grille (see page 20-142).

2. Disconnect the 2P connector (A) from the outside

air temperature sensor (B). Lift the tab (C) to release
the lock, and remove the outside air temperature
sensor.

3. Install the sensor in the reverse order of removal.

03/07/29 10:13:36 61S0X050_210_0119

01

S0X4A10G10500057401FEAT00

01

S0X4A10G10500057401KBAT00

21-119

21-119

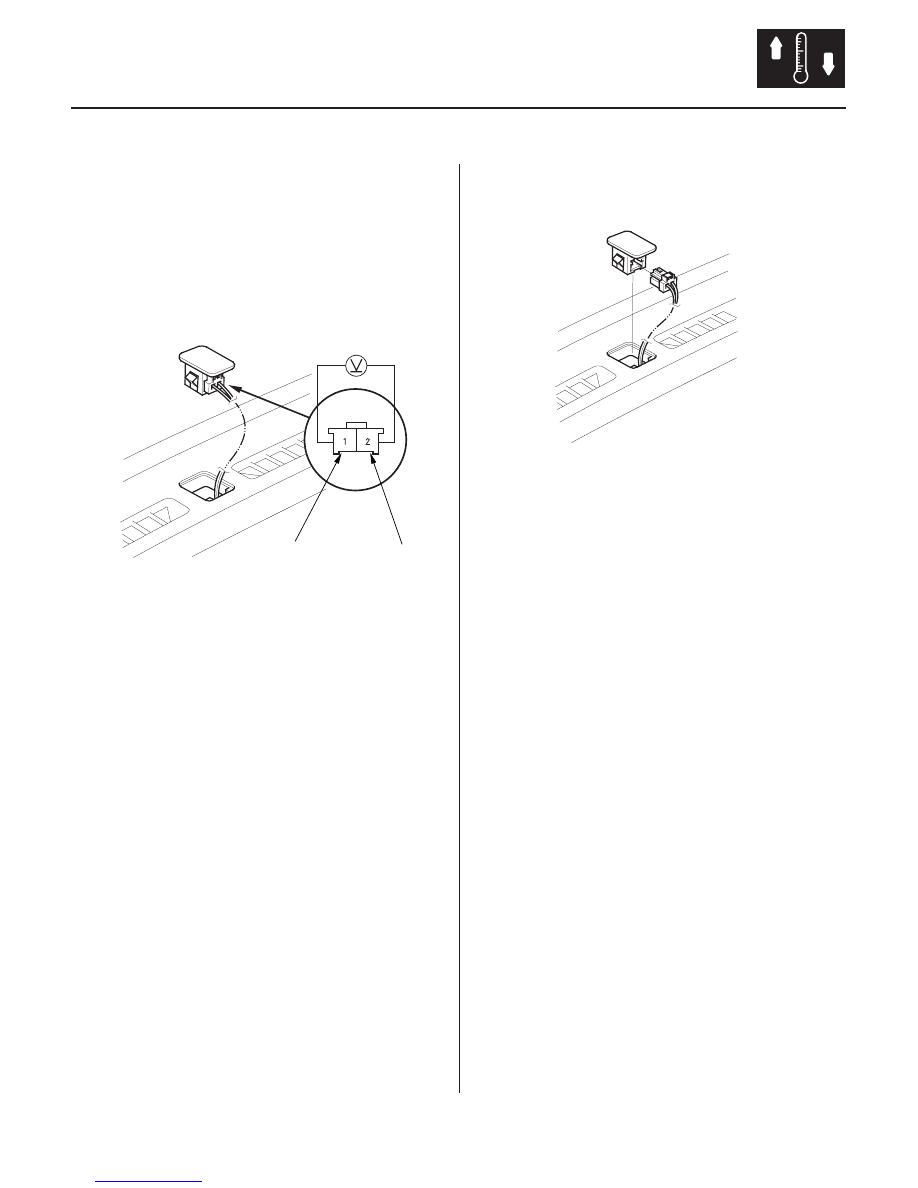

Sunlight Sensor Test

Sunlight Sensor Replacement

WHT/RED

YEL/GRN

Turn the ignition switch ON (II). Measure the voltage
between the terminals with the (

) probe on the No. 1

terminal and the (

) probe on the No. 2 terminal with

the 2P connector connected. The voltage reading will
not change under the light of a flashlight or a
fluorescent lamp. Voltage should be:

• 3.6

3.7 V or more with the sensor out of direct

sunlight.

• 3.3

3.5 V or less with the sensor in direct sunlight.

1. Remove the sunlight sensor from the dashboard,

then disconnect the 2P connector. Be careful not to
damage the sensor or the dashboard.

2. Install the sensor in the reverse order of removal.

03/07/29 10:13:37 61S0X050_210_0120
