Climate Control

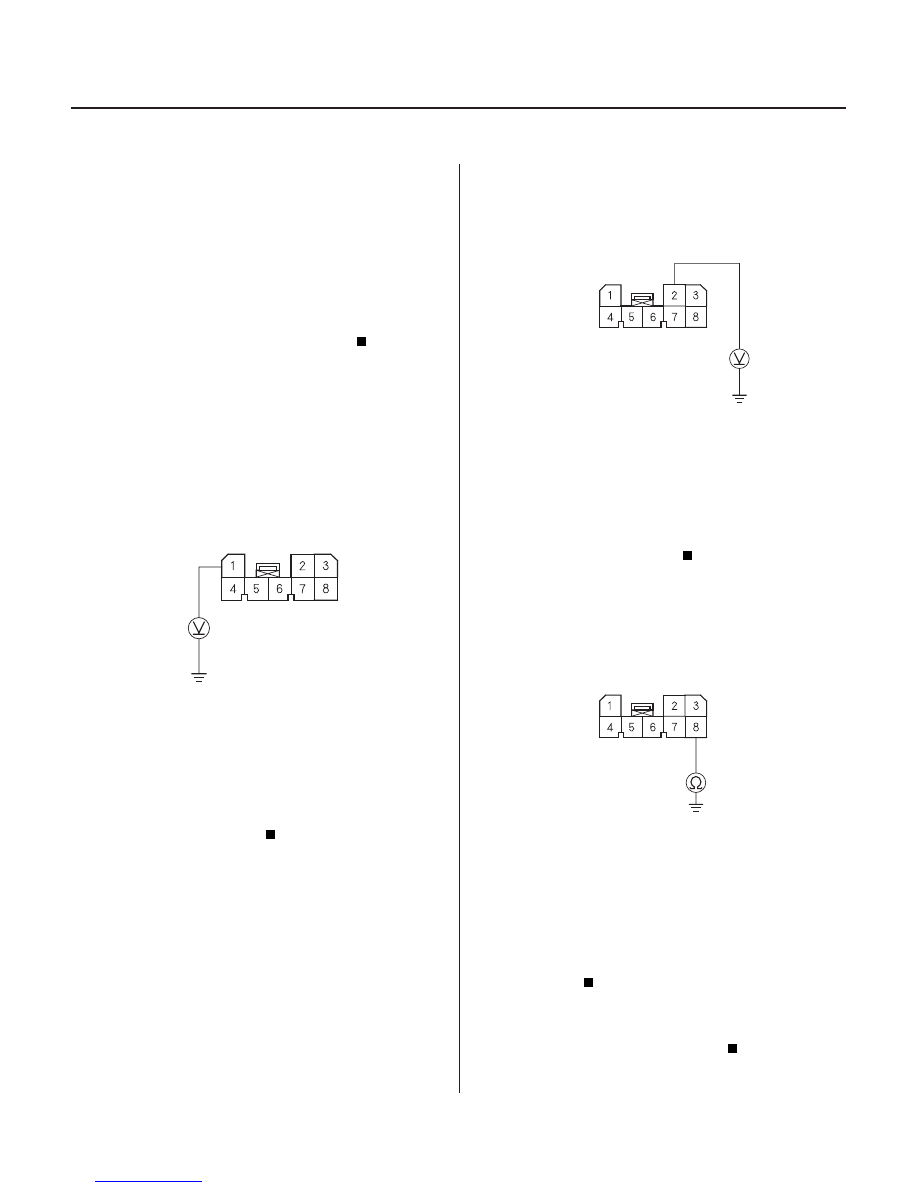

Climate Control Power and Ground Circuit Troubleshooting

CLIMATE CONTROL UNIT CONNECTOR A (8P)

BLK/YEL

CLIMATE CONTROL UNIT CONNECTOR A (8P)

WHT/YEL

BLK

CLIMATE CONTROL UNIT CONNECTOR A (8P)

1. Check the No. 3 (7.5A) fuse in the driver’s under-

dash fuse/relay box, and the No. 13 (7.5A) fuse in
the passenger’s under-dash fuse/relay box.

• Without Navigation System: Go to step 2.
• With Navigation System: Go to step 8.

Replace the fuse(s), and recheck.

2. Disconnect climate control unit connector A (8P).

3. Turn the ignition switch ON (II).

4. Measure the voltage between the No. 1 terminal of

climate control unit connector A (8P) and body
ground.

Go to step 5.

Repair open in the wire between the No. 3

fuse in the driver’s under-dash fuse/relay box and
the climate control unit.

5. Turn the ignition switch OFF.

6. Measure the voltage between the No. 2 terminal of

climate control unit connector A (8P) and body
ground.

Go to step 7.

Repair open in the wire between the No. 13

fuse in the passenger’s under-dash fuse/relay box
and the climate control unit.

7. Check for continuity between the No. 8 terminal of

climate control unit connector A (8P) and body
ground.

Check for loose wires or poor connections at

climate control unit connector A (8P). If the
connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Check for an open in the wire between the

climate control unit and body ground. If the wire is
OK, check for poor ground at G401.

Wire side of female terminals

Ar e the f uses OK ?

Is ther e batter y voltage?

Is ther e continuity?

03/07/29 10:13:33 61S0X050_210_0113

−

＊０４

＊０５

YES

21-113

CLIMATE CONTROL UNIT CONNECTOR B (26P)

BLK/YEL

CLIMATE CONTROL UNIT CONNECTOR B (26P)

BLK

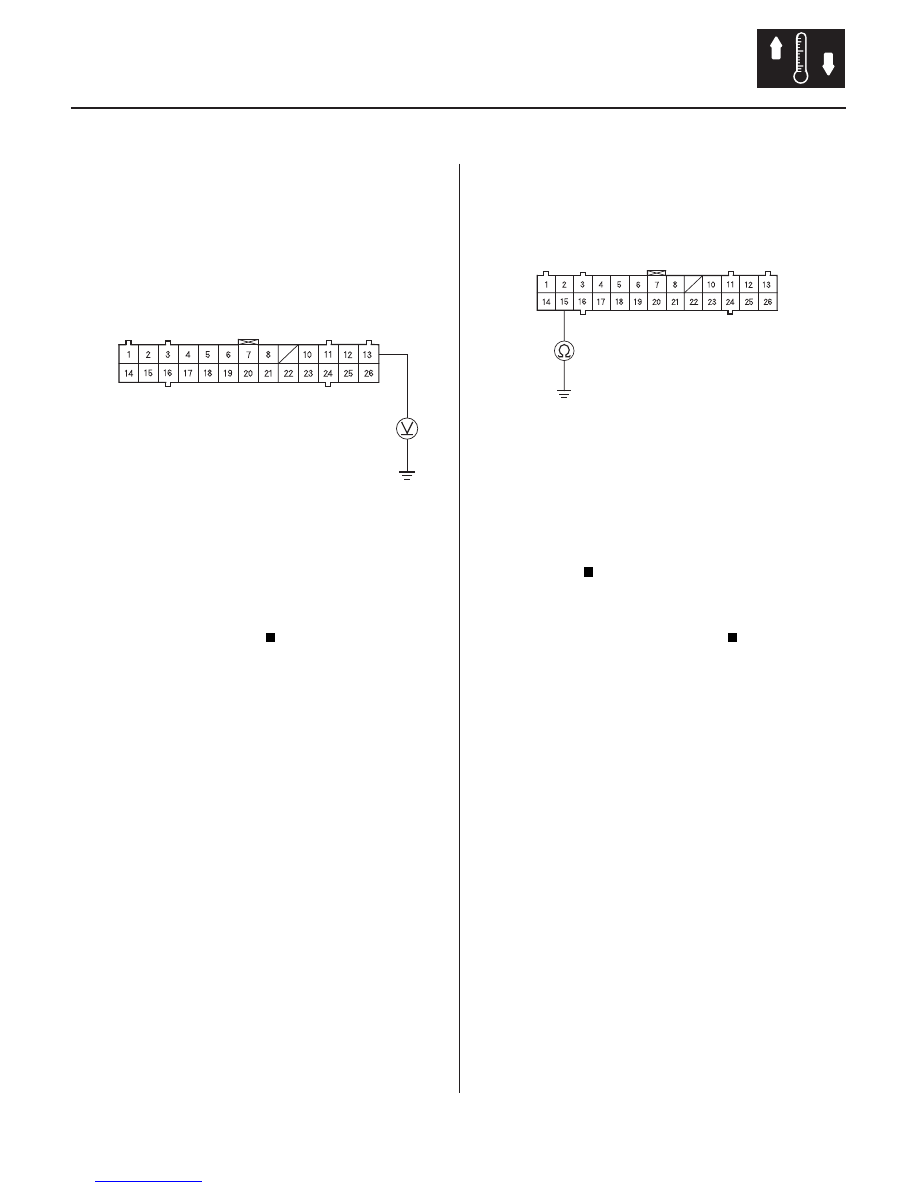

8. Disconnect climate control unit connector B (26P).

9. Turn the ignition switch ON (II).

10. Measure the voltage between the No. 13 terminal

of climate control unit connector B (26P) and body
ground.

Go to step 11.

Repair open in the wire between the No. 3

fuse in the driver’s under-dash fuse/relay box and
the climate control unit.

11. Turn the ignition switch OFF.

12. Check for continuity between the No. 15 terminal of

climate control unit connector B (26P) and body
ground.

Check for loose wires or poor connections at

climate control unit connector B (26P). If the
connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Check for an open in the wire between the

climate control unit and body ground. If the wire is
OK, check for poor ground at G401.

Wire side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

03/07/29 10:13:33 61S0X050_210_0114

−

＊０１

＊０２

＊０３

Ｓ０Ｘ４Ａ８０Ｇ１０５０００１６６９１ＦＡＡＴ１０

With Navigation System

YES

21-114

Climate Control

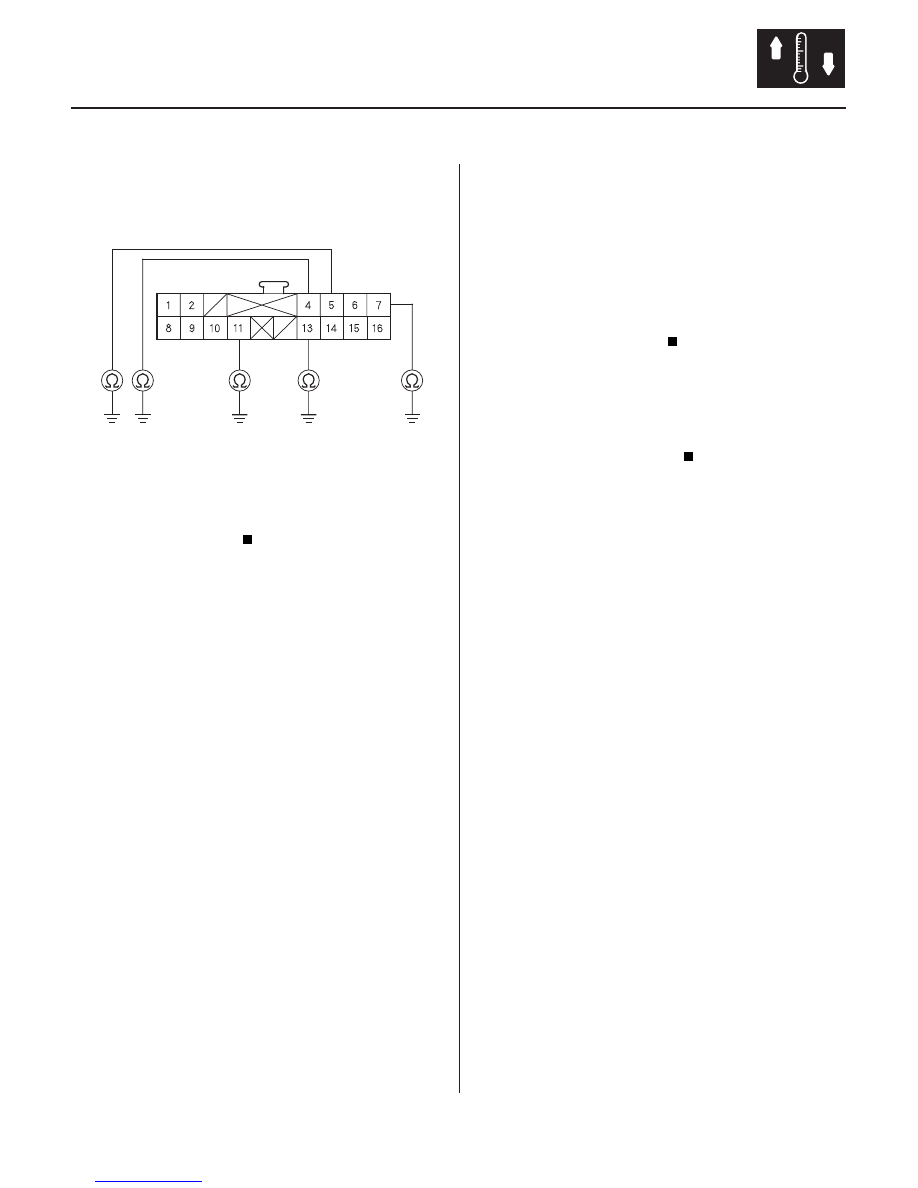

Climate Control Panel Troubleshooting

CLIMATE CONTROL PANEL 16P CONNECTOR

BLK/YEL

YEL/GRN

YEL/WHT

YEL/GRN

YEL/BLK

CLIMATE CONTROL PANEL 16P CONNECTOR

CLIMATE CONTROL UNIT CONNECTOR A (16P)

CLIMATE CONTROL PANEL 16P CONNECTOR

CLIMATE CONTROL UNIT CONNECTOR B (26P)

BLK/WHT

GRN/WHT

BLK/WHT

GRN/WHT

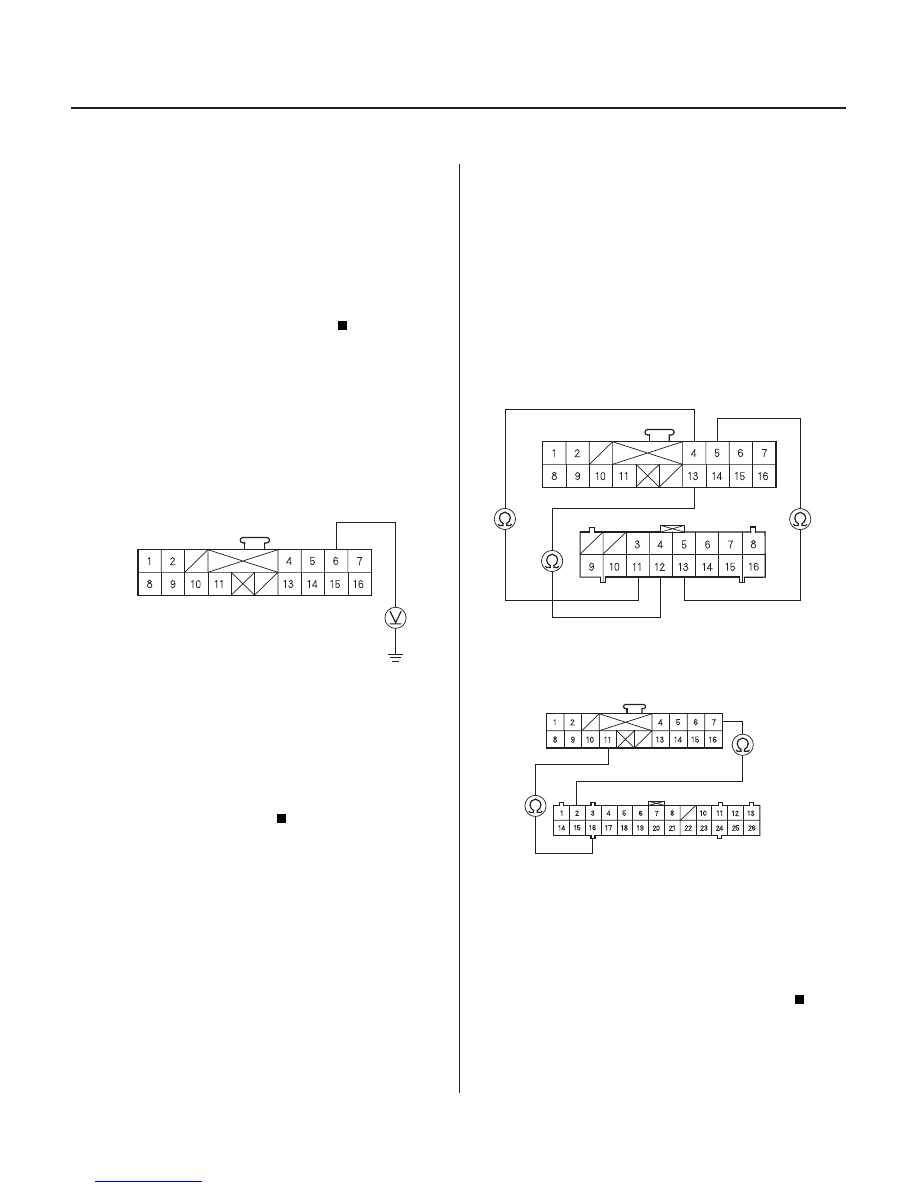

1. Check the No. 3 (7.5A) fuse in the driver’s under-

dash fuse/relay box.

Go to step 2.

Replace the fuse and recheck.

2. Disconnect the climate control panel 16P connector.

3. Turn the ignition switch ON (II).

4. Measure the voltage between the No. 6 terminal of

the climate control panel 16P connector and body
ground.

Go to step 5.

Repair open in the wire between the No. 3

fuse in the driver’s under-dash fuse/relay box and
the climate control panel.

5. Turn the ignition switch OFF.

6. Disconnect climate control unit connectors A (16P)

and B (26P).

7. Check for continuity between the following

terminals of climate control panel 16P connector,
and climate control unit connectors A (16P) and B
(26P).
PANEL 16P

UNIT 16P

No. 4

No. 11

No. 5

No. 13

No. 12

PANEL 16P

UNIT 26P

No. 7

No. 2

No. 11

No. 16

Go to step 8

Repair any open in the wire(s) between the

climate control panel and climate control unit.

Wire side of female terminals

Is the f use OK ?

Is ther e batter y voltage?

Is ther e continuity?

03/07/29 10:13:34 61S0X050_210_0115

−

＊０４

YES

21-115

CLIMATE CONTROL PANEL 16P CONNECTOR

YEL/GRN

YEL/BLK

GRN/
WHT

BLK/
WHT

YEL/WHT

8. Check for continuity between the No. 4, 5, 7, 11 and

13 terminals of the climate control panel 16P
connector and body ground individually.

Repair any short to body ground in the

wire(s) between the climate control panel and the
climate control unit.

Check for loose wires or poor connections at

the climate control panel 16P connector. If the
connections are good, substitute a known-good
climate control panel and go to step 9.

9. Reconnect the climate control panel 16P connector.

10. Reconnect climate control unit connectors A (16P)

and B (26P).

11. Turn the ignition switch ON (II), and check the

climate control panel display.

Repair is complete.

Check for loose wires or poor connections at

climate control unit connectors A (16P) and B (26P).
If the connections are good, substitute a known-
good climate control unit, and recheck. If the
symptom/indication goes away, replace the
original climate control unit.

Wire side of female terminals

Is ther e continuity?

Does the climate contr ol panel display wor k?

03/07/29 10:13:34 61S0X050_210_0116
