Honda Odyssey 2004. Manual - part 405





*01

*02

S0X4A81K71100087120FAAT00

DTC indicator L:

YES

NO

YES

NO

21-96

Climate Control

DTC Troubleshooting (cont’d)

BLU/WHT

BLU/BLK

YEL/
GRN

BLU/GRN

LT GRN/BLK

GRN/YEL

GRN/
BLK

CLIMATE CONTROL UNIT CONNECTOR B (20P)

BLU/WHT

BLU/BLK

YEL/
GRN

BLU/GRN

LT GRN/BLK

GRN/YEL

GRN/
BLK

CLIMATE CONTROL UNIT CONNECTOR B (20P)

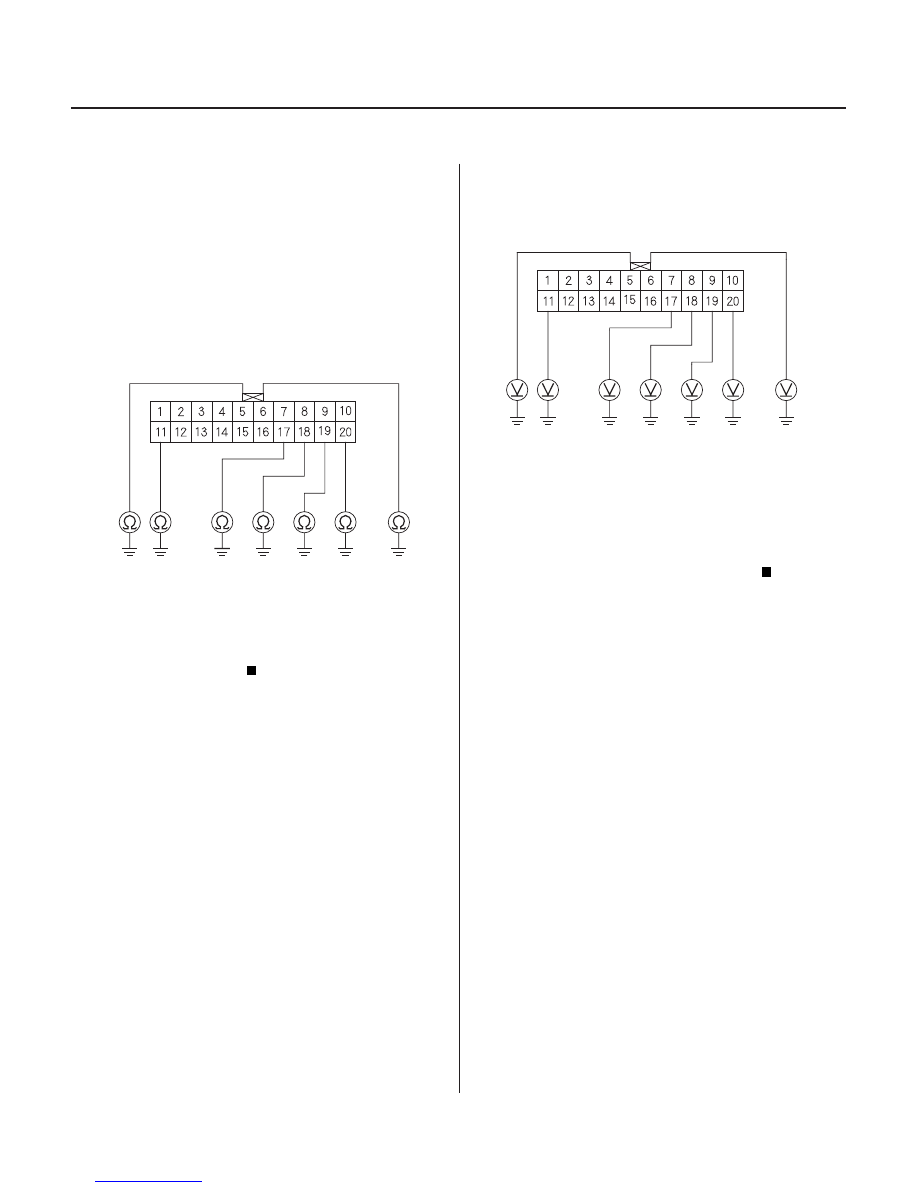

An Open or Short in the

Mode Control Motor Circuit

1. Disconnect the mode control motor 7P connector.

2. Disconnect climate control unit connector B (20P).

3. Check for continuity between body ground and

climate control unit connector B (20P) terminals
No. 5, 6, 11, 17, 18, 19 and 20 individually.

Repair any short to body ground in the

wire(s) between the climate control unit and the
mode control motor.

Go to step 4.

4. Turn the ignition switch ON (II), and check the same

terminals for voltage.

Repair any short to power in the wire(s)

between the climate control unit and the mode
control motor. This short may also damage the
climate control unit. Repair the short to power
before replacing the climate control unit.

Go to step 5.

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e any voltage?

03/07/29 10:12:58 61S0X050_210_0097

*03

*01

S0X4A80K71100087120FAAT00

YES

NO

YES

NO

YES

NO

YES

NO

DTC indicator L:

21-97

21-97

BLU/WHT

BLU/BLK

YEL/GRN

BLU/GRN

LT GRN/BLK

GRN/YEL

GRN/
BLK

LT GRN/
BLK

GRN/YEL

BLU/GRN

BLU/BLK

BLU/WHT

YEL/GRN

MODE CONTROL MOTOR 7P CONNECTOR

CLIMATE CONTROL UNIT CONNECTOR B (20P)

GRN/BLK

CLIMATE CONTROL UNIT CONNECTOR B (26P)

BLU/BLK

BLU/WHT

BLU/GRN

LT GRN/BLK

GRN/BLK

YEL/GRN

GRN/YEL

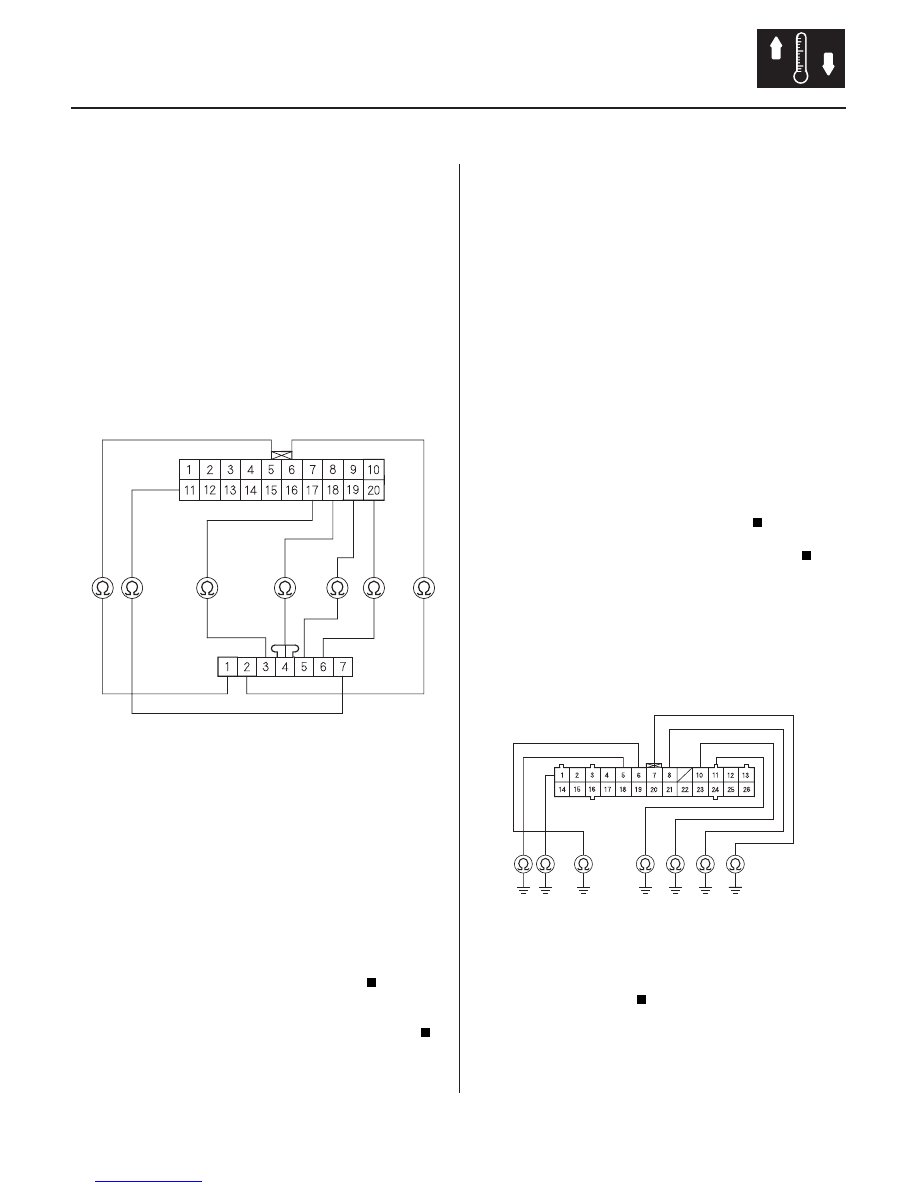

5. Turn the ignition switch OFF, and check for

continuity between following terminals of climate
control unit connector B (20P) and the mode control
motor 7P connector.
20P:

7P:

No. 5

No. 1

No. 6

No. 2

No. 11

No. 7

No. 17

No. 3

No. 18

No. 4

No. 19

No. 5

No. 20

No. 6

Check for loose wires or poor connections at

climate control unit connector B (20P) and at the
mode control motor 7P connector. If the
connections are good, substitute a known-good
mode control motor, and recheck. If the symptom/
indication goes away, replace the original mode
control motor. If the symptom/indication continues,
substitute a known-good climate control unit, and
recheck. If the symptom/indication goes away,
replace the original climate control unit.

Repair any open in the wire(s) between the

climate control unit and the mode control motor.

1. Disconnect the mode control motor 7P connector.

2. Test the mode control motor (see page 21-38).

Go to step 5.

Go to step 3.

3. Remove the mode control motor (see page 21-38).

4. Check the mode control linkage and doors for

smooth movement.

Replace the mode control motor.

Repair the mode control linkage or doors.

5. Disconnect climate control unit connector B (26P).

6. Check for continuity between body ground and

climate control unit connector B (26P) terminals
No. 1, 5, 6, 7, 8, 10 and 11 individually.

Repair any short to body ground in the

wire(s) between the climate control unit and the
mode control motor.

Go to step 7.

(cont’d)

A Problem in the Mode

Control Motor Circuit

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is the mode contr ol motor OK ?

Do the mode contr ol linkage and door s move
smoothly?

Is ther e continuity?

03/07/29 10:12:59 61S0X050_210_0098

*02

*03

YES

NO

YES

NO

21-98

Climate Control

DTC Troubleshooting (cont’d)

CLIMATE CONTROL UNIT CONNECTOR B (26P)

BLU/BLK

BLU/WHT

BLU/GRN

LT GRN/BLK

GRN/BLK

YEL/GRN

GRN/YEL

GRN/BLK

GRN/YEL

LT GRN/BLK

BLU/GRN

BLU/WHT

GRN/BLK

BLU/BLK

GRN/YEL

LT GRN/BLK

BLU/GRN

BLU/WHT

BLU/BLK

CLIMATE CONTROL UNIT CONNECTOR B (26P)

YEL/GRN

YEL/GRN

MODE CONTROL MOTOR 7P CONNECTOR

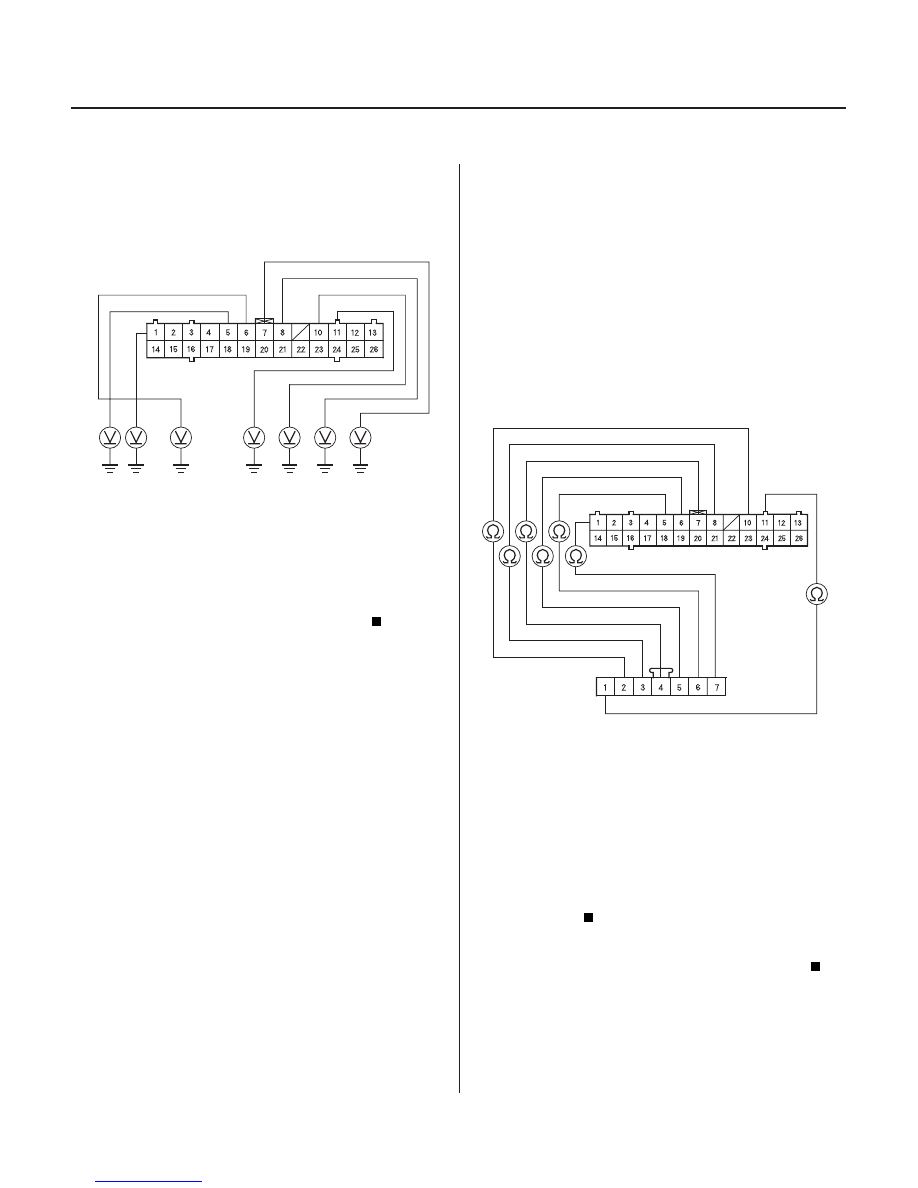

7. Turn the ignition switch ON (II), and check the same

terminals for voltage.

Repair any short to power in the wire(s)

between the climate control unit and the mode
control motor. This short may also damage the
climate control unit. Repair the short to power
before replacing the climate control unit.

Go to step 8.

8. Turn the ignition switch OFF, and check for

continuity between following terminals of climate
control unit connector B (26P) and the mode control
motor 7P connector.
26P:

7P:

No. 1

No. 7

No. 5

No. 6

No. 6

No. 5

No. 7

No. 4

No. 8

No. 3

No. 10

No. 2

No. 11

No. 1

Check for loose wires or poor connections at

climate control unit connector B (26P) and at the
mode control motor 7P connector. If the
connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Repair any open in the wire(s) between the

climate control unit and the mode control motor.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e any voltage?

Is ther e continuity?

03/07/29 10:13:00 61S0X050_210_0099

S0X4A10K71100087130FAAT00

*01

S0X4A10K71100087140FAAT00

DTC indicator M:

DTC indicator N:

YES

NO

YES

NO

YES

NO

YES

NO

21-99

21-99

POWER TRANSISTOR 5P CONNECTOR

BLK

A Problem in the Mode

Control Linkage, Doors, or Motor

A Problem in the Blower

Motor Circuit

1. Test the mode control motor (see page 21-38).

Substitute a known-good climate control unit,

and recheck. If the symptom/indication goes away,
replace the original climate control unit.

Go to step 2.

2. Remove the mode control motor (see page 21-38).

3. Check the mode control linkage and doors for

smooth movement.

Replace the mode control motor.

Repair the mode control linkage or doors.

1. Turn the ignition switch ON (II) and turn the blower

fan speed knob to HIGH.

Go to step 2.

Go to step 20.

2. Turn the ignition switch OFF, then disconnect the

power transistor 5P connector.

3. Check for continuity between the No. 5 terminal of

the power transistor 5P connector and body ground.

Go to step 4.

Check for an open in the wire between the

power transistor and body ground. If the wire is OK,
check for poor ground at G401.

(cont’d)

Wire side of female terminals

Is the mode contr ol motor OK ?

Do the mode contr ol linkage and door s move
smoothly?

Does the blower motor r un?

Is ther e continuity?

03/07/29 10:13:00 61S0X050_210_0100
