Honda Odyssey 2004. Manual - part 403

−

＊０１

＊０２

Ｓ０Ｘ４Ａ１０Ｋ７１１０００８７０６０ＦＡＡＴ００

DTC indicator F:

YES

21-88

Climate Control

DTC Troubleshooting (cont’d)

WHT/RED

CLIMATE CONTROL UNIT CONNECTOR B (20P)

WHT/RED

CLIMATE CONTROL UNIT CONNECTOR B (26P)

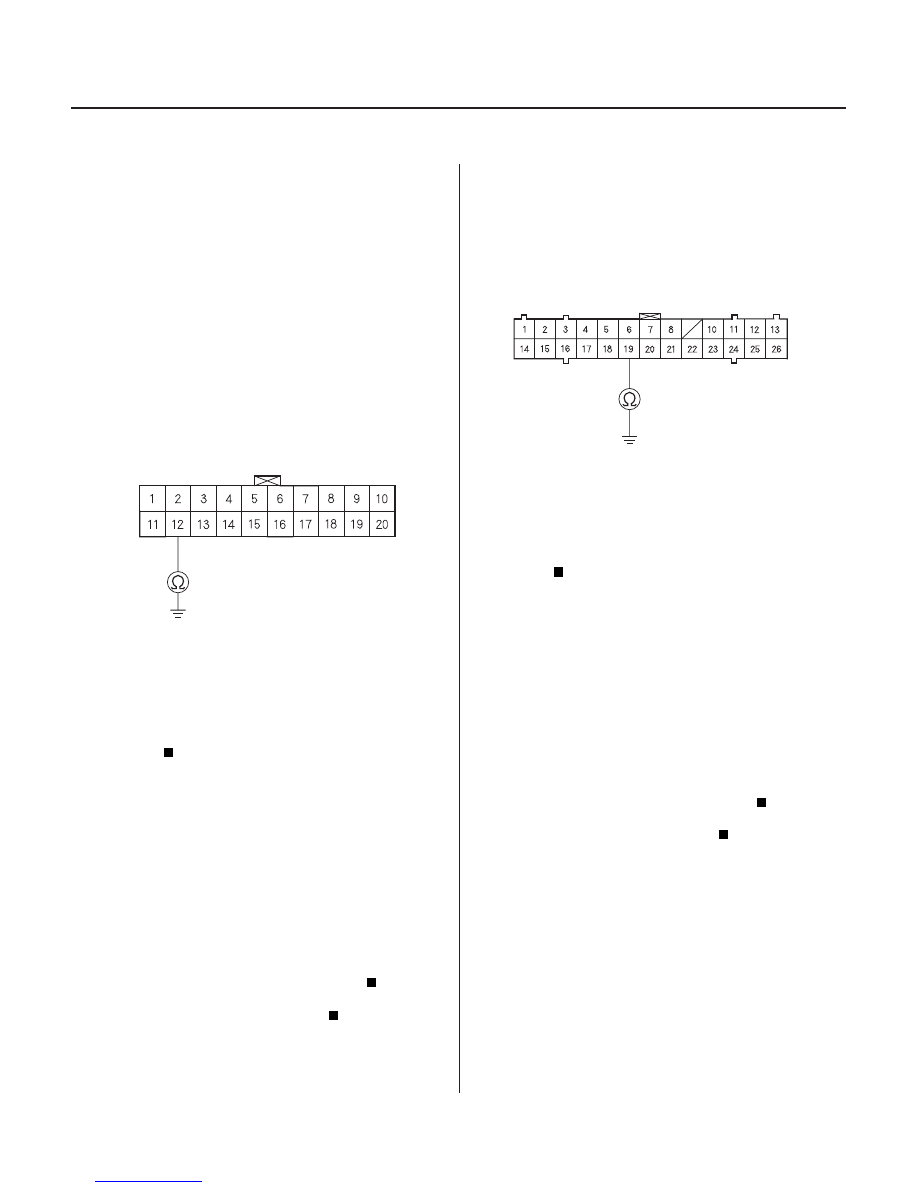

A Short in the Sunlight

Sensor Circuit

1. Disconnect the sunlight sensor 2P connector.

Go to step 7.

Go to step 2.

2. Disconnect climate control unit connector B (20P).

3. Check for continuity between the No. 12 terminal of

climate control unit connector B (20P) and body
ground.

Repair short to body ground in the wire

between the climate control unit and the sunlight
sensor.

Go to step 4.

4. Reconnect the sunlight sensor 2P connector.

5. Reconnect climate control unit connector B (20P).

6. Test the sunlight sensor (see page 21-119).

Substitute a known-good climate control unit,

and recheck. If the symptom/indication goes away,
replace the original climate control unit.

Replace the sunlight sensor.

7. Disconnect climate control unit connector B (26P).

8. Check for continuity between the No. 19 terminal of

climate control unit connector B (26P) and body
ground.

Repair short to body ground in the wire

between the climate control unit and the sunlight
sensor.

Go to step 9.

9. Reconnect the sunlight sensor 2P connector.

10. Reconnect climate control unit connector B (26P).

11. Test the sunlight sensor (see page 21-119).

Substitute a known-good climate control unit,

and recheck. If the symptom/indication goes away,
replace the original climate control unit.

Replace the sunlight sensor.

Wire side of female terminals

Does the vehicle have a Navigation System?

Is ther e continuity?

Is the sunlight sensor OK ?

Is ther e continuity?

Is the sunlight sensor OK ?

03/07/29 10:12:54 61S0X050_210_0089

−

＊０１

０１

Ｓ０Ｘ４Ａ１０Ｋ７１１０００８７０７０ＦＡＡＴ００

DTC indicator G:

YES

21-89

EVAPORATOR TEMPERATURE SENSOR

50
10

68
20

86 °F
30 °C

TEMPERATURE

RESISTANCE
k

32
0

EVAPORATOR TEMPERATURE SENSOR
2P CONNECTOR

BRN

CLIMATE CONTROL UNIT CONNECTOR B (20P)

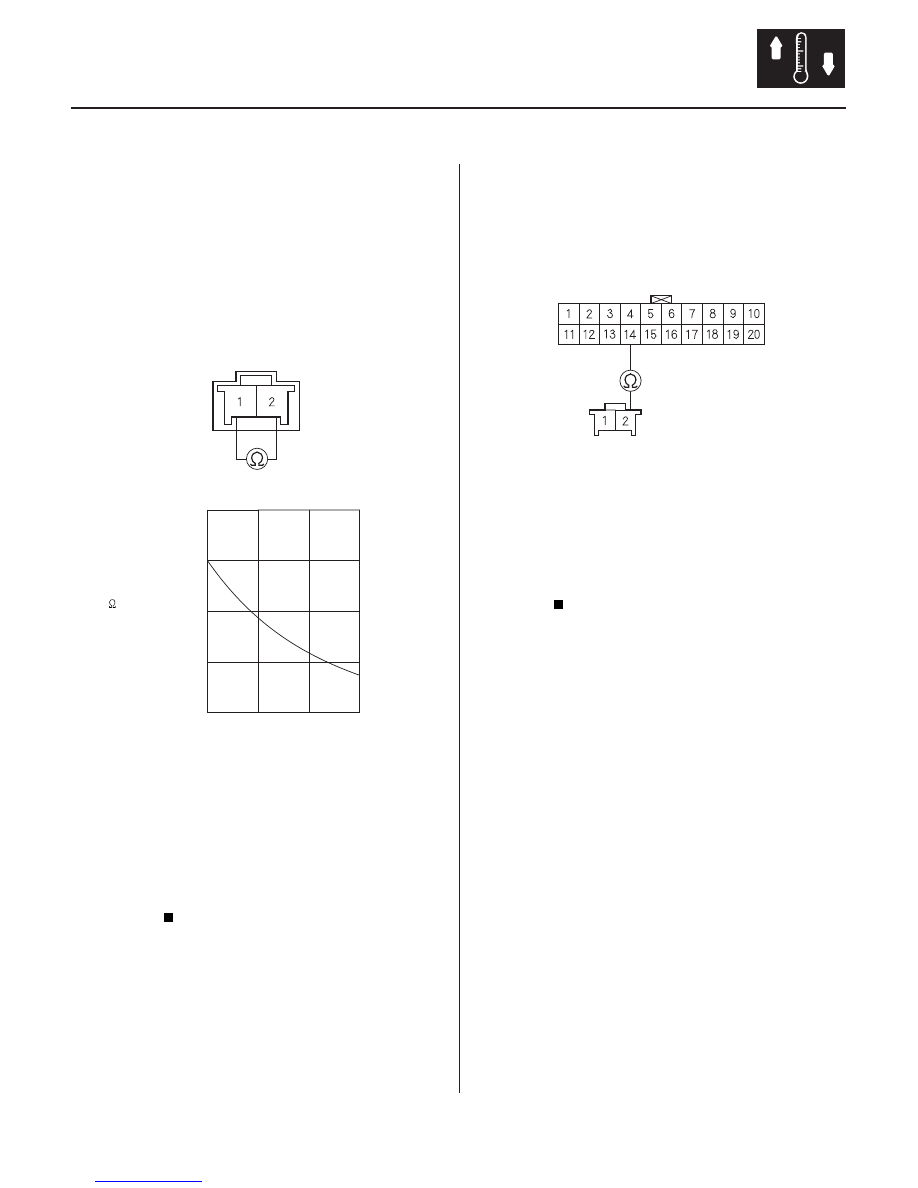

An Open in the Evaporator

Temperature Sensor Circuit

1. Disconnect the evaporator temperature sensor 2P

connector.

2. Measure the resistance between the No. 1 and

No. 2 terminals of the evaporator temperature
sensor.

• Without Navigation System: Go to step 3.
• With Navigation System: Go to step 6.

Replace the evaporator temperature

sensor.

3. Disconnect climate control unit connector B (20P).

4. Check for continuity between the No. 14 terminal of

climate control unit connector B (20P) and the No. 2
terminal of the evaporator temperature sensor 2P
connector.

Go to step 5.

Repair open in the wire between the climate

control unit and the evaporator temperature
sensor.

(cont’d)

Terminal side of male terminals

Wire side of female terminals

Is the r esistance within the specif ications shown
on the gr aph?

Is ther e continuity?

03/07/29 10:12:54 61S0X050_210_0090

−

０２

０１

YES

21-90

Climate Control

DTC Troubleshooting (cont’d)

EVAPORATOR TEMPERATURE SENSOR
2P CONNECTOR

YEL/GRN

CLIMATE CONTROL UNIT CONNECTOR B (20P)

CLIMATE CONTROL UNIT CONNECTOR B (26P)

BRN

EVAPORATOR TEMPERATURE SENSOR
2P CONNECTOR

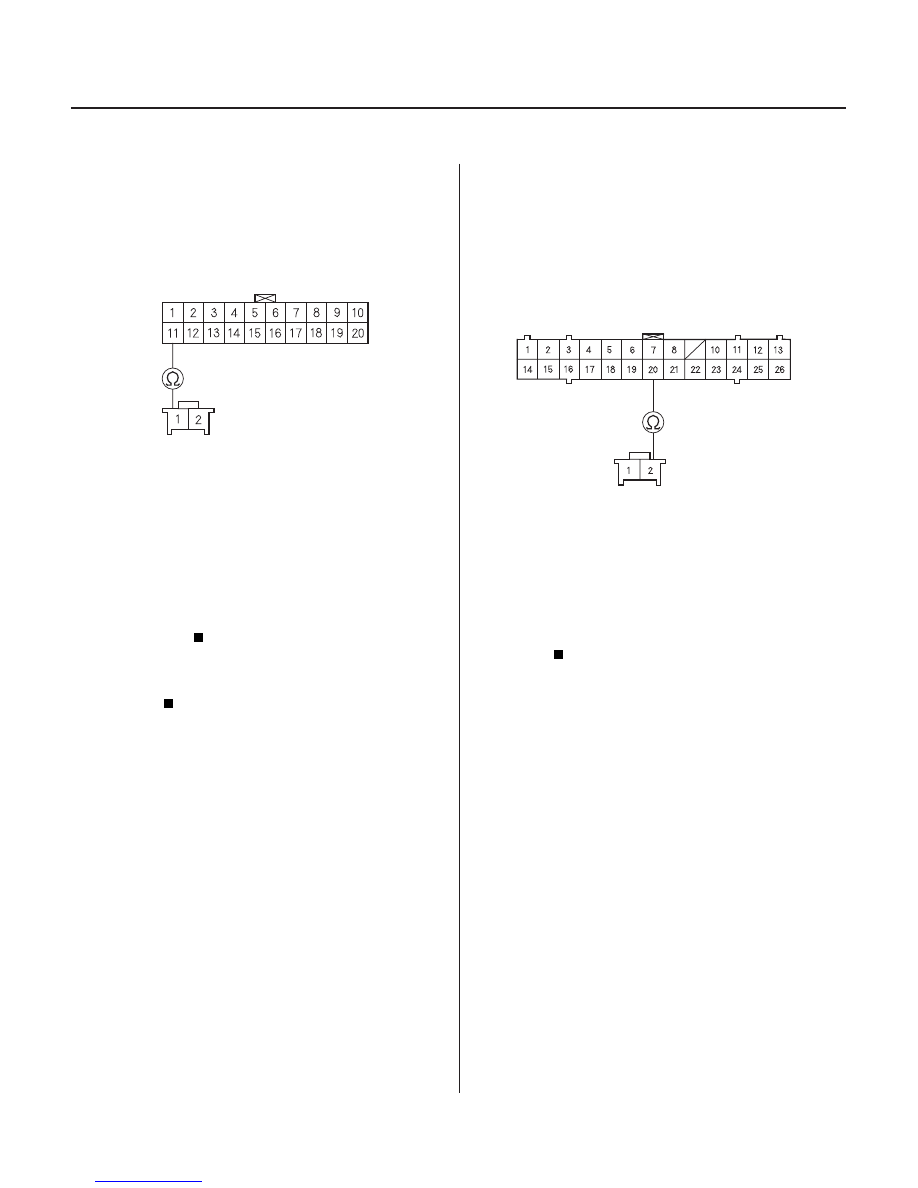

5. Check for continuity between the No. 11 terminal of

climate control unit connector B (20P) and the No. 1
terminal of the evaporator temperature sensor 2P
connector.

Check for loose wires or poor connections at

climate control unit connector B (20P) and at the
evaporator temperature sensor 2P connector. If the
connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Repair open in the wire between the climate

control unit and the evaporator temperature
sensor.

6. Disconnect climate control unit connector B (26P).

7. Check for continuity between the No. 20 terminal of

climate control unit connector B (26P) and the No. 2
terminal of the evaporator temperature sensor 2P
connector.

Go to step 8.

Repair open in the wire between the climate

control unit and the evaporator temperature
sensor.

Wire side of female terminals

Is ther e continuity?

03/07/29 10:12:55 61S0X050_210_0091

−

０２

＊０１

Ｓ０Ｘ４Ａ１０Ｋ７１１０００８７０８０ＦＡＡＴ００

YES

DTC indicator H:

21-91

CLIMATE CONTROL UNIT CONNECTOR B (26P)

YEL/GRN

EVAPORATOR TEMPERATURE SENSOR
2P CONNECTOR

BRN

CLIMATE CONTROL UNIT CONNECTOR B (20P)

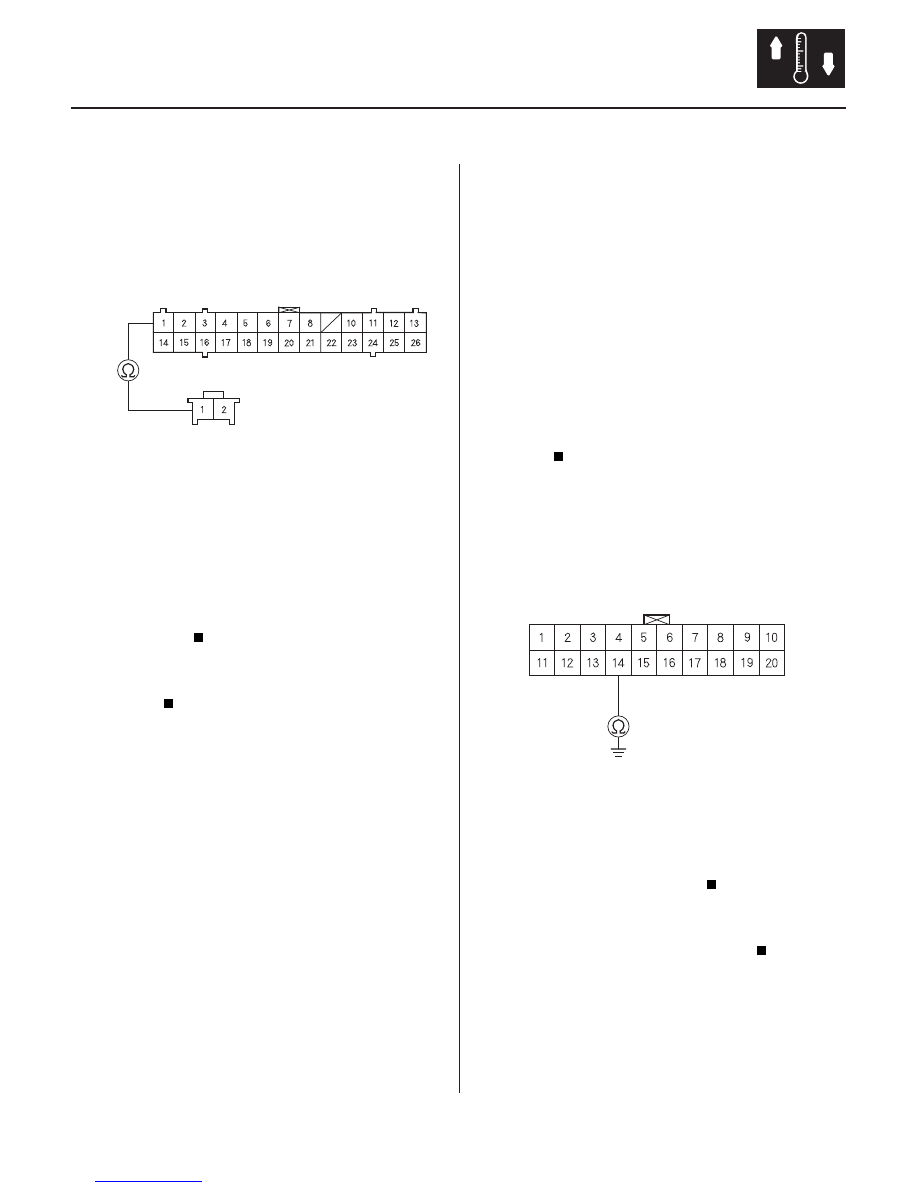

8. Check for continuity between the No. 1 terminal of

climate control unit connector B (26P) and the No. 1
terminal of the evaporator temperature sensor 2P
connector.

Check for loose wires or poor connections at

climate control unit connector B (26P) and at the
evaporator temperature sensor 2P connector. If the
connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Repair open in the wire between the climate

control unit and the evaporator temperature
sensor.

1. Disconnect the evaporator temperature sensor 2P

connector.

2. Test the evaporator temperature sensor (see page

21-40).

• Without Navigation System: Go to step 3.
• With Navigation System: Go to step 5.

Replace the evaporator temperature

sensor.

3. Disconnect climate control unit connector B (20P).

4. Check for continuity between the No. 14 terminal of

climate control unit connector B (20P) and body
ground.

Repair short to body ground in the wire

between the climate control unit and the
evaporator temperature sensor.

Substitute a known-good climate control unit,

and recheck. If the symptom/indication goes away,
replace the original climate control unit.

(cont’d)

A Short in the Evaporator

Temperature Sensor Circuit

Wire side of female terminals

Is ther e continuity?

Is the r esistance within the specif ications shown
on the gr aph?

Is ther e continuity?

03/07/29 10:12:55 61S0X050_210_0092
