Honda Odyssey 2004. Manual - part 399





S0X4A10G10500000000HBAT00

Symptom

Diagnostic procedure

Also check for

21-72

Climate Control

Symptom Troubleshooting Index













The blower motor does not run
immediately even through the
engine is fully warmed up.

NOTE: The temperature control
dial must be set between 60°F
(18°C) and 90°F (32°C).
ECT sensor circuit
troubleshooting (see page 21-
106)

Cleanliness and tightness of all
connectors

Recirculation control doors do not
change between Fresh and
Recirculate.

Recircuration control motor
circuit troubleshooting (see
page 21-107)

HVAC DTCs (see page 21-67)
Blown fuse No. 3 (7.5A) in the driver’s
under-dash fuse/relay box
Cleanliness and tightness of all
connectors

Blower, heater controls, and A/C
do not work.

Climate control power and
ground circuit troubleshooting
(see page 21-112)

HVAC DTCs (see page 21-67)
Blown fuse No. 54 (40A) in the under-
hood fuse/relay box, No. 3 (7.5A) in the
driver’s under-dash fuse/relay box, and
No. 13 (7.5A) in the passenger’s under-
dash fuse/relay box
Poor ground at G401
Cleanliness and tightness of all
connectors

The climate control panel display
does not work.

Climate control panel
troubleshooting (see page 21-
114)

HVAC DTCs (see page 21-67)
Cleanliness and tightness of all
connectors

The manual switch (With
navigation system) does not work.

Manual switch (With navigation
system) troubleshooting (see
page 21-116)

HVAC DTCs (see page 21-67)
Cleanliness and tightness of all
connectors

Both fans do not run at low speed
with the A/C on when the
refrigerant pressure is below
1,520 kPa (15.5 kgf/cm , 220 psi).

Radiator and condenser fan low
speed circuit troubleshooting
(see page 21-27)

HVAC DTCs (see page 21-67)
Blown fuse No. 58 (30A) in the under-
hood fuse/relay box, and No. 3 (7.5A) in
the driver’s under-dash fuse/relay box
Poor ground at G201
Cleanliness and tightness of all
connectors

Condenser fans does not run at
high speed when the engine
coolant temperature is above
210°F (99°C) or the refrigerant
pressure is above 1,520 kPa (15.5
kgf/cm , 220 psi) with the A/C on.

Condenser fan high speed
circuit troubleshooting (see
page 21-30)

HVAC DTCs (see page 21-67)
Blown fuse No. 3 (7.5A) in the driver’s
under-dash fuse/relay box
Poor ground at G201
Cleanliness and tightness of all
connectors

Both fans do not run at high speed
with the A/C on when the
refrigerant pressure is above
1,520 kPa (15.5 kgf/cm , 220 psi).

Radiator and condenser fan
high speed circuit
troubleshooting (see page 21-
31)

HVAC DTCs (see page 21-67)
Cleanliness and tightness of all
connectors

Compressor clutch does not
engage. (but both fans run with
the A/C on)

Compressor clutch circuit
troubleshooting (see page 21-
32)

HVAC DTCs (see page 21-67)
Blown fuse No. 59 (7.5A) in the under-
hood fuse/relay box, and No. 3 (7.5A) in
the driver’s under-dash fuse/relay box
Cleanliness and tightness of all
connectors

A/C system does not come on
(both fans and compressor do not
work); heater is OK

A/C pressure switch circuit
troubleshooting (see page 21-
110)

HVAC DTCs (see page 21-67)
Cleanliness and tightness of all
connectors

2

2

2

03/07/29 10:12:08 61S0X050_210_0073

*01

S0X4A10G10500000000CAAT00

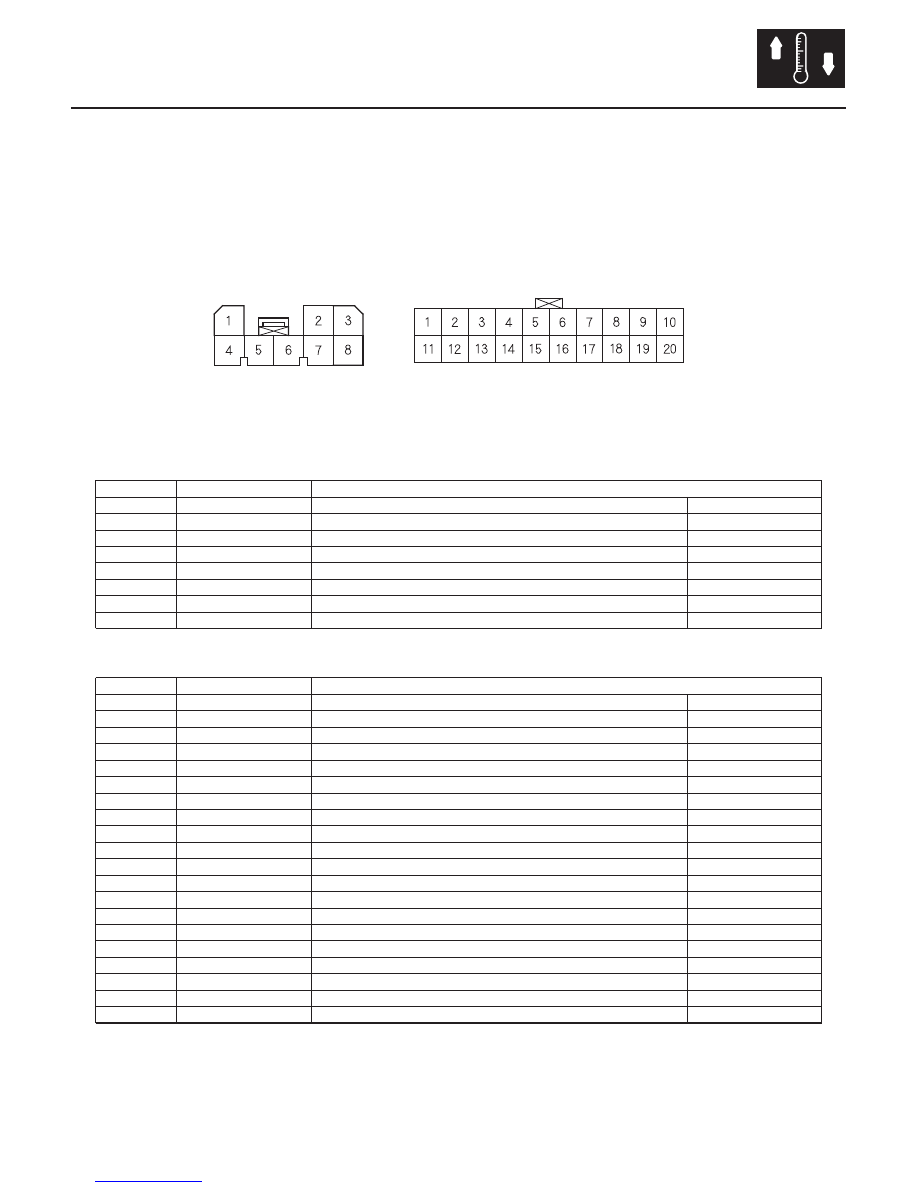

Climate Control Unit Inputs and Outputs (Without Navigation System)

CONNECTOR A (

on Circuit Diagram)

Cavity

Wire color

Signal

CONNECTOR B (

on Circuit Diagram)

Cavity

Wire color

Signal

21-73

System Description

CLIMATE CONTROL UNIT CONNECTORS

CONNECTOR A (8P)

CONNECTOR B (20P)

1

BLK/YEL

IG2 (Power)

INPUT

2

WHT/YEL

B (Power)

INPUT

3

RED/WHT

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

INPUT

4

BLU/ORN

BLOWER MOTOR HIGH RELAY

INPUT

5

ORN/BLK

POWER TRANSISTOR CONTROL

OUTPUT

6

BLU/RED

BLOWER FEEDBACK

INPUT

7

BRN/YEL

REAR WINDOW DEFOGGER RELAY

OUTPUT

8

BLK

GROUND (G401)

INPUT

1

PNK/BLK

AIR MIX POTENTIAL

INPUT

2

RED/WHT

A/C PRESSURE SWITCH

OUTPUT

3

GRN/RED

FRESH

OUTPUT

4

GRN/WHT

RECIRCULATE

OUTPUT

5

BLU/BLK

MODE DEF

OUTPUT

6

BLU/WHT

MODE VENT

OUTPUT

7

RED/YEL

AIR MIX HOT

OUTPUT

8

RED/BLK

COMBINATION LIGHT SWITCH or TAILLIGHT RELAY

INPUT

9

RED/WHT

AIR MIX COOL

OUTPUT

10

RED

MULTIPLEX CONTROL UNIT (DRIVER’S)

INPUT

11

YEL/GRN

SENSOR COMMON GROUND

OUTPUT

12

WHT/RED

SUNLIGHT SENSOR

INPUT

13

GRY

AIR MIX POTENTIAL

5 V

OUTPUT

14

BRN

EVAPORATOR TEMPERATURE SENSOR

INPUT

15

BRN/WHT

OUTSIDE AIR TEMPERATURE SENSOR

INPUT

16

YEL/RED

IN-CAR TEMPERATURE SENSOR

INPUT

17

BLU/GRN

MODE 4

INPUT

18

LT GRN/BLK

MODE 3

INPUT

19

GRN/YEL

MODE 2

INPUT

20

GRN/BLK

MODE 1

INPUT

(cont’d)

Wire side of female terminals

03/07/29 10:12:08 61S0X050_210_0074

―――

―――

―――

―――

―――

―――

―――

―――

―――

*02

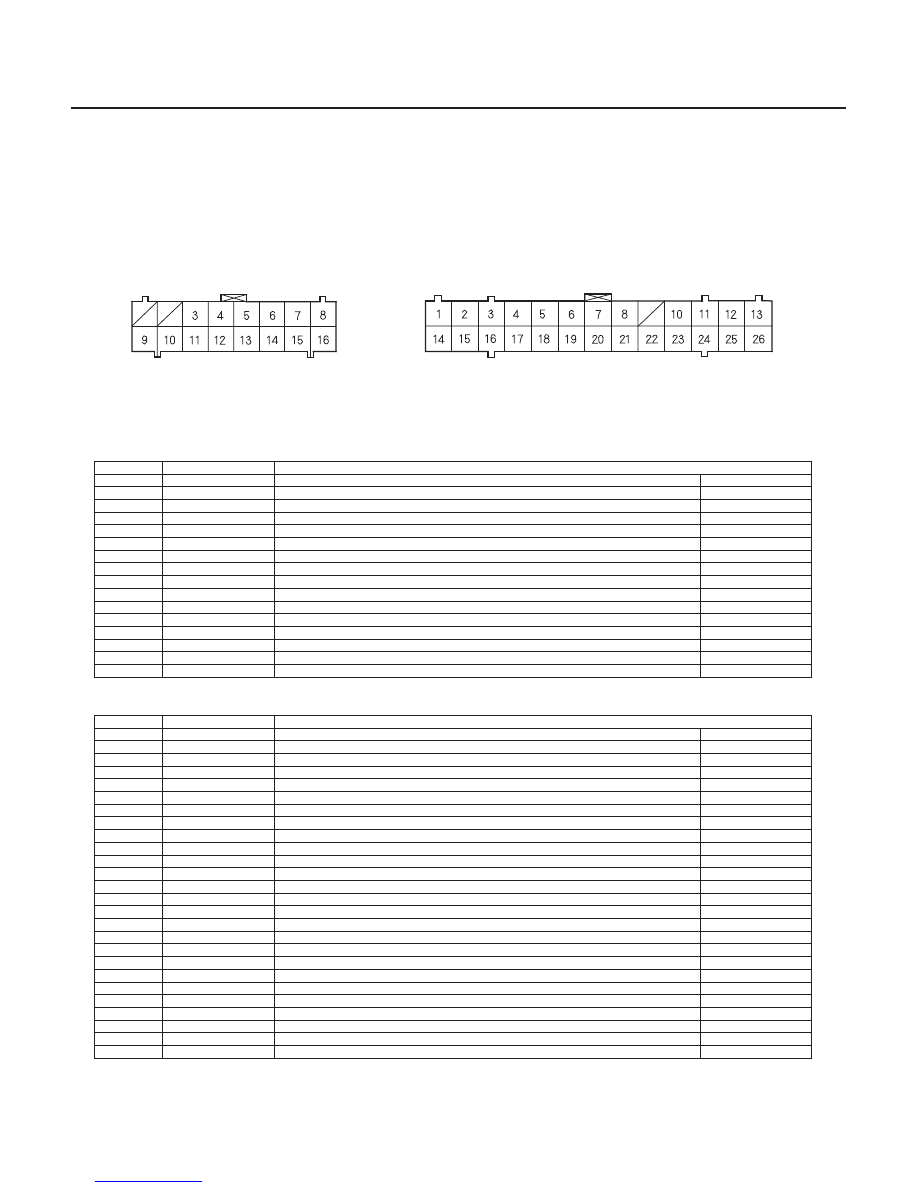

Climate Control Unit Inputs and Outputs (With Navigation System)

CONNECTOR A (

on Circuit Diagram)

Cavity

Wire color

Signal

CONNECTOR B (

on Circuit Diagram)

Cavity

Wire color

Signal

21-74

Climate Control

System Description (cont’d)

CLIMATE CONTROL UNIT CONNECTORS

CONNECTOR A (16P)

CONNECTOR B (26P)

1
2
3

WHT/RED

DS0

INPUT

4

WHT/YEL

DS1

INPUT

5

LT BLU

DS2

INPUT

6

WHT/BLK

D2

OUTPUT

7

WHT/BLU

D1

OUTPUT

8

BRN

D0

OUTPUT

9

BLU/ORN

BLOWER MOTOR HIGH RELAY

INPUT

10

BRN/YEL

REAR WINDOW DEFOGGER RELAY

OUTPUT

11

YEL/GRN

LATCH

INPUT

12

YEL/WHT

DATA

INPUT

13

YEL/BLK

CLK1

INPUT

14

GRN/ORN

SI

INPUT

15

YEL/BLU

CLK2

OUTPUT

16

RED/GRN

SO

OUTPUT

1

YEL/GRN

SENSOR COMMON GROUND

OUTPUT

2

GRN/WHT

FL

OUTPUT

3

GRY

AIR MIX POTENTIAL

5 V

OUTPUT

4

RED/WHT

A/C PRESSURE SWITCH

OUTPUT

5

GRN/BLK

MODE 1

INPUT

6

GRN/YEL

MODE 2

INPUT

7

LT GRN/BLK

MODE 3

INPUT

8

BLU/GRN

MODE 4

INPUT

9

10

BLU/WHT

MODE VENT

OUTPUT

11

BLU/BLK

MODE DEF

OUTPUT

12

ORN/BLK

POWER TRANSISTOR CONTROL

OUTPUT

13

BLK/YEL

IG2 (Power)

INPUT

14

BLU/RED

BLOWER FEEDBACK

INPUT

15

BLK

GROUND (G401)

INPUT

16

BLK/WHT

PANEL GROUND

INPUT

17

YEL/RED

IN-CAR TEMPERATURE SENSOR

INPUT

18

BRN/WHT

OUTSIDE AIR TEMPERATURE SENSOR

INPUT

19

WHT/RED

SUNLIGHT SENSOR

INPUT

20

BRN

EVAPORATOR TEMPERATURE SENSOR

INPUT

21

PNK/BLK

AIR MIX POTENTIAL

INPUT

22

RED/WHT

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

INPUT

23

GRN/RED

FRESH

OUTPUT

24

GRN/WHT

RECIRCULATE

OUTPUT

25

RED/YEL

AIR MIX HOT

OUTPUT

26

RED/WHT

AIR MIX COOL

OUTPUT

Wire side of female terminals

03/07/29 10:12:09 61S0X050_210_0075

S0X4A100000000J2101ZAAT00

21-75

03/07/29 10:12:09 61S0X050_210_0076
