Heating/Air Conditioning

Evaporator Temperature Sensor
Test

Heater Fan Switch Test

EVAPORATOR TEMPERATURE SENSOR

40

30

20

10

RESISTANCE
k

50
10

68
20

86°F
30°C

TEMPERATURE

32
0

Terminal

Position

OFF

1

2

3

4

1

2

3

4

5

6

HEATER FAN SWITCH

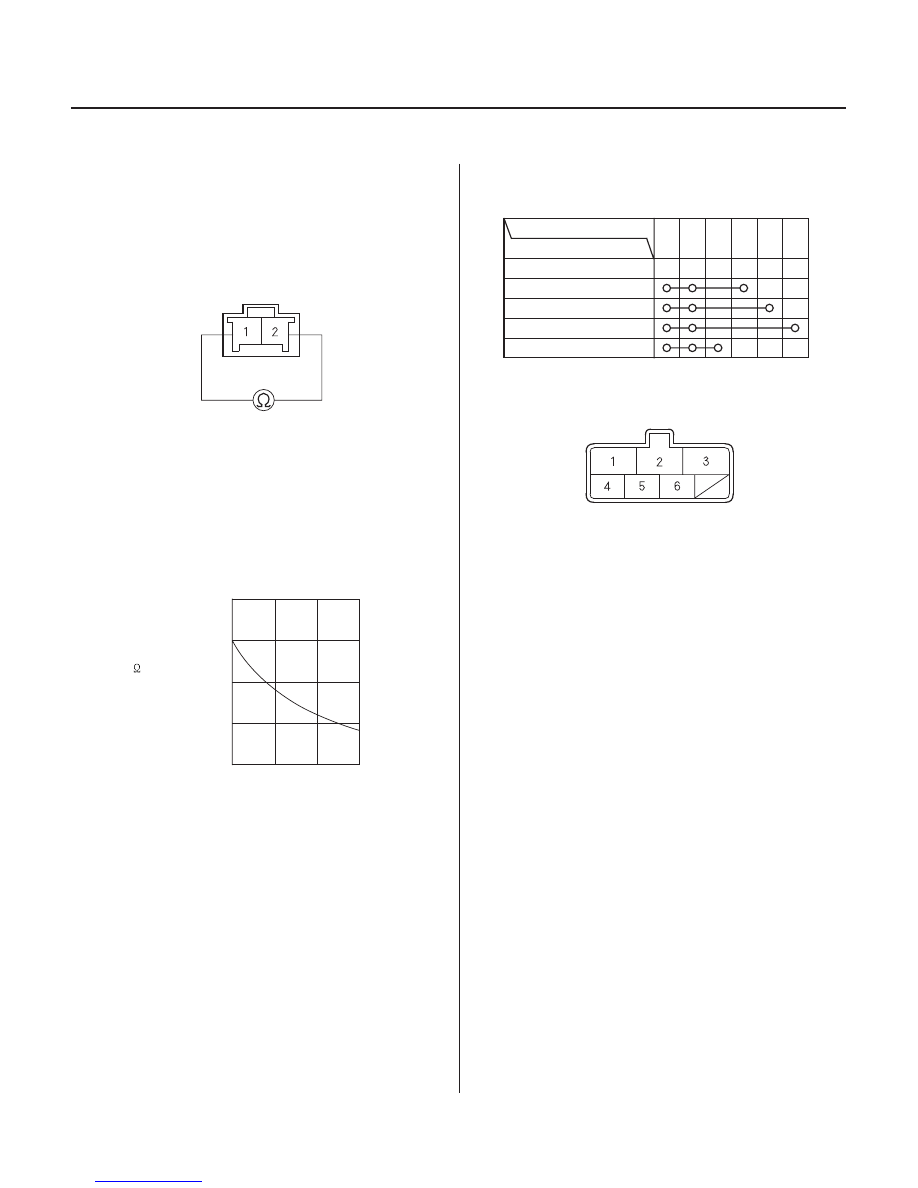

1. Dip the sensor in ice water, and measure the

resistance between its terminals.

2. Then pour warm water on the sensor, and check for

a change in resistance.

3. Compare the resistance readings with the

specifications shown in the graph; the resistance
should be within the specifications.

Check for continuity between the terminals in each
switch position according to the table.

Terminal side of male terminals

03/07/29 10:11:08 61S0X050_210_0041

21

S0X4A11G24100031401KDAT20

21

S0X4A11G24100031401MFAT20

21-41

21-41

Heater Control Panel Removal and
Installation

Heater Control Panel Disassembly
and Reassembly

A

B

C

E

D

F

B

G

A

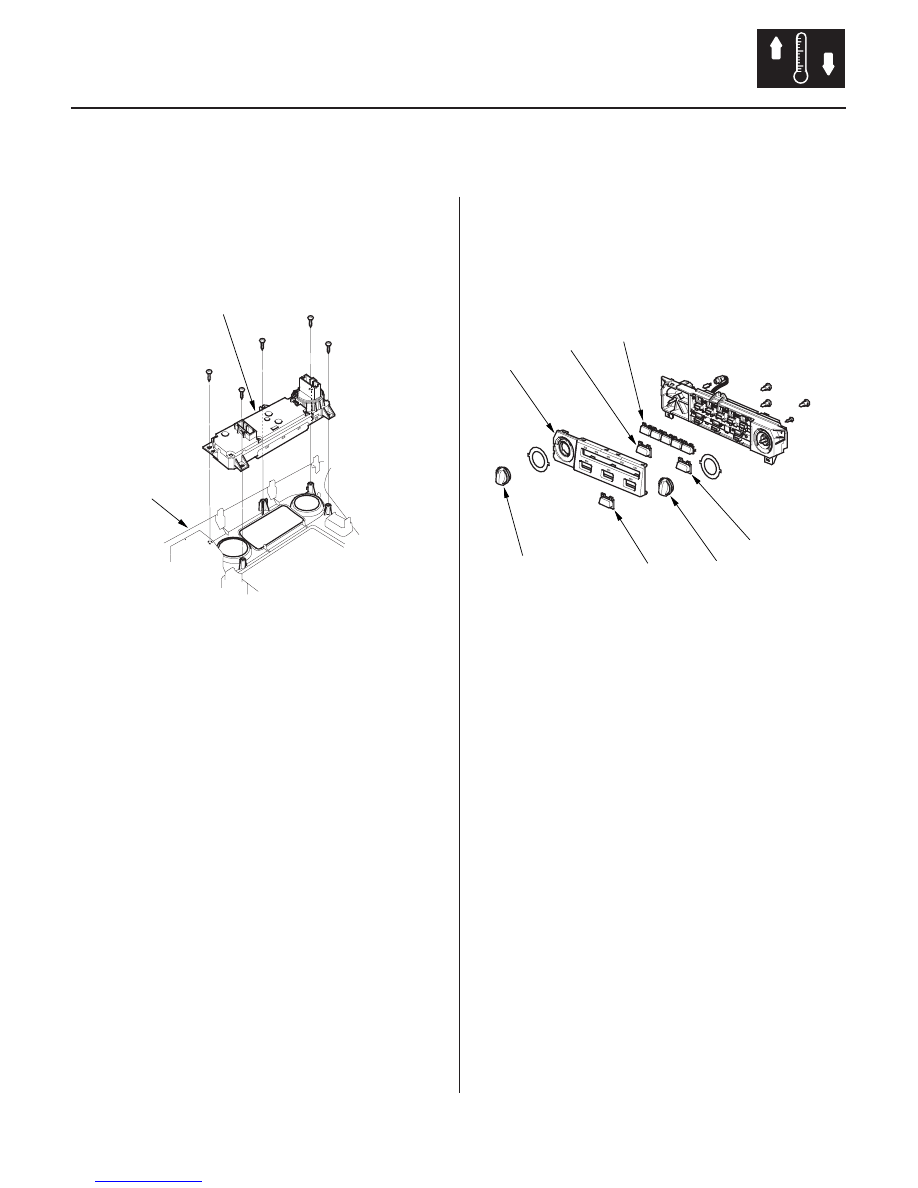

1. Remove the center panel with the heater control

panel (see page 20-70).

2. Remove the self-tapping screws and the heater

control panel (A) from the center panel (B).

3. Install the control panel in the reverse order of

removal. After installation, operate the control
panel controls to see whether it works properly.

4. Run the self-diagnosis function to confirm that

there are no problems in the system (see page 21-
8).

1. Remove the fan switch (A) and temperature control

dial (B), then remove the front panel (C). Remove
the mode control switch (D), recirculation control
switch (E), rear defogger switch (F) and A/C switch
(G) buttons.

2. Reassemble the control panel in the reverse order

of removal.

03/07/29 10:11:09 61S0X050_210_0042

21

22

S0X4A00G10123600000KDAT20

21-42

Heating/Air Conditioning

Evaporator Removal and Installation

31 N·m (3.2 kgf·m, 23 lbf·ft)

8 x 1.25 mm
13 N·m (1.3 kgf·m, 9.4 lbf·ft)

A

B

13 N·m (1.3 kgf·m, 9.4 lbf·ft)

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

B

C

D

A

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

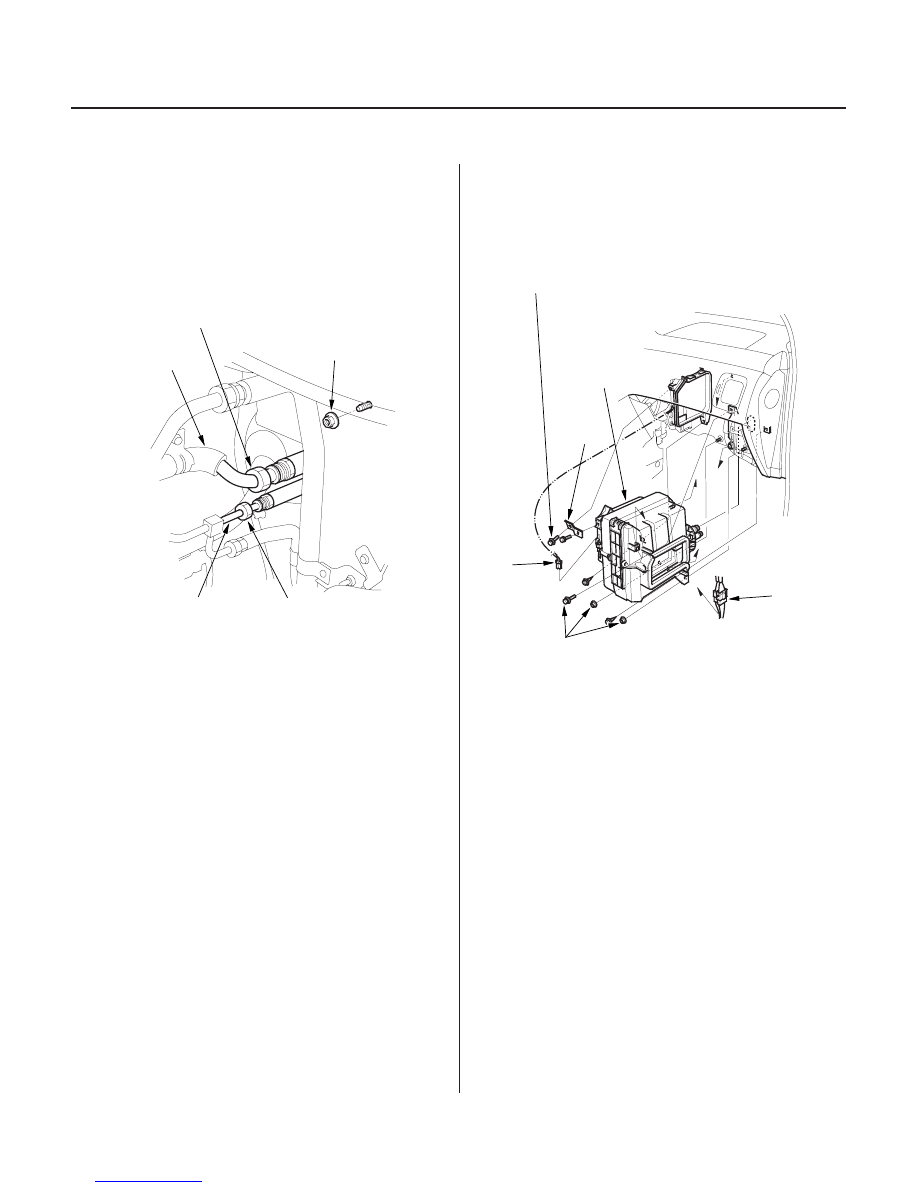

1. Recover the refrigerant with a recovery/recycling/

charging station (see page 21-56).

2. Disconnect the suction line (A) and reciver line (B)

from the evaporator. Remove the mounting nut.
Plug or cap the lines immediately after
disconnecting them to avoid moisture and dust
contamination.

3. Remove the glove box (see page 20-71).

4. Remove the plastic cross brace, then remove the

glove box frame (see page 21-44).

5. Remove the wire harness connectors (A).

Disconnect the evaporator temperature sensor
connector (B). Remove the self-tapping screws, the
mounting nuts, the mounting bolts, the bracket (C),
and the evaporator (D).

6. Install the evaporator in the reverse order of

removal, and note these items.

• If you’re installing a new evaporator, add

refrigerant oil (DENSO ND-OIL 8) (see page 21-6).

• Replace the O-rings with new ones at each fitting,

and apply a thin coat of refrigerant oil before
installing them. Be sure to use the correct O-rings
for HFC-134a (R-134a) to avoid leakage.

• Immediately after using oil, reinstall the cap on

the container, and seal it to avoid moisture
absorption.

• Do not spill the refrigerant oil on the vehicle; it

may damage the paint. If the refrigerant oil
contacts the paint, wash it off immediately.

• Make sure that there is no air leakage.
• Charge the system (see page 21-58).

03/07/29 10:11:10 61S0X050_210_0043

01

S0X4A00G10123625331KBAT20

±

±

21-43

Evaporator Component Replacement

D

F

G

E

C

B

A

H

60

10 mm

(2.4

0.4 in.)

85.7 mm
(3.37 in.)

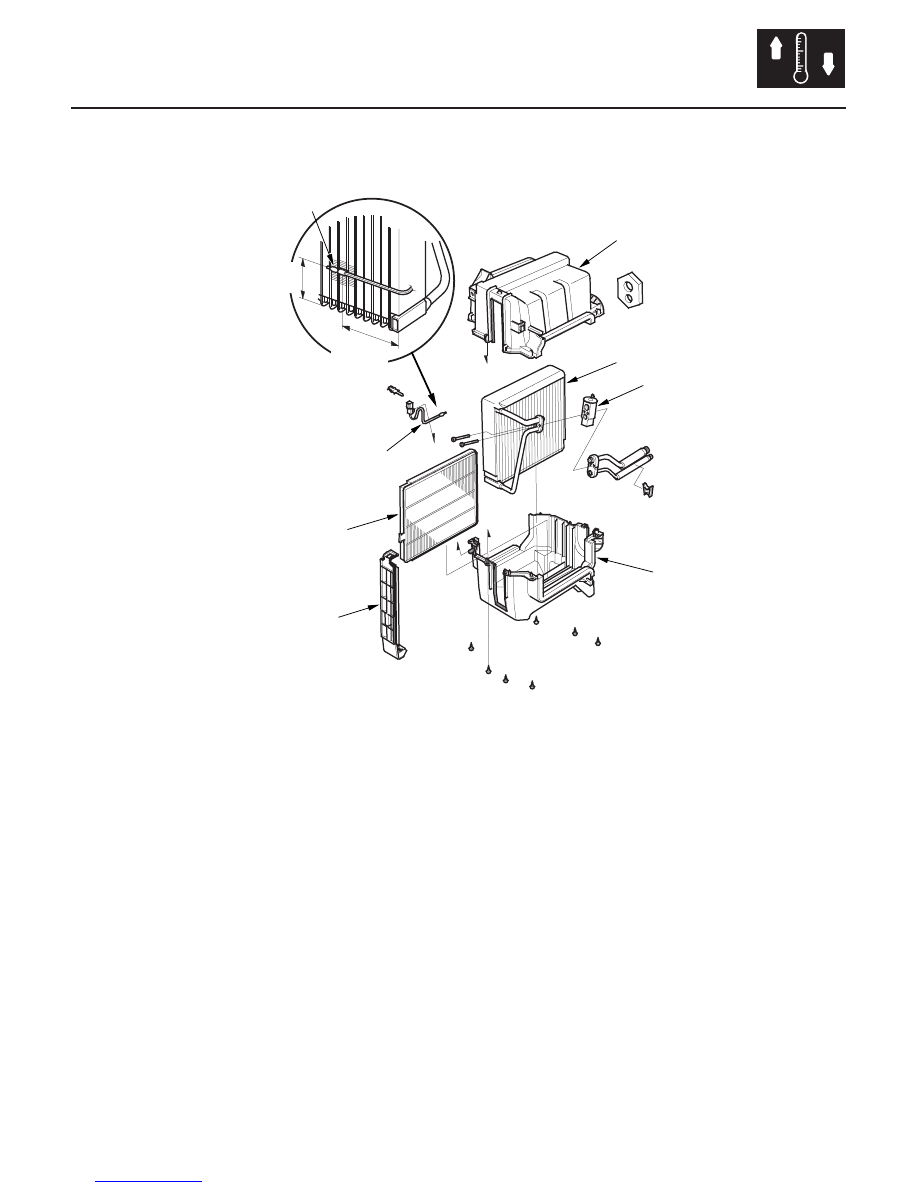

1. Remove the filter lid (A), then pull out the dust and pollen filter (B).

2. Pull out the evaporator temperature sensor (C) from the evaporator fins.

3. Remove the screws, carefully separate the upper housing (D) from the lower housing (E), then remove the

evaporator core (F).

4. If necessary, remove the expansion valve (G).

5. Reassemble the evaporator in the reverse order of disassembly, and note these items:

• Replace all O-rings with new ones at each fitting and apply a thin coat of refrigerant oil before installing them.

Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.

• Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
• Reinstall the evaporator temperature sensor bulb (H) and clip in their original location.
• Make sure no air is leaking from the upper housing and the lower housing fitting.
