Openers

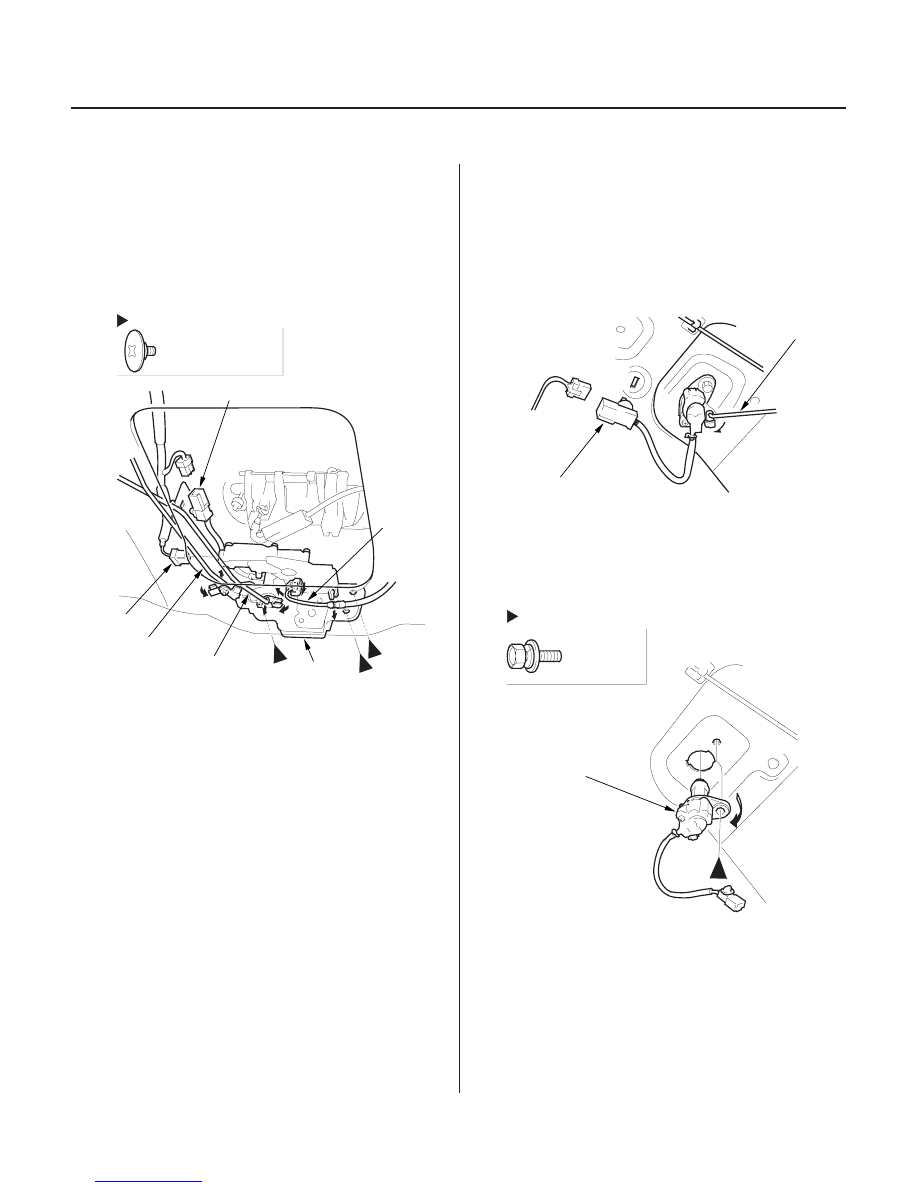

Tailgate Latch Replacement

Tailgate Lock Cylinder Replacement

Fastener Locations

: Bolt, 3

6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

D

A

F

C

B

E

A

B

Fastener Location

: Bolt, 1

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

A

NOTE: Put on gloves to protect your hands.

1. Remove the tailgate trim panel (see page 20-61).

2. Disconnect the handle cable (A), cylinder rod (B),

lock rod (C) and tailgate latch switch connector (D),
and detach the connector.

3. Remove the bolts, then pull the tailgate latch (E) out.

4. Disconnect the tailgate latch actuator connector (F),

then remove the tailgate latch.

5. Install the latch in the reverse order of removal, and

note these items:

• Make sure the connectors are plugged in

properly and the each rod is connected properly.

• Make sure the cable actuates the latch before you

close the tailgate.

• Make sure the tailgate opens properly and locks

securely.

NOTE: Put on gloves to protect your hands.

1. Remove the tailgate trim panel (see page 20-61).

2. Disconnect the cylinder rod (A) and lock cylinder

switch connector (B) (if applicable), then detach the
lock cylinder switch connector from the tailgate.

3. Remove the bolt securing the lock cylinder (A).

Then turn the tailgate lock cylinder 45°, and remove
it.

4. Install the lock cylinder in the reverse order of

removal, and note these items:

• Make sure the connector is plugged in properly.
• Make sure the tailgate opens properly and locks

securely.

• Check the operation of the tailgate lock cylinder.

03/07/29 10:04:12 61S0X050_200_0160

01

S0X4A00J26200055801KBAT00

20-159

Frame

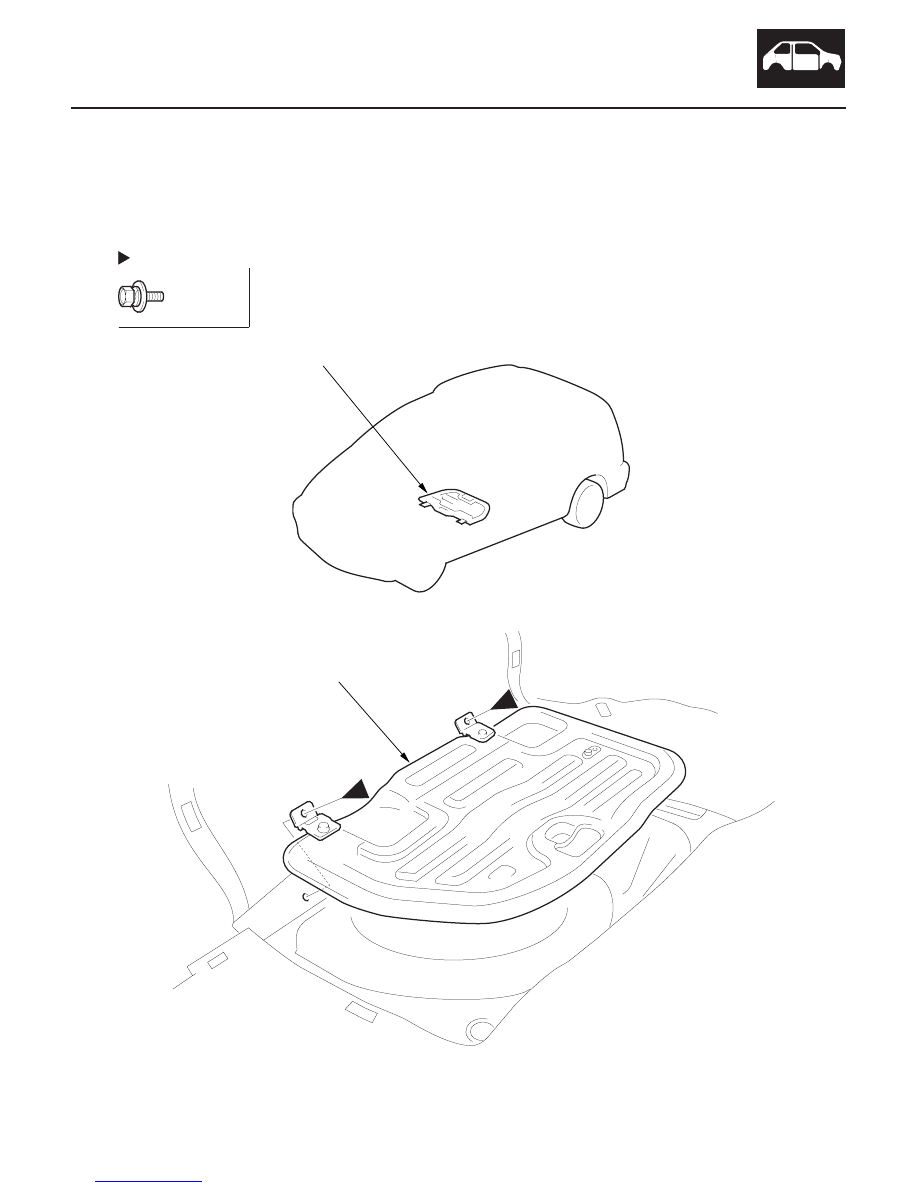

Spare Tire Well Access Panel Replacement

SPARE TIRE WELL ACCESS PANEL

Fastener Locations

: Bolt, 2

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

SPARE TIRE WELL ACCESS PANEL

1. Remove the spare tire well access panel as shown.

2. Install the access panel in the reverse order of removal.

03/07/29 10:04:13 61S0X050_200_0161

*01

S0X4A00J20170757212KBAT00

Subframe Torque

20-160

Frame

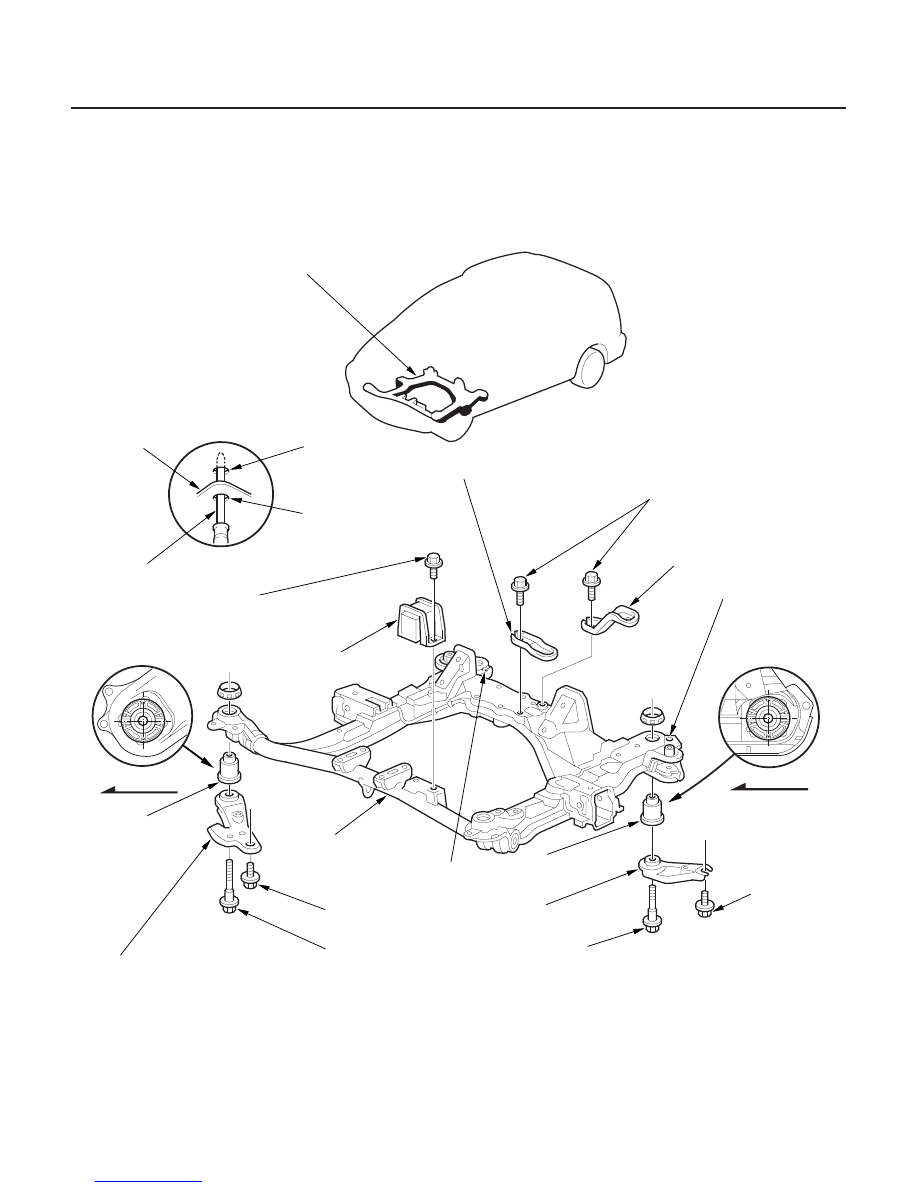

Front Subframe Replacement

STEERING GEARBOX FRONT
STIFFENER

SPECIAL BOLT
14 x 1.5 mm
103 N·m (10.5 kgf·m, 76 lbf·ft)

SPECIAL BOLT
14 x 1.5 mm
103 N·m (10.5 kgf·m, 76 lbf·ft)

10 x 1.25 mm
54 N·m (6.0 kgf·m,
43 lbf·ft)

FRONT SUSPENSION
SUBFRAME

FRONT SUSPENSION
SUBFRAME DAMPER

STEERING GEARBOX
REAR STIFFENER

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

FRONT SUSPENSION
SUBFRAME
FRONT BRACKET

12 x 1.25 mm
74 N·m (7.5 kgf·m,
54 lbf·ft)

FRONT SUSPENSION
SUBFRAME

FRONT SUSPENSION
SUBFRAME
REAR BRACKET

12 x 1.25 mm
117 N·m
(11.9 kgf·m,
86.1 lbf·ft)

To body

To body

To body

To body

SUBFRAME

Reference hole alignment

REFERENCE HOLE
(Body side)

SCREWDRIVER or
TAPERED PUNCH

INSTALLATION
REFERENCE HOLE
(Subframe side)

INSTALLATION
REFERENCE HOLE

Bottom view

Forward

LOWER
INSULATOR

Bottom view

Forward

LOWER
INSULATOR

INSTALLATION
REFERENCE
HOLE

After removing the subframe mounting bolts and steering gearbox stiffener mounting bolts, be sure to replace them
with new ones.

Replace.

Replace.

Replace.

03/07/29 10:04:13 61S0X050_200_0162

*01

S0X4A00J20170757211KBAT00

Subframe Torque

20-161

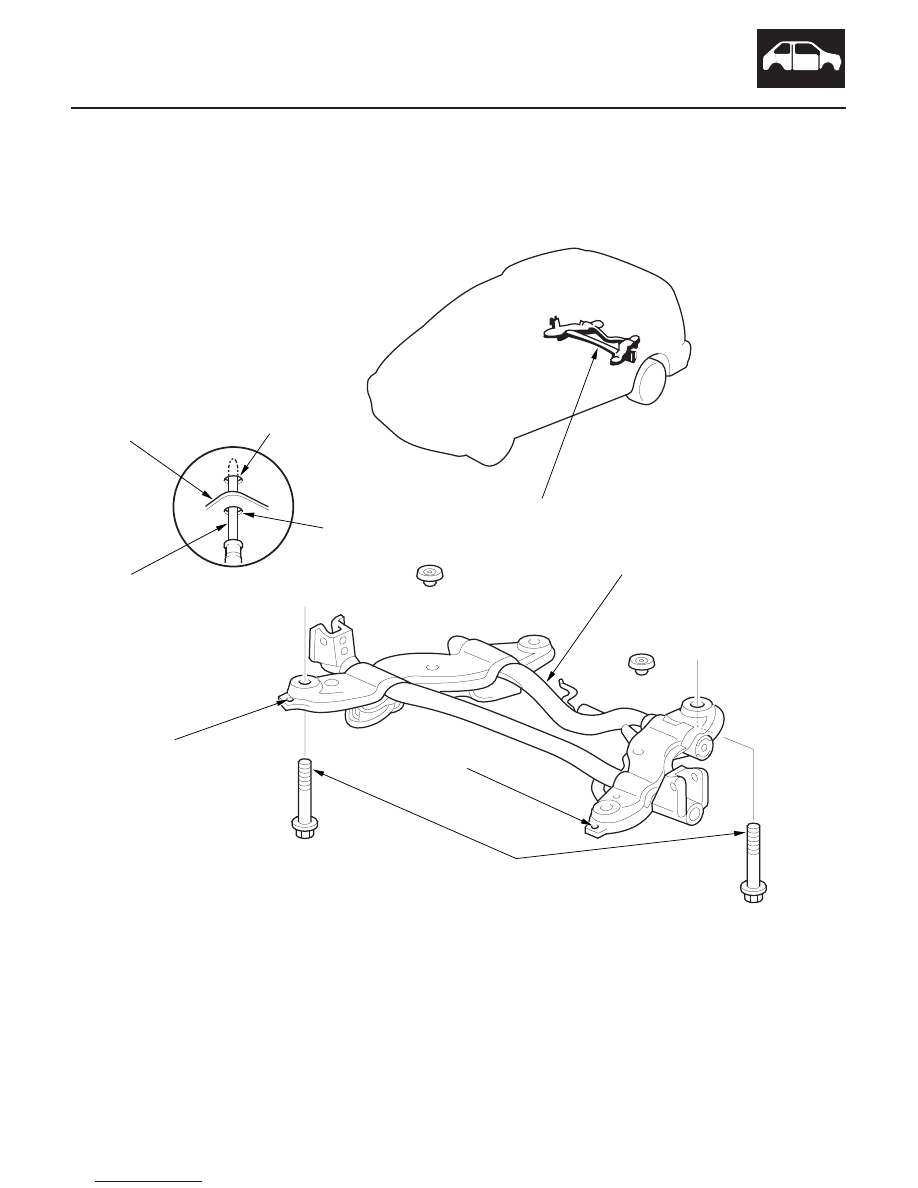

Rear Subframe Replacement

REAR SUSPENSION
SUBFRAME

SPECIAL BOLTS
14 x 1.5 mm
94 N·m (9.6 kgf·m, 69 lbf·ft)

To body

REAR SUSPENSION
SUBFRAME

To body

INSTALLATION
REFERENCE HOLE

SUBFRAME

REFERENCE HOLE
(Body side)

SCREWDRIVER or
TAPERED PUNCH

INSTALLATION
REFERENCE HOLE
(Subframe side)

INSTALLATION
REFERENCE HOLE

Reference hole alignment

After removing the subframe mounting bolts, be sure to replace them with new ones.

Replace.

03/07/29 10:04:14 61S0X050_200_0163
