Openers

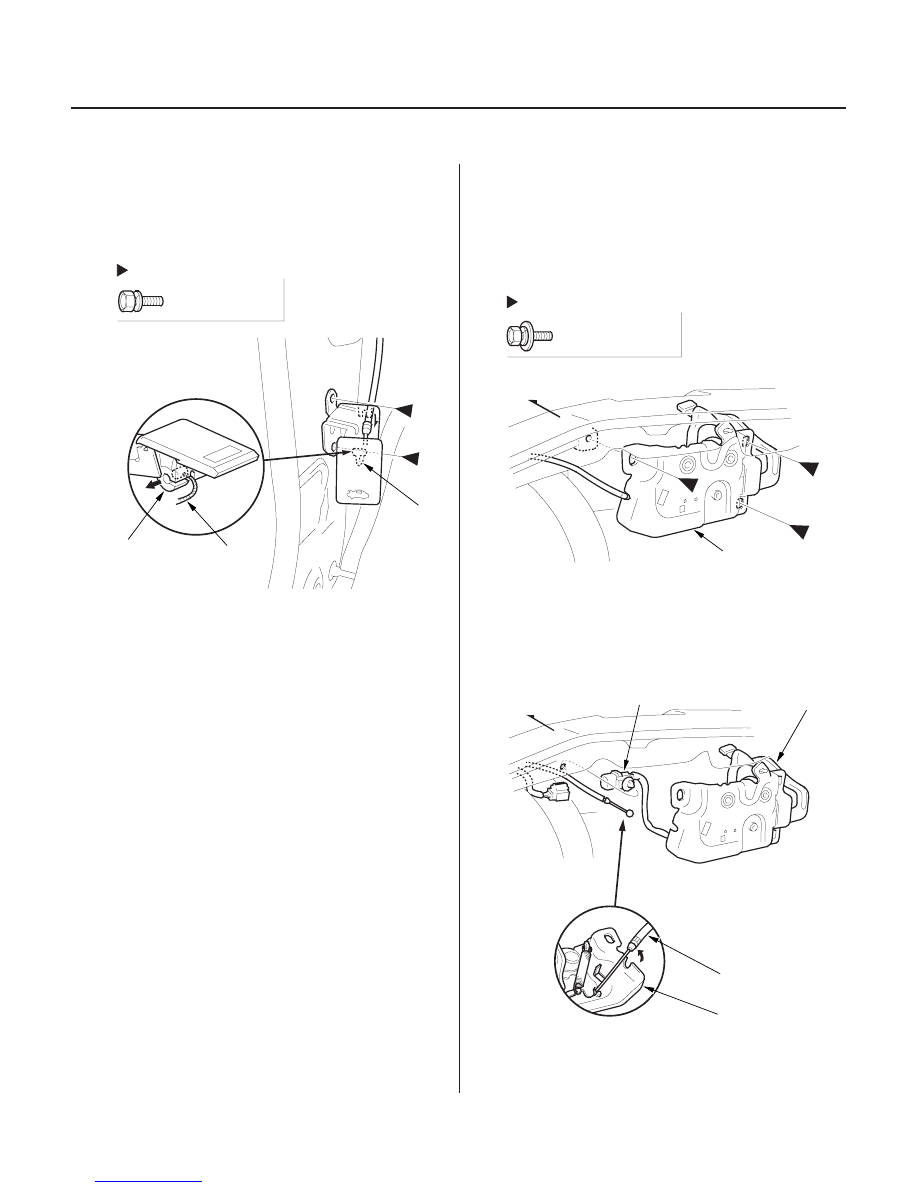

Hood Release Handle Replacement

Hood Latch Replacement

Fastener Locations

: Bolt, 2

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

B

A

A

Fastener Locations

: Bolt, 3

6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

Forward

A

A

C

B

C

Forward

1. Remove the left kick panel (see page 20-58).

2. Remove the bolts, then remove the hood release

handle.

3. Disconnect the hood opener cable (A) from the

hood release handle (B). Take care not to kink the
cable.

4. Install the handle in the reverse order of removal,

and note there items:

• Make sure the hood opener cable is connected

properly.

• Make sure the hood opens properly.

NOTE:

• Put on gloves to protect your hands.
• Take care not to scratch the body.

1. Remove the bolts, then remove the hood latch (A)

from the body.

2. For some ’01-04 models, detach the hood latch

switch connector (A) from the body. Disconnect the
hood opener cable (B) from the hood latch (C), and
if equipped, disconnect the hood latch switch
connector. Take care not to bend the cable.

03/07/29 10:04:09 61S0X050_200_0156

03

01

02

S0X4A00J18526327911KBAT00

20-155

20-155

Fuel Fill Door Opener Replacement

A

Fastener Locations

: Bolt, 3

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

B

A

3. Install the latch in the reverse order of removal, and

note these items:

• Apply multipurpose grease to each location

indicated by the arrows.

• Make sure the hood opener cable is connected

properly and the hood latch switch connector is
properly connected.

• Make sure the cable actuates the latch before you

close the hood.

• Adjust the hood latch alignment (see step 3 on

page 20-133).

• Make sure the hood locks securely.
• Security system-equipped models: Verify that the

system arms and that the alarm sounds when the
hood is opened.

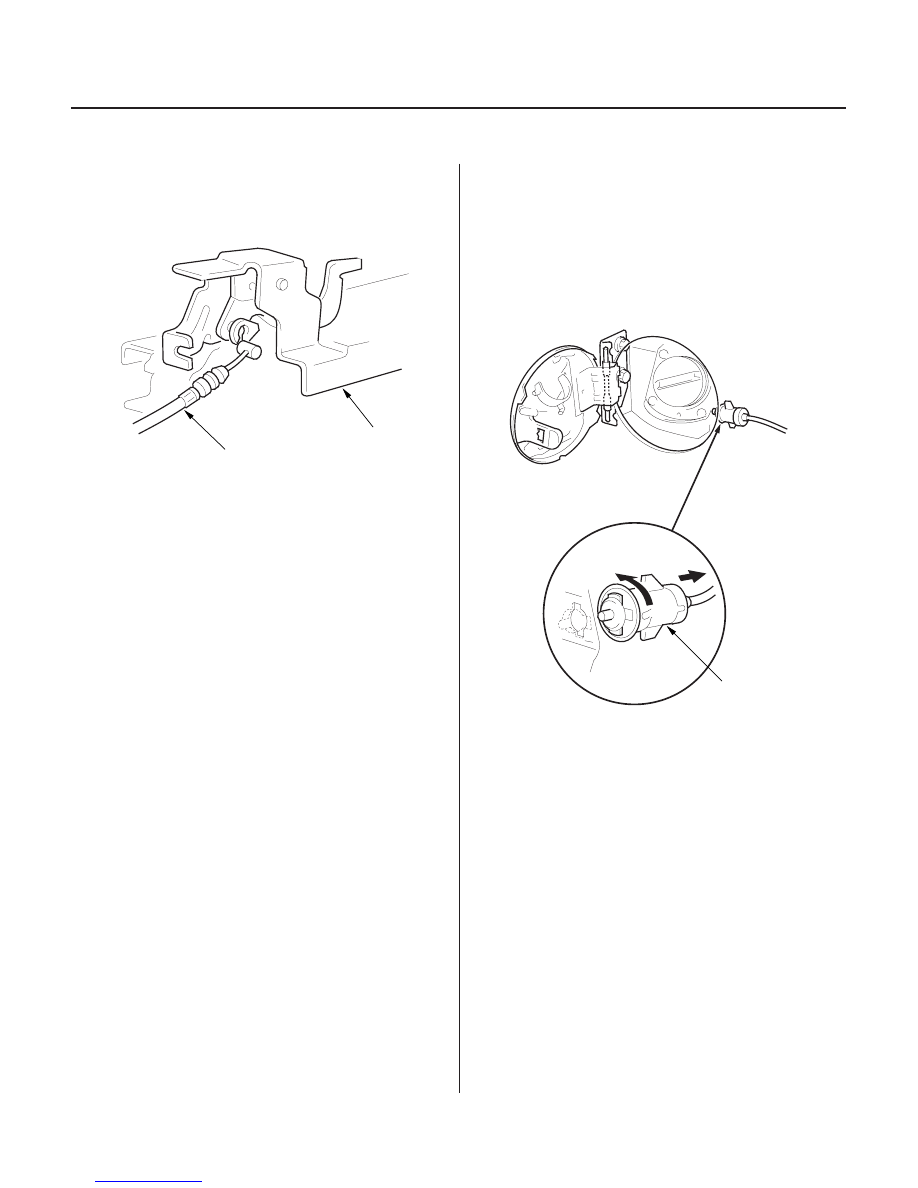

1. Remove the opener knob (A).

2. Remove the front door sill trim (see page 20-58).

3. Turn over the carpet (A) and remove the bolts, then

remove the fuel fill door opener (B) from the floor.

(cont’d)

03/07/29 10:04:10 61S0X050_200_0157

03

01

S0X4A00J18526327901KBAT00

20-156

20-156

Openers

Fuel Fill Door Opener Replacement
(cont’d)

Fuel Fill Door Latch Replacement

A

B

A

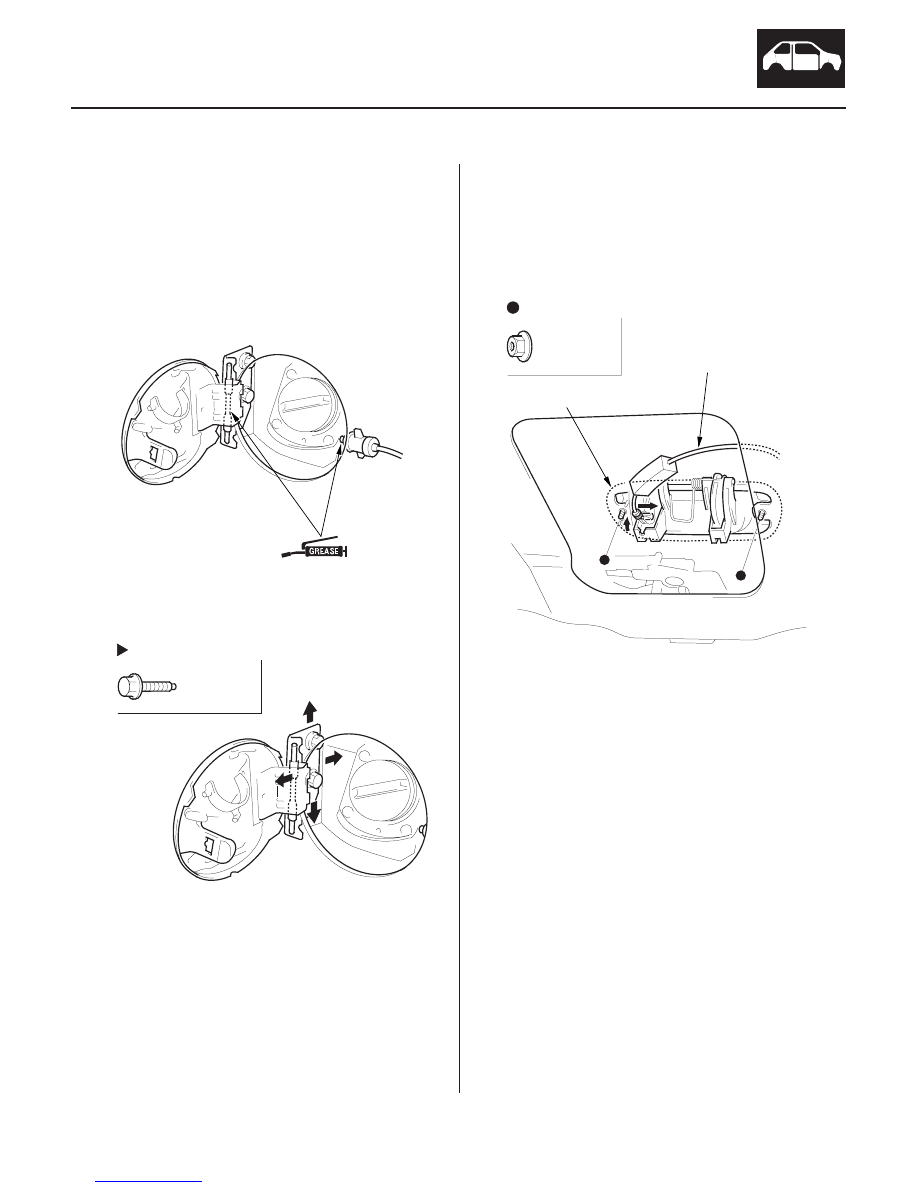

4. Disconnect the fuel fill door opener cable (A), then

remove the fuel fill door opener (B).

5. Install the opener in the reverse order of removal,

and note these items:

• Make sure the opener cable is connected

properly.

• Make sure the fuel fill door opens properly.
• Check the operation of the sliding door; verify

that the left sliding door locks when the fuel filler
door release is pulled.

1. Remove these items:

• Rear side trim panel (see page 20-60)
• Third row seat belt retractor, with power sliding

door (see page 23-11)

• Quarter plastic cover, as necessary (see page 20-

2. Turn the fuel fill door latch (A) 90°, and remove it.

03/07/29 10:04:11 61S0X050_200_0158

6)

02

*01

01

S0X4A00J18573958101KBAT00

20-157

20-157

Tailgate Handle Replacement

Fastener Locations

: Bolt, 2

6 x 1.0 mm
19 N·m
(1.9 kgf·m,
14 lbf·ft)

Fastener Locations

: Nut, 2

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

A

B

3. Install the latch in the reverse order of removal, and

note these items:

• Apply multipurpose grease to each location

indicated by the arrows.

• Make sure the fuel fill door opens properly and

locks securely.

• Check the operation of the sliding door; verify

that the left sliding door locks when the fuel filler
door release is pulled.

4. Check that the fuel fill door fits flush against the

body. If necessary, adjust it.

5. Apply touch-up paint to the hinge mounting bolts

and around the hinges.

NOTE: Put on gloves to protect your hands.

1. Remove the tailgate trim panel (see page 20-61).

2. Disconnect the handle cable (A) from the tailgate

handle (B).

3. Remove the nuts, then remove the tailgate handle.

4. Install the tailgate handle in the reverse order of

removal, and note these items:

• Make sure the handle cable is connected securely.
• Make sure the tailgate opens properly.

03/07/29 10:04:11 61S0X050_200_0159
