Honda Odyssey 2004. Manual - part 371





06

03

*01

Seat Cushion Cover

20-126

Seats

Third Row Seat Cover Replacement (cont’d)

Fastener Locations

: Screw, 2

A

Fastener Locations

: Screw, 6

A

D

B

C

D

Fastener Locations

: Clip, 2

D

B

D

E

C

E

B

C

A

A

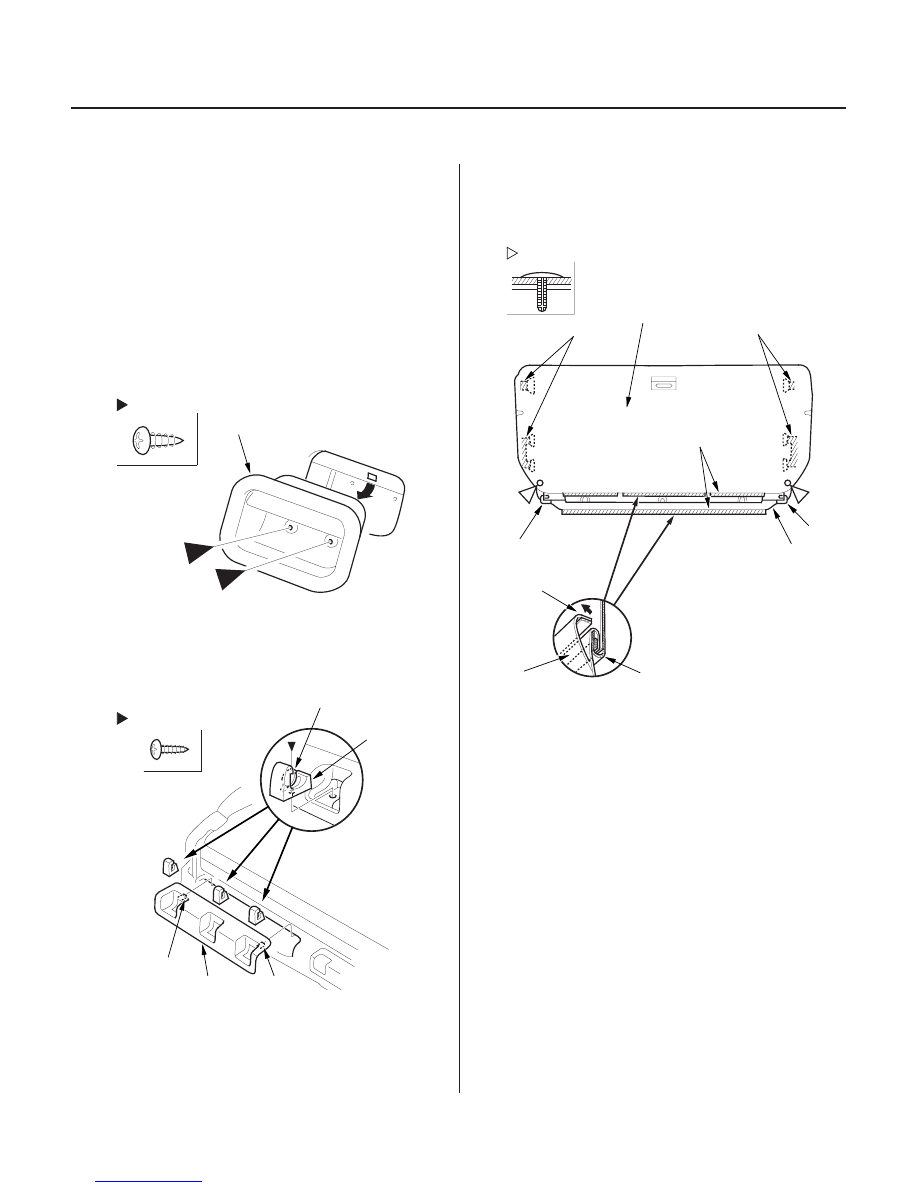

1. Separate the seat-back and seat cushion (see page

20-121).

2. Remove these items:

• Cushion latch cover (see step 2 on page 20-122)
• Cushion latch lever trim (see page 20-121)

3. Remove the screws, then remove the grab handle

(A) from the cushion frame.

4. For ’02-04 models: Pry up the caps (A) and remove

the screws, then remove all of the cushion hooks
(B) from both cushion hook trim (C). Release the
hooks (D) then remove the trim.

5. Release the hook (A) and clips. Turn over the seat

cushion mat (B) and the cushion cover (C), then
release the hooks (D, E) from the cushion frame.

03/07/29 10:03:31 61S0X050_200_0128

08

09

20-127

B

A

C

D

A

B

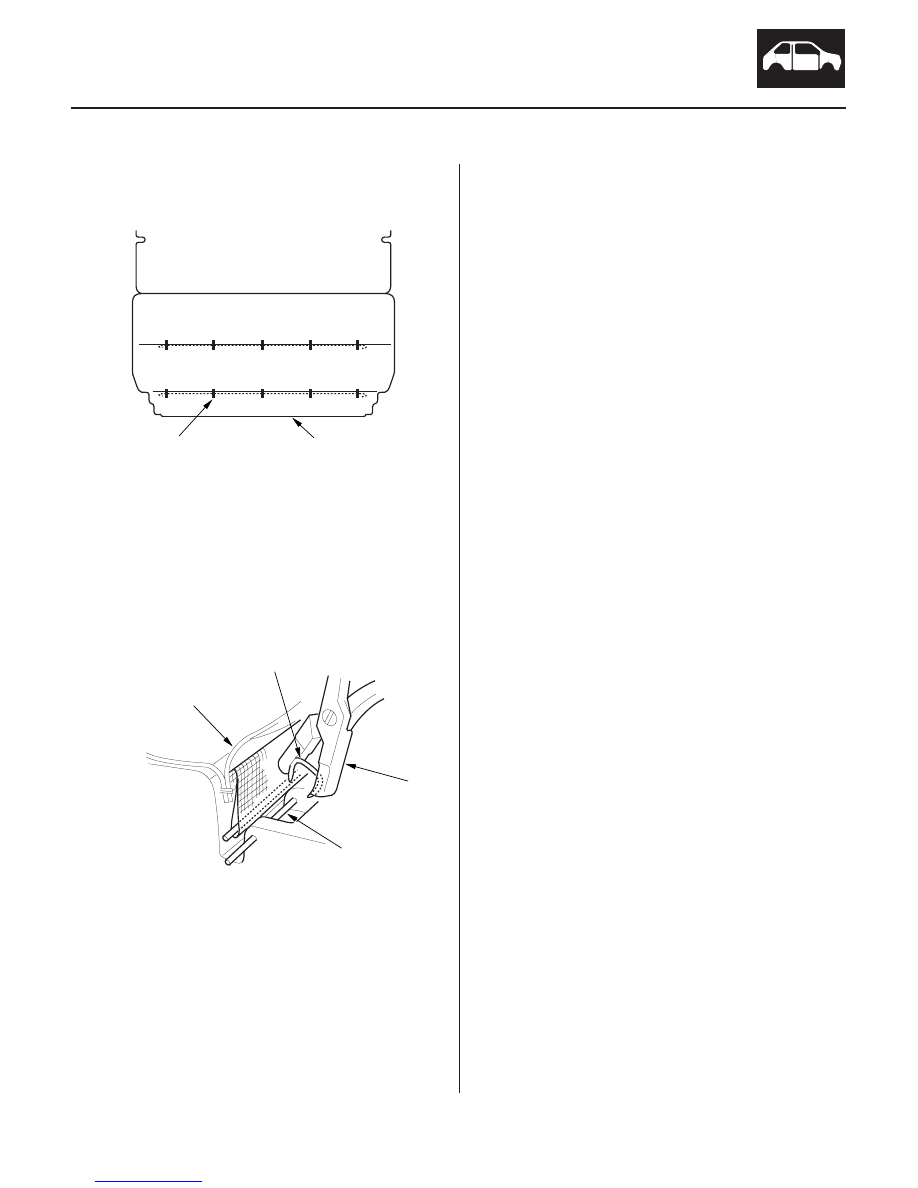

6. Pull back the edge of the seat cushion cover (A) all

the way around, and release the clips (B), then
remove the seat cushion cover.

7. Install the cover in the reverse order of removal,

and note these items:

• To prevent wrinkles, make sure the material is

stretched evenly over the pad before securing all
the clips.

• Replace the clips fastening the seat cushion mat

and the cushion frame with new ones.

• Replace the clips fastening the seat-back cover

(A) and pad wire (B) with new ones (C) using
commercially available upholstery ring pliers (D).

03/07/29 10:03:31 61S0X050_200_0129

01

S0X4A00J18513415011KDAT00

20-128

Bumpers

Front Bumper Removal/Installation

F

Fastener Locations

B

: Bolt, 2

F

: Screw, 2

: Clip, 4

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

C

B

B

F

D

I

H

H

I

G

D

A

C

C

C

C

E

NOTE:

• Have an assistant help you when removing the front bumper.
• Take care not to scratch the front bumper and body.
• Put on gloves to protect your hands.

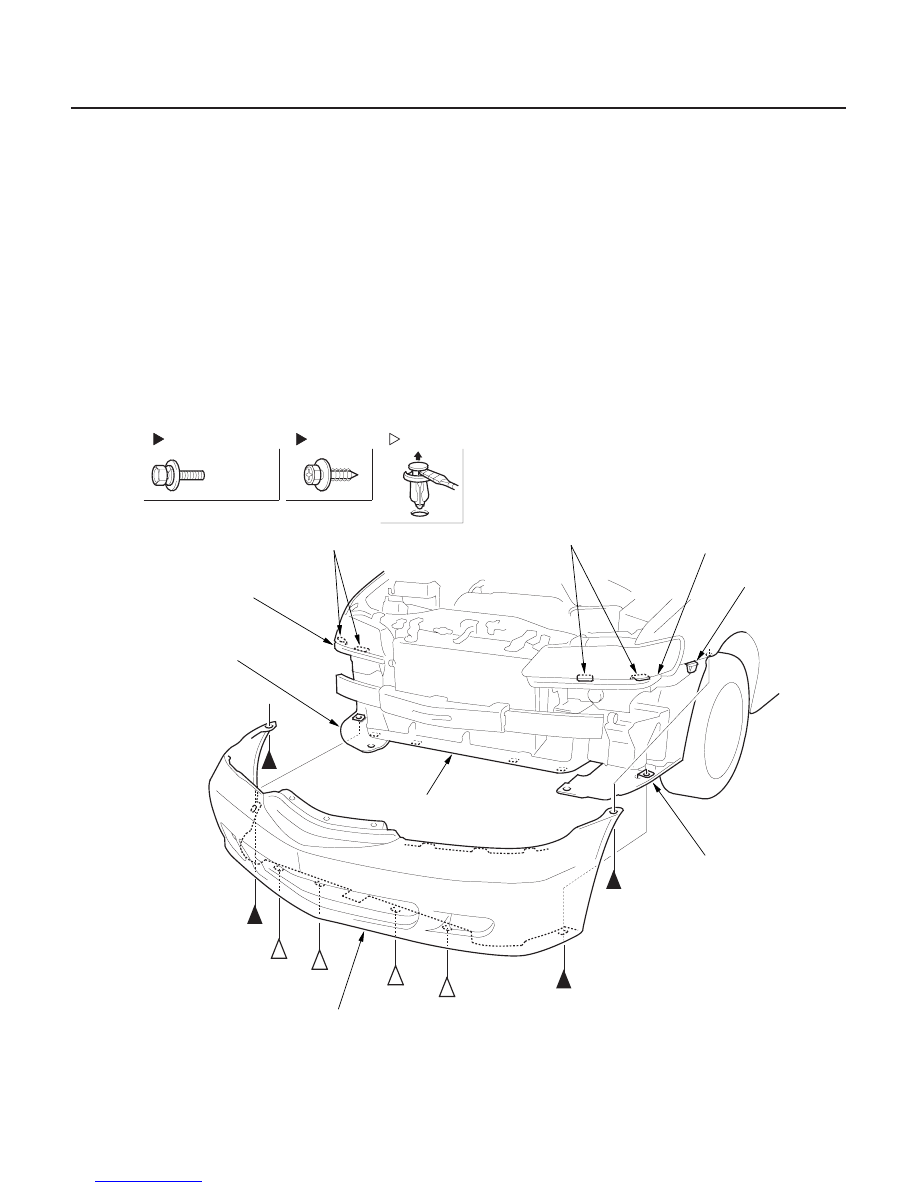

1. Remove the front bulkhead cover (see page 20-142).

2. Remove the front bumper (A):

–1 Remove the bolts (B) and clips (C) securing the front bumper, inner fender (D) and splash shield (E).
–2 Remove the screws (F), then pull both side wheel arch portions of the bumper outward to detach them from

the side clips (G).

–3 With the help of an assistant, pull the front bumper forward to release the hooks (H) from both corner upper

beams (I), then remove the front bumper.

03/07/29 10:03:32 61S0X050_200_0130

02

20-129

E

A

A

A

B

B

B

A

A

A

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

Fastener Locations

B

: Bolt, 6

: Bolt, 6

A

D

C

D

B

B

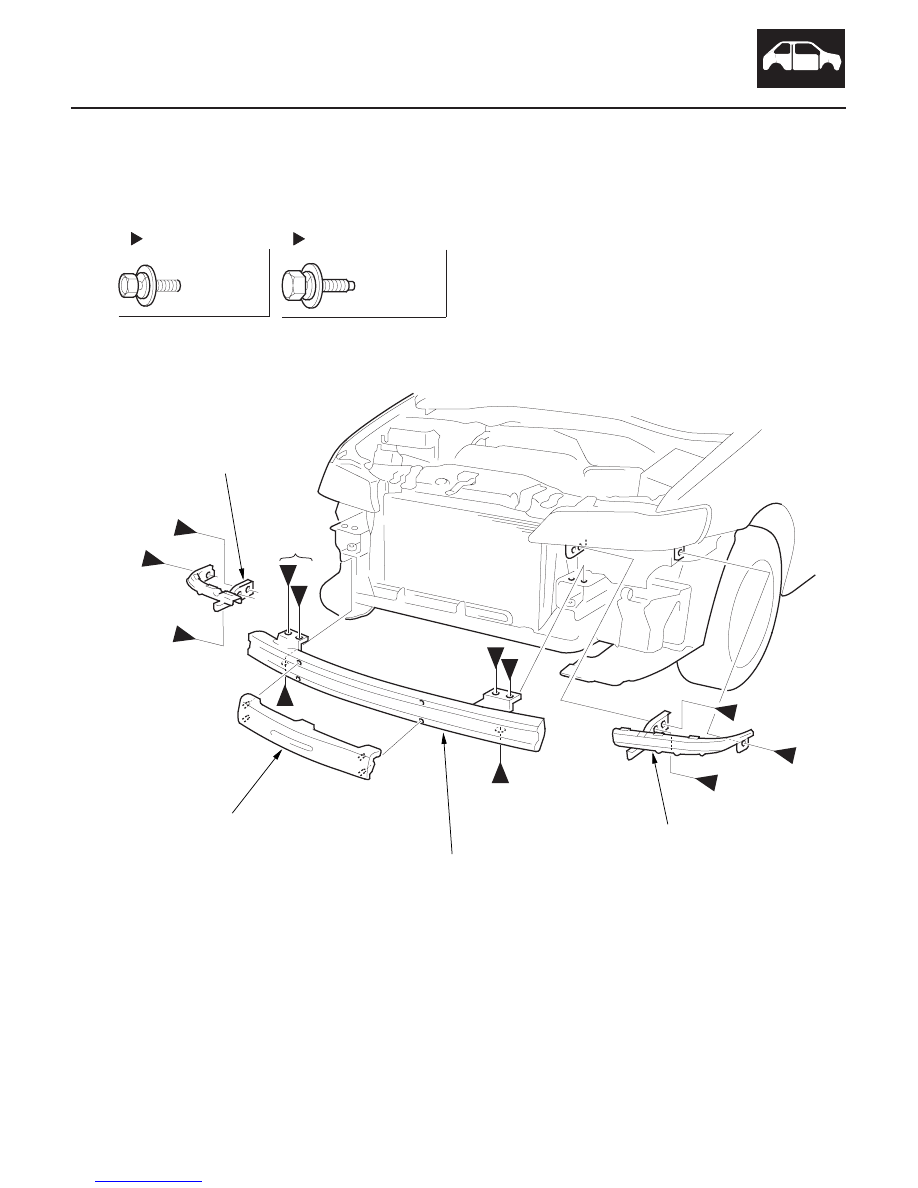

3. Remove the bolts (A, B), then remove the front bumper beam (C) and both corner upper beams (D). If necessary,

remove the absorber (E).

4. Install the front bumper in the reverse order of removal, and note these items:

• Make sure the front bumper engages the side clips, and the hooks (of the center and corner upper beams) on

each side securely.

• Replace any damaged clips.
• Push the clips into place securely.

03/07/29 10:03:32 61S0X050_200_0131
