26

27

20-118

Seats

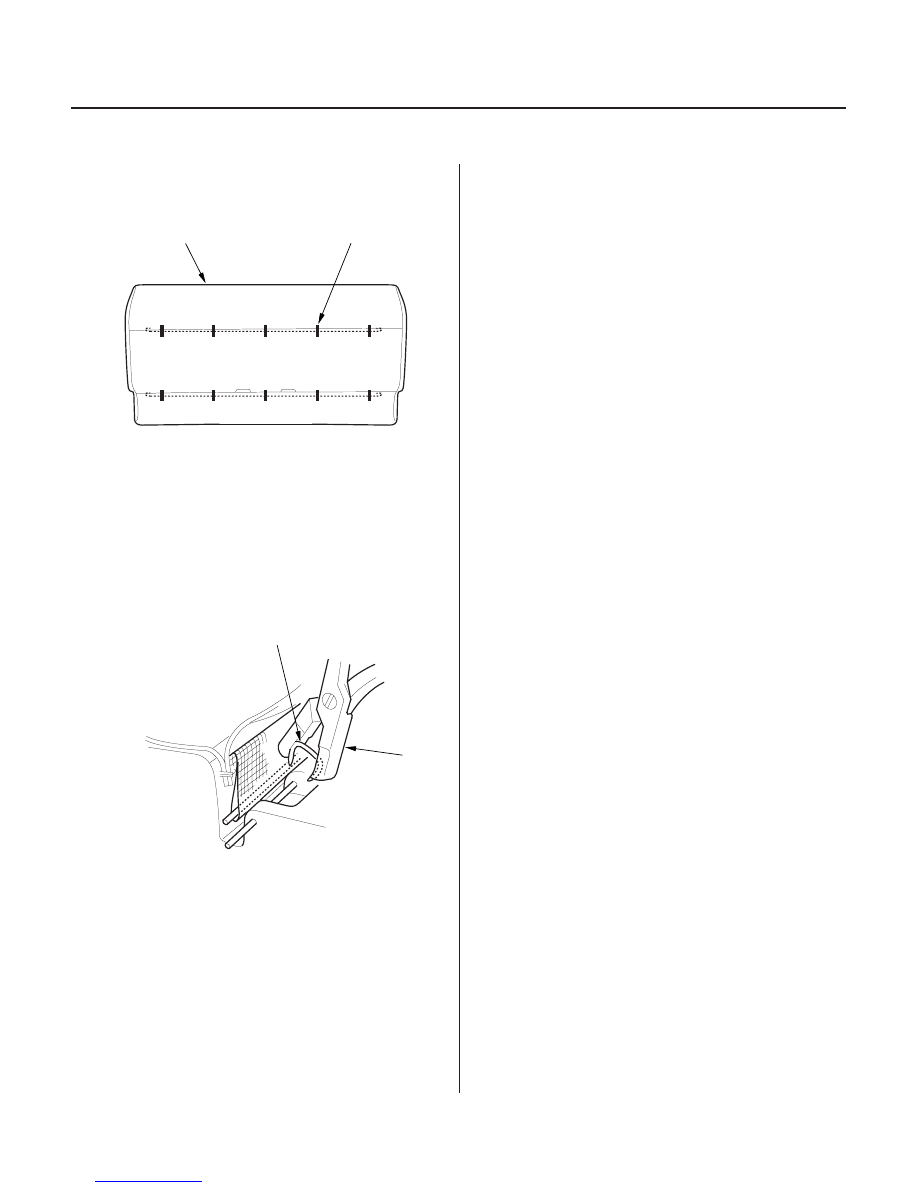

Second Row Seat Cover Replacement - Bench-type (cont’d)

B

A

A

B

5. Pull back the edge of the seat cushion cover all the

way around, and release the clips (A), then remove
the seat cushion cover (B).

6. Install the cover in the reverse order of removal,

and note these items:

• To prevent wrinkles when installing a seat

cushion cover, make sure the material is
stretched evenly over the pad before securing
the clips and hooks.

• Replace any clips you removed with new ones

(A) using commercially available upholstery ring
pliers (B).

03/07/29 10:03:25 61S0X050_200_0120

01

S0X4A00J46173853904KDAT00

20-119

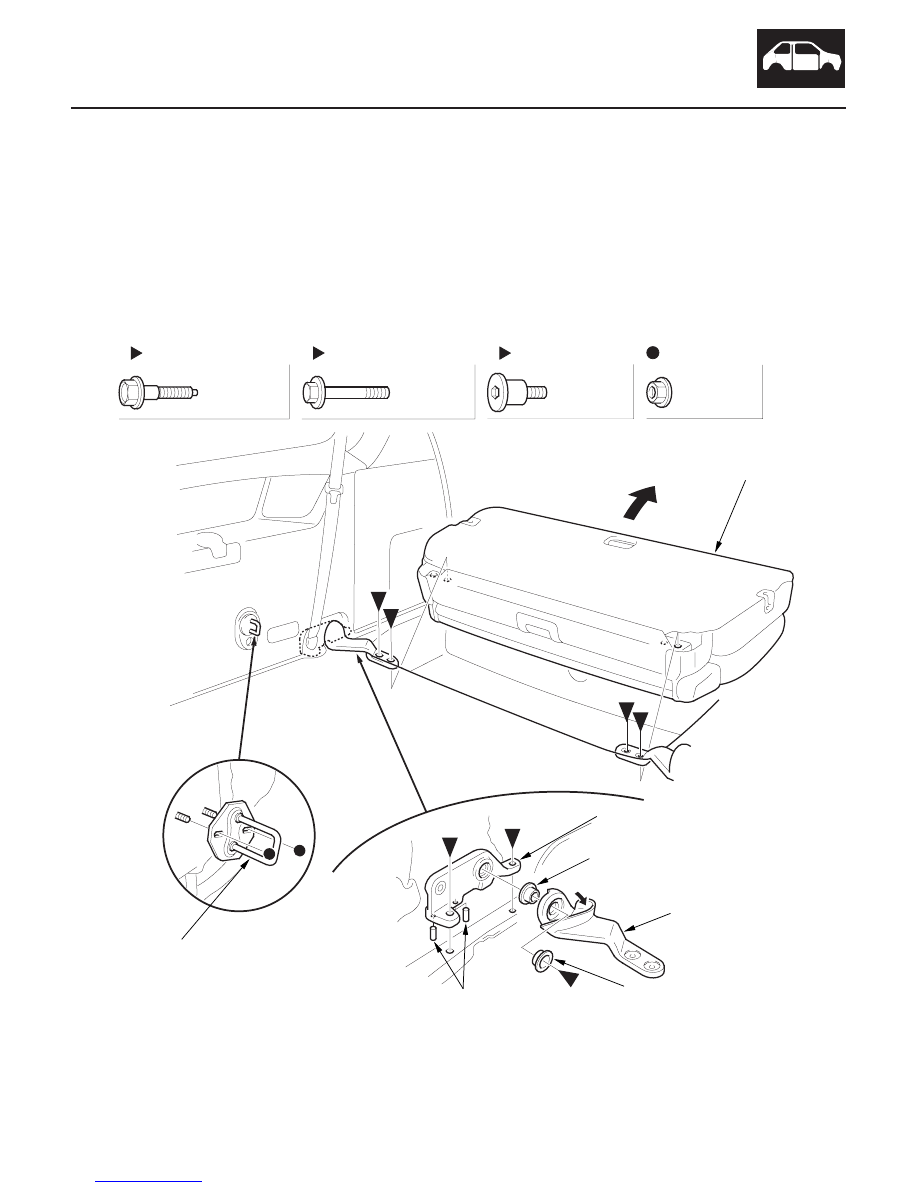

Third Row Seat Removal/Installation

A

A

PIVOT BEARING

PIVOT BUSHING

PIVOT BRACKET

PIVOT BUSHING

SPRING PINS

B

B

C

THIRD ROW SEAT

A

A

THIRD ROW SEAT STRIKER

Fastener Locations

: Bolt, 4

: Bolt, 4

: Bolt, 2

: Nut, 4

7/16-20 UNF
47 N·m
(4.7 kgf·m,
35 lbf·ft)

12 x 1.25 mm
54 N·m
(5.5 kgf·m,
40 lbf·ft)

14 x 1.5 mm
44 N·m
(4.5 kgf·m,
33 lbf·ft)

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

A

B

C

NOTE: Take care not to scratch the interior trim and body or tear the seat covers.

1. Remove the third row seat as shown.

2. Install the seat in the reverse order of removal and note these items:

• After disassembling the pivot bracket, replace the pivot bushings.
• Make sure the third row seat latches and unlatches properly, and if necessary, adjust the third row seat striker

forward or rearward.

Remove the rear side trim panel.

Replace.

Replace.

Replace.

Remove the rear side trim panel.

03/07/29 10:03:26 61S0X050_200_0121

01

01

01

S0X4A00J46173854021KBAT00

20-120

Seats

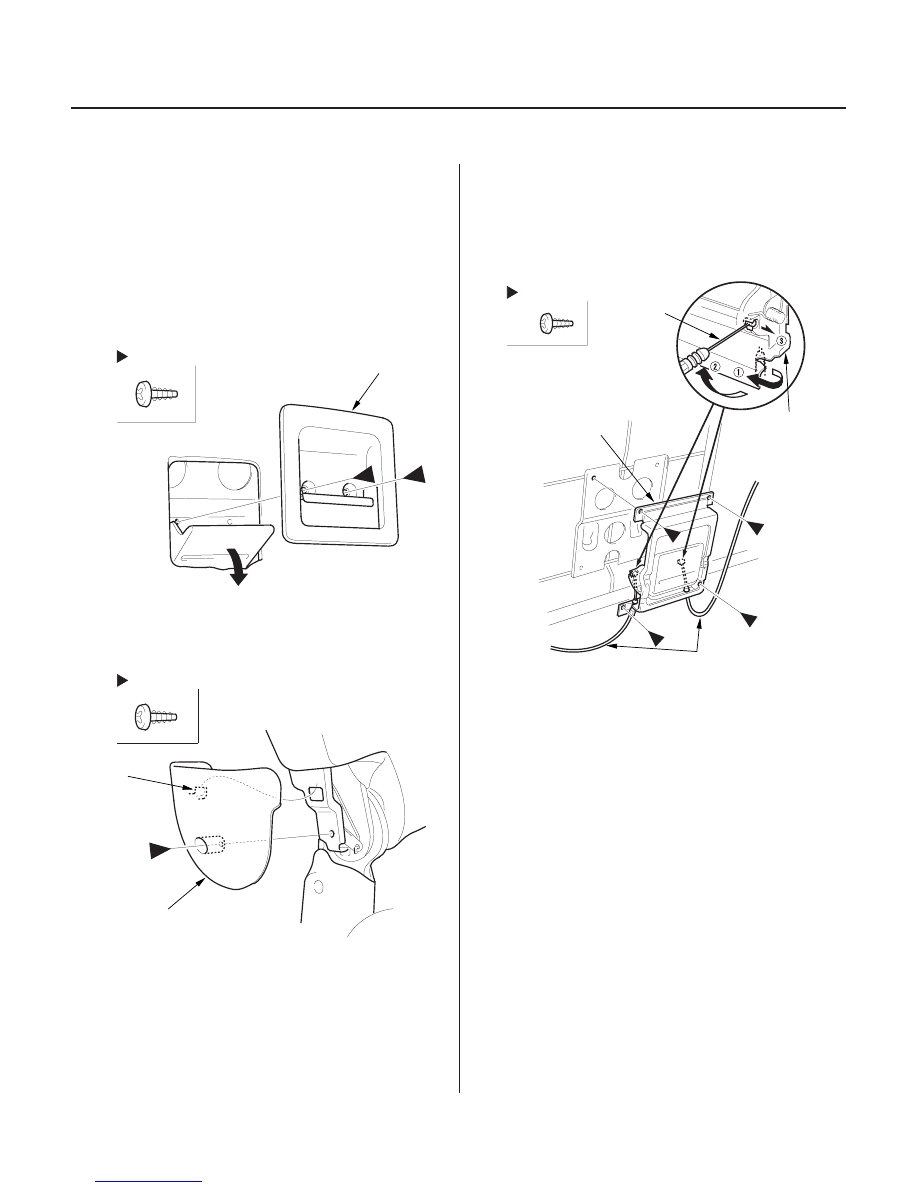

Third Row Seat-back Recline Lever Replacement

Fastener Locations

: Screw, 2

A

Fastener Location

: Screw, 1

B

A

Fastener Locations

: Screw, 4

A

B

B

A

NOTE:

• Take care not to scratch the interior trim.
• Take care not to tear the seams or damage the seat

covers.

• Take care not to kink the recline cables.
• Put on gloves to protect your hands.

1. Remove the screws, and remove the recline lever

trim (A) from behind the seat-back.

2. Remove the screw and release the hook (A), then

remove the recline upper cover (B) from each side.

3. Remove the seat-back cover, as necessary (see

page 20-124).

4. Remove the screws and disconnect the recline

cables (A) from the recline lever (B), then remove it.

5. Install the lever in the reverse order of removal,

and make sure the recline cables are connected
securely.

03/07/29 10:03:27 61S0X050_200_0122

01

02

01

S0X4A00J46173853651KBAT00

20-121

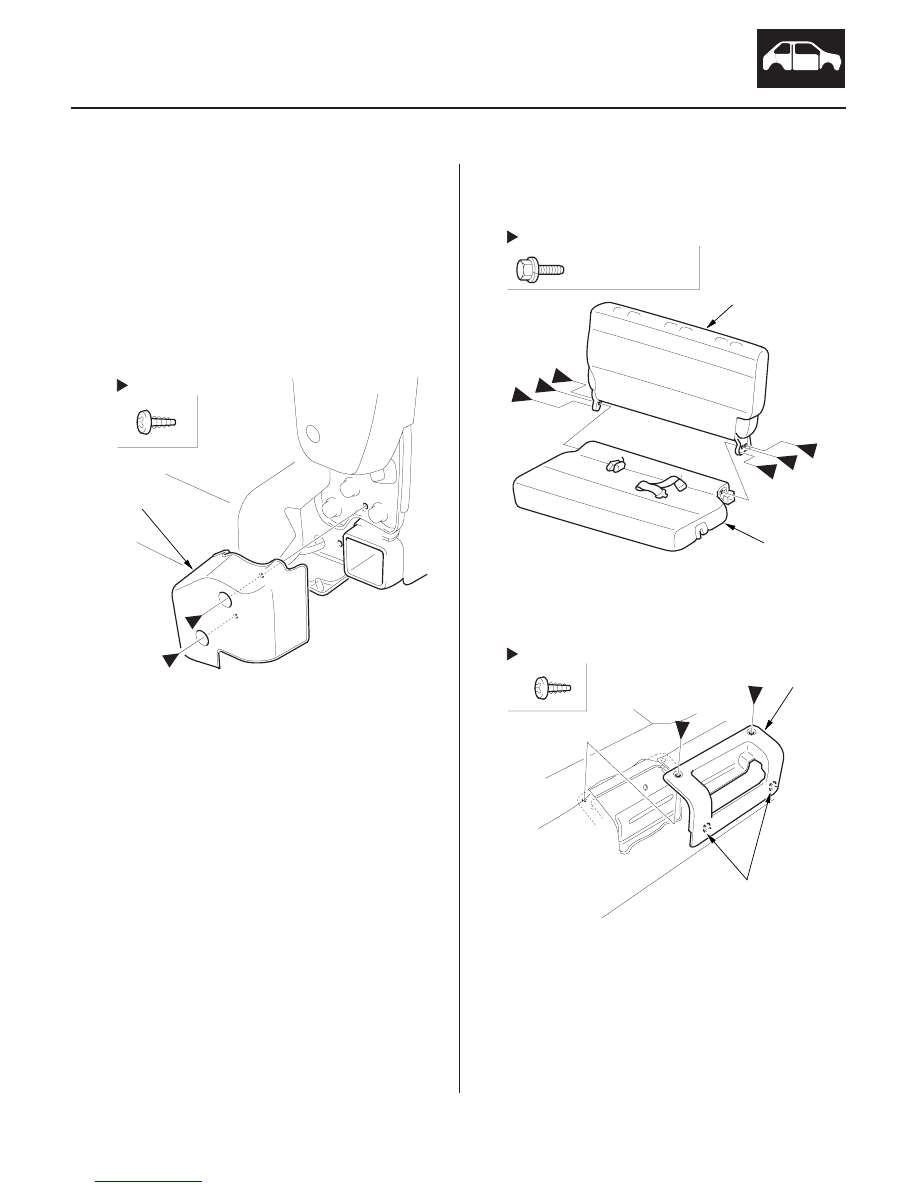

Third Row Seat Cushion Latch Lever Replacement

Fastener Locations

: Screw, 4

A

Fastener Locations

: Bolt, 6

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

A

B

Fastener Locations

: Screw, 2

B

A

NOTE:

• Take care not to tear the seams or damage the seat

covers.

• Take care not to kink the cushion latch cables.
• Put on gloves to protect your hands.

1. Remove the third row seat through the tailgate

opening (see page 20-119).

2. Remove the screws, then remove the recline cover

(A) from each side.

3. Remove the bolts, then separate the seat-back (A)

and seat cushion (B).

4. Remove the screws and release the hooks (A), then

remove the cushion latch lever trim (B).

(cont’d)

03/07/29 10:03:27 61S0X050_200_0123
