Seat Cushion Cover

8-way power seat

All except 8-way power seat

’99-01 models

’02-04 models (8-way power/manual except
leather seat cover)

’02-04 models (manual height adjustable)

20-106

Seats

Front Seat Cover Replacement (cont’d)

A

B

B

C

B

A

B

B

C

B

B

B

A

B

A

B

A

B

1. Remove the front seat (see page 20-81).

2. Remove the seat cushion, 8-way power without

side airbag (see page 20-86), 8-way power with side
airbag (see page 20-87), manual height adjustable
without side airbag (’01 model) (see page 20-88),
manual height adjustable with side airbag
(’02 model) (see page 20-89), manual height
adjustable (’03-04 models) (see page 20-90),
manual without side airbag (see page 20-91),
manual with side airbag (see page 20-92), manual
(’03-04 models) (see page 20-93).

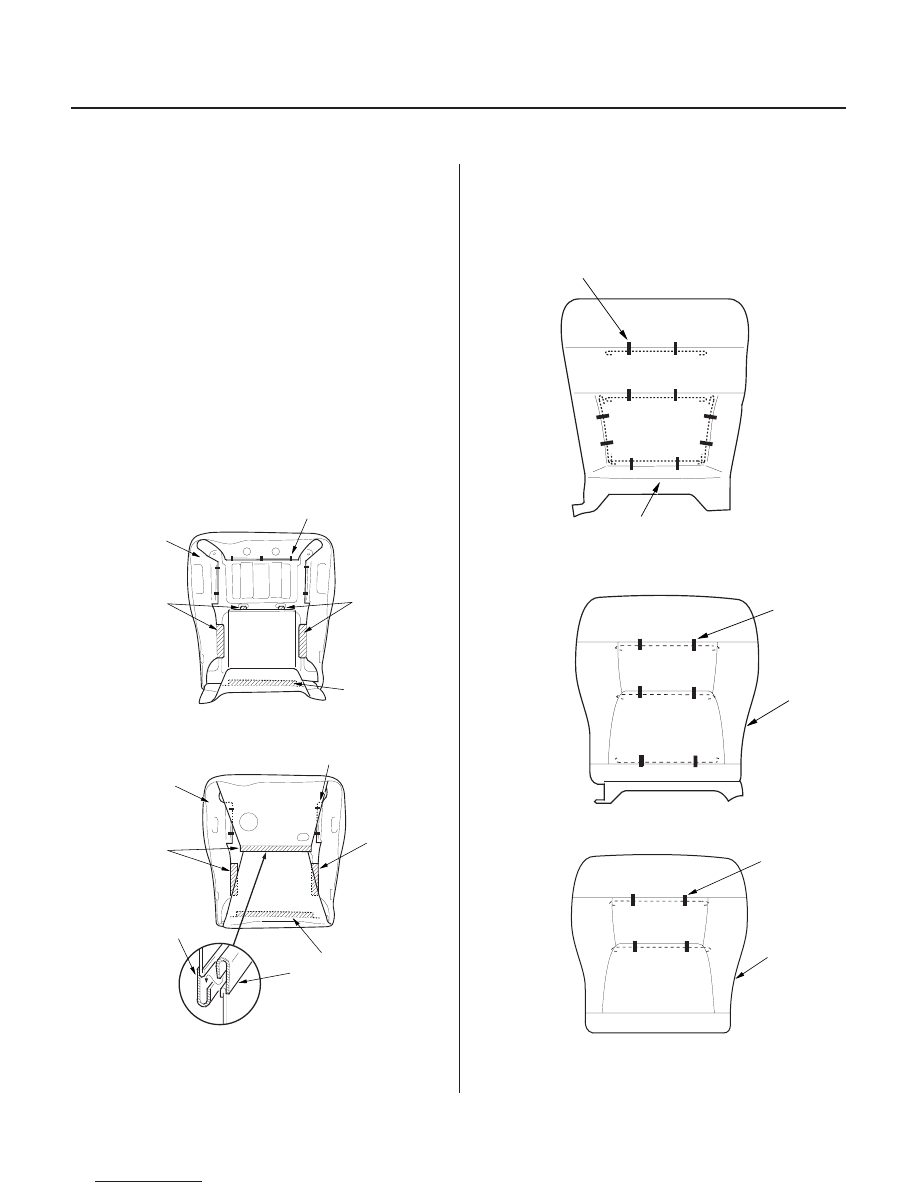

3. Release the clips (A) and hooks (B) from under the

seat cushion, then loosen the seat cushion cover
(C).

4. Pull back the edge of the seat cushion cover all the

way around, and release the clips (A), then remove
the seat cushion cover (B).

03/07/29 10:03:17 61S0X050_200_0108

10

*01

’02-04 models (leather seat cover)

20-107

A

B

A

B

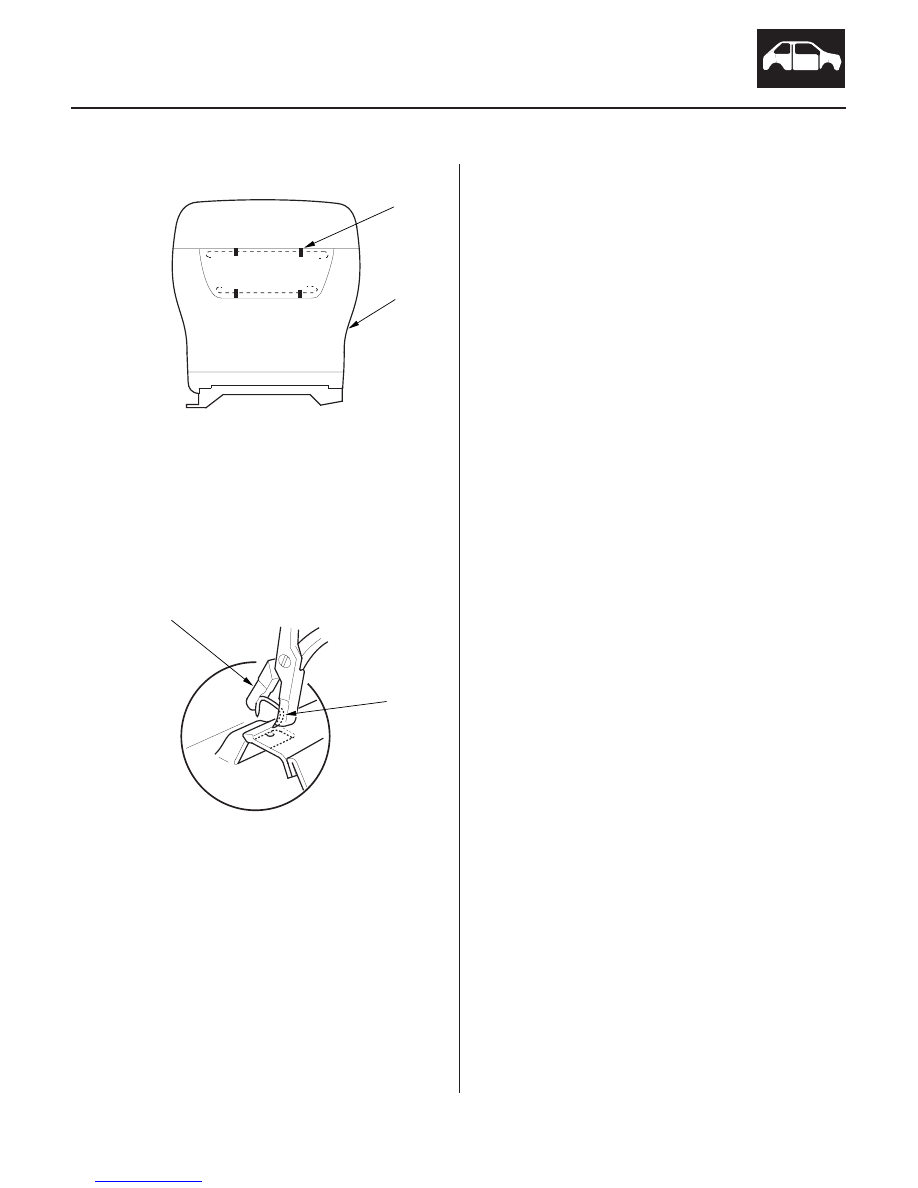

5. Install the cover in the reverse order of removal,

and note these items:

• To prevent wrinkles when installing a seat

cushion cover, make sure the material is
stretched evenly over the pad before securing
the clips and hooks.

• Replace any clips (A) you removed with new

ones using commercially available upholstery
ring pliers (B).

03/07/29 10:03:18 61S0X050_200_0109

*01

S0X4A22J46170553903MFAT10

20-108

Seats

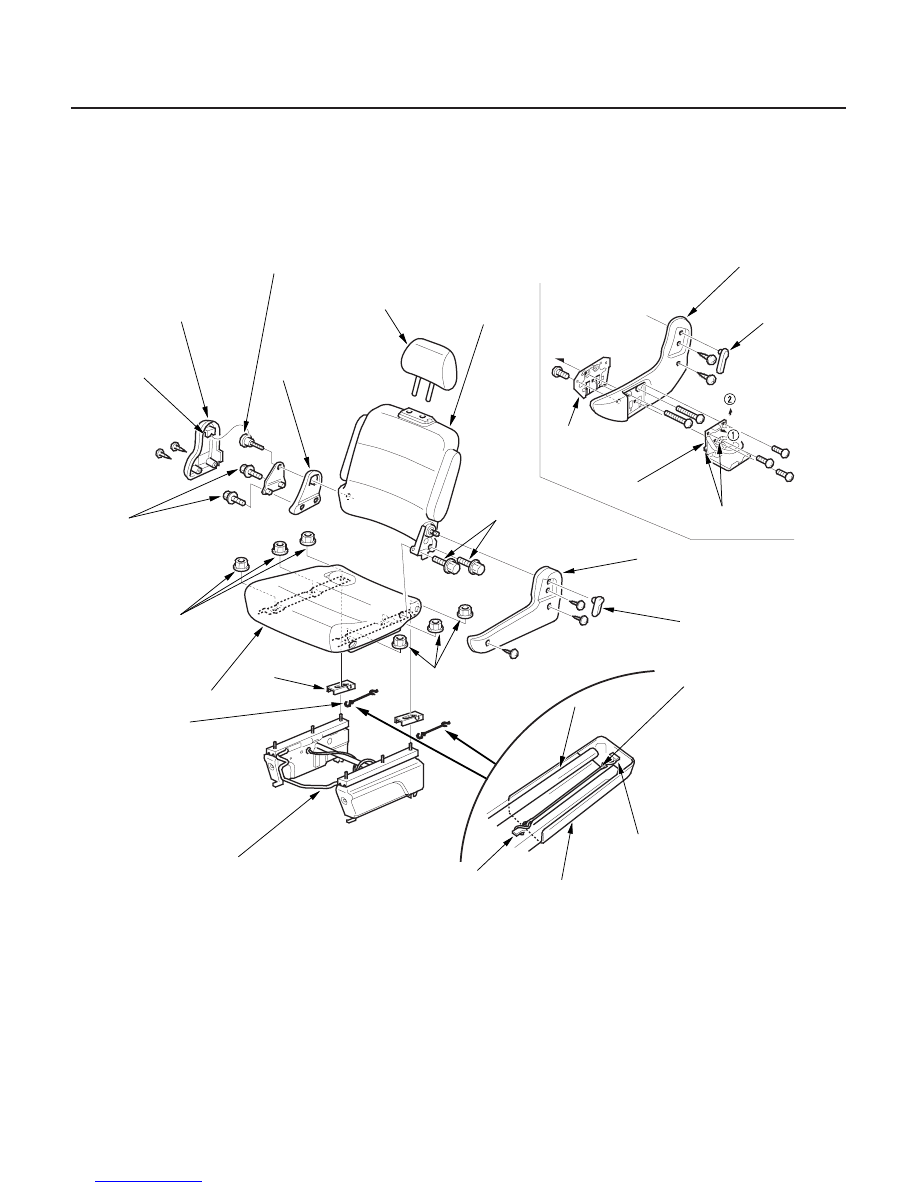

Second Row Seat Disassembly/Reassembly - Bucket-type

PIVOT BOLT
10 x 1.25 mm
21 N·m (2.1 kgf·m, 15 lbf·ft)

CENTER COVER

HOOK

INNER PIVOT
COVER

HEADREST

SEAT-BACK

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

RECLINE
COVER

RECLINE
KNOB

8 x 1.25 mm
21 N·m (2.1 kgf·m,
15 lbf·ft)

SLIDE ADJUSTER/
RISER ASSEMBLY

TRACK END
CORD

TRACK END
COVER

8 x 1.25 mm
21 N·m (2.1 kgf·m,
15 lbf·ft)

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

TRACK
END CORD

SLIDE
ADJUSTER

HOOK

TRACK
END COVER

HOOK

SEAT CUSHION

’02-04 models

HOOKS

RECLINE
COVER

RECLINE
KNOB

To seat cushion
frame

BEVERAGE
HOLDER
SUB BRACKET

BEVERAGE
HOLDER

NOTE: Apply liquid thread lock to the bolts securing the seat-back and seat cushion.

03/07/29 10:03:19 61S0X050_200_0110

21

S0X4A23J46170553903MFAT20

For some ’99-01 models

20-109

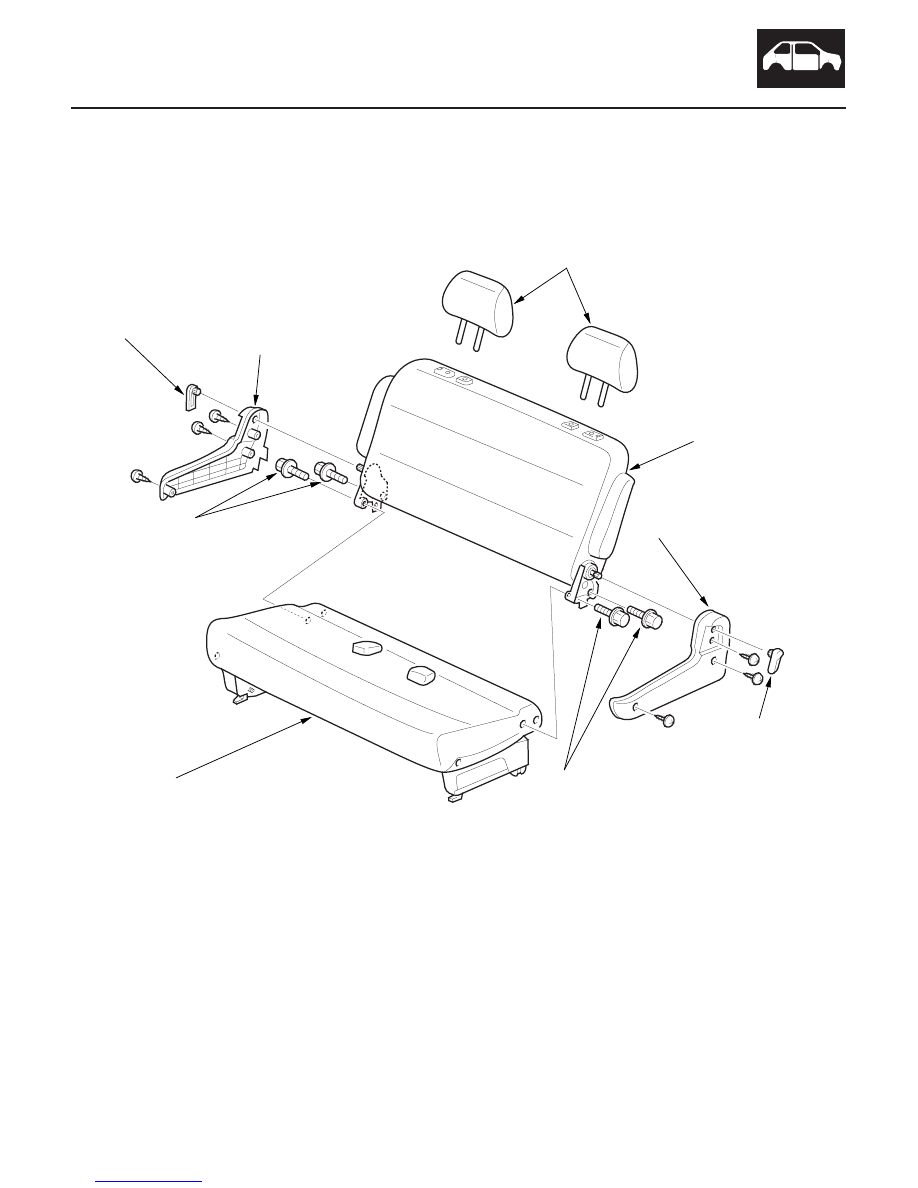

Second Row Seat Disassembly/Reassembly - Bench-type

HEADREST

RIGHT RECLINE COVER

RECLINE KNOB

SEAT-BACK

RECLINE
KNOB

SEAT CUSHION/RISER ASSEMBLY

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

LEFT RECLINE COVER

NOTE: Apply liquid thread lock to the bolts securing the seat-back and seat cushion.

03/07/29 10:03:19 61S0X050_200_0111
