20-78

Dashboard

Steering Hanger Beam Replacement (cont’d)

A

B

: Screw, 6

Fastener Locations

: Nut, 4

6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

Fastener Locations

A

: Screw, 16

B

: Screw, 6

C

: Screw, 2

A

A

A

B

A

A

A

A

C

C

B

B

B

B

B

A

A

A

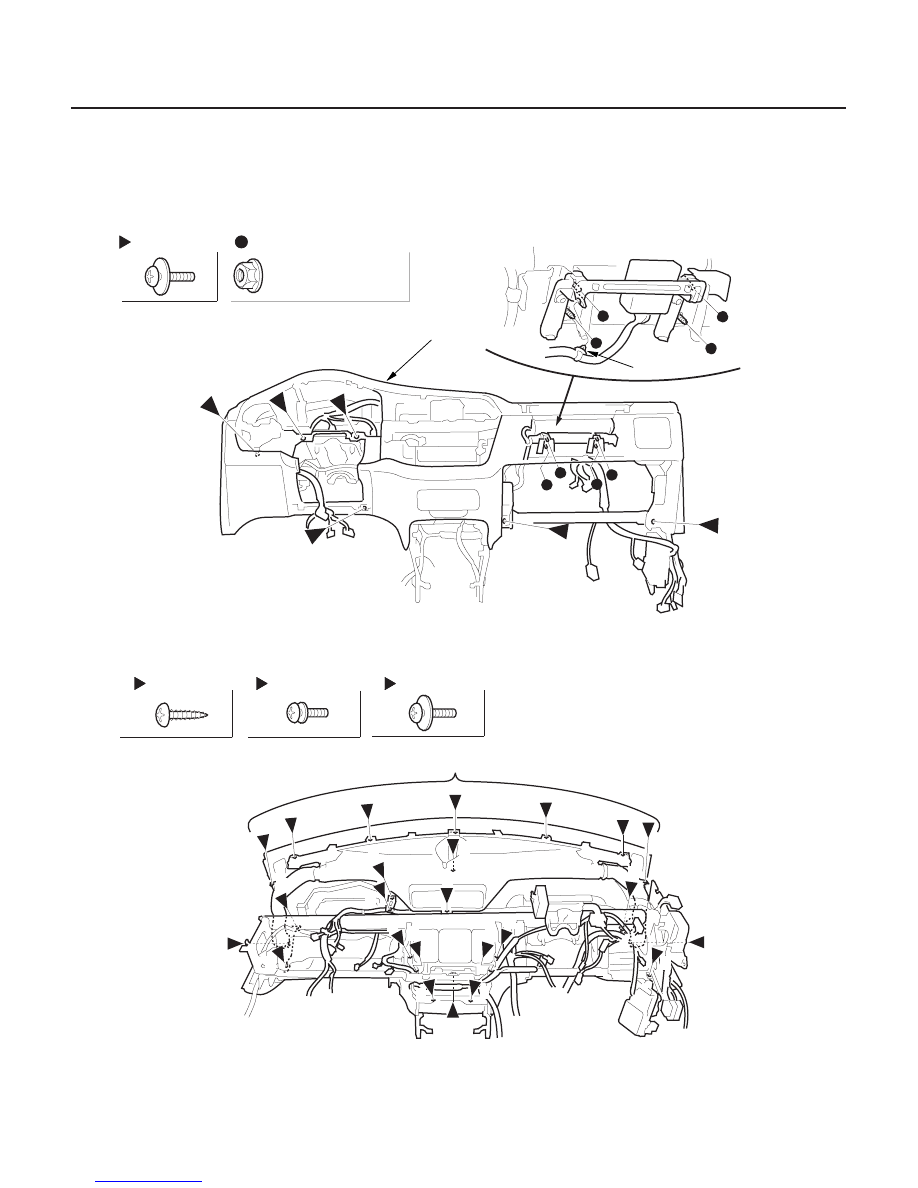

8. From the front of the dashboard (A), remove the screws on the driver’s side, and the front passenger’s airbag

mounting nuts. For Canadian models, remove the nuts after detaching the harness clip (B).

9. From the back of the dashboard, remove the screws.

03/07/29 10:01:57 61S0X050_200_0080

06

20-79

A

B

B

F

C

D

E

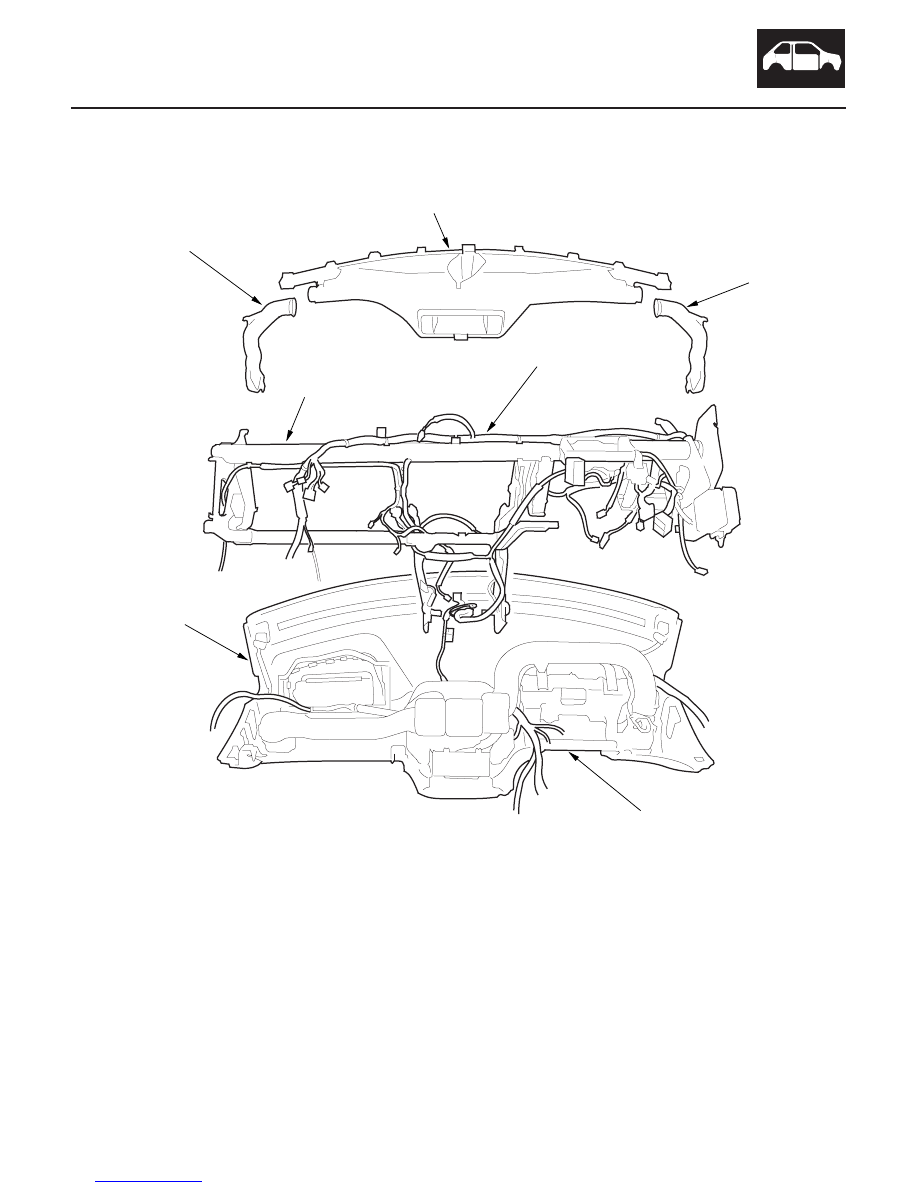

10. Separate the center defogger duct (A), side defogger ducts (B), steering hanger beam (C) and dashboard (D).

11. Install the steering hanger beam in the reverse order of removal, and note these items:

• Make sure the dashboard wire harness (E) and steering hanger beam wire harness (F) are not pinched.
• Make sure the connectors are plugged in properly.

03/07/29 10:01:57 61S0X050_200_0081

*01

S0X4A00J46100000000DAAT10

20-80

Seats

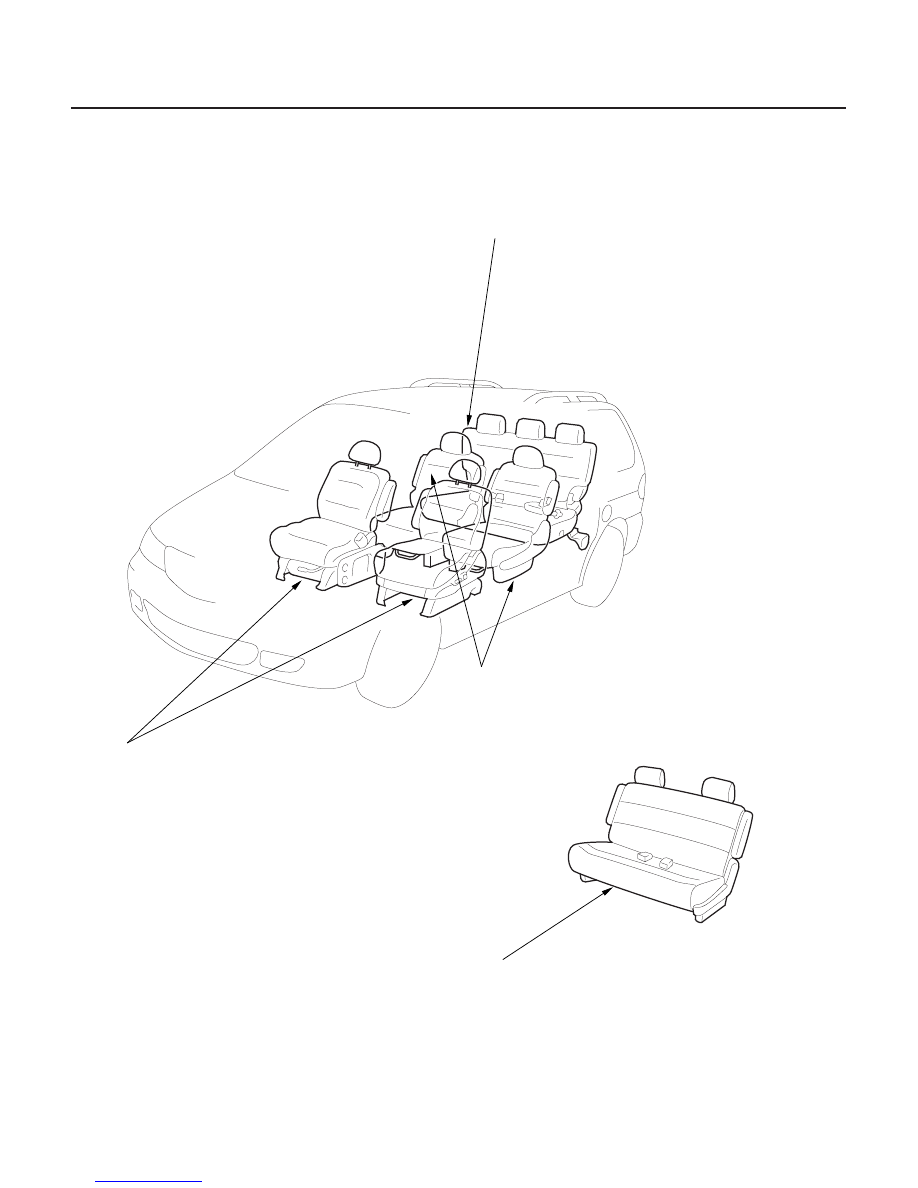

Component Location Index

THIRD ROW SEAT

SECOND ROW SEATS (Bucket-type)

FRONT SEATS

SECOND ROW SEAT (Bench-type)

Removal/Installation, page 20-119
Seat-back Recline Lever Replacement, page 20-120
Seat Cushion Latch Lever Replacement, page 20-121
Seat Cushion Latch/Cable Replacement, page 20-122
Seat-back Recline Cable Replacement, page 20-123
Seat Cover Replacement, page 20-124

Disassembly/Reassembly, page 20-108
Riser Disassembly/Reassembly, page 20-110
Striker Replacement, page 20-112
Seat Cover Replacement, page 20-112

Removal/Installation, page 20-81
Disassembly/Reassembly-8-Way Power Without Side Airbag, page 20-86
Disassembly/Reassembly-8-Way Power With Side Airbag, page 20-87
Disassembly/Reassembly-Manual Height Adjustable Without Side Airbag, page 20-88
Disassembly/Reassembly-Manual Height Adjustable With Side Airbag, page 20-89
Disassembly/Reassembly-Manual Without Side Airbag, page 20-91
Disassembly/Reassembly-Manual With Side Airbag, page 20-92
Wire Harness Installation, page 20-94
Linkage Disassembly/Reassembly-8-Way Power, page 20-98
Passenger’s Seat Riser Disassembly/Reassembly, page 20-99
Torsion Bar Replacement-Manual Height Adjustable, page 20-101
Seat Cover Replacement, page 20-102

Disassembly/Reassembly, page 20-109
Riser Disassembly/Reassembly, page 20-111
Seat Cover Replacement, page 20-116

03/07/29 10:02:03 61S0X050_200_0082

*17

*01

S0X4A00J46127053901KDAT00

20-81

Front Seat Removal/Installation

A

Fastener Locations

: Clip

8-way power seat, 3
Except 8-way power seat, 2

Fastener Locations

: Clip, 4

8-way power seat

Manual height adjustable seat

A

A

For ’02-04 models: SRS components are located in this
area. Review the SRS component locations, ’02 model
(see page 23-19), ’03-04 models (see page 23-20), and
the precautions and procedures (see page 23-21) before
performing repairs or service.

NOTE:

• When prying with a flat-tip screwdriver, wrap it with

protective tape to prevent damage.

• Take care not to scratch the body or tear the seat

covers.

• Put on gloves to protect your hands.

1. For ’02-04 models with side airbag: Make sure you

have the anti-theft codes for the radio and
navigation system, then write down the
frequencies for the radio preset buttons.

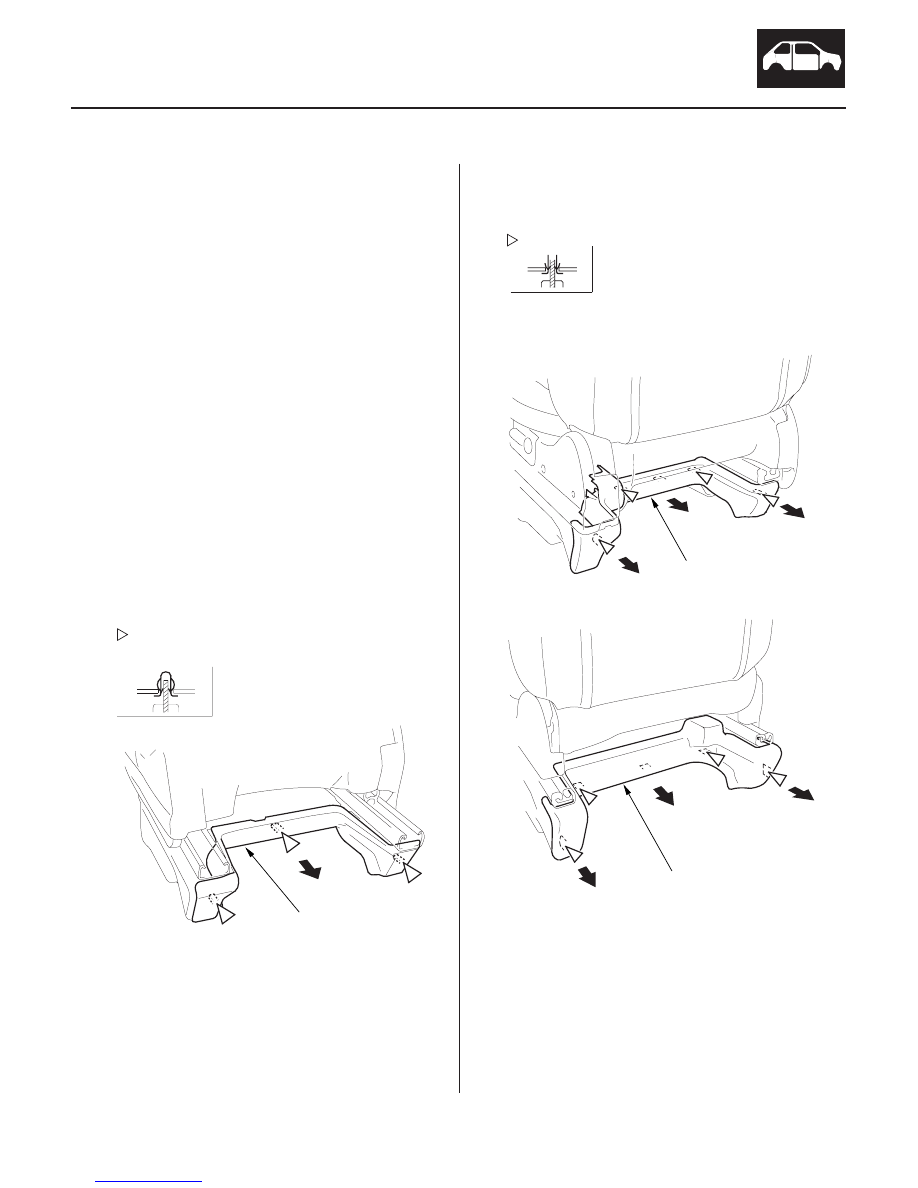

2. Slide the seat all the way forward to access the rear

riser cover.

3. For ’99-02 models: On the 8-way power seat,

detach the side and center clips. On the manual
seat and the manual height adjustable seat, detach
both side clips. Then remove the rear riser cover
(A).

4. For ’03-04 models driver’s seat: Detach the clips,

then remove the rear riser cover (A).

(cont’d)

03/07/29 10:02:04 61S0X050_200_0083
