20-2

Doors

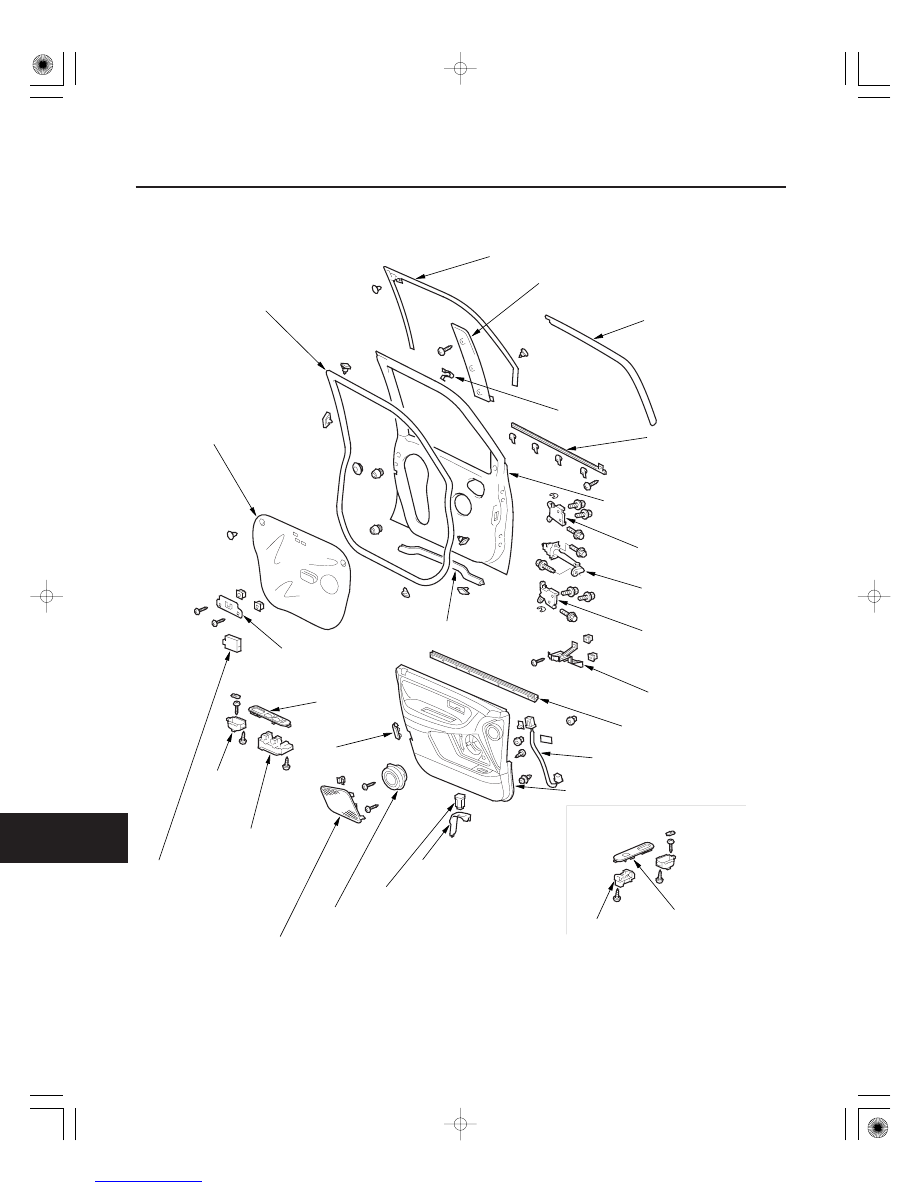

Component Location Index - Front Door

FRONT DOOR UPPER SEAL

DOOR WEATHERSTRIP

PLASTIC COVER

PULL POCKET
TRIM

POWER WINDOW
SWITCH

FRONT DOOR PANEL

SPEAKER
(For some models)

LOWER WEATHERSTRIP

DOOR GLASS INNER
WEATHERSTRIP

SASH TRIM

DOOR GLASS OUTER
WEATHERSTRIP

FRONT DOOR

HINGE

DETENT ROD

HINGE

Passenger’s

PULL POCKET
TRIM

POWER WINDOW
SWITCH

GLASS STOP

FRONT DOOR WINDOW
OUTER TRIM

SPEAKER GRILLE

FRONT DOOR
REFLECTOR

PULL POCKET BRACKET

SEAT HEATER SWITCH SUBHARNESS
(For some ’02-04 models)

SEAT HEATER SWITCH
(For some ’02-04 models)

SEAT HEATER SWITCH COVER
(For some ’02-04 models)

PULL POCKET

POWER WINDOW CONTROL
UNIT BRACKET
(’03-04 models driver’s)

POWER WINDOW
CONTROL UNIT
(’03-04 models driver’s)

Removal/Installation, page 20-7

Position Adjustment, page 20-24

03/07/29 09:59:51 61S0X050_200_0004

＊０２

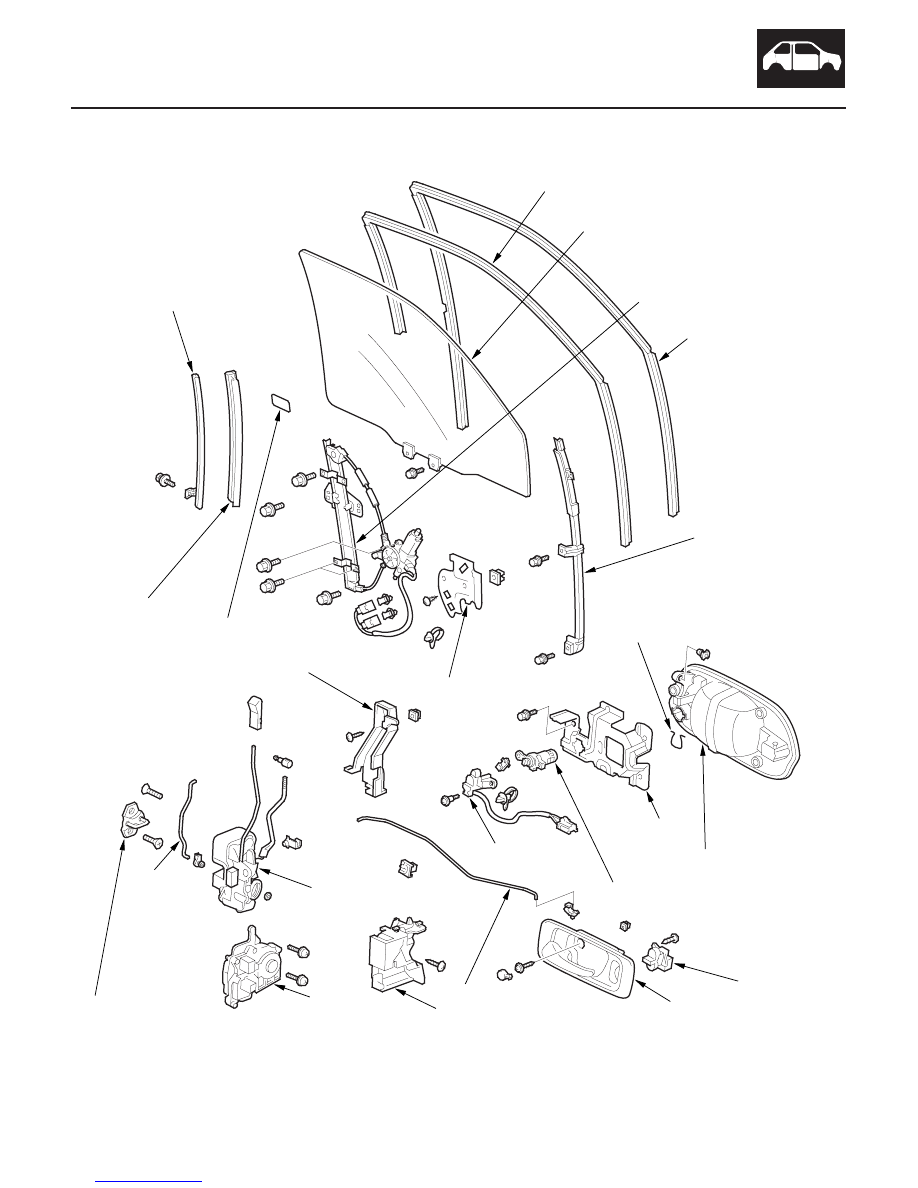

20-3

OUTER HANDLE

REGULATOR

STRIKER

CYLINDER
ROD

LATCH

POWER DOOR
LOCK ACTUATOR

LATCH PROTECTOR

LOCK ROD PROTECTOR

GLASS RUN CHANNEL
(’99-00 models)

FRONT LOWER
CHANNEL

LOCK CYLINDER

INNER HANDLE ROD

INNER HANDLE

OUTER HANDLE
PROTECTOR

RETAINER CLIP

GLASS

POWER DOOR
LOCK SWITCH
(Driver’s)

CENTER LOWER
CHANNEL

GLASS RUN CHANNEL
(’01-04 models)

LOWER RUN
CHANNEL
(’01-04 models)

IMMOBILIZER LABEL
(’01-04 models)

DOOR HARNESS BRACKET
(’03-04 models driver’s)

CYLINDER
SWITCH

Replacement, page 20-8

Replacement, page 20-11

Adjustment, page 20-25

Replacement, page 20-10

Replacement, page 20-11
Adjustment, page 20-23

03/07/29 09:59:53 61S0X050_200_0005

＊０１

Ｓ０Ｘ４Ａ００Ｊ１６１７０９０００００ＤＡＡＴ００

20-4

Doors

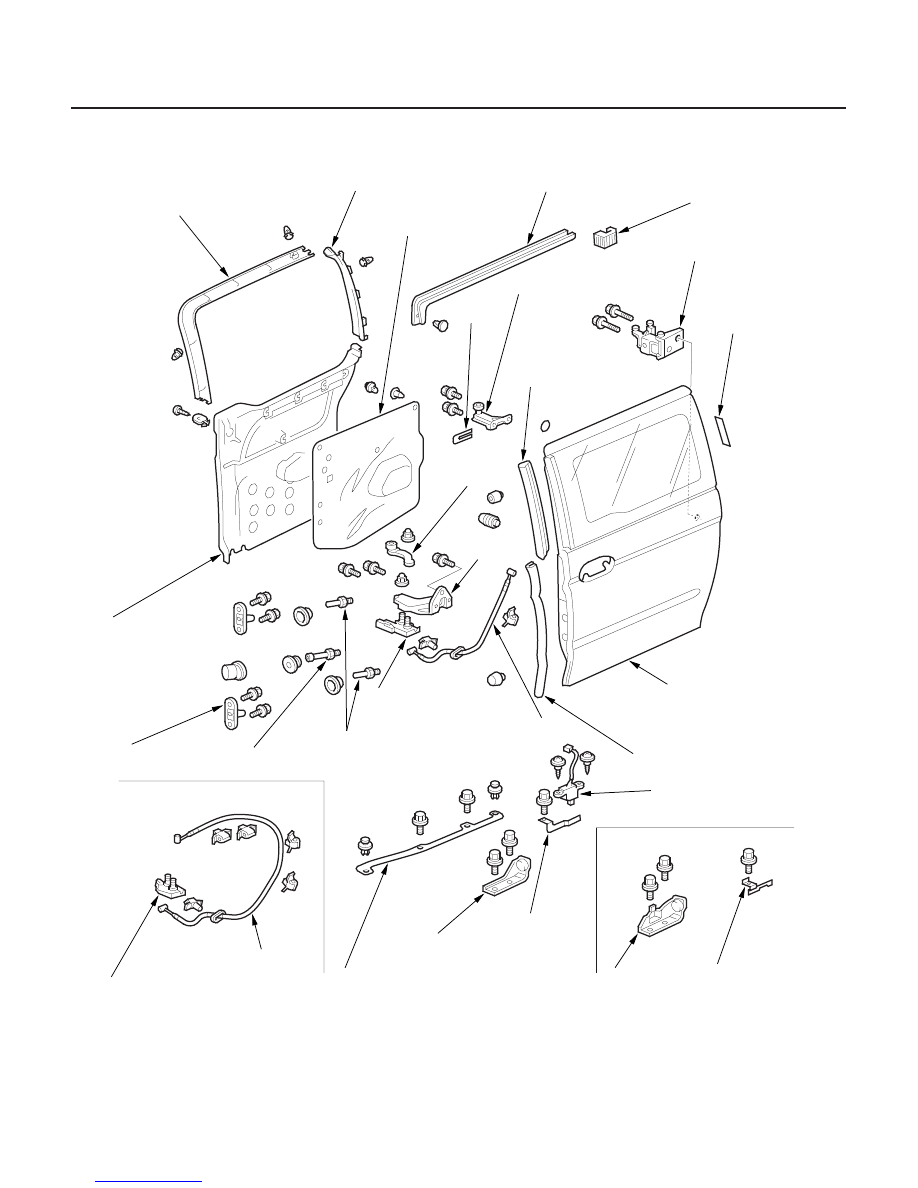

Component Location Index - Sliding Door

UPPER RAIL STOP
(Body side)

CENTER ROLLER

SUBSEAL
(Body side)

UPPER ROLLER

CENTER UPPER SEAL
(Power sliding door only)

REFLECTOR
TAPE

SHIM

SLIDING DOOR
REAR UPPER TRIM

Manual sliding door

LOWER ROLLER LATCH

LOWER ROLLER
LATCH CABLE

Manual sliding door

OPEN STOP
(Body side)

LOWER ROLLER
PLATE
(Body side)

SLIDING DOOR
FRONT UPPER TRIM

LOWER
ROLLER
SUB BASE

LOWER
ROLLER

MALE STOPS

SLIDING DOOR
PANEL

FEMALE STOP
(Body side)

DOOR HOOK PIN

LOWER ROLLER LEVER

LOWER ROLLER
LEVER CABLE

CENTER LOWER SEAL
(Power sliding door only)

SLIDING DOOR

LOWER ROLLER PLATE
(Body side)

OPEN STOP
(Body side)

STOP SPRING
(Body side)

SLIDING DOOR
HANDLE SWITCH
(Body side)

PLASTIC COVER

Replacement, page 20-18

Replacement, page 20-18

Removal/Installation,

page 20-13

Replacement, page 20-18

Replacement, page 20-17

Removal/Installation,

page 20-25

Position Adjustment,

page 20-28

03/07/29 09:59:55 61S0X050_200_0006

＊０２

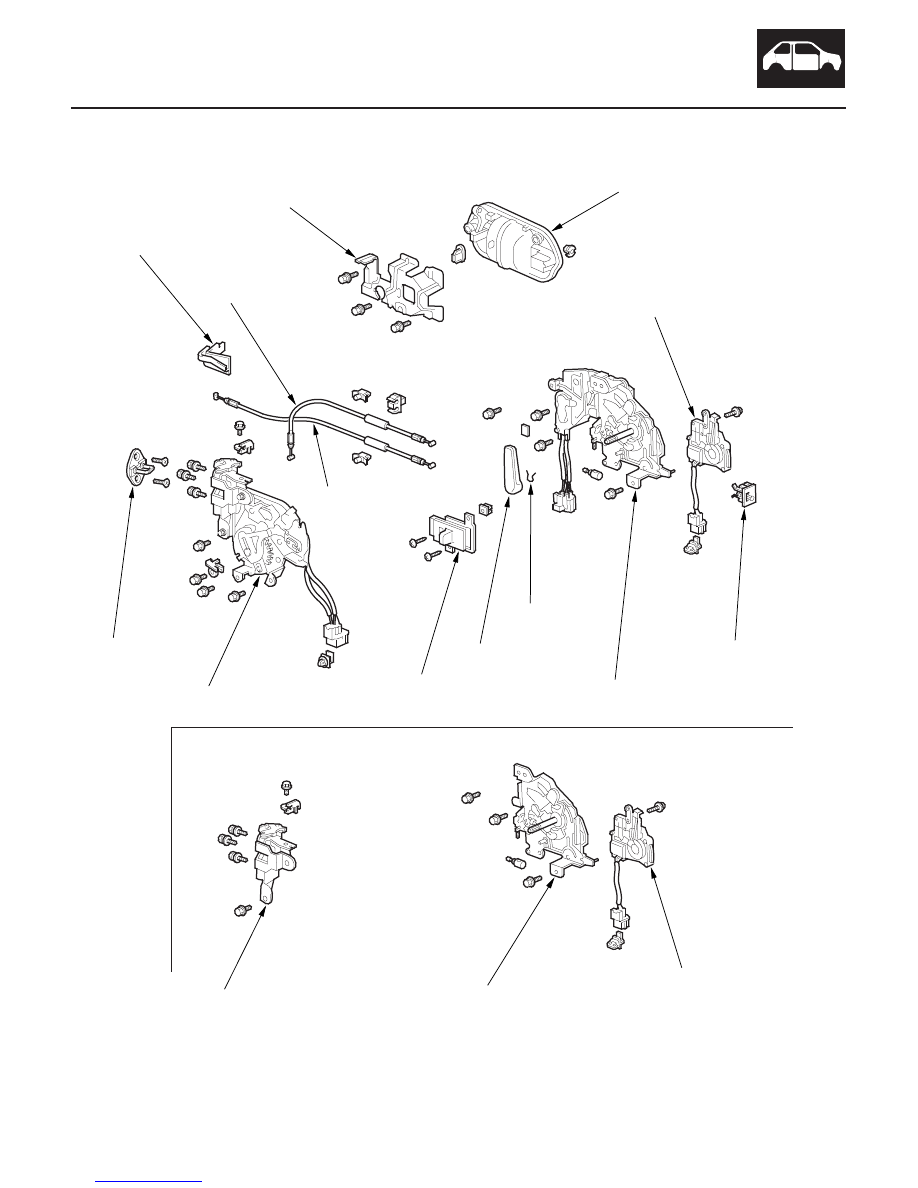

20-5

OUTER HANDLE

STRIKER

LATCH

POWER DOOR
LOCK ACTUATOR

INNER HANDLE

LOCK KNOB

OUTER HANDLE
PROTECTOR

RETAINER CLIP

DOOR LATCH CABLE

DOOR LOCK REMOTE
CONTROL

CHILD PROTECTION
LEVER

LATCH HOLE COVER

DOOR AUTO-CLOSE
CABLE

Manual sliding door

DOOR LOCK REMOTE CONTROL

POWER DOOR LOCK
ACTUATOR
(For some models)

LATCH

(cont’d)

Replacement, page 20-14

Replacement, page 20-16

Replacement, page 20-16

Replacement, page 20-16

Replacement, page 20-16
