Honda Odyssey 2004. Manual - part 337





03

04

05

06

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

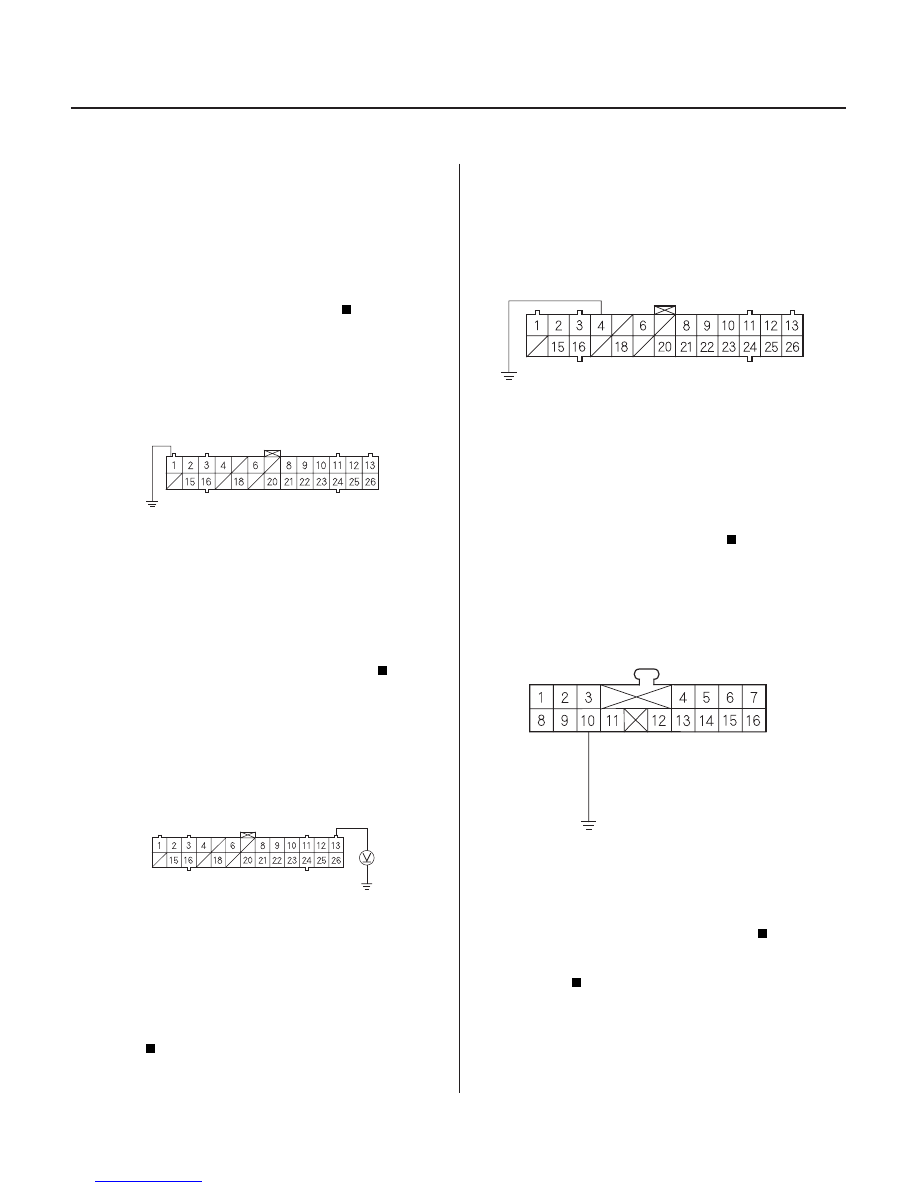

19-154

ABS/TCS Components

ABS Indicator Circuit Troubleshooting (cont’d)

ABS/TCS CONTROL CONNECTOR A (26P)

JUMPER
WIRE

GND1 (BLK)

ABS/TCS CONTROL CONNECTOR A (26P)

IG2 (YEL/BLK)

ABS/TCS CONTROL CONNECTOR A (26P)

JUMPER WIRE

ABS (BLU/WHT)

GAUGE ASSEMBLY CONNECTOR C (16P)

JUMPER WIRE

ABS (BLU/WHT)

13. Check the R/C MIRROR (7.5A) fuse in the driver’s

under-dash fuse/relay box, and reinstall the fuse if
it is OK.

Go to step 14.

Replace the fuse, and recheck.

14. Connect the ABS/TCS control unit connector

A (26P) terminal No. 1 to body ground with a
jumper wire.

15. Turn the ignition switch ON (II).

Repair open in the wire between the ABS/

TCS control unit and body ground (G303).

Go to step 16.

16. Measure the voltage between the ABS/TCS control

unit connector A (26P) terminal No. 13 and body
ground.

Go to step 17.

Repair open in the wire between the R/C

MIRROR (7.5A) fuse and the ABS/TCS control
unit.

17. Connect the ABS/TCS control unit connector

A (26P) terminal No. 4 to body ground with a
jumper wire.

Check for loose ABS/TCS control unit

connectors. If necessary, substitute a known-good
ABS/TCS control unit, and recheck.

Go to step 18.

18. Connect the gauge assembly connector C (16P)

terminal No. 10 to body ground with a jumper wire.

Repair open in the wire between the gauge

assembly and the ABS/TCS control unit.

Replace the printed circuit board in the gauge

assembly.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is the f use OK ?

Does the ABS indicator go of f ?

Is ther e batter y voltage?

Does the ABS indicator go of f ?

Does the ABS indicator go of f ?

03/07/29 09:58:22 61S0X050_190_0154

*01

02

*02

S0X4A06D10600061032FAAT00

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

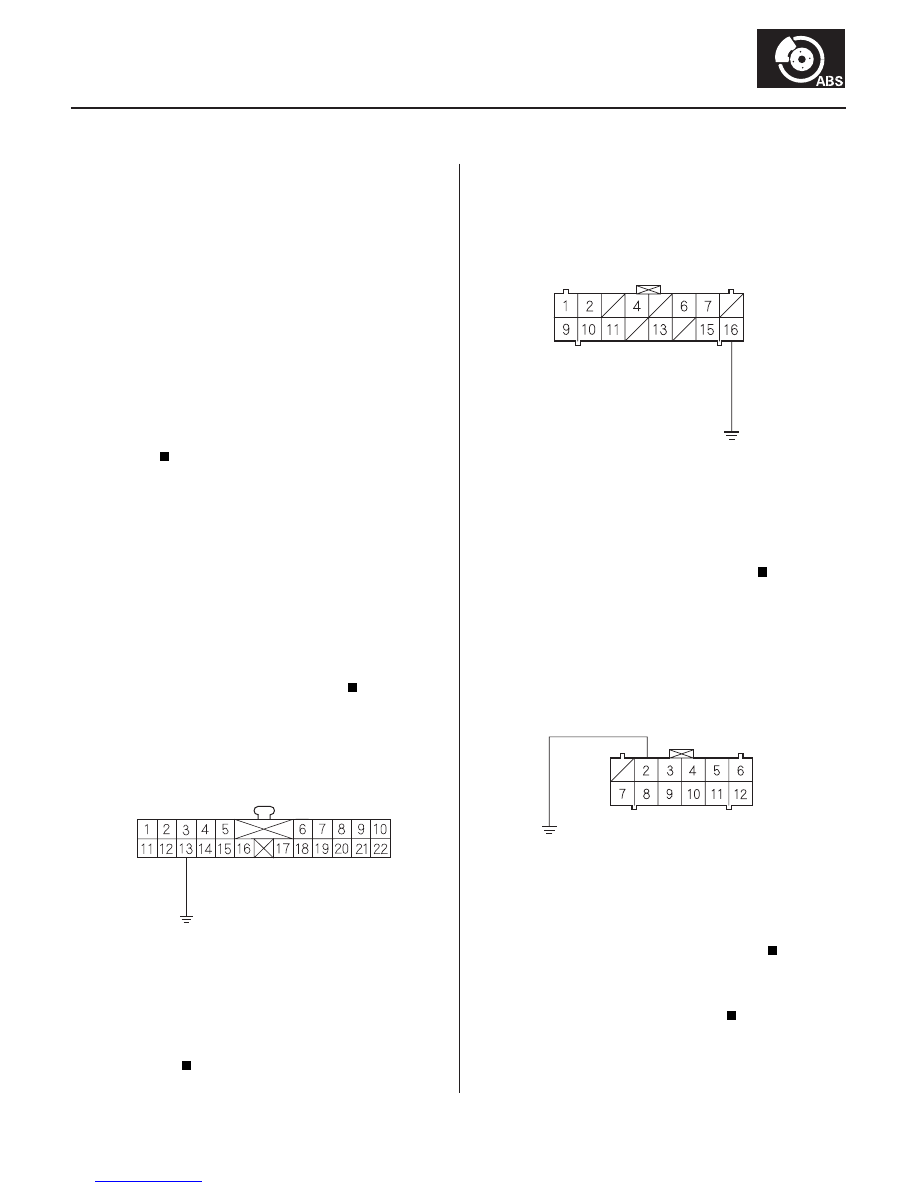

19-155

TCS Indicator Circuit Troubleshooting

GAUGE ASSEMBLY CONNECTOR B (22P)

TCS (RED/WHT)

JUMPER WIRE

ABS/TCS CONTROL UNIT CONNECTOR B (16P)

TCS2
(RED/WHT)

JUMPER
WIRE

ABS/TCS CONTROL UNIT CONNECTOR C (12P)

JUMPER
WIRE

LG (BRN/YEL)

(BRN/BLK*)

*’99-01 models

1. Turn the ignition switch ON (II), and watch the TCS

indicator.

If the TCS indicator comes on and goes off, it’s

OK. If the TCS indicator stays on, go to step 7.

Go to step 2.

2. Turn the ignition switch OFF, then ON (II) again.

Go to step 3.

Repair open in the brake system indicator

circuit.

• Blown BACKUP LIGHT (7.5A) fuse.
• Open in the wire between the BACKUP LIGHT

(7.5A) fuse and the gauge assembly.

• Open circuit inside the fuse box.

3. Check the TCS indicator bulb in the gauge

assembly.

Go to step 4.

Replace the TCS indicator bulb.

4. Connect the gauge assembly connector B (22P)

terminal No. 13 and body ground with a jumper
wire.

Go to step 5.

Replace the printed circuit board in the gauge

assembly.

5. Remove the jumper wire at the gauge assembly,

and connect the ABS/TCS control unit connector
B (16P) terminal No. 16 and body ground with a
jumper wire.

Go to step 6.

Repair open in the wire between the gauge

assembly and the ABS/TCS control unit.

6. Connect the ABS/TCS control unit connector

C (12P) terminal No. 2 and body ground with a
jumper wire.

Repair open in the wire between the ABS/

TCS control unit and body ground (G101).

Check for loose ABS/TCS control unit

connectors. If necessary, substitute a known-good
ABS/TCS control unit, and recheck.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Does the T CS indicator come on?

Does the br ake system indicator come on?

Is the bulb OK ?

Does the T CS indicator come on?

Does the T CS indicator come on?

Does the T CS indicator come on?

03/07/29 09:58:23 61S0X050_190_0155

04

YES

NO

YES

NO

YES

NO

19-156

ABS/TCS Components

TCS Indicator Circuit Troubleshooting (cont’d)

ABS/TCS CONTROL CONNECTOR A (26P)

IG2 (YEL/BLK)

7. Check the R/C MIRROR (7.5A) fuse in the driver’s

under-dash fuse/relay box, and reinstall the fuse if
it is OK.

Go to step 8.

Replace the fuse, and recheck.

8. Measure the voltage between the ABS/TCS control

unit connector A (26P) terminal No. 13 and body
ground.

Go to step 9.

Repair open in the wire between the driver’s

under-dash fuse/relay box and the ABS/TCS control
unit.

9. Turn the ignition switch OFF.

10. Disconnect the ABS/TCS control unit connector A

(26P) and connector B (16P).

11. Turn the ignition switch ON(II).

Repair short to body ground in the wire

between the gauge assembly and the ABS/TCS
control unit.

Check for loose ABS/TCS control unit

connectors. If necessary, substitute a known-good
ABS/TCS control unit, and recheck.

Wire side of female terminals

Is the f use OK ?

Is ther e batter y voltage?

Does the T CS indicator go of f ?

03/07/29 09:58:23 61S0X050_190_0156

S0X4A06D14300014832FAAT10

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

19-157

Brake System Indicator Circuit Troubleshooting

1. Release the parking brake.

2. Turn the ignition switch ON (II), and check the brake

system indicator for the following conditions:

• Brake system indicator does not come on at all,

go to step 3.

• Brake system indicator stays on all the time, go

to step 5.

• Brake system indicator comes on for 2 seconds,

then goes off. Repair open in the wire between
terminal No. 3 of the ALT 4P connector and
terminal B8 of the gauge assembly.

3. Turn the ignition switch OFF then ON (II) again.

Go to step 4.

Repair open in the indicator power source

circuit.

• Blown BACKUP LIGHT (10A) fuse.
• Open in the wire between the BACKUP LIGHT

(10A) fuse and the gauge assembly.

• Open circuit inside the fuse box.

4. Check the brake system indicator bulb in the gauge

assembly.

Repair open in the brake system indicator

circuit.

Replace the brake system indicator bulb.

5. Start the engine.

System is OK at this time.

Go to step 6.

6. Check the ABS indicator.

Read the ABS DTC’s (see page 19-82), and do

the applicable troubleshooting.

Go to step 7.

7. Turn the ignition switch OFF.

8. Disconnect the ABS/TCS control unit connector

B (16P).

9. Start the engine, and check the brake system

indicator.

Replace the ABS/TCS control unit.

Check the brake system indicator circuit

(short to body ground between terminal No. 3 of
the ALT 4P connector and terminal B8 of the gauge
assembly), parking brake switch (stuck ON) and
brake fluid level switch (stuck ON).

Does the ABS indicator come on?

Is the bulb OK ?

Does the br ake system indicator go of f ?

Does the ABS indicator come on?

Does the br ake system indicator go of f ?

03/07/29 09:58:23 61S0X050_190_0157
