Honda Odyssey 2004. Manual - part 329





02

*02

04

05

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

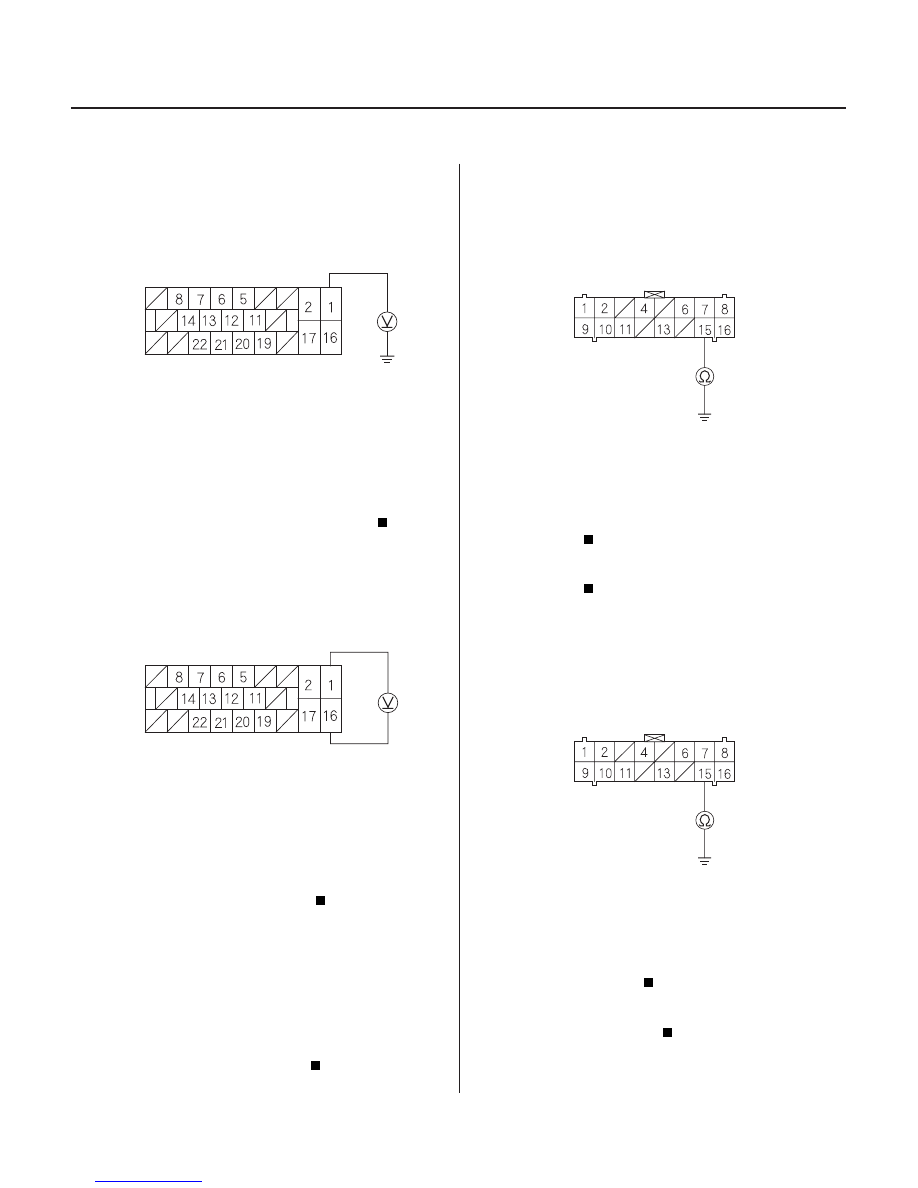

19-122

ABS/TCS Components

DTC Troubleshooting (cont’d)

MODULATOR UNIT CONNECTOR

MOTOR (WHT/BLU)

MODULATOR UNIT CONNECTOR

MOTOR (WHT/BLU)

MOTOR GND (BLK)

ABS/TCS CONTROL UNIT CONNECTOR B (16P)

PMR (YEL/RED)

ABS/TCS CONTROL UNIT CONNECTOR B (16P)

PMR (YEL/RED)

7. Measure the voltage between terminal No. 1 and

body ground.

Go to step 8.

Repair open in the wire between the under-

hood ABS relay box and the pump motor.

8. Measure the voltage between the modulator unit

connector terminal No. 1 and No. 16.

Go to step 9.

Repair open in the wire between the pump

motor and body ground (G302).

9. Remove the pump motor relay, then connect relay

terminals No. 4 and No. 5 together with a jumper
wire.

Go to step 10.

Replace the pump motor.

10. Disconnect the ABS/TCS control unit connector B

(16P).

11. Check for continuity between terminal No. 15 and

body ground.

Repair short to body ground in the wire

between the ABS relay box and the ABS/TCS
control unit.

If the problem recurs, replace the ABS/TCS

control unit.

12. Disconnect the ABS/TCS control unit connector B

(16P).

13. Check for continuity between terminal No. 15 and

body ground.

Repair short to body ground in the wire

between the under-hood ABS relay box and the
ABS/TCS control unit.

Replace the pump motor relay (The pump

motor relay is stuck ON).

Terminal side of female terminals

Terminal side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e about 10 V ?

Is ther e about 10 V ?

Does the pump motor r un?

Is ther e continuity?

Is ther e continuity?

03/07/29 09:57:40 61S0X050_190_0122

01

02

S0X4A06K70200081540FAAT00

ABS DTC 54:

YES

NO

YES

NO

YES

NO

YES

NO

19-123

ABS FAIL-SAFE RELAY CONNECTOR

B (WHT/GRN)

ABS FAIL-SAFE RELAY CONNECTOR

B (WHT/GRN)

SOLENOID
(BRN/BLK)

JUMPER WIRE

ABS Fail-safe Relay

NOTE: Before doing this troubleshooting procedure,
check for TCS or PGM-FI DTCs, and repair the cause of
the DTCs.

1. Check the ABS F/S (20A) fuse in the under-hood

fuse/relay box, and reinstall the fuse if it is OK.

Go to step 2.

Replace the fuse, and recheck.

2. Turn the ignition switch ON (II).

Repair short to body ground in the wire

between the ABS fail-safe relay, TCS relay, pump
motor relay, and modulator unit.

Go to step 3.

3. Check the ABS fail-safe relay in the ABS relay box

(see page 22-88). The wire colors of the ABS
fail-safe relay connector are WHT/GRN, BRN/BLK,
BLK, and YEL/GRN.

Leave the ABS fail-safe relay removed, and

go to step 4.

Replace the ABS fail-safe relay.

4. Measure the voltage between the ABS fail-safe

relay connector terminal No. 1 and body ground.

Go to step 5.

Repair open in the wire between the under-

hood fuse/relay box and the ABS fail-safe relay.

5. Connect ABS fail-safe relay connector terminal

No. 1 to No. 2 with a jumper wire.

6. Disconnect the modulator unit connector.

(cont’d)

Terminal side of female terminals

Terminal side of female terminals

Is the f use OK ?

Does the f use blow?

Is the r elay OK ?

Is ther e batter y voltage?

03/07/29 09:57:41 61S0X050_190_0123

03

04

05

YES

NO

YES

NO

YES

NO

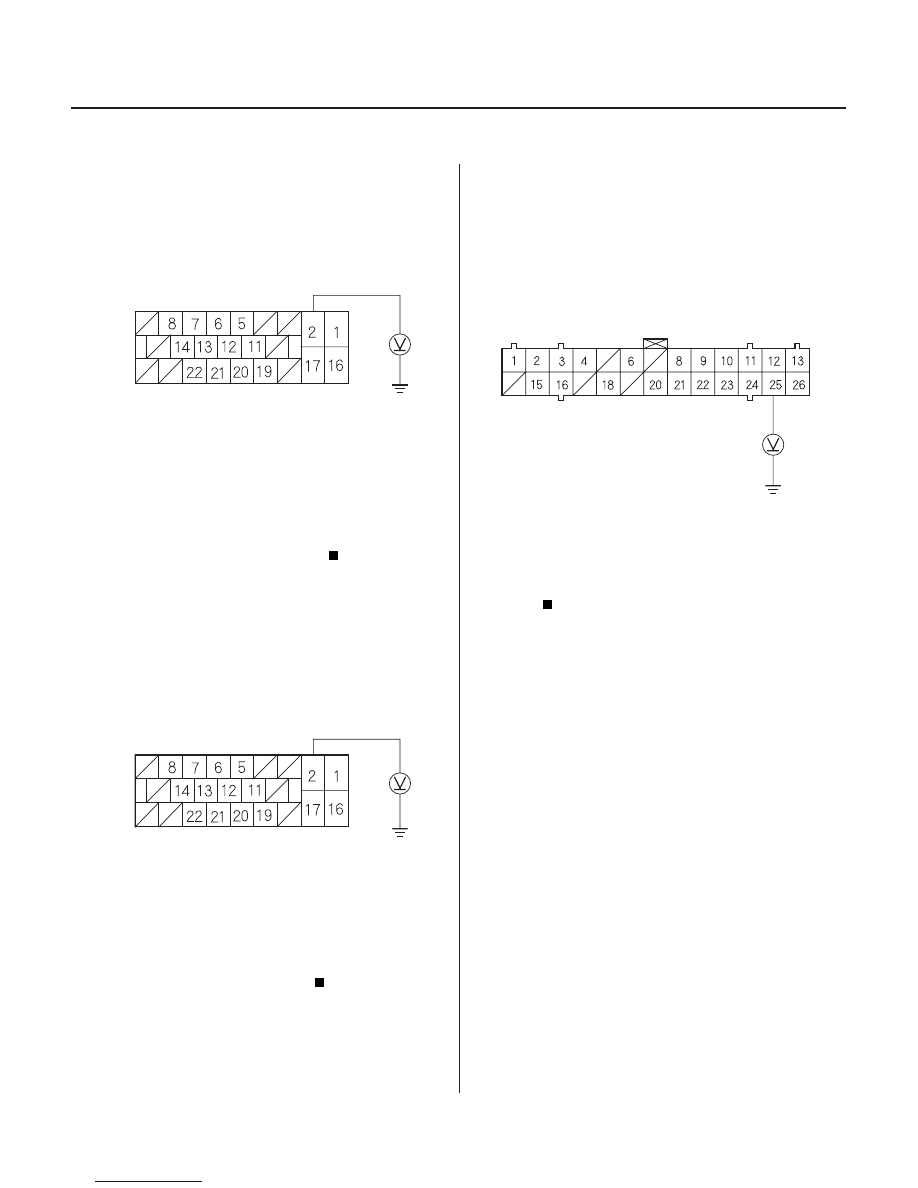

19-124

ABS/TCS Components

DTC Troubleshooting (cont’d)

MODULATOR UNIT CONNECTOR

SOLENOID (BRN/BLK)

MODULATOR UNIT CONNECTOR

SOLENOID (BRN/BLK)

ABS/TCS CONTROL UNIT CONNECTOR A (26P)

FSR (YEL/GRN)

7. Measure the voltage between terminal No. 2 and

body ground.

Go to step 8.

Repair open in the wire between the ABS fail-

safe relay and the modulator unit.

8. Remove the jumper wire from the ABS fail-safe

relay connector.

9. Measure the voltage between the modulator unit

connector terminal No. 2 and body ground.

Repair short to power in the wire between

the ABS fail-safe relay, TCS relay, modulator unit,
and under-hood ABS relay box.

Go to step 10.

10. Disconnect the ABS/TCS control unit connector A

(26P).

11. Turn the ignition switch ON (II).

12. Measure the voltage between terminal No. 25 and

body ground.

Repair short to power in the wire between

the ABS/TCS control unit and the ABS fail-safe
relay.

Go to step 13.

Terminal side of female terminals

Terminal side of female terminals

Wire side of female terminals

Is ther e batter y voltage?

Is ther e batter y voltage?

Is ther e batter y voltage?

03/07/29 09:57:42 61S0X050_190_0124

06

03

*01

09

YES

NO

YES

NO

YES

NO

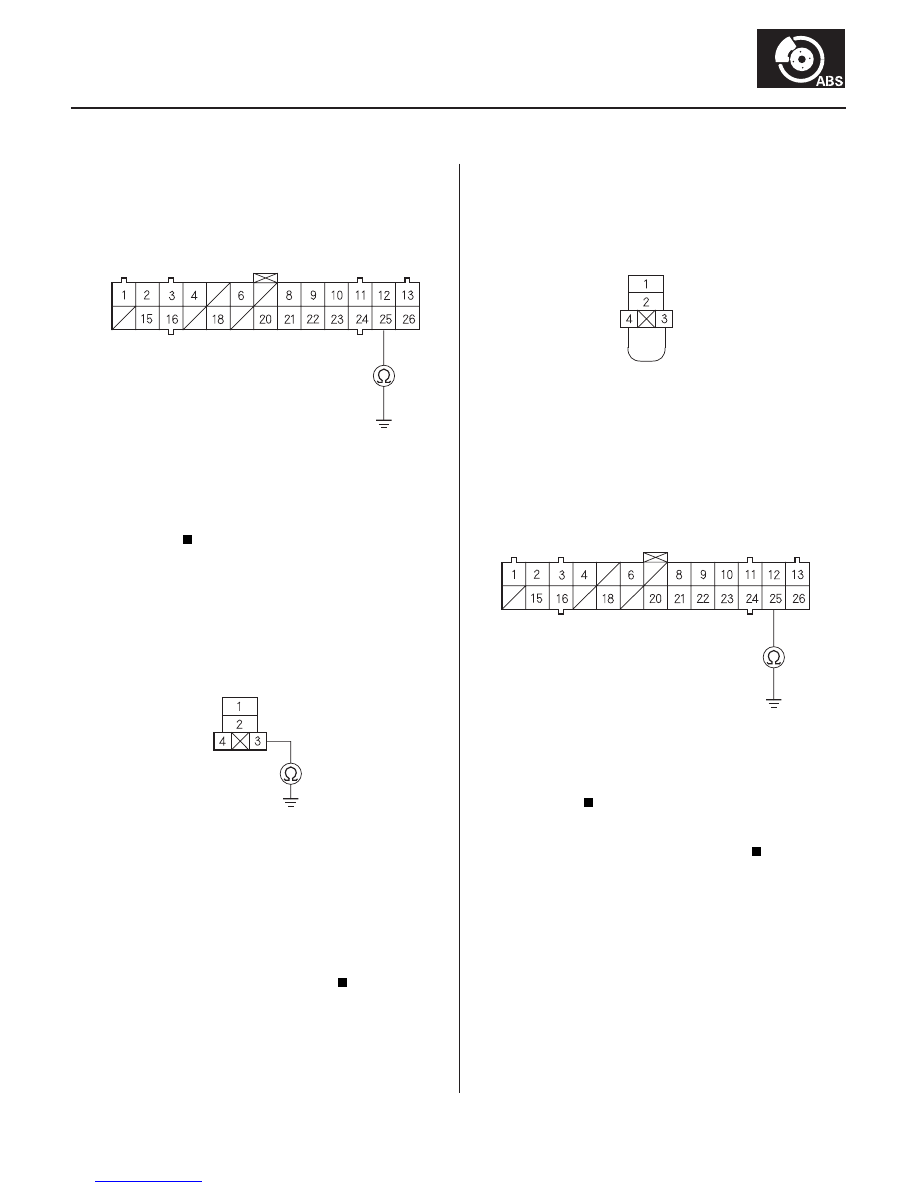

19-125

ABS/TCS CONTROL UNIT CONNECTOR A (26P)

FSR (YEL/GRN)

ABS FAIL-SAFE RELAY CONNECTOR

GND (BLK)

ABS FAIL-SAFE RELAY CONNECTOR

GND (BLK)

JUMPER WIRE

FSR (YEL/GRN)

ABS/TCS CONTROL UNIT CONNECTOR A (26P)

FSR (YEL/GRN)

13. Check for continuity between the ABS/TCS control

unit connector A (26P) terminal No. 25 and body
ground.

Repair short to body ground in the wire

between the ABS/TCS control unit and the ABS fail-
safe relay.

Go to step 14.

14. Check for continuity between the ABS fail-safe

relay connector terminal No. 3 and body ground.

Go to step 15.

Check for an open in the wire between the

ABS fail-safe relay and body ground. If the wire is
OK, check for poor ground at G201.

15. Connect the ABS fail-safe relay connector terminals

No. 3 and No. 4 with a jumper wire.

16. Check for continuity between the ABS/TCS control

unit connector A (26P) terminal No. 25 and body
ground.

If the problem recurs, replace the ABS/TCS

control unit.

Repair open in the wire between the ABS/TCS

control unit and the ABS fail-safe relay.

Wire side of female terminals

Terminal side of female terminals

Terminal side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

Is ther e continuity?

03/07/29 09:57:42 61S0X050_190_0125
