Honda Odyssey 2004. Manual - part 307





11

12

*01

S0X4AZAD00060845161LBAT10

’02-04 Models

19-34

19-34

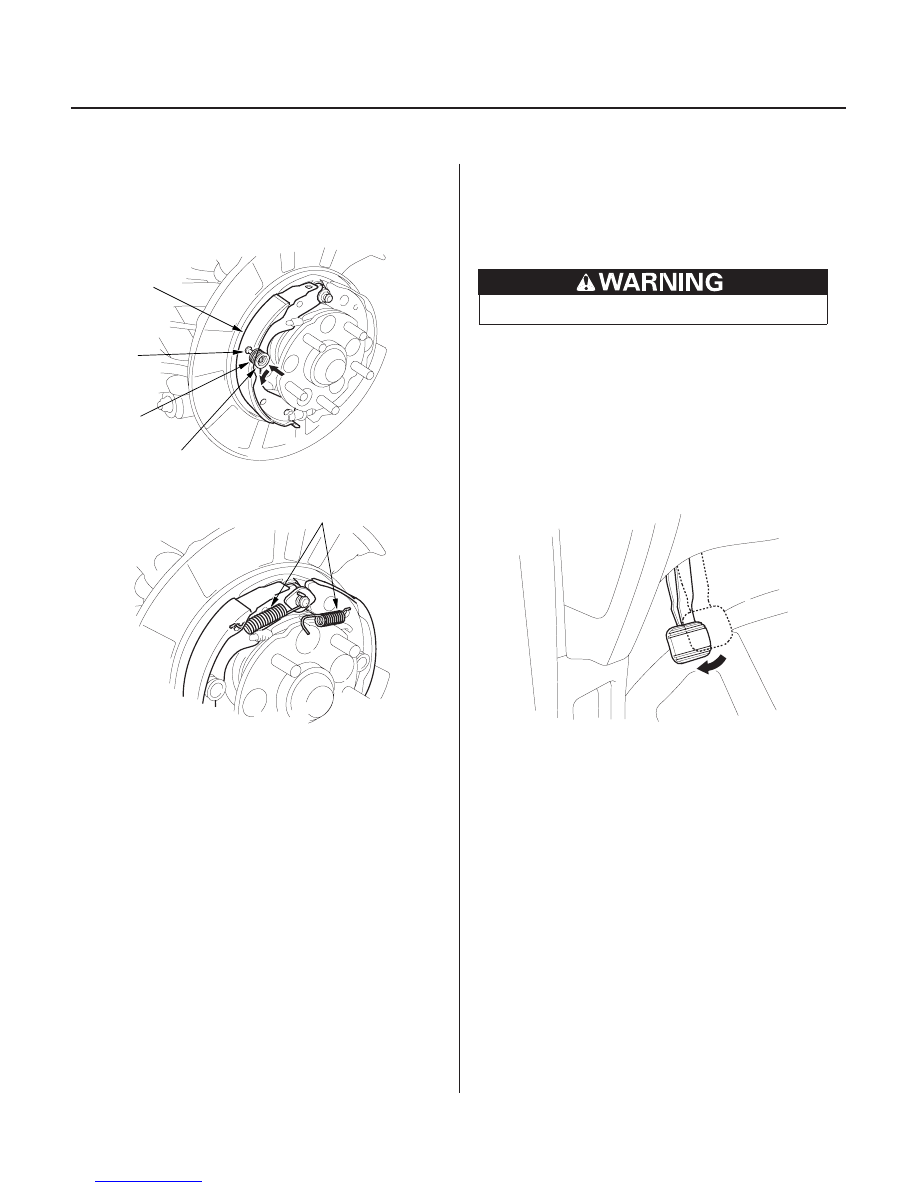

Conventional Brake Components

Parking Brake Shoe Replacement
(cont’d)

Parking Brake Shoe Lining Break-in

D

A

B

C

A

9. Install the tension pin (A), retainer spring (B), and

retainer (C) of the forward brake shoe (D).

10. Install the upper return springs (A).

11. Install the rear brake disc/drum and rear brake

caliper.

12. Do the major parking adjustment brake (see step 1

on page 19-8).

NOTE: Do brake linings surface break-in when replacing
shoes with new linings and/or new rear brake disc/
drum.

Perform this operation in a safe area.

1. Park the vehicle on a firm, level surface.

2. Do the major parking brake adjustment (see step 1

on page 19-8).

3. Do the minor parking brake adjustment (see step 1

on page 19-8).

4. Press the parking brake pedal two to four clicks.

5. Drive the vehicl for 400 m (1/4 mile) at no more

than 31 mph (50 km/h).

6. Stop the vehicle, and release the parking brake for

5

10 minutes to allow the drums to cool.

7. Repeat steps 4 through 6 three more times.

8. Check the parking brake pedal adjustment (see

page 19-7).

03/07/29 09:54:10 61S0X050_190_0034

*01

S0X4A00D14300014751MAAT00

19-35

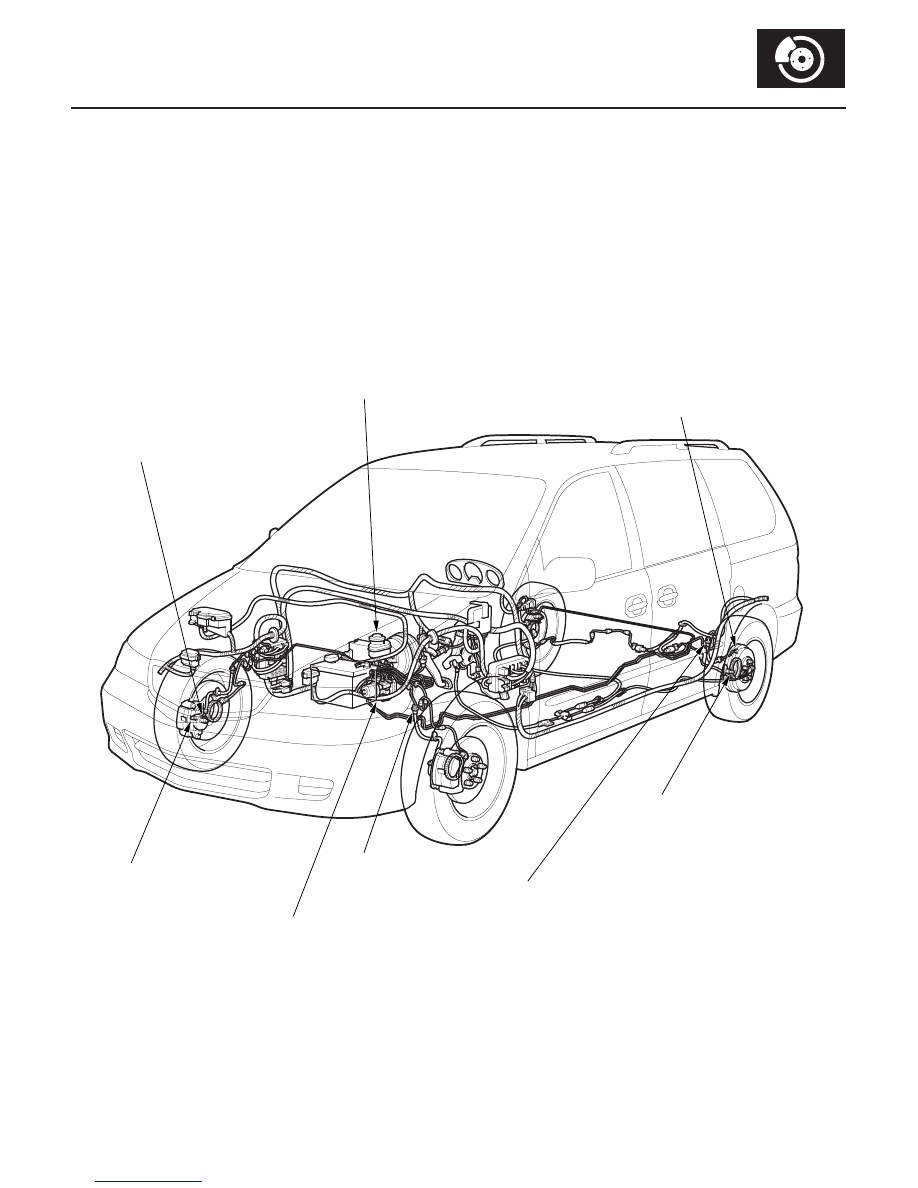

Brake Hose and Line Inspection

REAR DRUM BRAKE: ’99-01 models
BRAKE LINE-to-WHEEL CYLINDER
15 N·m (1.5 kgf·m, 11 lbf·ft)
REAR DISC BRAKE: ’02-04 models
BRAKE HOSE-to-CALIPER
(BANJO BOLT)
34 N·m (3.5 kgf·m, 25 lbf·ft)

MASTER CYLINDER-to-BRAKE LINE
ABS: 10 x 1.0 mm
15 N·m (1.5 kgf·m, 11 lbf·ft)
ABS/TCS: 12 x 1.0 mm
19 N·m (1.9 kgf·m, 14 lbf·ft)

BRAKE LINE-to-BRAKE HOSE
15 N·m (1.5 kgf·m, 11 lbf·ft)

BLEED SCREW
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

BRAKE HOSE-to-CALIPER
(BANJO BOLT)
34 N·m (3.5 kgf·m, 25 lbf·ft)

ABS or ABS/TCS MODULATOR UNIT-to-
BRAKE LINE
15 N·m (1.5 kgf·m, 11 lbf·ft)

REAR DRUM BRAKE: ’99-01 models
BLEED SCREW
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
REAR DISC BRAKE: ’02-04 models
BLEED SCREW
9.0 N·m (0.9 kgf·m, 7 lbf·ft)

MASTER CYLINDER LINE-to-
ABS or ABS/TCS MODULATOR UNIT
ABS/TCS: 12 x 1.0 mm
19 N·m (1.9 kgf·m, 14 lbf·ft)
ABS: 10 x 1.0 mm
15 N·m (1.5 kgf·m, 11 lbf·ft)

BRAKE LINE-to-BRAKE HOSE
15 N·m (1.5 kgf·m, 11 lbf·ft)

1. Inspect the brake hoses for damage, cracks, leaks, interference, and twisting.

2. Check the brake lines for damage, rusting, and leakage. Also check for bent brake lines.

3. Check for leaks at hose and line joints or connections, and retighten if necessary.

4. Check the master cylinder and ABS or ABS/TCS modulator unit for damage and leakage.

NOTE: Replace the brake hose clip whenever the brake hose is serviced.

03/07/29 09:54:11 61S0X050_190_0035

01

*01

03

01

S0X4A00D14300014751KBAT00

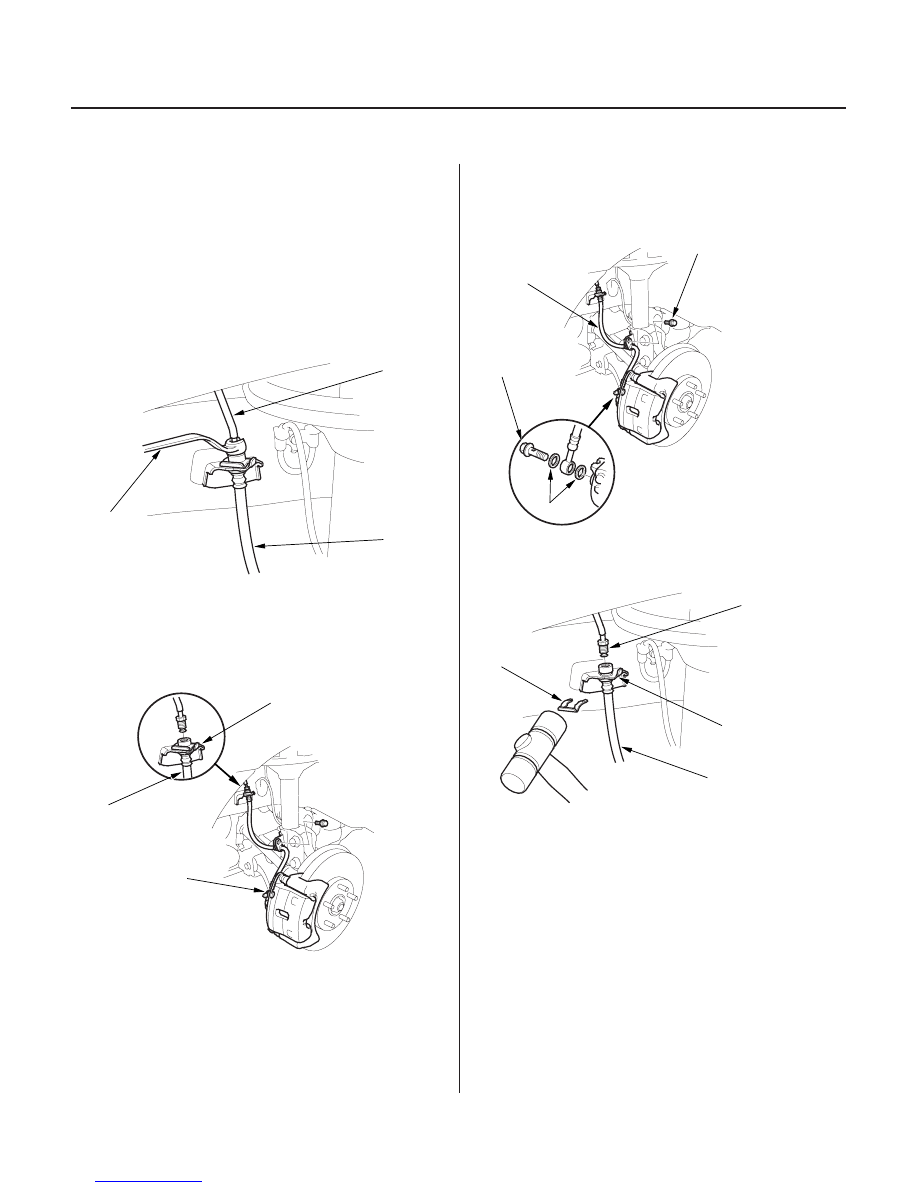

19-36

Conventional Brake Components

Brake Hose Replacement

B

A

C

C

B

A

B
6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

A

C
34 N·m
(3.5 kgf·m,
25 lbf·ft)

D

D
15 N·m
(1.5 kgf·m,
11 lbf·ft)

C

A

B

NOTE:

• Before reassembling, check that all parts are free of

dust and other foreign particles.

• Replace parts with new ones whenever specified to

do so.

• Do not spill brake fluid on the vehicle; it may damage

the paint; if brake fluid gets on the paint, wash it off
immediately with water.

1. Replace the brake hose (A) if the hose is twisted,

cracked, or if it leaks.

2. Disconnect the brake hose from the brake line (B)

using a 10 mm flare-nut wrench (C).

3. Remove and discard the brake hose clip (A) from

the brake hose (B).

4. Remove the banjo bolt (C), and disconnect the

brake hose from the caliper.

5. Remove the brake hose from the knuckle.

6. Install the brake hose (A) on the knuckle with a

6 mm flange bolt (B) first, then connect the brake
hose to the caliper with the banjo bolt (C) and new
sealing washers (D).

7. Install the brake hose (A) on the upper brake hose

bracket (B) with a new brake hose clip (C).

8. Connect the brake line (D) to the brake hose.

9. After installing the brake hose, bleed the brake

system (see page 19-9).

10. Do the following checks:

• Check the brake hose and line joint for leaks, and

tighten if necessary.

• Check the brake hoses for interference and

twisting.

03/07/29 09:54:12 61S0X050_190_0036

01

S0X4A00D00060845111KBAT00

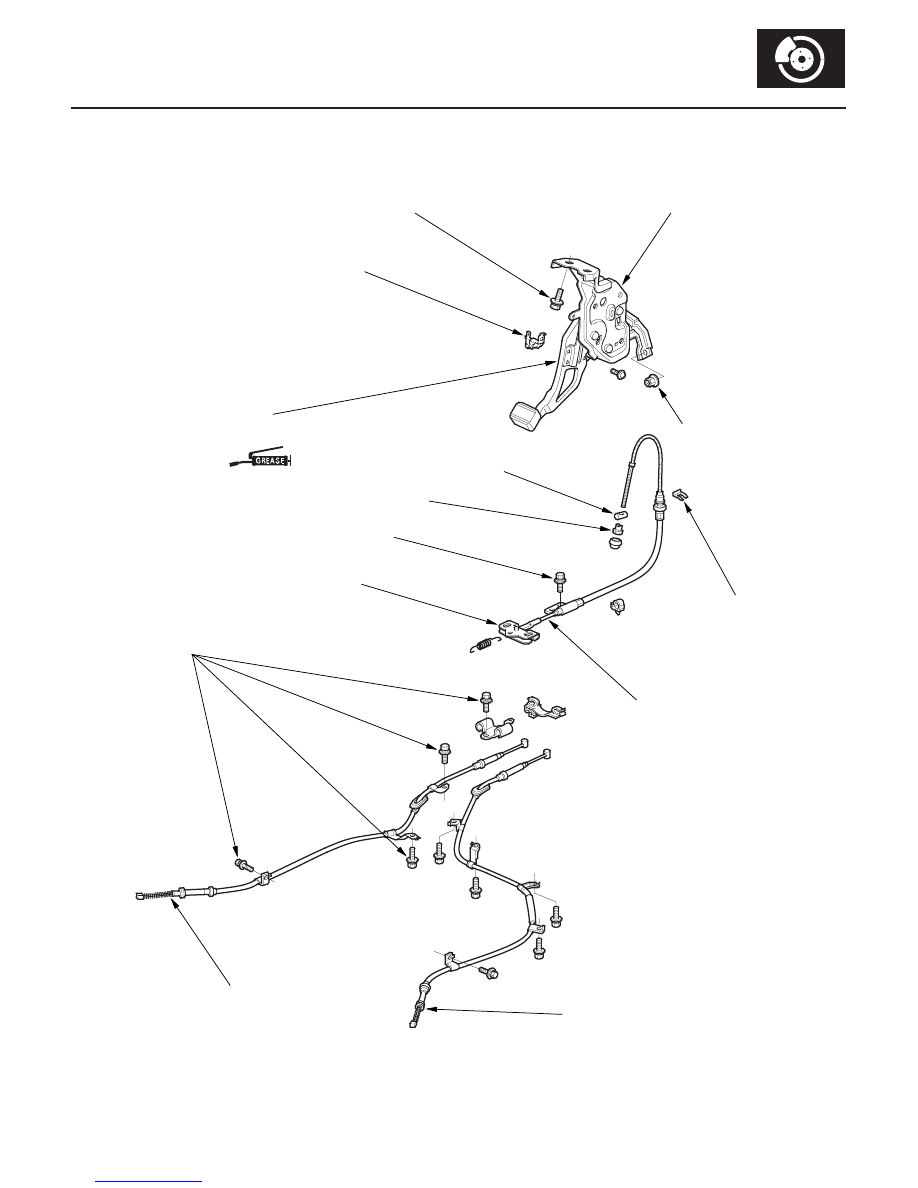

Exploded View

19-37

Parking Brake Cable Replacement

LEFT PARKING BRAKE CABLE

RIGHT PARKING BRAKE CABLE

ADJUSTING NUT

EQUALIZER

PARKING BRAKE SWITCH

(Sliding surface)

22 N·m (2.2 kgf·m, 16 lbf·ft)

22 N·m (2.2 kgf·m, 16 lbf·ft)

CABLE CLIP

PARKING BRAKE PEDAL ASSEMBLY

22 N·m
(2.2 kgf·m, 16 lbf·ft)

22 N·m (2.2 kgf·m, 16 lbf·ft)

PARKING BRAKE PEDAL

PARKING BRAKE CABLE A

BRAKE ARM JOINT A

(cont’d)

Check for faulty movement.

Check for faulty movement.

Check for smooth operation.

Check for faulty movement.

03/07/29 09:54:13 61S0X050_190_0037
