Conventional Brake Components

Brake Booster Replacement

A

C

B

E

F

D

C
8 x 1.25 mm
25 N·m (2.5 kgf·m, 18 lbf·ft)

B

A

A

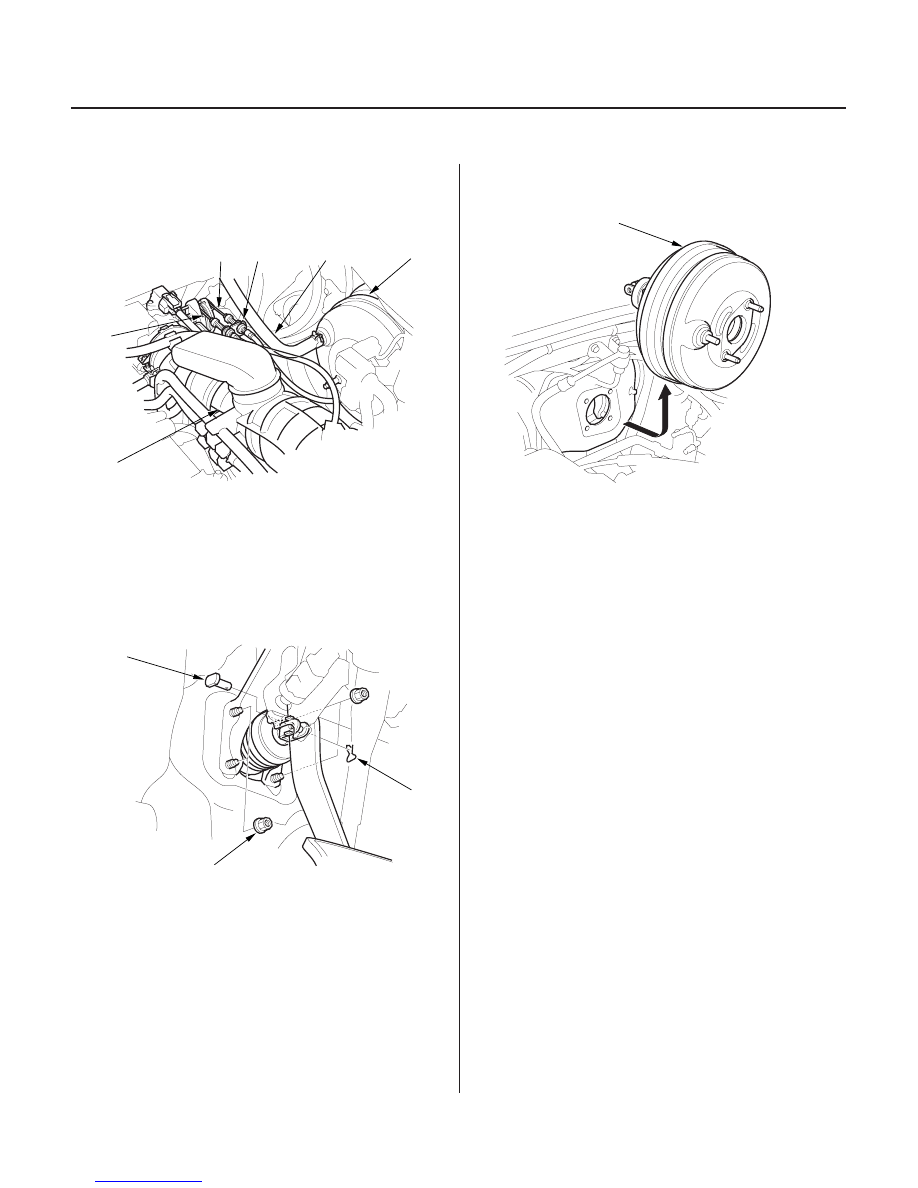

1. Remove the master cylinder (see page 19-16).

2. Remove the intake air duct (A) (see step 5 on page

5-3).

3. Remove the cable bracket (B) from the throttle body,

then disconnect the throttle cable end (C) and
actuator cable end (D) from the throttle linkage.

4. Disconnect the vacuum hose (E) from the brake

booster (F).

5. Remove the lock pin (A) and joint pin (B).

6. Remove the 4 brake booster mounting nuts (C).

7. Pull the brake booster (A) forward, and remove it

from the engine compartment.

8. Install the brake booster in the reverse order of

removal, and note these items:

• After installation, adjust brake pedal height and

brake pedal free play (see page 19-6).

• After installation, check for the cable free play,

and adjust the actuator cable (see page 4-52) and
the throttle cable (see page 11-242) if necessary.

03/07/29 09:53:57 61S0X050_190_0018

01

S0X4AZ4D14300014731MAAT00

’99-01 Models

19-19

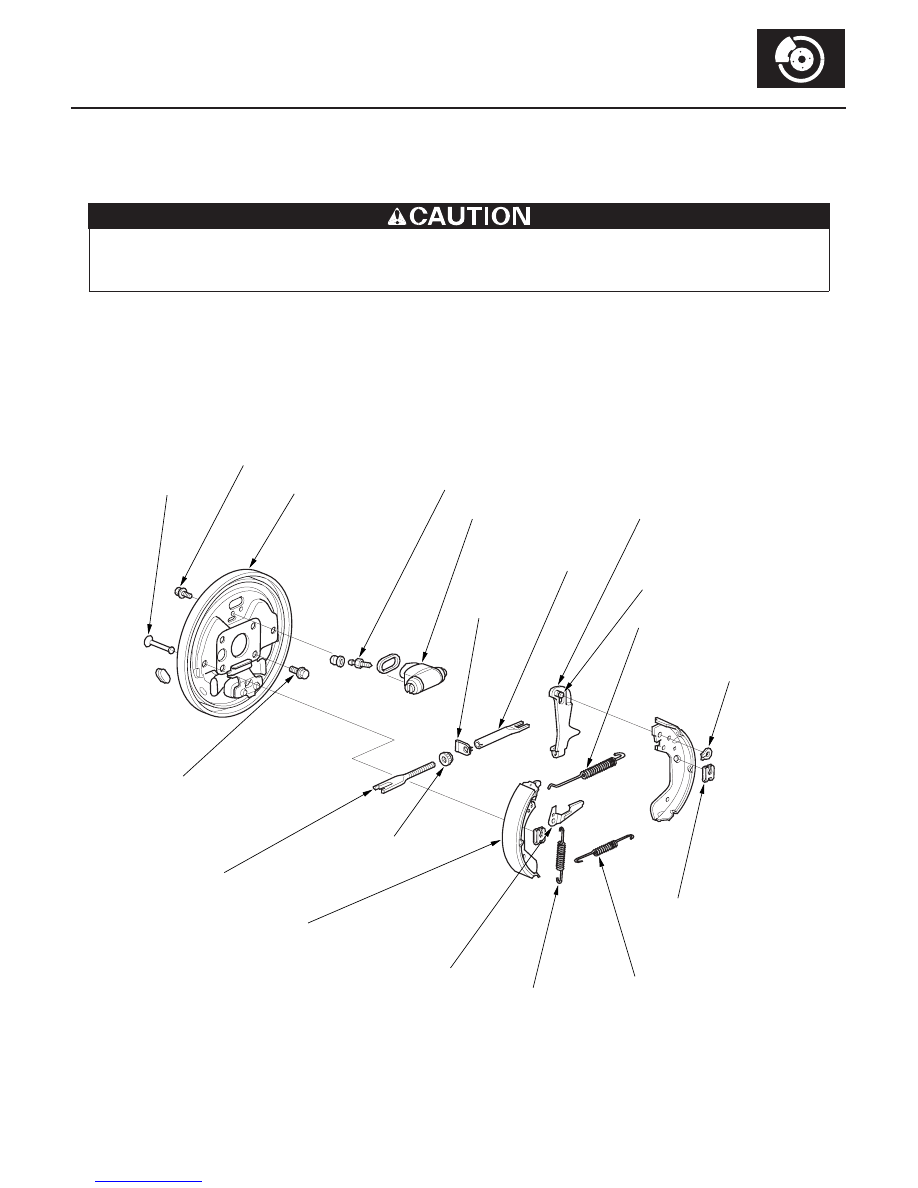

Rear Drum Brake Inspection

9.0 N·m (0.9 kgf·m, 6.5 lbf·ft)

9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

SELF-ADJUSTER
LEVER

TENSION PIN

FLANGE BOLTS
10 x 1.25 mm
39 N·m (4.0 kgf·m,
29 lbf·ft)

BACKING PLATE

ADJUSTER BOLT

UPPER RETURN SPRING

PARKING BRAKE LEVER

U-CLIP

LOWER RETURN SPRING

SELF-ADJUSTER
SPRING

RETAINER SPRING

BRAKE SHOE

WHEEL CYLINDER

PIVOT PIN

CONNECTING ROD

THERMO CLIP

ADJUSTER NUT

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

• Avoid breathing dust particles.
• Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

NOTE:

• Contaminated brake linings or drums reduce stopping ability.
• Block the front wheels before raising the rear of the vehicle.

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see page 1-15).

2. Release the parking brake, and remove the rear brake drum (see page 18-22).

(cont’d)

Marked left and right.
Check for lack of
lubrication between
backing plate and
brake shoes.

Check ratchet teeth
for wear and damage.

Check for weakness
and damage.

Marked left and right.

Replace.

Check for weakness
and damage.

Check for weakness
and damage.

Install securely on
tension pin.

If brake shoes are to be
reused, mark and reassemble
in same position.

Inspect for leakage.

03/07/29 09:53:58 61S0X050_190_0019

*01

*02

Brake Lining Thickness:

Standard:

4.5 mm (0.18 in.)

Service Limit: 2.0 mm (0.08 in.)

Drum Inside Diameter:

Standard:

253.9

254.0 mm

(9.996

10.000 in.)

Service Limit: 255.0 mm (10.04 in.)

19-20

Conventional Brake Components

Rear Drum Brake Inspection (cont’d)

A

B

C

C

C

C

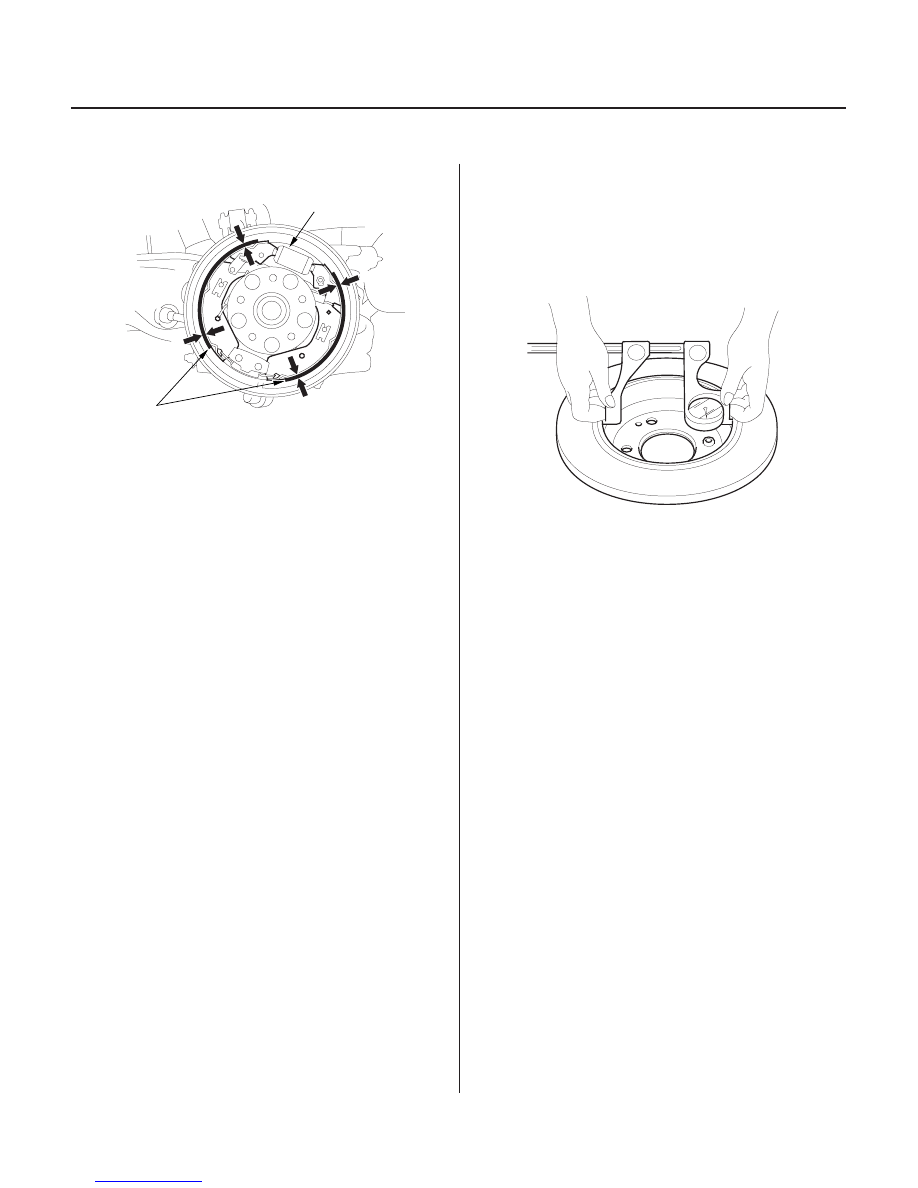

3. Check the wheel cylinder (A) for leakage.

4. Check the brake linings (B) for cracking, glazing,

wear, and contamination.

5. Measure the brake lining thickness (C).

Measurement does not include brake shoe
thickness.

6. If the brake lining thickness is less than the service

limit, replace the brake shoes as a set.

7. Check the bearings in the hub unit for smooth

operation; if the bearings require servicing (see
step 2 on page 18-23).

8. Measure the inside diameter of the brake drum

with inside vernier calipers.

9. If the inside diameter of the brake drum is more

than the service limit, replace the brake drum.

10. Check the brake drum for scoring, grooves,

corrosion, and cracks.

03/07/29 09:53:59 61S0X050_190_0020

01

02

03

S0X4AZ4D14300014811KBAT00

’99-01 Models

19-21

Rear Brake Shoe Replacement

C

B

A

A

B

A

Frequent inhalation of brake pad dust, regardless of
material composition, could be hazardous to your
health.

• Avoid breathing dust particles.
• Never use an air hose or brush to clean brake

assemblies. Use an OSHA-approved vacuum
cleaner.

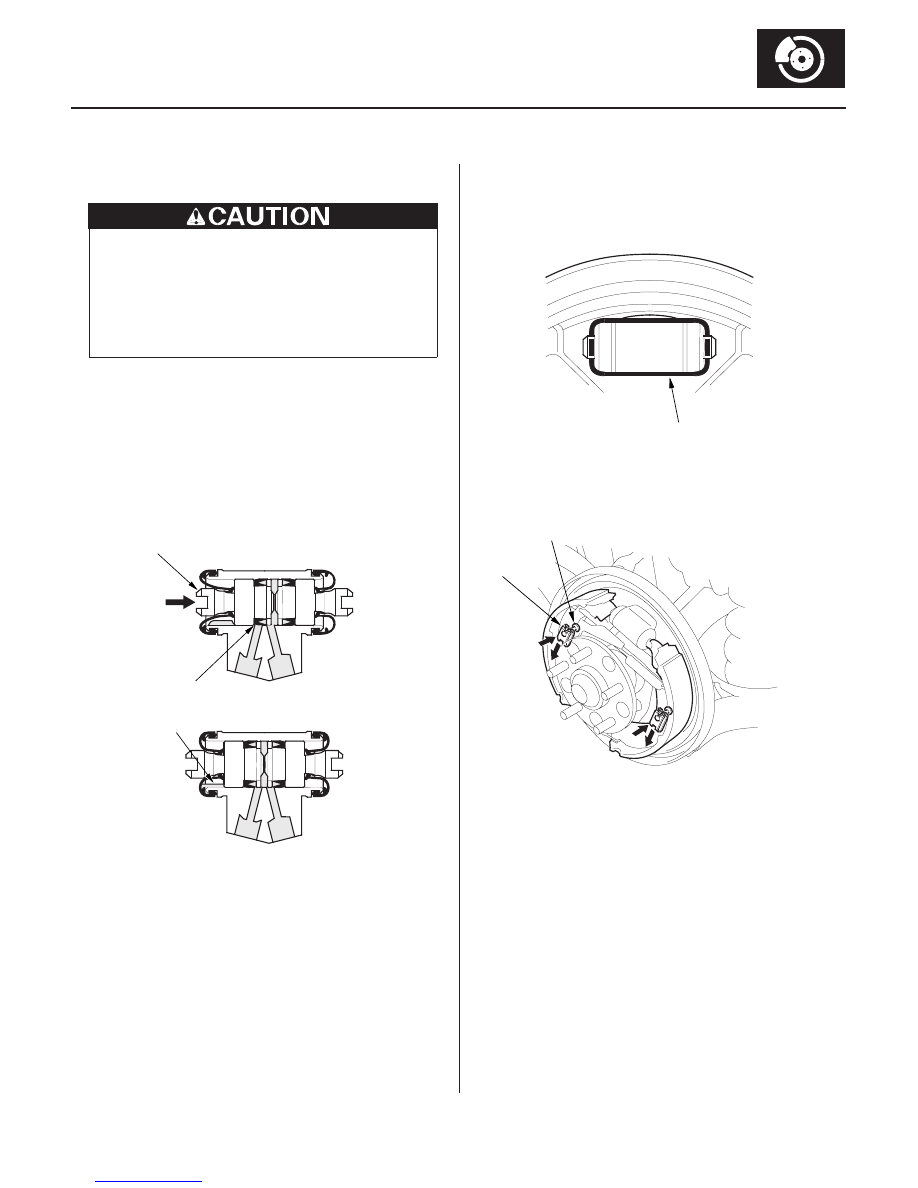

NOTE: During rear brake shoe replacement, do not
push either of the wheel cylinder pistons (A) into the
cylinder too far. If you do, brake fluid could seep into
the space behind the piston cup (B). When the piston
returns to its normal position, a small amount of brake
fluid (C) comes with it, which could be mistaken for a
piston cup leak. To avoid this mistake, always inspect
the wheel cylinder for leakage before removing the
brake shoes.

1. Raise the rear of the vehicle, and support it with

safety stands in the proper locations
(see page 1-15).

2. Release the parking brake, and remove the rear

brake drum (see step 7 on page 18-23).

3. Before you touch the brake shoes, carefully pull

back the bottom of the wheel cylinder boots, and
check for brake fluid leakage. If the inside of the
cylinder is wet with brake fluid, replace the wheel
cylinder.

4. To keep the pistons from popping out or shifting to

one end of the wheel cylinder, place a suitable
elastic band (A) around the ends of both pistons.

5. Remove the tension pins (A). Compress each return

spring (B), and then turn the pin so its flattened end
lines up with the slot in the spring.

(cont’d)

03/07/29 09:53:59 61S0X050_190_0021
