Reassembly

Installation

18-20

Front Suspension

Damper/Spring Replacement (cont’d)

A

B

C

A

C

A

B
10 x 1.25 mm
59 N·m
(6.0 kgf·m, 43 lbf·ft)

9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

B
16 x 1.5 mm
157 N·m
(16.0 kgf·m, 116 lbf·ft)

D

C

12 x 1.25 mm
78 N·m
(8.0 kgf·m,
58 lbf·ft)

A

22 N·m
(2.2 kgf·m,
16 lbf·ft)

E

F

B
12 x 1.25 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)

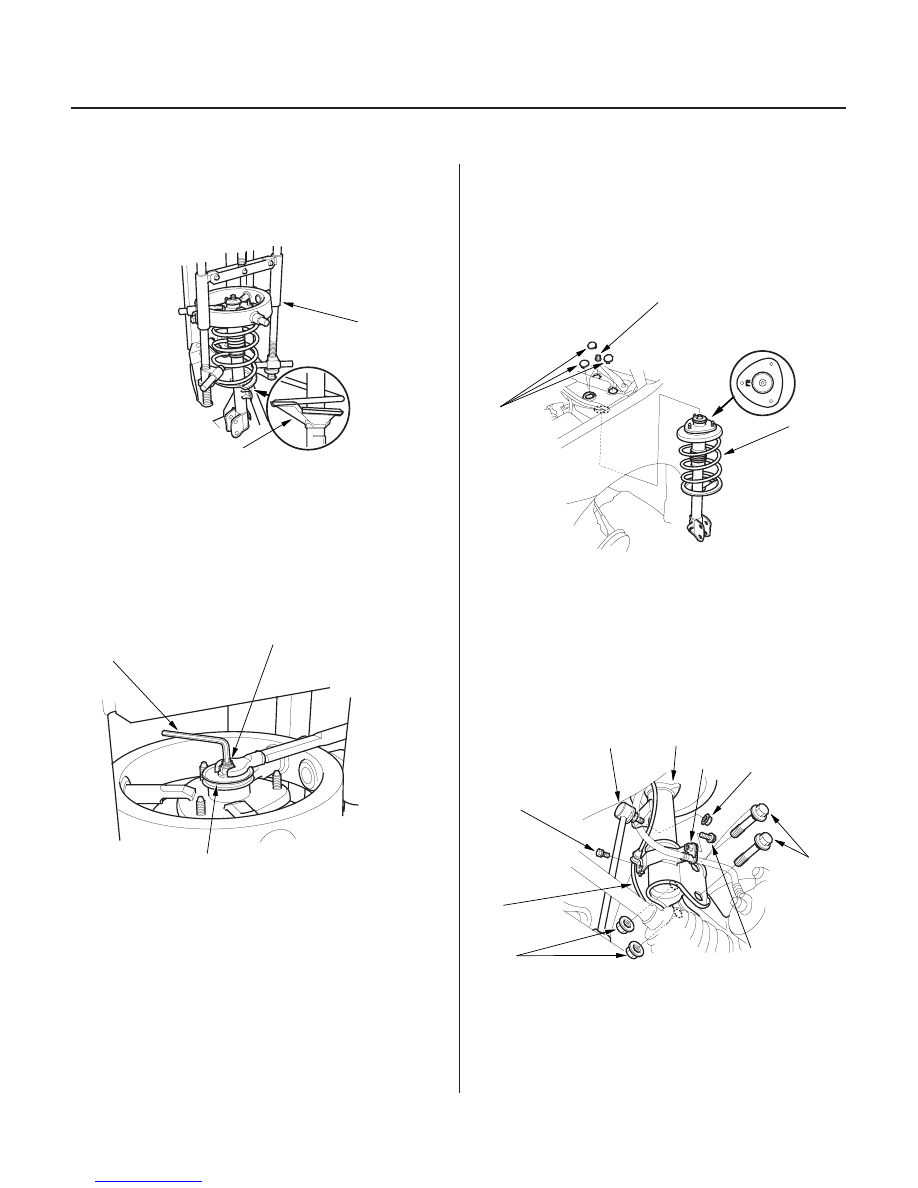

1. Install the damper unit on a commercially available

strut spring compressor (A).

2. Assemble the damper in reverse order of removal

except for the washer and self-locking nut. Align
the bottom of the damper spring and the spring
lower seat (B).

3. Compress the damper spring.

4. Install the damper mounting washer (A) and a new

12 mm self-locking nut (B).

5. Hold the damper rod using a hex wrench (C), and

tighten the 12 mm self-locking nut.

1. Loosely install the damper (A) onto the frame, then

loosely install the three flange nuts (B).

NOTE: At this stage, do not install the service cap
(C).

2. Install the damper.

–1 Loosely install the damper pinch bolts (A) and

flange nuts (B) to the damper (C).

–2 Loosely install the stabilizer link (D) to the

damper.

–3 Install the brake hose bracket (E) to the damper.
–4 Install the wheel sensor wire (F) to the damper.

03/07/29 09:51:15 61S0X050_180_0020

18-21

3. Raise the knuckle with a floor jack until the vehicle

just lifts off the safety stands.

4. Tighten the damper pinch bolts and flange nuts.

5. Tighten the flange nuts on top of the damper to the

specified torque value.

6. Install the service caps.

7. Install the front wheel.

8. Check the front wheel alignment, and adjust it if

necessary (see page 18-5).

03/07/29 09:51:15 61S0X050_180_0021

*01

*06

S0X4A00B44100032501KBAT00

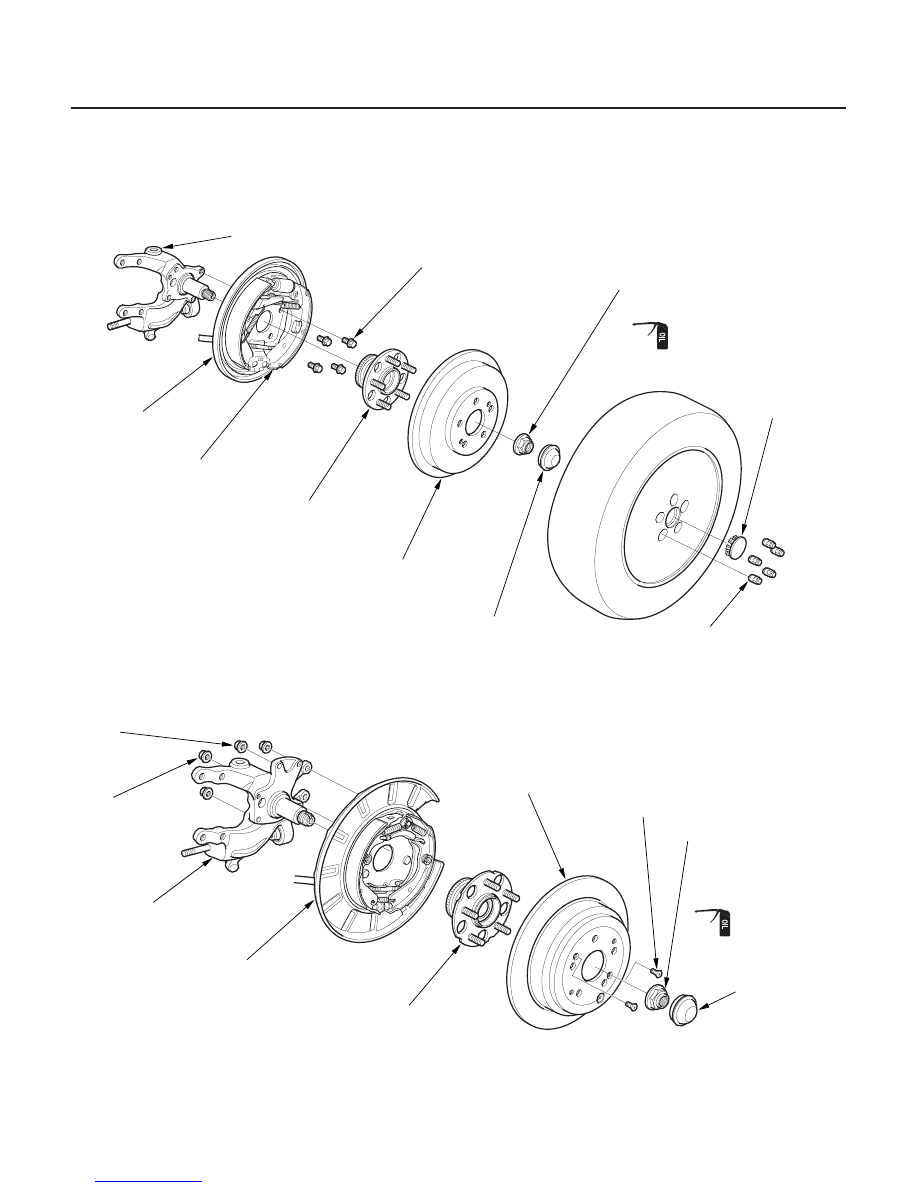

Exploded View

REAR DRUM BRAKE TYPE: ’99-01 models

REAR DISC BRAKE TYPE: ’02-04 models

18-22

Rear Suspension

Hub/Bearing Replacement

KNUCKLE

HUB
(includes bearing)

SPINDLE NUT 24 x 1.5 mm
245 N·m (25.0 kgf·m, 181 lbf·ft)

HUB CAP

WHEEL NUTS 12 x 1.5 mm
108 N·m (11.0 kgf·m, 79.6 lbf·ft)

FLANGE BOLTS
10 x 1.25 mm
35 N·m (3.5 kgf·m, 25 lbf·ft)

CENTER
CAP

BRAKE DRUM

BRAKE SHOE

BACKING PLATE

KNUCKLE

HUB
(includes bearing)

SPINDLE NUT
24 x 1.5 mm
245 N·m
(25.0 kgf·m,
181 lbf·ft)

HUB CAP

BRAKE DISC/DRUM

12 x 1.25 mm
93 N·m (9.5 kgf·m, 69 lbf·ft)

10 x 1.25 mm
38 N·m
(3.9 kgf·m,
28 lbf·ft)

PARKING BRAKE SHOE
ASSEMBLY

6 mm BRAKE DISC
RETAINING FLAT SCREWS
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

Replace.

Replace.

Apply a small amount of engine oil
to the seating surface.

Replace.

Replace.

Apply a small amount
of engine oil to the
seating surface.

03/07/29 09:51:16 61S0X050_180_0022

*02

03

04

REAR DRUM BRAKE TYPE: ’99-01 models

18-23

C

B

A
12 x 1.5 mm
108 N·m (11.0 kgf·m,
79.6 lbf·ft)

D
24 x 1.5 mm
245 N·m (25.0 kgf·m,
181 lbf·ft)

8 x 1.25 mm

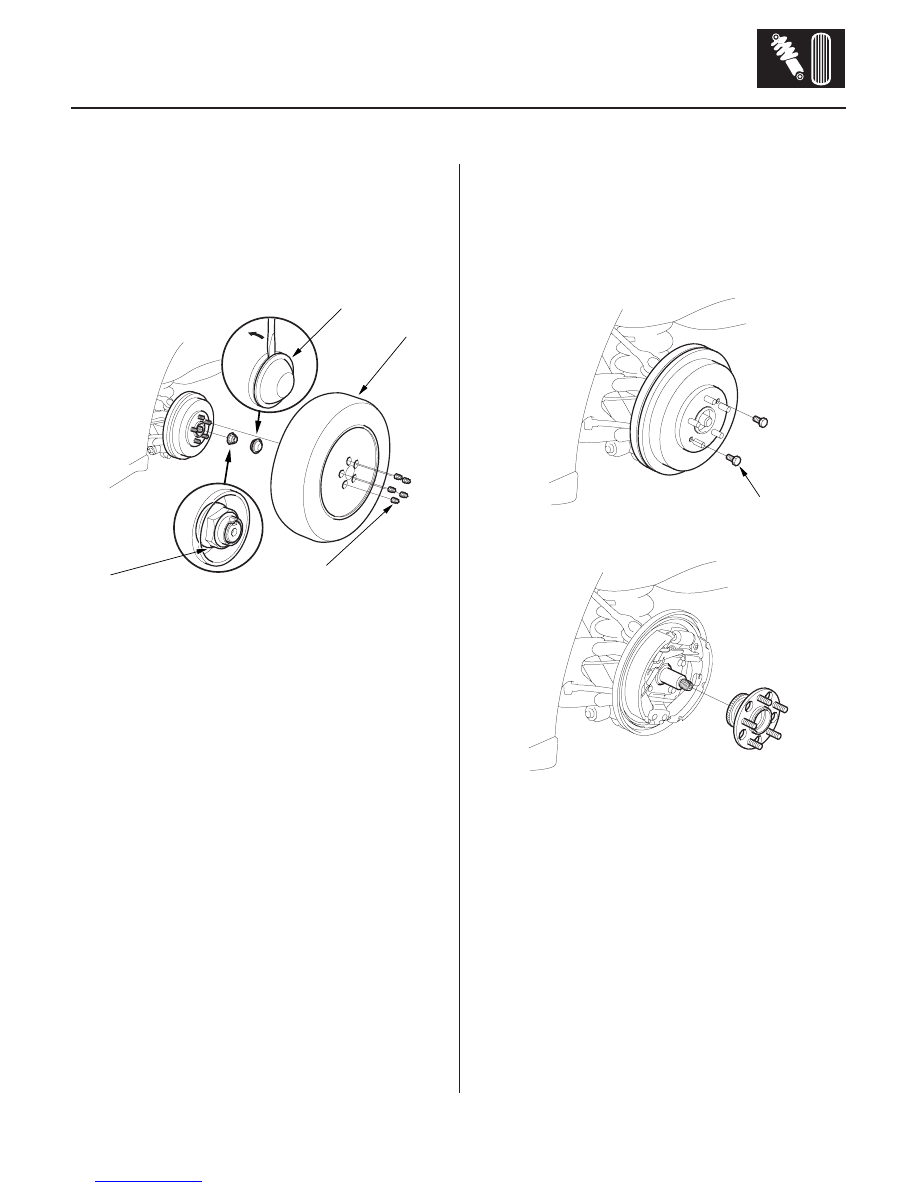

1. Raise the rear of the vehicle, and support it with

safety stands in the proper locations
(see page 1-15).

2. Remove the wheel nuts (A) and rear wheel (B).

3. Press the parking brake pedal.

4. Remove the hub cap (C).

5. Raise the locking tab on the spindle nut (D), then

remove the nut.

6. Release the parking brake pedal.

7. Screw two 8 x 1.25 mm bolts into the drum to push

it away from the hub bearing unit. Turn each bolt
two turns at a time to prevent cocking the brake
drum excessively. Remove the brake drum from
the hub bearing unit. If the drum does not come off
easily, back off the brake adjuster one full turn
(23 teeth).

8. Remove the hub bearing unit.

9. Install the hub bearing unit in the reverse order of

removal, and pay particular attention to the
following items:

• Wash the bearing and spindle thoroughly in high

flash point solvent before reassembly.

• Before installing the new spindle nut, apply a

small amount of engine oil to the seating surface
of the nut.

• After tightening, use a drift to stake the spindle

nut shoulder against the spindle.

• Inspect the pulser teeth for any damage.

(cont’d)

03/07/29 09:51:17 61S0X050_180_0023
