Honda Odyssey 2004. Manual - part 281

−

０１

０２

Ｓ０Ｘ４Ａ００Ｆ００００００４７０４１ＭＣＡＴ００

Special Tools Required

Inspection

Tension:
Used Belt:

390

540 N (40

55 kgf, 88

120 lbf)

New Belt:

740

880 N (75

90 kgf, 170

200 lbf)

Adjustment

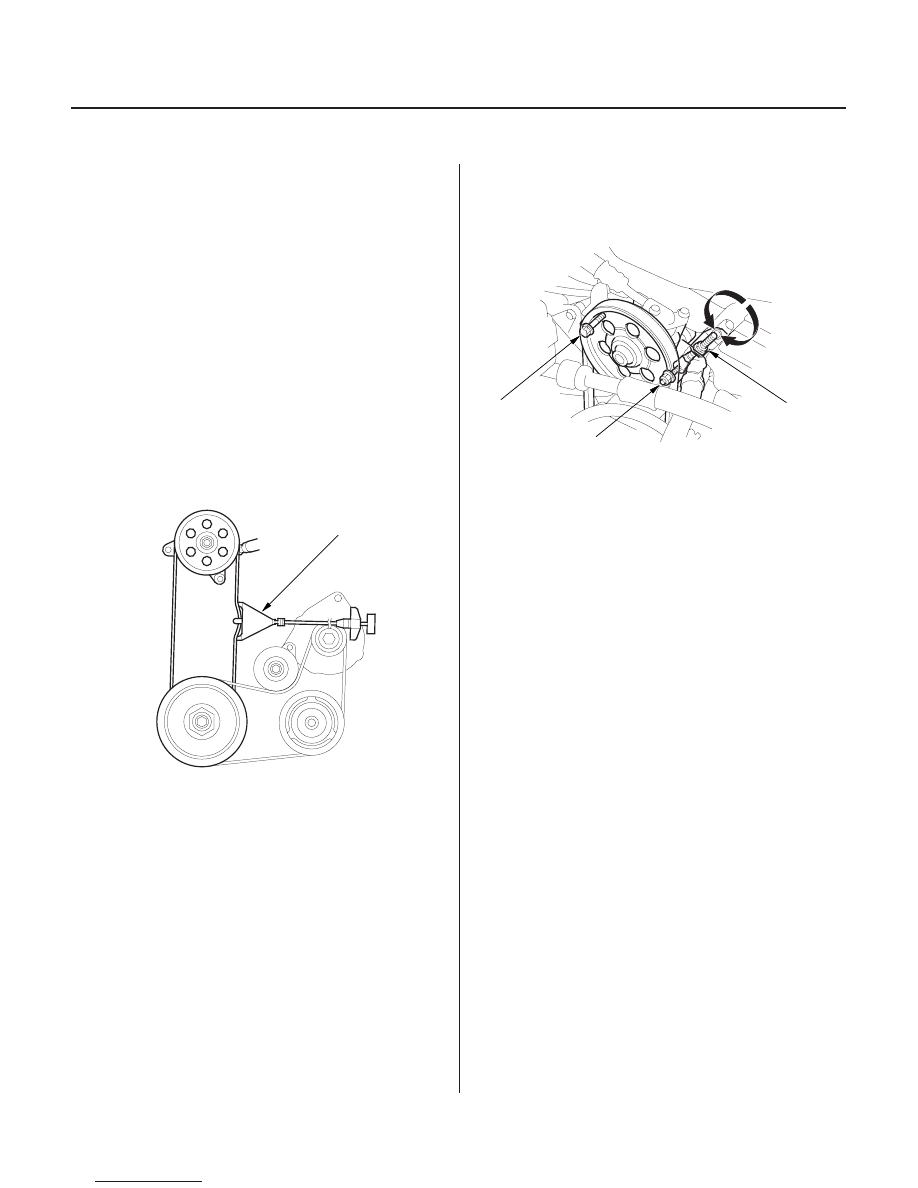

Belt Tension Gauge Method

17-12

Power Steering

Pump Belt Inspection and Adjustment

07JGG-001000A or
07JGG-001010A

A
24 N·m (2.4 kgf·m, 17 lbf·ft)

B
24 N·m
(2.4 kgf·m,
17 lbf·ft)

• Belt tension gauge set 07JGG-001000A
• Belt tension gauge 07JGG-001010A

1. Attach the belt tension gauge to the belt with the

gauge face toward the engine, and measure the
tension of the belt. Follow the manufacture’s
instructions. If the belt is worn or damaged, replace
it.

NOTE: Remove the belt tension gauge carefully to
avoid hitting the gauge reset lever.

2. If you installed a new belt, run the engine for

5 minutes, then readjust the belt to the used belt
specifications.

3. Loosen the power steering pump mounting nut (A)

and bolt (B).

4. Turn the adjusting nut (C) to get the proper belt

tension, then retighten the mounting nut and bolt.

5. Start the engine and turn the steering wheel from

lock-to-lock several times, then stop the engine and
recheck the tension of the belt.

03/07/29 09:48:56 61S0X050_170_0012

−

０１

０４

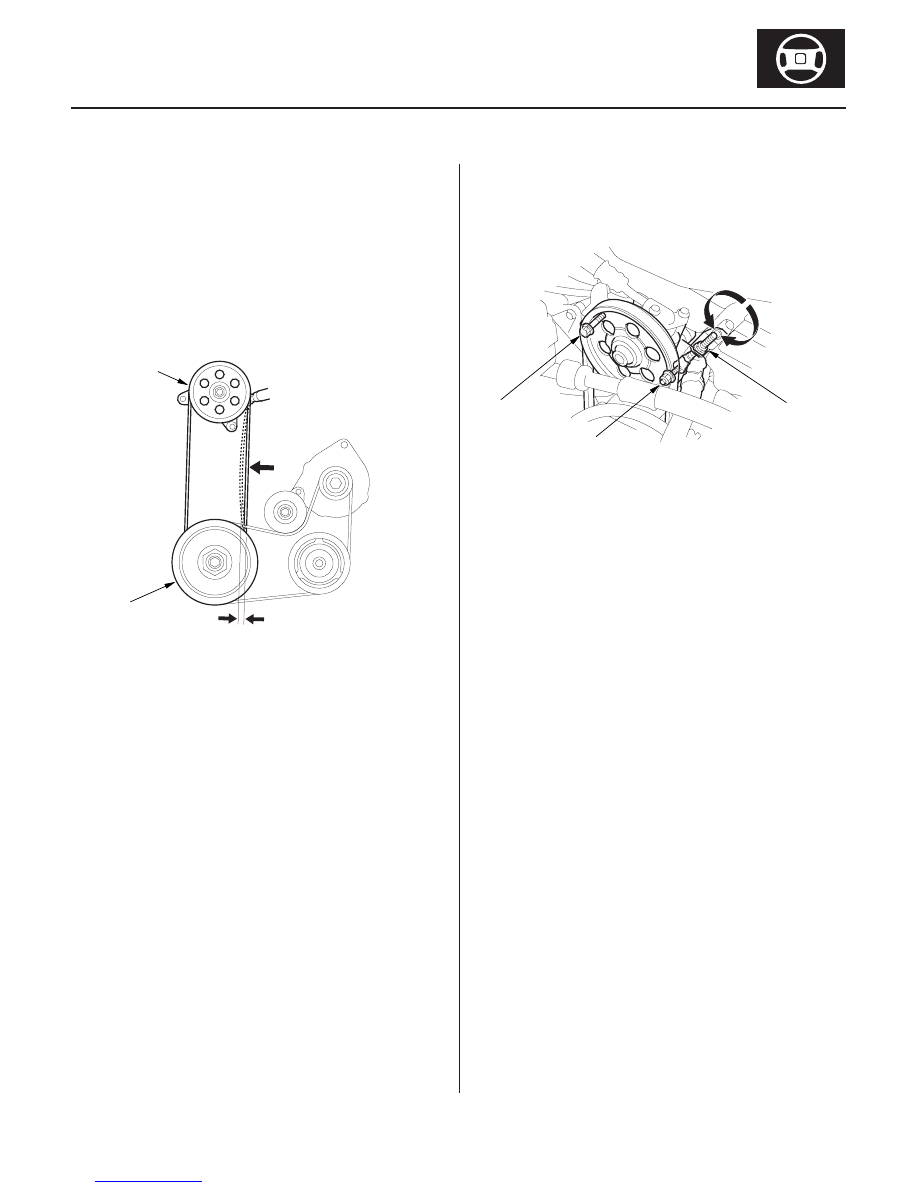

Deflection Method

Inspection

Deflection:
Used Belt:

13.0

16.5 mm (0.51

0.65 in.)

New Belt:

8.5

11.0 mm (0.33

0.43 in.)

Adjustment

17-13

A
24 N·m (2.4 kgf·m, 17 lbf·ft)

B
24 N·m
(2.4 kgf·m,
17 lbf·ft)

1. Apply a force of 98 N (10 kgf, 22 lbf) and measure

the deflection between the power steering pump
pulley (A) and the crankshaft pulley (B).

2. If you installed a new belt, run the engine for

5 minutes, then readjust the belt to the used belt
specifications.

3. Loosen the power steering pump mounting nut (A)

and bolt (B).

4. Turn the adjusting nut (C) to get the proper belt

tension, then retighten the mounting nut and bolt.

5. Start the engine and turn the steering wheel from

lock-to-lock several times, then stop the engine and
recheck the tension of the belt.

03/07/29 09:48:57 61S0X050_170_0013

０１

０２

Ｓ０Ｘ４Ａ００Ｆ００００００４７００１ＫＢＡＴ００

SYSTEM CAPACITY:

1.1

(1.16 US. qt) at disassembly

RESERVOIR CAPACITY:

0.4

(0.42 US. qt)

17-14

Power Steering

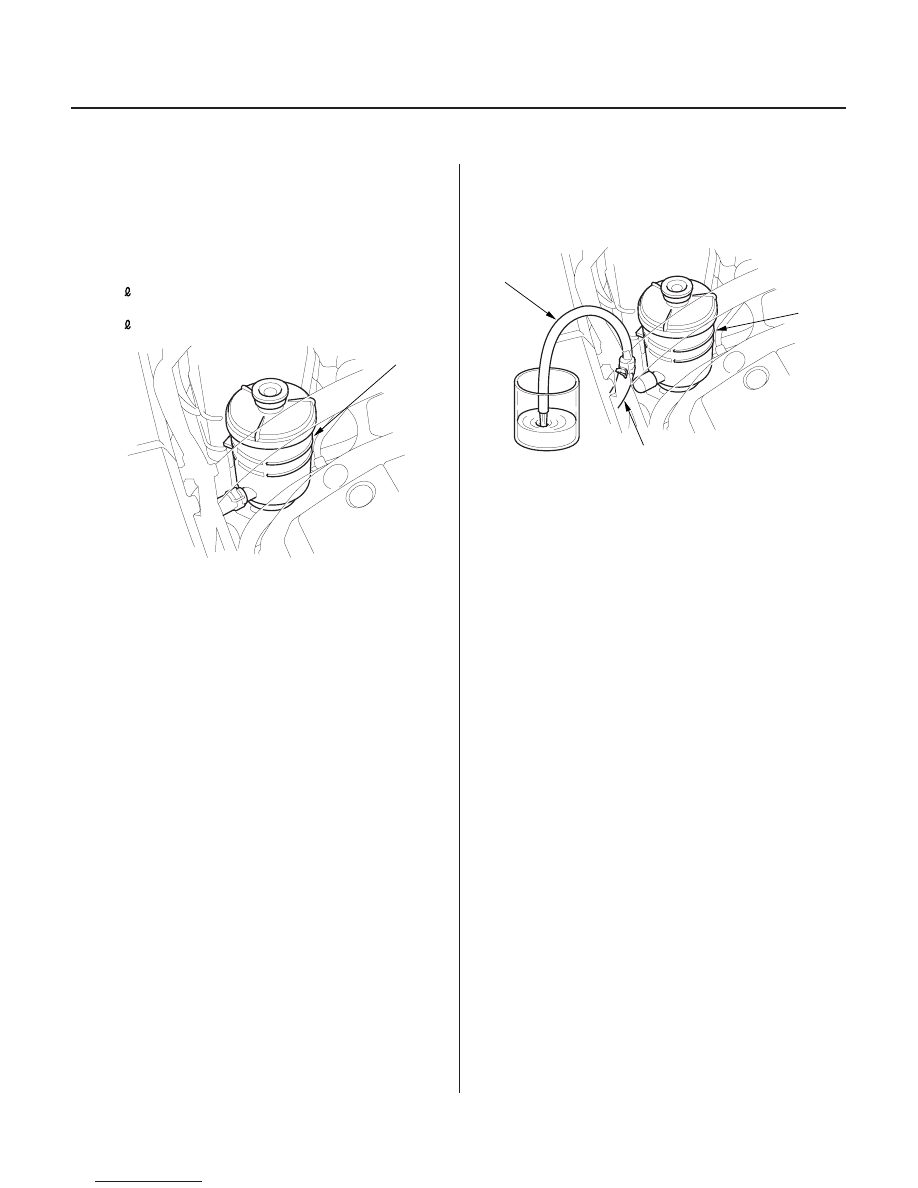

Fluid Replacement

Check the reservoir (A) at regular intervals, and add the
recommended fluid as necessary. Always use Honda
Power Steering Fluid. Using any other type of power
steering fluid or automatic transmission fluid can cause
increased wear and poor steering in cold weather.

1. Raise the reservoir, then disconnect the return hose

(A) to drain the reservoir. Take care not to spill the
fluid on the body and parts. Wipe off any spilled
fluid at once.

2. Connect a hose (B) of suitable diameter to the

disconnected return hose, and put the hose end in a
suitable container.

3. Start the engine, let it run at idle, and turn the

steering wheel from lock-to-lock several times.
When fluid stops running out of the hose, shut off
the engine. Discard the fluid.

4. Reinstall the return hose on the reservoir.

5. Fill the reservoir to the upper level line (C).

6. Start the engine and run it at fast idle, then turn the

steering from lock-to-lock several times to bleed air
from the system.

7. Recheck the fluid level and add more if necessary.

Do not fill the reservoir beyond the upper level line.

8. If the fluid is contaminated, dark, or discolored,

repeat step 3 as necessary.

03/07/29 09:48:57 61S0X050_170_0014

＊０２

＊０１

Ｓ０Ｘ４Ａ００Ｆ００００００４７０１１ＫＢＡＴ１０

−

17-15

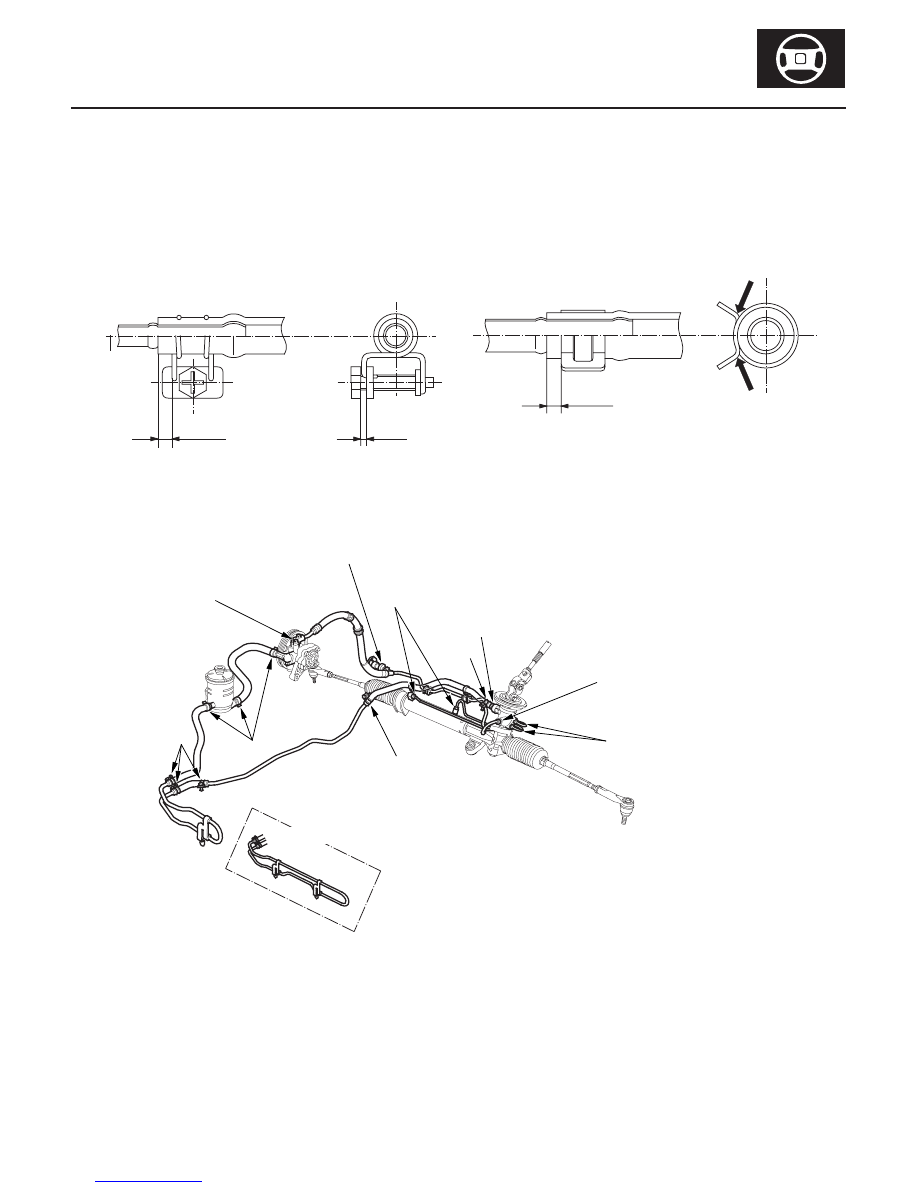

Power Steering Hose, Line, and Pressure Switch Replacement

2.5

5.5 mm

(0.10

0.22 in.)

2.5

5.5 mm

(0.10

0.22 in.)

2.0

4.0 mm

(0.08

0.16 in.)

ADJSTABLE HOSE CLAMP (A)

HOSE CLAMP (B)

CYLINDER LINES
13 N·m (1.3 kgf·m,
9.4 lbf·ft)

6 x 1.0 mm
11 N·m (1.1 kgf·m,
8 lbf·ft)

CYLINDER LINES
13 N·m (1.3 kgf·m, 9.4 lbf·ft)

POWER STEERING PRESSURE SWITCH
10 x 1.25 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

RETURN LINE
16 x 1.5 mm
28 N·m (2.9 kgf·m, 21 lbf·ft)

FEED HOSE
14 x 1.5 mm
37 N·m (3.8 kgf·m, 27 lbf·ft)

’00-04 models:

Note these items during installation:

• Connect each hose to the corresponding line securely until it contacts the stop on the line. Install the clamp or

adjustable clamp at the specified distance from the hose end as shown.

• Check all clamps for deterioration or deformation; replace with the clamps new ones if necessary.
• Add the recommended power steering fluid to the specified level on the reservoir and check for leaks.

03/07/29 09:48:58 61S0X050_170_0015
