Honda Odyssey 2004. Manual - part 274





01

03

16-6

Driveline/Axle

Driveshaft Disassembly (cont’d)

A

B

B

E

D

C

A

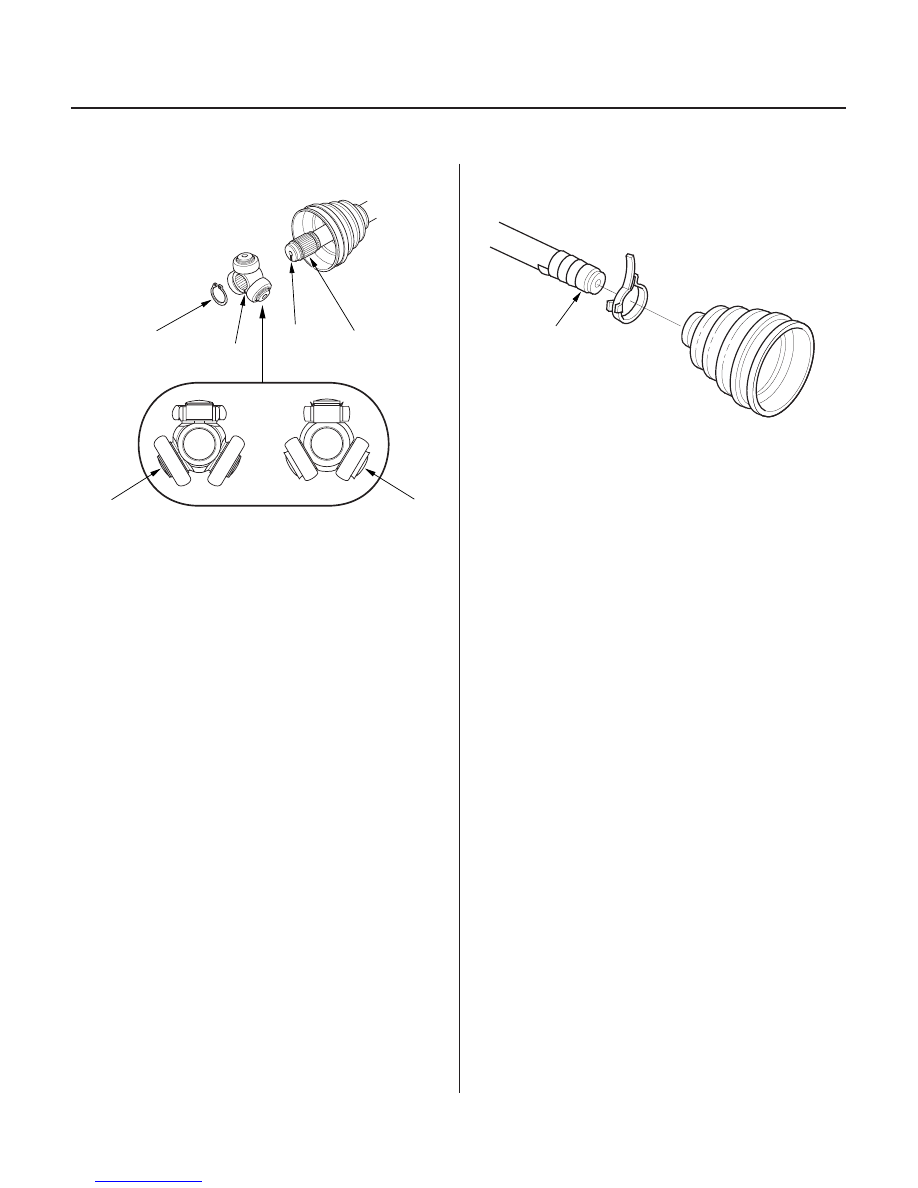

4. Remove the snap ring (A).

5. Make a mark (B) on the spider (C or D) and

driveshaft (E) to identify the position of the spider
on the shaft.

NOTE: The spider (C) is left driveshaft; spider (D) is
right driveshaft.

6. Remove the spider.

7. Wrap the splines on the driveshaft with vinyl tape

(A) to prevent damage to the boot.

8. Remove the boot band and the inboard boot. Be

careful not to damage the boot.

9. Remove the vinyl tape.

03/07/29 09:47:24 61S0X050_160_0006

*03

01

02

*04

Outboard Joint Side

16-7

B

A

A

B

A

C

07XAC-001020A

B

A

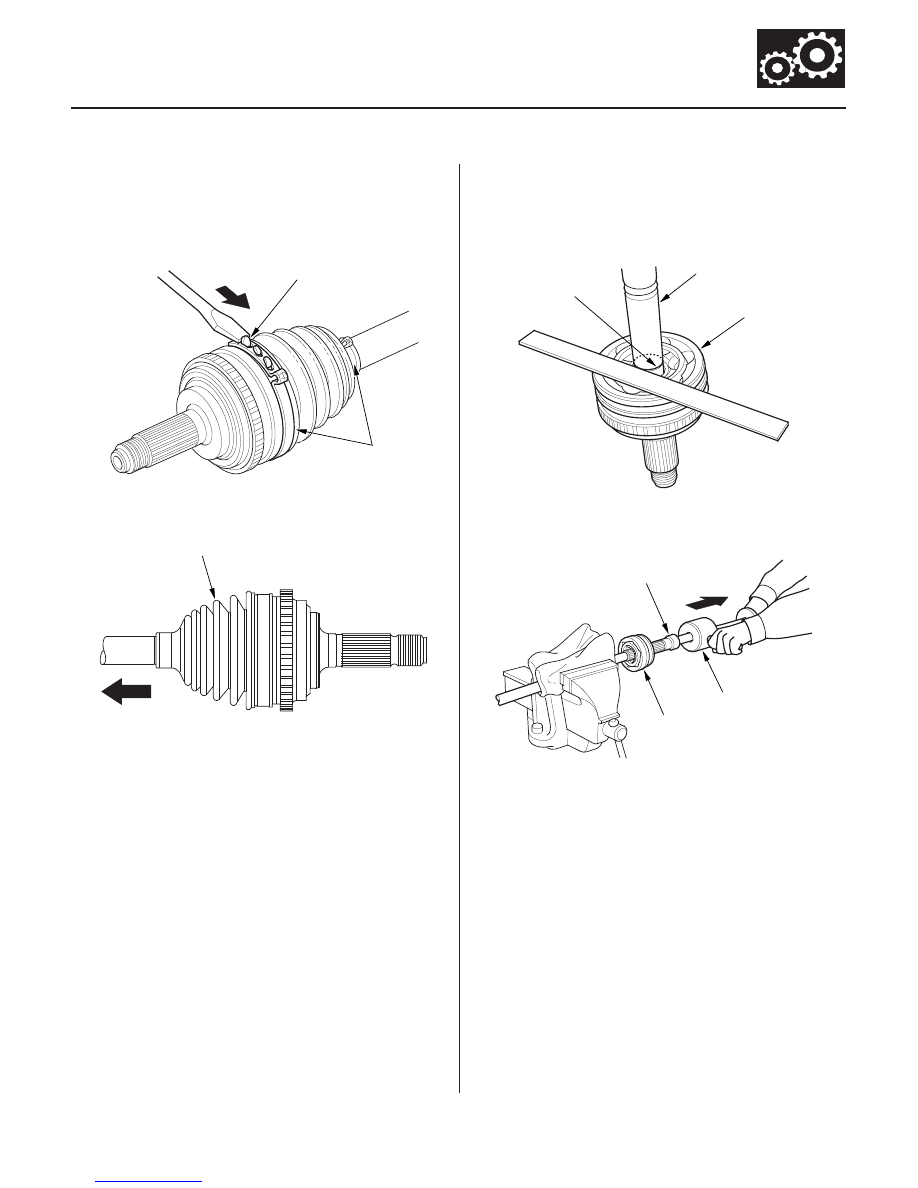

1. Remove the boot bands (A). Lift up the three tabs

(B) with a screwdriver. Be careful not to damage
the boot.

2. Slide the outboard boot (A) partially to the inboard

joint side. Be careful not to damage the boot.

3. Wipe off the grease to expose the driveshaft and

the outboard joint inner race.

4. Make a mark (A) on the driveshaft (B) at the same

position of the outboard joint end (C).

5. Carefully clamp the driveshaft in a vise.

6. Remove the outboard joint (A) using the special

tool and a commercially available 5/8’’ slide
hammer (B).

(cont’d)

03/07/29 09:47:25 61S0X050_160_0007

*05

06

16-8

Driveline/Axle

Driveshaft Disassembly (cont’d)

A

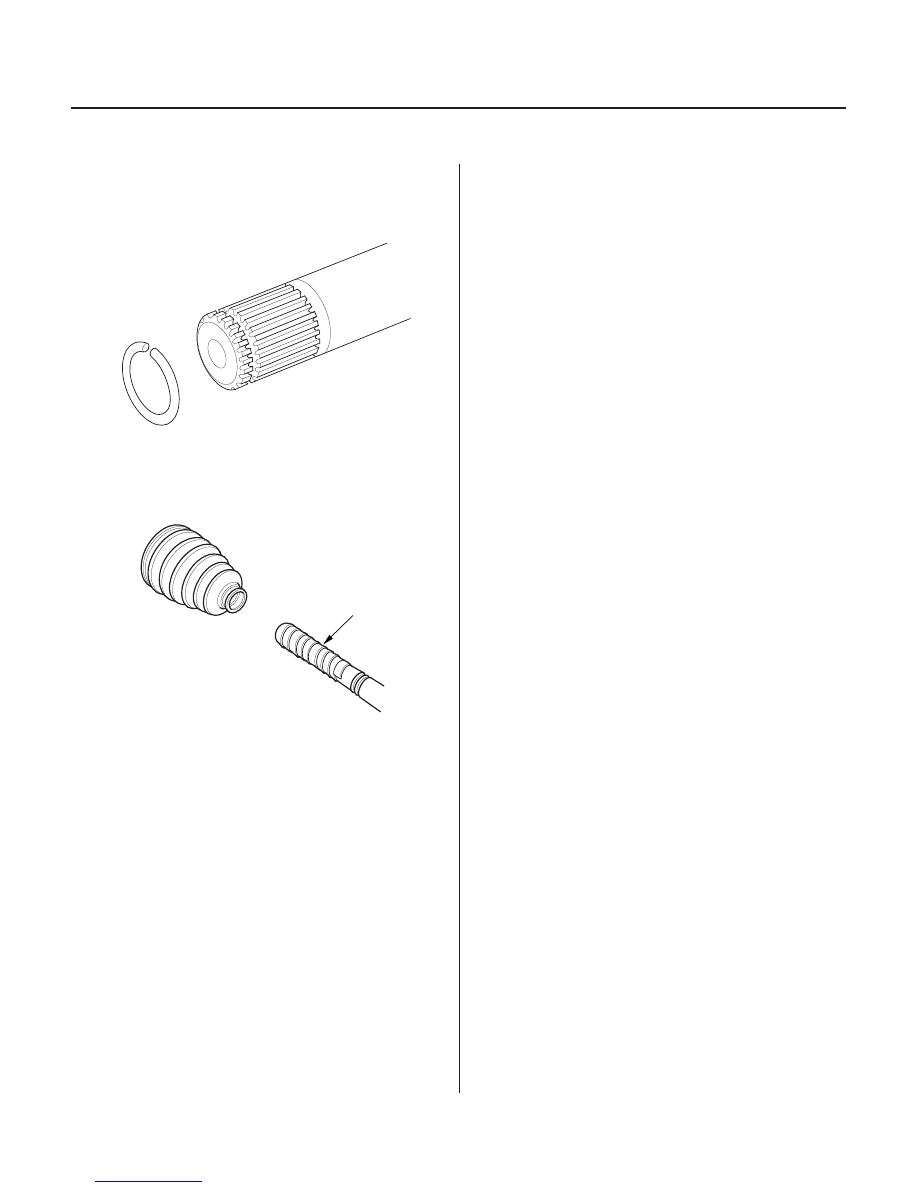

7. Remove the driveshaft from the vise.

8. Remove the circlip from the driveshaft.

9. Wrap the splines on the driveshaft with vinyl tape

(A) to prevent damage to the boot.

10. Remove the outboard boot. Be careful not to

damage the boot.

11. Remove the vinyl tape.

03/07/29 09:47:25 61S0X050_160_0008

*01

S0X4A00E16226600000LDAT00

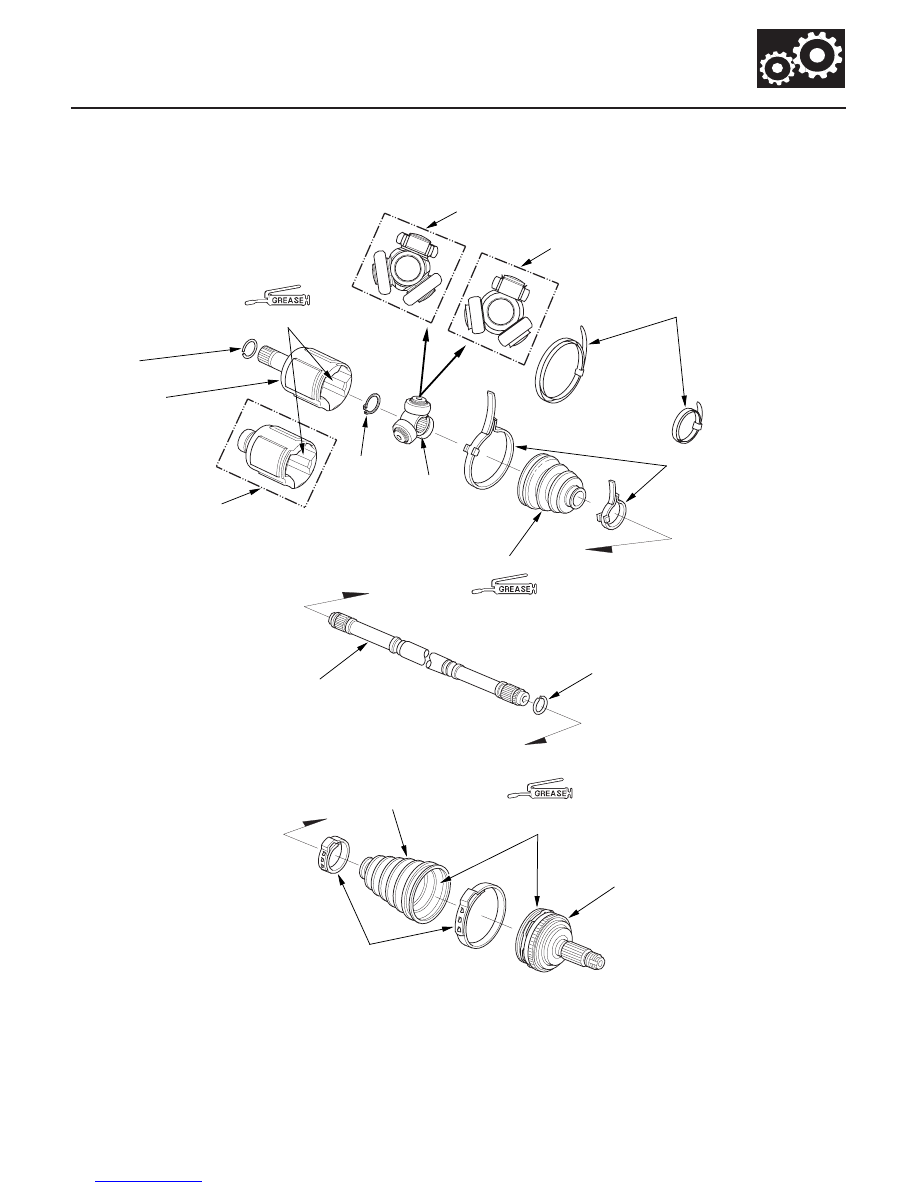

Exploded View

16-9

Driveshaft Reassembly

(Left driveshaft)

(Right driveshaft)

DOUBLE LOOP BAND

LOCKING TAB BAND

(Right driveshaft)

INBOARD JOINT
(Left driveshaft)

SET RING

SNAP RING

SPIDER

INBOARD BOOT

CIRCLIP

DRIVESHAFT

EAR CLAMP BAND

OUTBOARD JOINT

OUTBOARD BOOT

(cont’d)

Replace.
(Replacement parts only)

Replace.

Replace.

Use the grease included in the inboard boot set.

Replace.

Replace.

Use the grease included in
the outboard boot set.

Use the grease included in
the inboard boot set.

03/07/29 09:47:26 61S0X050_160_0009
