Honda Odyssey 2004. Manual - part 267





01

*16

Clutch End-Plate-to-Top-Disc Clearance
Service Limit:
• 1st Clutch: 1.1

1.3 mm (0.043

0.051 in.)

• 2nd Clutch: 0.85

1.05 mm (0.033

0.041 in.)

• 3rd Clutch: 0.7

0.9 mm (0.028

0.035 in.)

• 4th Clutch: 0.55

0.75 mm (0.022

0.030 in.)

• 5th Clutch: 0.55

0.75 mm (0.022

0.030 in.)

1ST CLUTCH END PLATES

Mark

Part Number

Thickness

2ND CLUTCH END PLATES

Mark

Part Number

Thickness

14-462

Shafts and Clutches

Clutch Reassembly (cont’d)

B

A

D

C

39N
(4 kgf, 9 lbf)

07ZAE-PRP0100

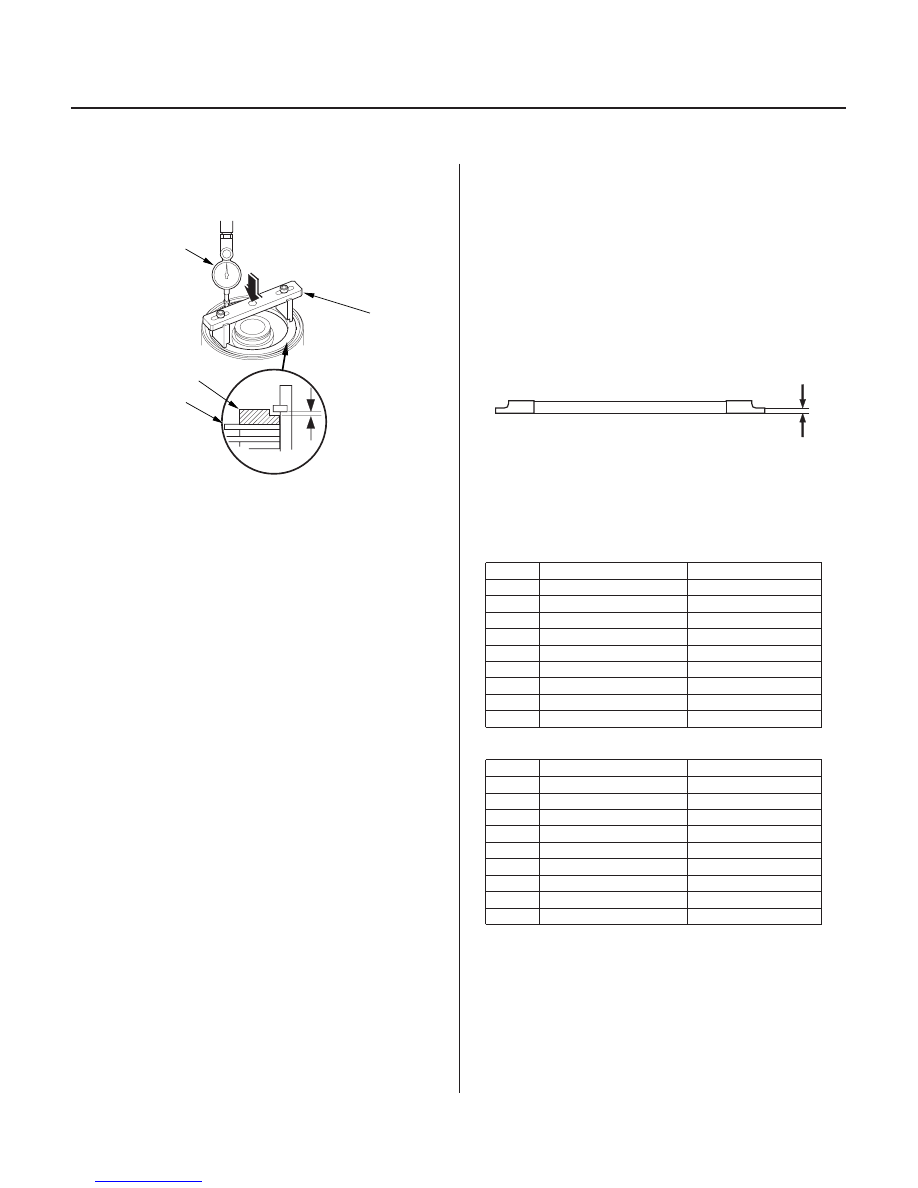

22. Release the clutch end plate to lower it, then put the

special tool on the end plate (A).

23. Press the special tool down with 39 N (4 kgf, 9 lbf)

using a force gauge, and read the dial indicator
reads the clearance (B) between the clutch end
plate and top disc (C). Take measurements at least
three places, and use the average as the actual
clearance.

24. If the clearance is not within the service limit, select

a new clutch end plate from the following table.

NOTE: If the thickest clutch end plate is installed,
but the clearance is still over the service limit,
replace the clutch discs and plates as a set.
Replace the PCM, if 3rd clutch discs and plates
replacement is required.

1

22551-P7W-003

3.1 mm (0.122 in.)

2

22552-P7W-003

3.2 mm (0.126 in.)

3

22553-P7W-003

3.3 mm (0.130 in.)

4

22554-P7W-003

3.4 mm (0.134 in.)

5

22555-P7W-003

3.5 mm (0.138 in.)

6

22556-P7W-003

3.6 mm (0.142 in.)

7

22557-P7W-003

3.7 mm (0.146 in.)

8

22558-P7W-003

3.8 mm (0.150 in.)

9

22559-P7W-003

3.9 mm (0.154 in.)

1

22551-PY4-003

2.1 mm (0.083 in.)

2

22552-PY4-003

2.2 mm (0.087 in.)

3

22553-PY4-003

2.3 mm (0.091 in.)

4

22554-PY4-003

2.4 mm (0.094 in.)

5

22555-PY4-003

2.5 mm (0.098 in.)

6

22556-PY4-003

2.6 mm (0.102 in.)

7

22557-PY4-003

2.7 mm (0.106 in.)

8

22558-PY4-003

2.8 mm (0.110 in.)

9

22559-PY4-003

2.9 mm (0.114 in.)

03/07/29 09:46:12 61S0X050_140_0465

3RD CLUTCH END PLATES

Mark

Part Number

Thickness

4TH and 5TH CLUTCH END PLATES

Mark

Part Number

Thickness

14-463

6

22556-RAY-A01

2.6 mm (0.102 in.)

7

22557-RAY-A01

2.7 mm (0.106 in.)

8

22558-RAY-A01

2.8 mm (0.110 in.)

9

22559-RAY-A01

2.9 mm (0.114 in.)

10

22560-PVG-003

3.0 mm (0.118 in.)

11

22561-PVG-003

3.1 mm (0.122 in.)

12

22562-PVG-003

3.2 mm (0.126 in.)

13

22563-PVG-003

3.3 mm (0.130 in.)

14

22564-PVG-003

3.4 mm (0.134 in.)

1

22561-P7T-003

2.1 mm (0.083 in.)

2

22562-P7T-003

2.2 mm (0.087 in.)

3

22563-P7T-003

2.3 mm (0.091 in.)

4

22564-P7T-003

2.4 mm (0.094 in.)

5

22565-P7T-003

2.5 mm (0.098 in.)

6

22566-P7T-003

2.6 mm (0.102 in.)

7

22567-P7T-003

2.7 mm (0.106 in.)

8

22568-P7T-003

2.8 mm (0.110 in.)

9

22569-P7T-003

2.9 mm (0.114 in.)

03/07/29 09:46:12 61S0X050_140_0466

*05

S0X4AA1E10480139301KCAT20

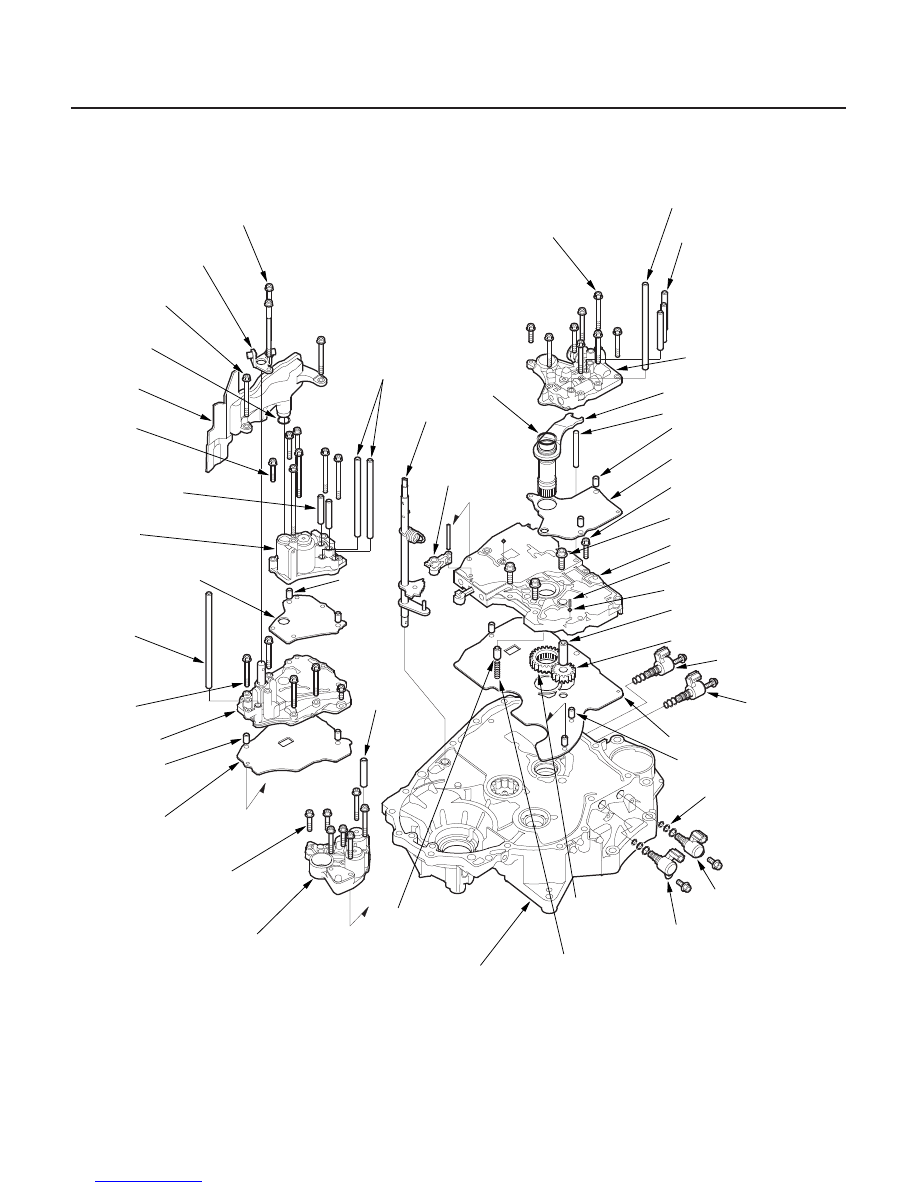

Exploded View

14-464

Valve Body

Valve Body and ATF Strainer Installation

TORQUE CONVERTER
CLUTCH SOLENOID VALVE

6 x 1.0 mm,
Eight Bolts

ATF FEED PIPE,
8 x 198 mm

ATF FEED PIPES,
8 x 85 mm, Three Pipes

STATOR SHAFT

STATOR SHAFT STOP

DOWEL PINS,
Two Pins

REGULATOR
SEPARATOR PLATE
6 x 1.0 mm,
One Bolt

8 x 1.25 mm,
Three Bolts

MAIN VALVE BODY
COOLER CHECK VALVE
SPRING

COOLER CHECK VALVE

ATF PUMP DRIVEN GEAR

MAIN SEPARATOR PLATE

TORQUE CONVERTER
CHECK VALVE

TORQUE CONVERTER
CHECK VALVE SPRING

ACCUMULATOR
BODY

6 x 1.0 mm,
Seven Bolts

SERVO SEPARATOR
PLATE

DOWEL PINS,
Two Pins

SERVO BODY

6 x 1.0 mm,
Five Bolts

6 x 1.0 mm,
Seven Bolts

O-RING

ATF
STRAINER

SERVO
DETENT BASE

ATF FEED PIPES,
8 x 180.5 mm,
Two Pipes

O-RING

DETENT
ARM

CONTROL
SHAFT

ATF
FEED
PIPE

ATF PUMP DRIVEN
GEAR SHAFT

REGULATOR
VALVE BODY

ATF PUMP
DRIVE GEAR

ATF FEED
PIPE,
8 x 220 mm

ATF FEED PIPES,
8 x 62 mm, Two Pipes

TOP ACCUMULATOR
BODY

TOP ACCUMULATOR
SEPARATOR PLATE

DOWEL
PINS,
Two Pins

SHIFT SOLENOID
VALVE C

SHIFT SOLENOID
VALVE A

DOWEL PINS,
Three Pins

O-RING

SHIFT SOLENOID
VALVE B

TORQUE CONVERTER
HOUSING

6 x 1.0 mm,
Two Bolts

6 x 1.0 mm,
Two Bolts

Replace.

Replace.

Replace.

03/07/29 09:46:14 61S0X050_140_0467

*03

*04

02

14-465

B

A

D

C

B

D

G

A

F

B

E

C

D

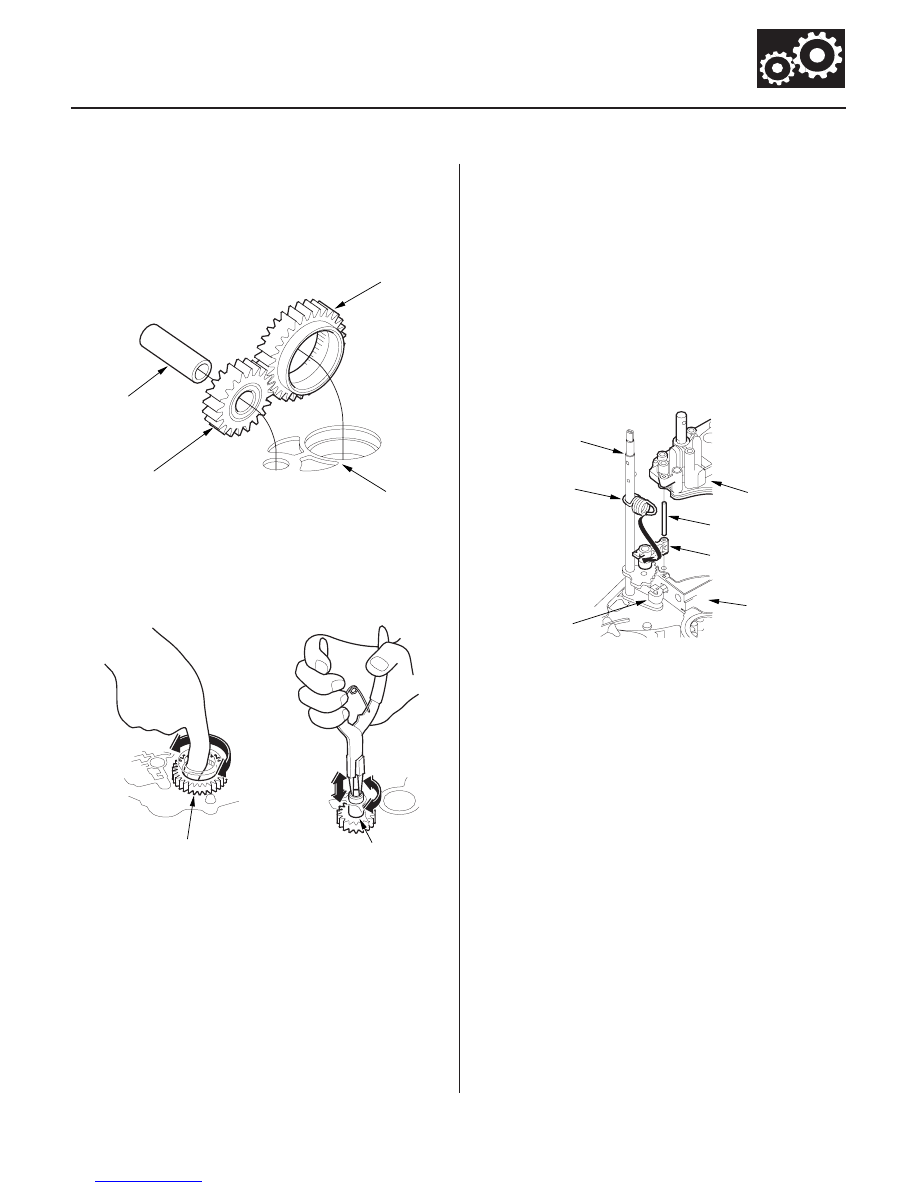

1. Install the main separator plate (A) and three dowel

pins on the torque converter housing. Then install
the ATF pump drive gear (B), driven gear (C), and
ATF pump driven gear shaft (D). Install the ATF
pump driven gear with its grooved and chamfered
side facing down.

2. Install the main valve body (one 6 mm bolt and

three 8 mm bolts). Make sure the ATF pump drive
gear (B) rotates smoothly in the normal operating
direction, and the ATF pump driven gear shaft (D)
moves smoothly in the axial and normal operating
direction.

3. If the ATF pump drive gear and ATF pump driven

gear shaft do not move smoothly, loosen the main
valve body bolts. Realign the ATF pump driven
gear shaft, and retighten the bolts to the specified
torque, then recheck. Failure to align the ATF pump
driven gear shaft correctly will result in a seized
ATF pump drive gear or ATF pump driven gear
shaft.

4. Install the torque converter check valve and spring,

and the cooler check valve and spring on the main
valve body, then install the two dowel pins and the
regulator separator plate.

5. Install the stator shaft and stator shaft stop.

6. Install the regulator valve body (eight bolts).

7. Install the two dowel pins and the servo separator

plate on the main valve body.

8. Install the control shaft (A) in the torque converter

housing along with the manual valve (B).

9. Install the detent arm (C) and arm shaft (D) in the

main valve body (E), then hook the detent arm
spring (F) to the detent arm.

10. Install the servo body (G) (five bolts).

11. Install the top accumulator separator plate with two

dowel pins on the servo body, then install the top
accumulator body (seven bolts).

12. Install the ATF strainer (two bolts).

13. Install the servo detent base (two bolts).

14. Install the accumulator body (seven bolts).

15. Install the one ATF feed pipe in the servo body, four

pipes in the regulator valve body, four pipes in the
top accumulator body, and one pipe in the
accumulator body.

03/07/29 09:46:15 61S0X050_140_0468
