Special Tools Required

14-458

Shafts and Clutches

Clutch Reassembly

A

B

A

A

B

A

B

A

B

• Clutch spring compressor attachment

07LAE-PX40100

• Clutch spring compressor attachment

07HAE-PL50101

• Clutch spring compressor bolt assembly

07GAE-PG40200 or 07GAE-PG4020A

• Clutch compressor attachment

07ZAE-PRP0100

Note these items during reassembly:

• Clean all parts thoroughly in solvent or carburetor

cleaner, and dry them with compressed air.

• Blow out all passages.
• Apply ATF to all parts before assembly.

1. Soak the clutch discs thoroughly in ATF for a

minimum of 30 minutes.

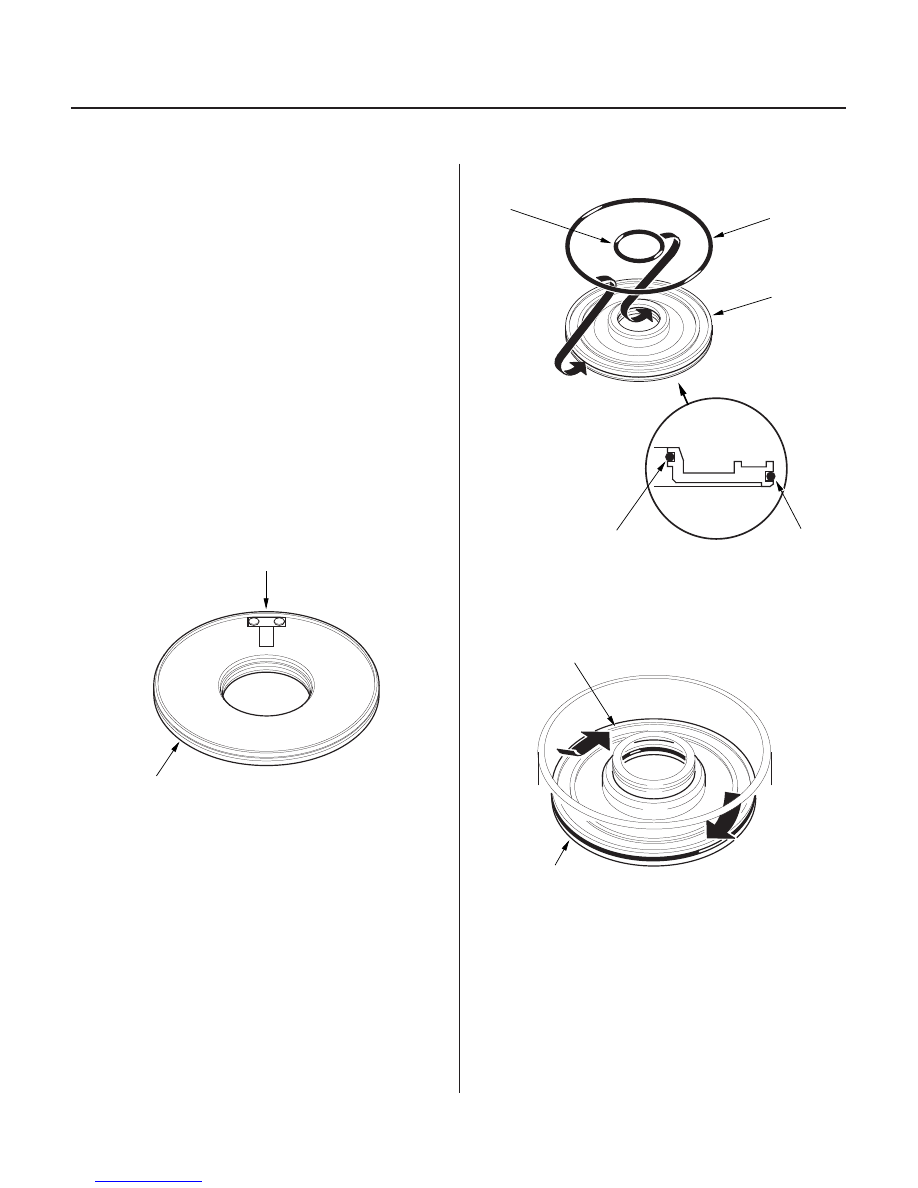

2. Inspect the check valve (A) on the clutch pistons (B)

except 1st-hold clutch; if it’s loose or stuck, replace
the piston.

3. Install new O-rings (A) on the piston (B).

4. Install the piston (A) in the clutch drum (B). Apply

pressure and rotate to ensure proper seating.
Lubricate the piston O-ring with ATF before
installing. Do not pinch the O-ring by installing the
piston with too much force.

03/07/29 09:46:09 61S0X050_140_0461

*04

*05

*06

*07

1st-hold Clutch Plate B-to-Top-disc Clearance
Service Limit: 0.5

0.9 mm (0.020

0.035 in.)

14-459

C

A

B

C

B

A

07GAE-PG40200 or
07GAE-PG4020A

07LAE-PX40100 or
07HAE-PL50101

07LAE-PX40100

A

B

5. Check the 1st-hold clutch plate-to-top-disc

clearance; starting with a clutch plate, alternately
install the clutch plate and discs in the 1st-hold
clutch drum, then install the 1st-hold clutch plate.

6. Measure the 1st-hold clutch clearance between the

1st-hold clutch plate B and the top disc (A) with a
feeler gauge (C) while pressing the 1st-hold clutch
plate B down. Take measurements in at least three
places, and use the average as the actual clearance.

7. If the clearance is out of standard, replace the 1st-

hold clutch plates and discs as a set, and recheck.

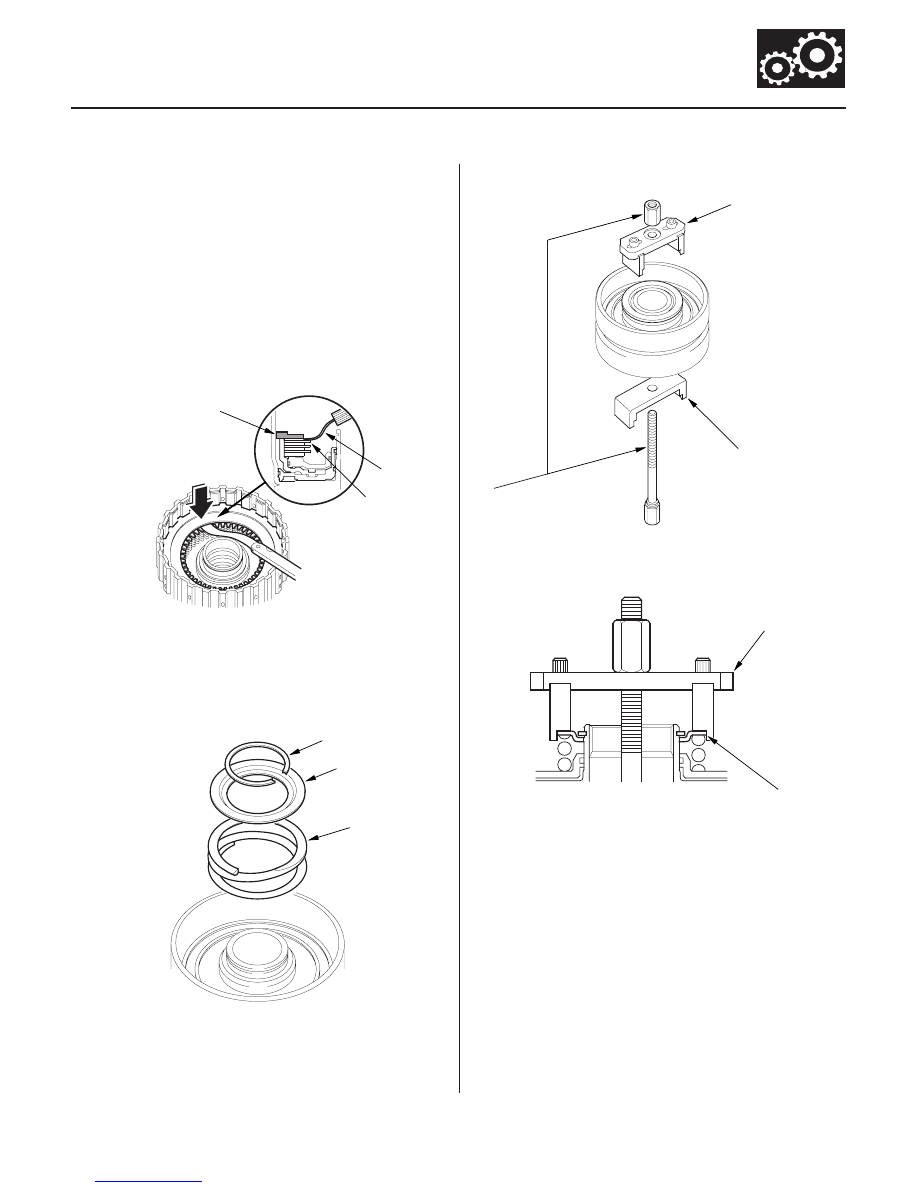

8. Install the return spring (A) and spring retainer (B),

and position the snap ring (C) on the retainer.

9. Install the special tools on the clutch assembly.

10. Be sure the special tool (A) is adjusted to have full

contact with the spring retainer (B) on the 4th, 5th,
and 1st clutches.

(cont’d)

03/07/29 09:46:10 61S0X050_140_0462

*08

*09

*10

*11

14-460

Shafts and Clutches

Clutch Reassembly (cont’d)

A

B

C

A

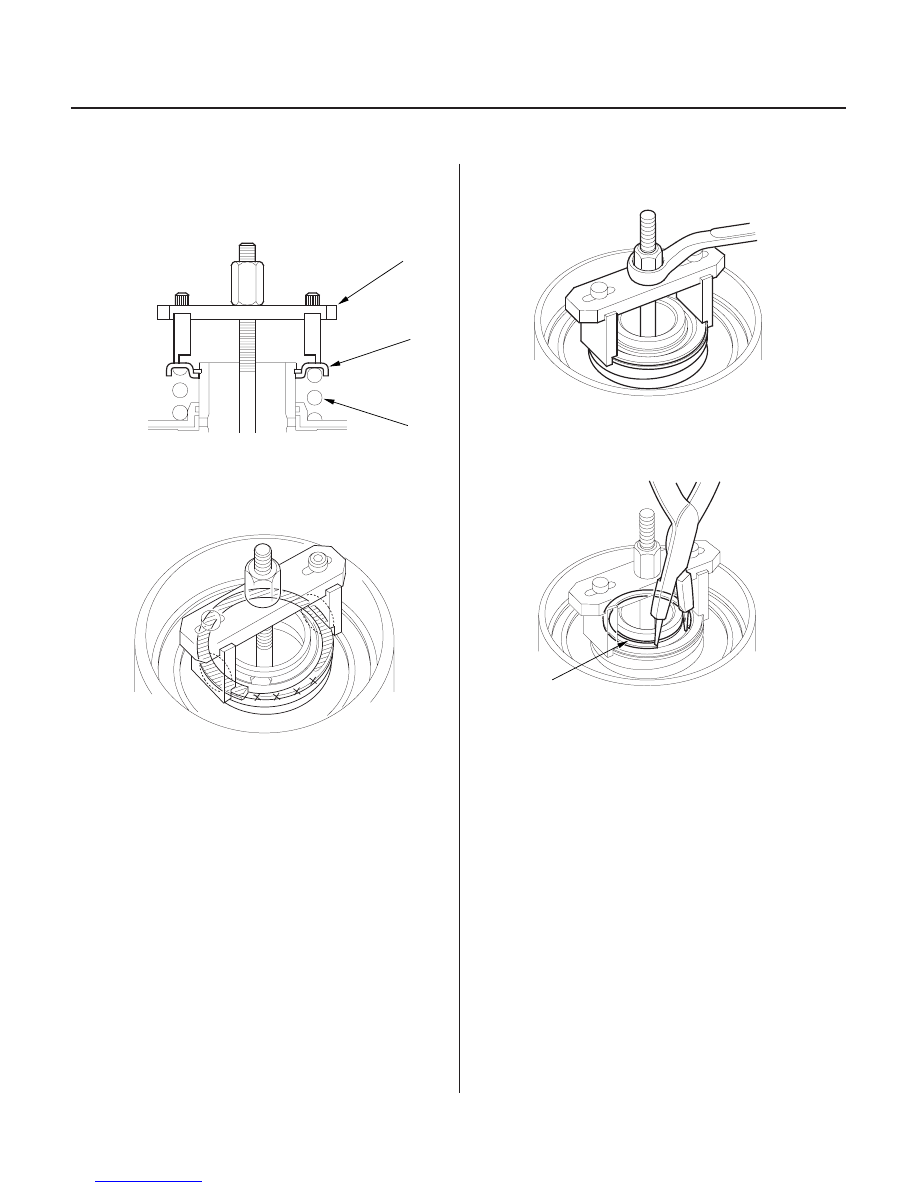

11. Set the special tool (A) on the spring retainer (B) of

the 2nd and 3rd clutches so the tool works on the
clutch return spring (C).

12. If either end of the special tool is set over an area of

the spring retainer which is unsupported by the
return spring, the retainer may be damaged.

13. Compress the return spring.

14. Install the snap ring (A).

15. Remove the special tools.

03/07/29 09:46:11 61S0X050_140_0463

*12

*13

*14

*15

14-461

A

B

B

A

A

B

C

16. Install the disc spring in the 1st, 3rd, 4th, and 5th

clutches in the direction shown.

NOTE: The 2nd clutch and 1st-hold clutch do not
have a disc spring.

17. Make sure the inside of the clutch drum is free of

dirt and other foreign particles.

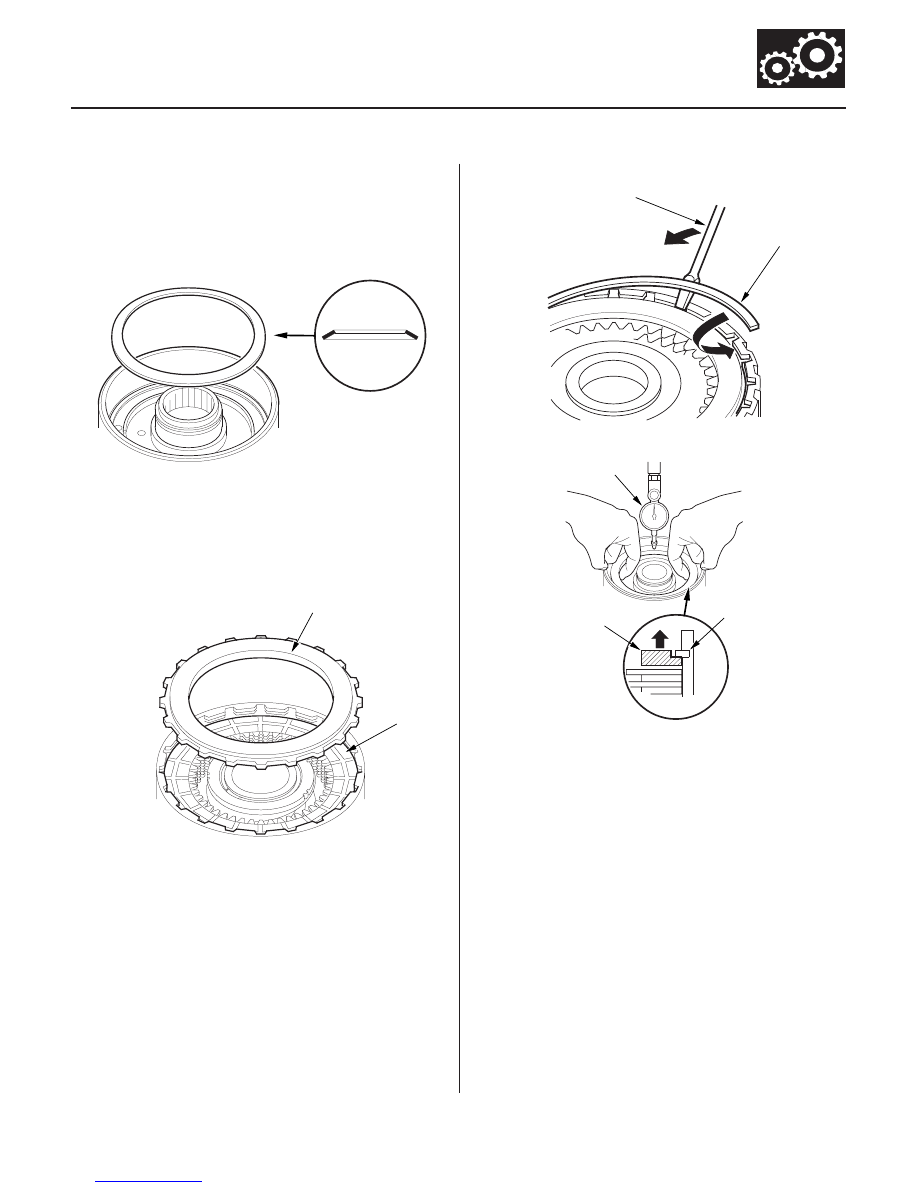

18. Starting with a clutch plate, alternately install the

clutch plates and discs. Install the clutch end plate
(A) with the flat side toward the disc (B).

19. Install the snap ring (A) with a screwdriver (B).

20. Set a dial indicator (A) on the clutch end plate (B).

21. Zero the indicator with the clutch end plate lifted up

to the snap ring (C).

(cont’d)

03/07/29 09:46:12 61S0X050_140_0464
