Special Tools Required

14-438

Torque Converter Housing

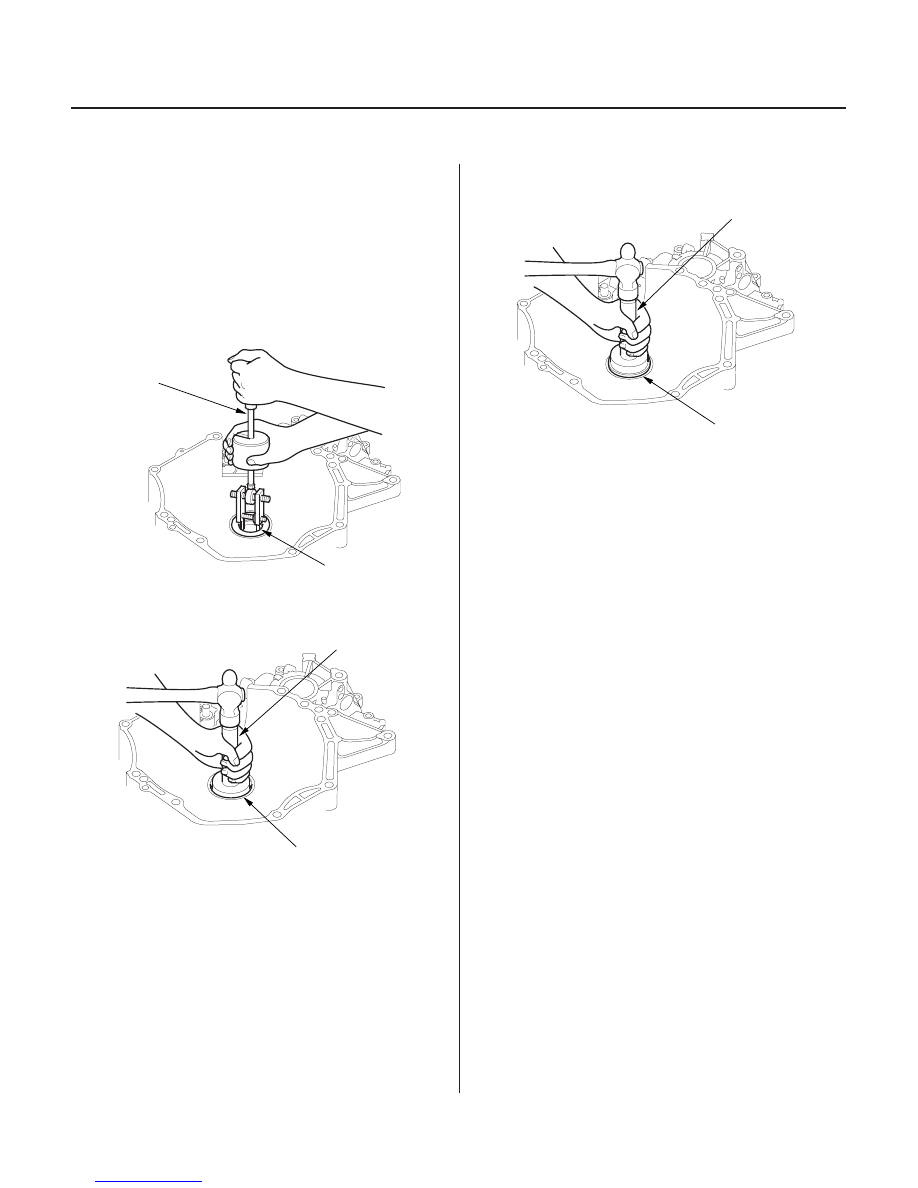

Mainshaft Bearing and Oil Seal Replacement

A

07736-A01000B or
07736-A01000A

07749-0010000

07746-0010500

07749-0010000

07746-0010600

• Adjustable bearing puller, 25

40 mm

07736-A01000B or 07736-A01000A

• Driver 07749-0010000
• Attachment, 62 x 68 mm 07746-0010500
• Attachment, 72 x 75 mm 07746-0010600

1. Remove the mainshaft bearing and oil seal with the

special tools and a commercially available 3/8’’-16
slide hammer (A).

2. Install the new mainshaft bearing until it bottoms in

the housing with the special tools.

3. Install the new oil seal flush to the housing with the

special tools.

03/07/29 09:45:55 61S0X050_140_0441

*01

*02

S0X4AA1E10410917424KBAT00

*01

*02

S0X4AA1E10411354202KBAT00

Special Tools Required

Special Tools Required

14-439

14-439

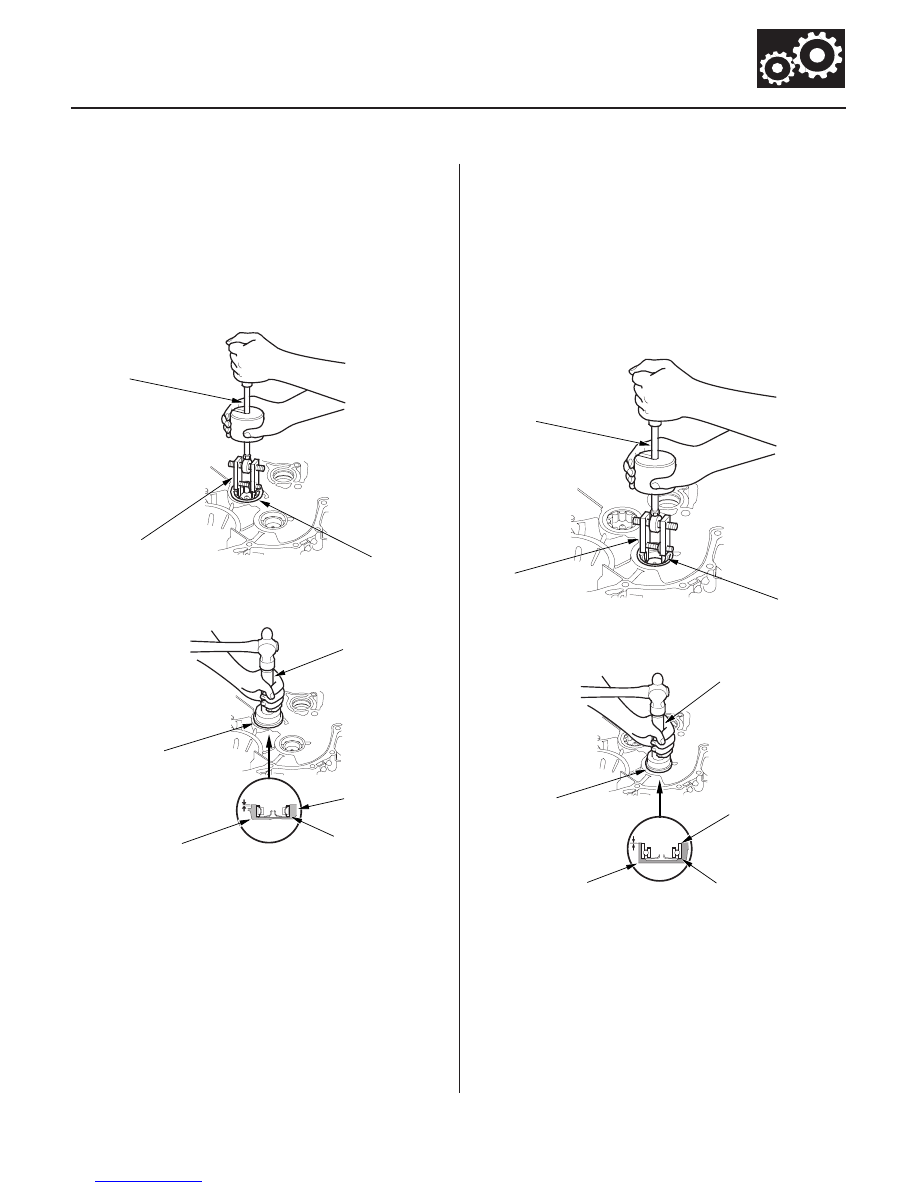

Countershaft Bearing Replacement

Secondary Shaft Bearing
Replacement

07736-A01000B or
07736-A01000A

A

B

07746-0010500

0

0.03 mm

(0

0.001 in.)

A

B

C

07749-0010000

07736-A01000B or
07736-A01000A

A

B

07947-6340500

07749-0010000

0

0.03 mm

(0

0.001 in.)

C

A

B

• Adjustable bearing puller, 25

40 mm

07736-A01000B or 07736-A01000A

• Driver 07749-0010000
• Attachment, 62 x 68 mm 07746-0010500

1. Remove the countershaft bearing (A) with the

special tools and a commercially available 3/8’’-16
slide hammer (B).

2. Install the ATF guide plate (A).

3. Install the new bearing (B) into the housing (C) with

the special tools.

• Adjustable bearing puller, 25

40 mm

07736-A01000B or 07736-A01000A

• Driver 07749-0010000
• Driver attachment 07947-6340500

1. Remove the secondary shaft bearing (A) with the

special tools and a commercially available 3/8’’-16
slide hammer (B).

2. Install the ATF guide plate (A).

3. Install the new bearing (B) into the housing (C) with

the special tools.

03/07/29 09:45:56 61S0X050_140_0442

01

02

S0X4AA1E10410417258KBAT00

Special Tools Required

14-440

Torque Converter Housing

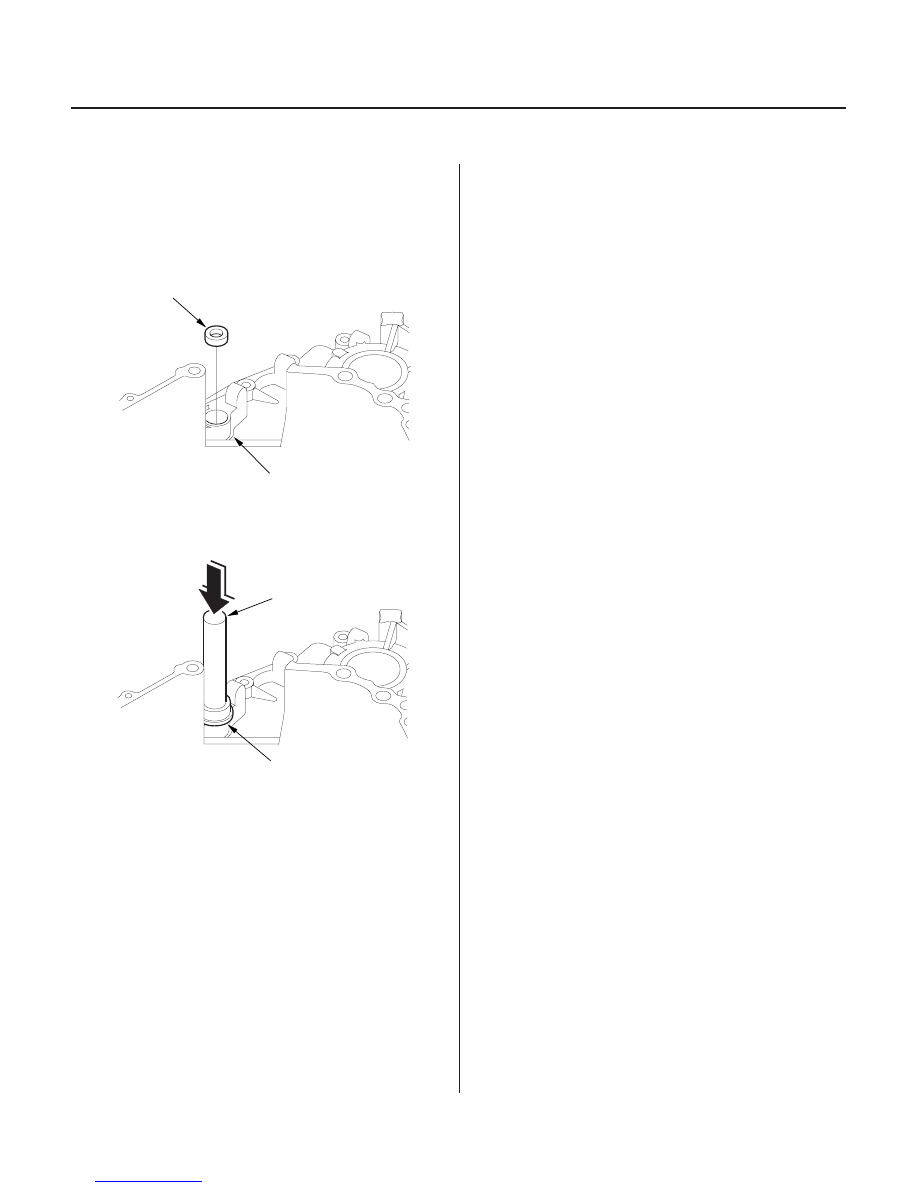

Control Shaft Oil Seal Replacement

A

B

07749-0010000

07746-0010800

• Driver 07749-0010000
• Attachment, 22 x 24 mm 07746-0010800

1. Remove the oil seal (A), from the torque converter

housing (B).

2. Install the new oil seal flush to the torque converter

housing with the special tools.

03/07/29 09:45:56 61S0X050_140_0443

01

S0X4AA1E10411200000MEAT00

→ →

14-441

Shafts and Clutches

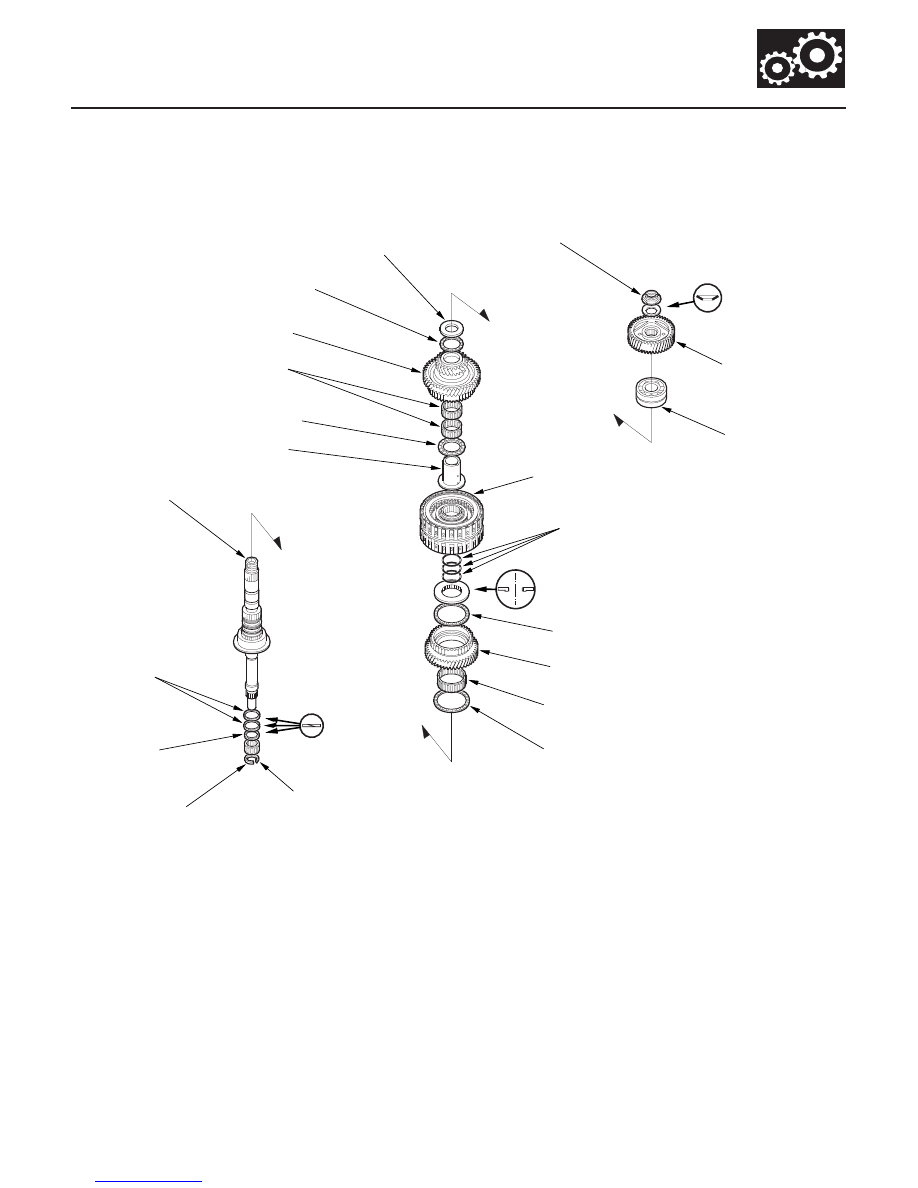

Mainshaft Disassembly, Inspection, and Reassembly

THRUST WASHER,
27 x 47 x 5 mm

226 N·m (23.0 kgf·m, 166 lbf·ft)

0

167 N·m (17.0 kgf·m, 123 lbf·ft)

CONICAL SPRING
WASHER

IDLER GEAR

TRANSMISSION
HOUSING BEARING

3RD/4TH CLUTCH ASSEMBLY

O-RINGS

THRUST SHIM, 41 x 73 mm

4TH GEAR

THRUST NEEDLE BEARING

4TH GEAR

4TH GEAR COLLAR

MAINSHAFT

SEALING RINGS,
32 mm

SEALING RING,
29 mm

SET RING

LOCKNUT (FLANGE NUT)

NEEDLE BEARINGS

THRUST NEEDLE BEARING

NEEDLE BEARING

THRUST NEEDLE BEARING

NEEDLE BEARING

THRUST NEEDLE BEARING

1. Lubricate all parts with ATF during assembly.

2. Check the clearance of the 4th/5th clutch assembly.

3. Inspect the thrust needle bearing and the needle bearing for galling and rough movement.

4. Inspect the splines for excessive wear and damage.

5. Check shaft bearing surfaces for scoring and excessive wear.

6. Before installing the O-rings, wrap the shaft splines with tape to prevent O-ring damage.

7. Install the conical spring washer and 41 x 73 mm thrust shim in the direction shown.

8. Inspect the condition of the sealing rings. If the sealing rings are worn, distorted, or damaged, replace them (see

page 14-443).

Replace.

Replace.

Selective part

Install sealing ring
mating surface as shown.

Replace.

03/07/29 09:45:57 61S0X050_140_0444
