Honda Odyssey 2004. Manual - part 257





01

S0X4AA1E10410413013KBAT00

14-422

Transmission End Cover

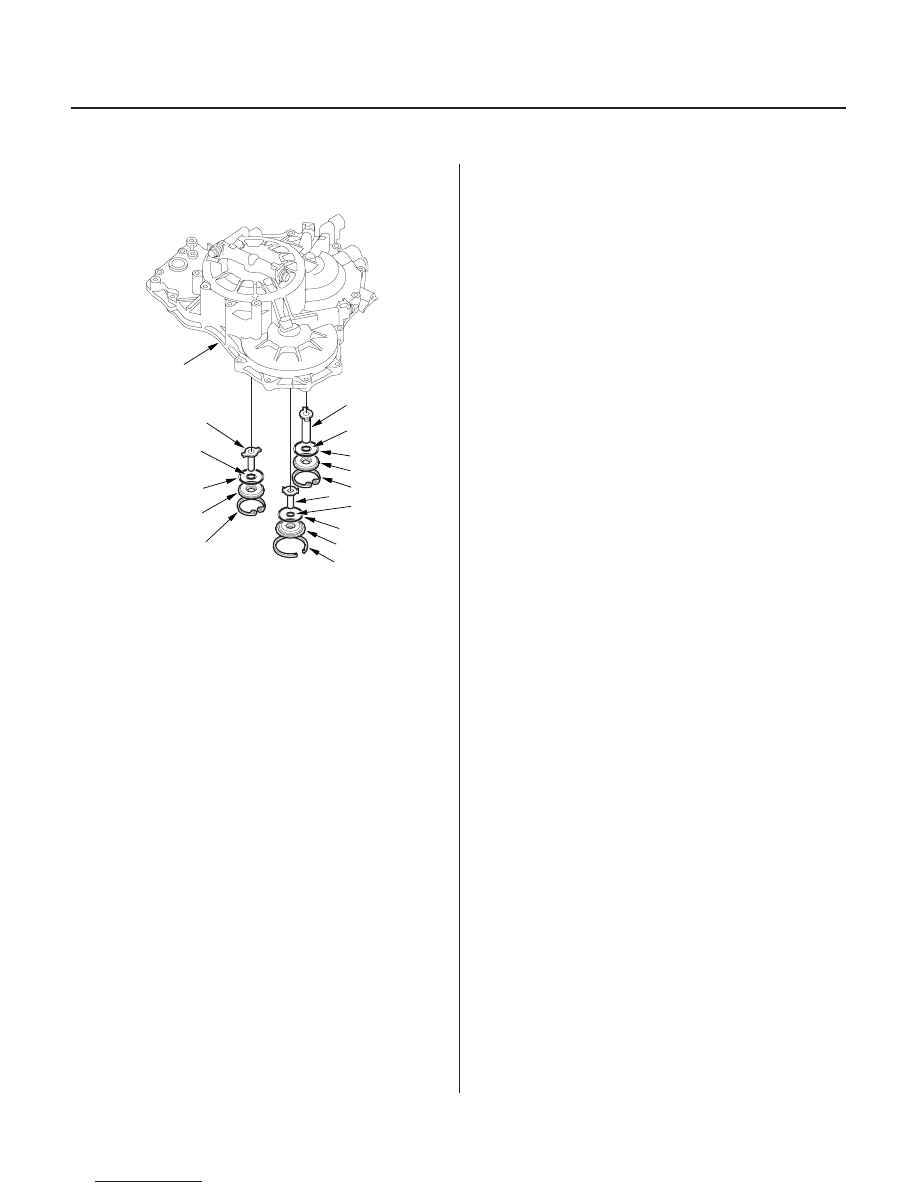

ATF Feed Pipe Replacement

D

B

E

F

C

A

B

E

F

C

A

B

E

F

C

A

1. Remove the snap rings (A), ATF feed pipes (B) and

feed pipe flanges (C) from the end cover (D).

2. Install the new O-ring (E) over the ATF feed pipe.

3. Install ATF feed pipe in the end cover with aligning

the feed pipe tabs with the indentations in the end
cover.

4. Install the new O-ring (F) in the end cover, then

install the feed pipe flange over the ATF feed pipe
and O-rings.

5. Secure the ATF feed pipe and feed pipe flange with

the snap ring.

03/07/29 09:45:44 61S0X050_140_0425

*01

S0X4AA1E10410459801KAAT00

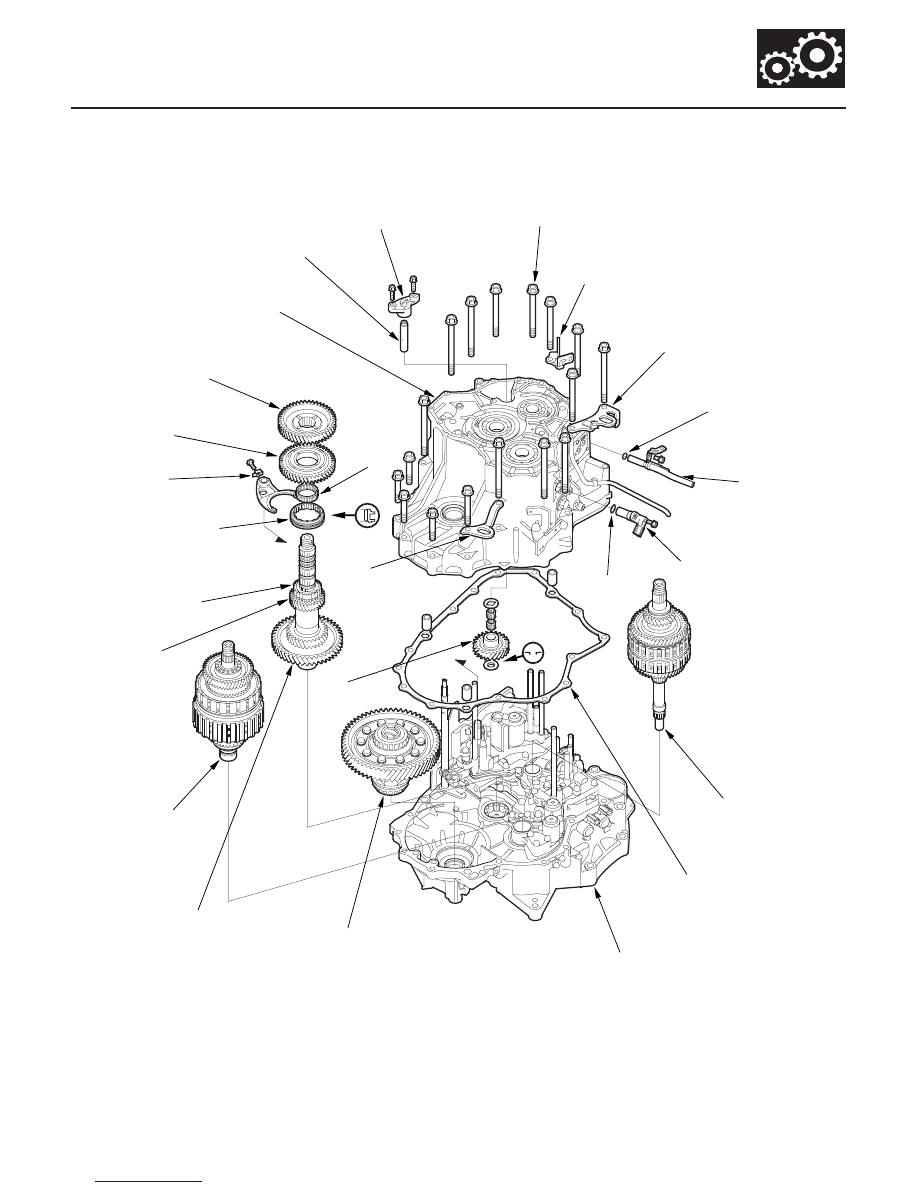

Exploded View

14-423

Transmission Housing

Housing and Shaft Assembly Removal

TRANSMISSION HOUSING
MOUNTING BOLTS

HARNESS CLAMP BRACKET

TRANSMISSION HANGER

TRANSMISSION HOUSING

TRANSMISSION
HANGER

REVERSE
IDLER GEAR

MAINSHAFT
SUBASSEMBLY

TORQUE CONVERTER HOUSING

DIFFERENTIAL ASSEMBLY

COUNTERSHAFT
SUBASSEMBLY

SECONDARY SHAFT
SUBASSEMBLY

COUNTERSHAFT
5TH GEAR

REVERSE SELECTOR HUB

REVERSE SELECTOR

COUNTERSHAFT
REVERSE GEAR

COUNTERSHAFT
2ND GEAR

REVERSE IDLER GEAR SHAFT

REVERSE IDLER GEAR
SHAFT HOLDER

LOCK WASHER

TRANSMISSION HOUSING
GASKET

ATF DIPSTICK
GUIDE PIPE

O-RING

O-RING

OUTPUT SHAFT
(COUNTERSHAFT)
SPEED SENSOR

NEEDLE
BEARING

(cont’d)

Replace.

Replace.

Replace.

Replace.

03/07/29 09:45:45 61S0X050_140_0426

*02

*03

*04

Special Tools Required

14-424

Transmission Housing

Housing and Shaft Assembly Removal (cont’d)

A

B

C

A

A

C

B

07HAC-PK40102

D

Housing puller 07HAC-PK40102

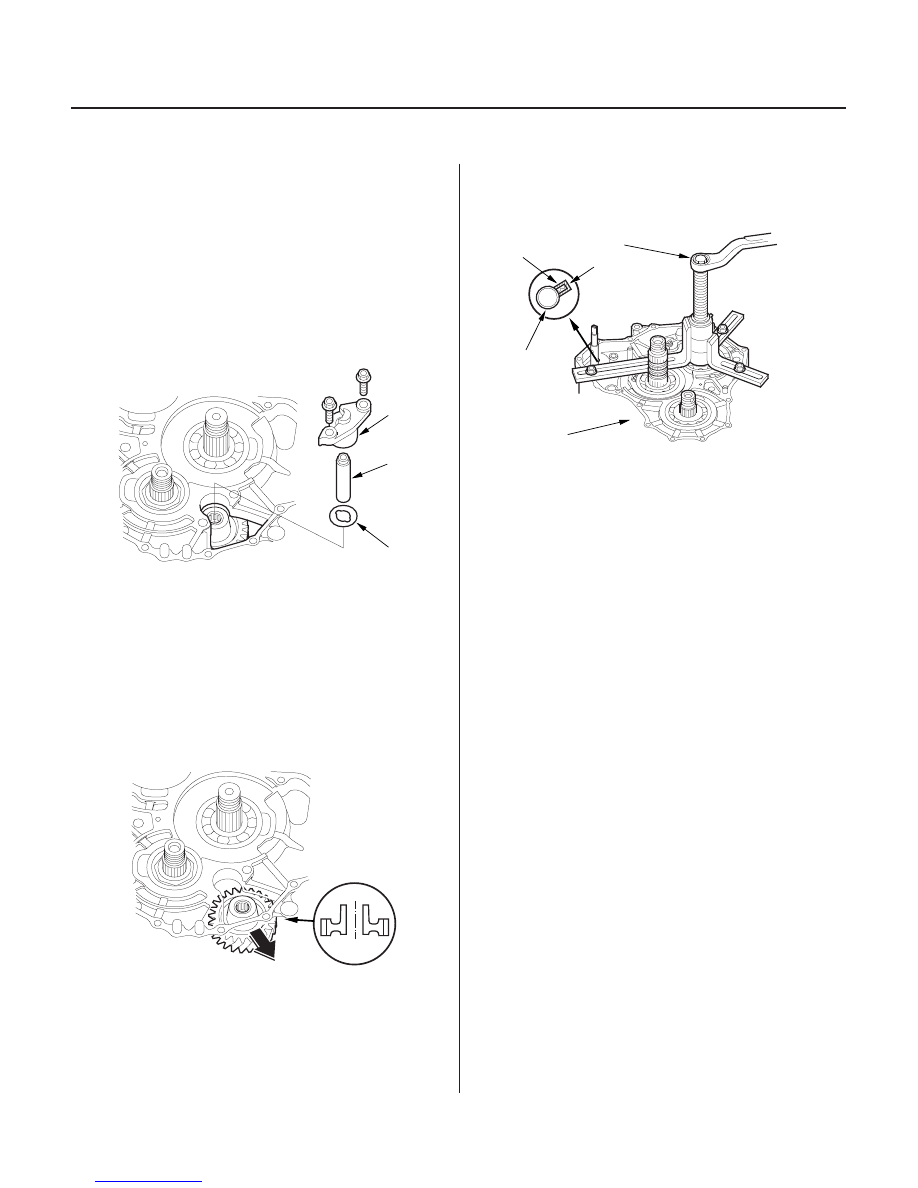

NOTE: Refer to the exploded view as needed during the
following procedure.

1. Remove the ATF dipstick guide pipe.

2. Remove the two bolts securing the reverse idler

gear shaft holder, then remove the reverse idler
gear shaft holder (A), shaft (B), and washer (C).

3. Remove the transmission housing mounting bolts,

transmission hangers, and harness clamp bracket.

4. Move the reverse idler gear (A) to disengage it from

the mainshaft and countershaft reverse gears.

NOTE: The transmission housing will not separate
from the torque converter housing if the reverse
idler gear is not moved.

5. Align the spring pin (A) on the control shaft (B) with

the transmission housing groove (C) by turning the
control shaft.

6. Install the special tool over the mainshaft, then

remove the transmission housing (D).

NOTE: If the top arm of your housing puller is too
short, replace it with Housing puller arm, 205 mm,
T/N 07SAC-P0Z0101.

7. Remove the reverse idler gear, needle bearings,

and thrust washer from the transmission housing.

8. Remove the countershaft 2nd gear, then remove

the countershaft reverse gear and the needle
bearing.

9. Remove the lock bolt securing the shift fork, then

remove the shift fork with the reverse selector.
If the reverse selector hub is not press-fitted,
remove the reverse selector hub, countershaft 5th
gear, and needle bearing from the countershaft.

10. Remove the secondary shaft subassembly. If the

reverse selector hub is press-fitted, remove the
secondary shaft subassembly, countershaft
subassembly and mainshaft subassembly together.

11. Remove the countershaft subassembly.

12. Remove the mainshaft subassembly.

13. Remove the differential assembly.

14. Remove the output shaft (countershaft) speed

sensor if necessary.

03/07/29 09:45:46 61S0X050_140_0427

*01

*02

*03

S0X4AA1E10410917423KDAT00

Special Tools Required

14-425

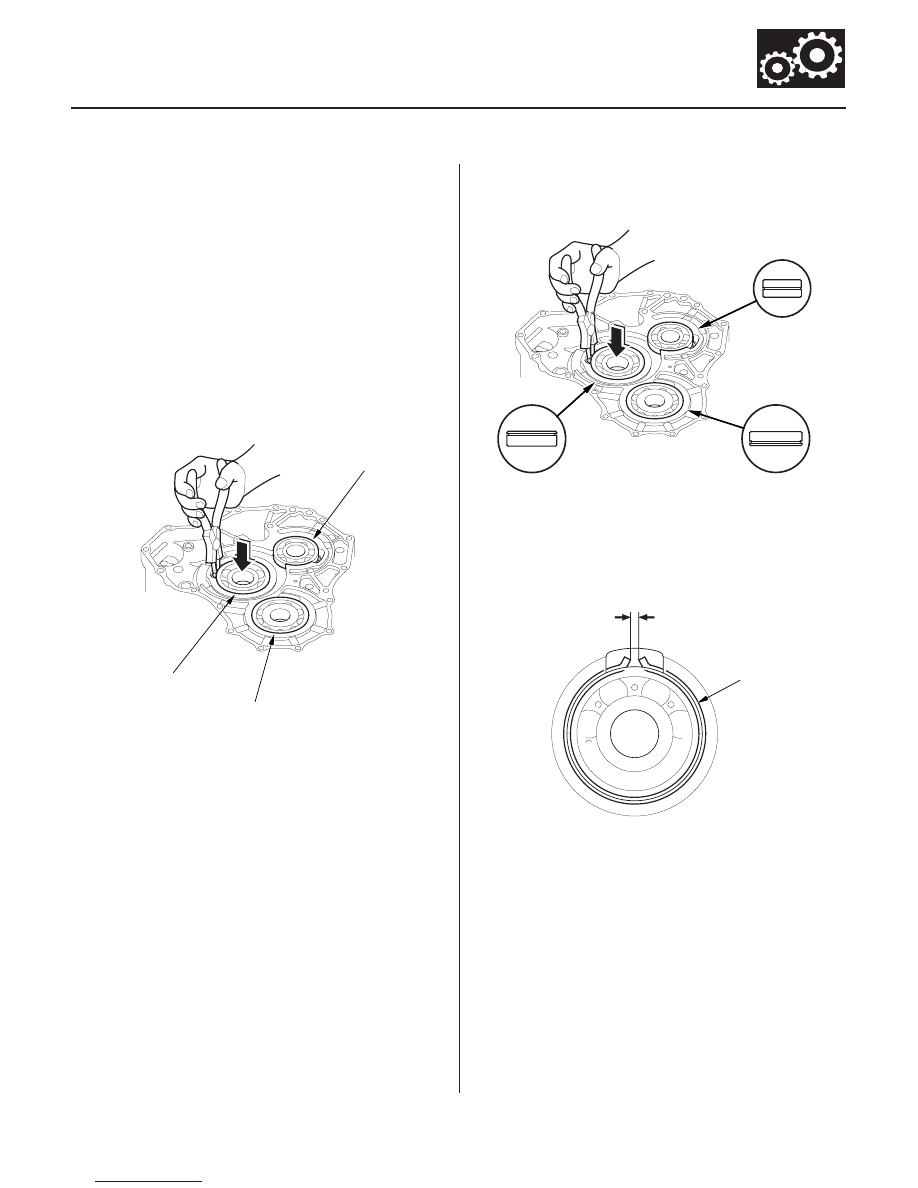

Bearing Removal and Installation

B

C

A

B

C

A

A

B : 0

7 mm

(0

0.28 in.)

• Driver 07749-0010000
• Seal driver attachment

07GAD-PG40101 or 07GAD-PG40100

• Attachment, 62 x 68 mm 07746-0010500
• Attachment, 72 x 75 mm 07746-0010600

NOTE: Coat all parts with ATF before assembly.

1. To remove the mainshaft bearing (A), countershaft

bearing (B), and secondary shaft bearing (C) from
the transmission housing, expand each snap ring
with the snap ring pliers, then push the bearing out.

NOTE: Do not remove the snap rings unless it’s
necessary to clean the grooves in the housing.

2. Install the bearings in the direction shown.

3. Expand each snap ring with the snap ring pliers,

and insert the bearing part-way into the housing.

4. Release the pliers, then push the bearing down into

the housing until the snap ring snaps in place
around it.

5. After installing the bearings verify the following:

• The snap rings (A) are seated in the bearing and

housing grooves.

• The ring end gaps (B) are correct.

03/07/29 09:45:47 61S0X050_140_0428
