Honda Odyssey 2004. Manual - part 238





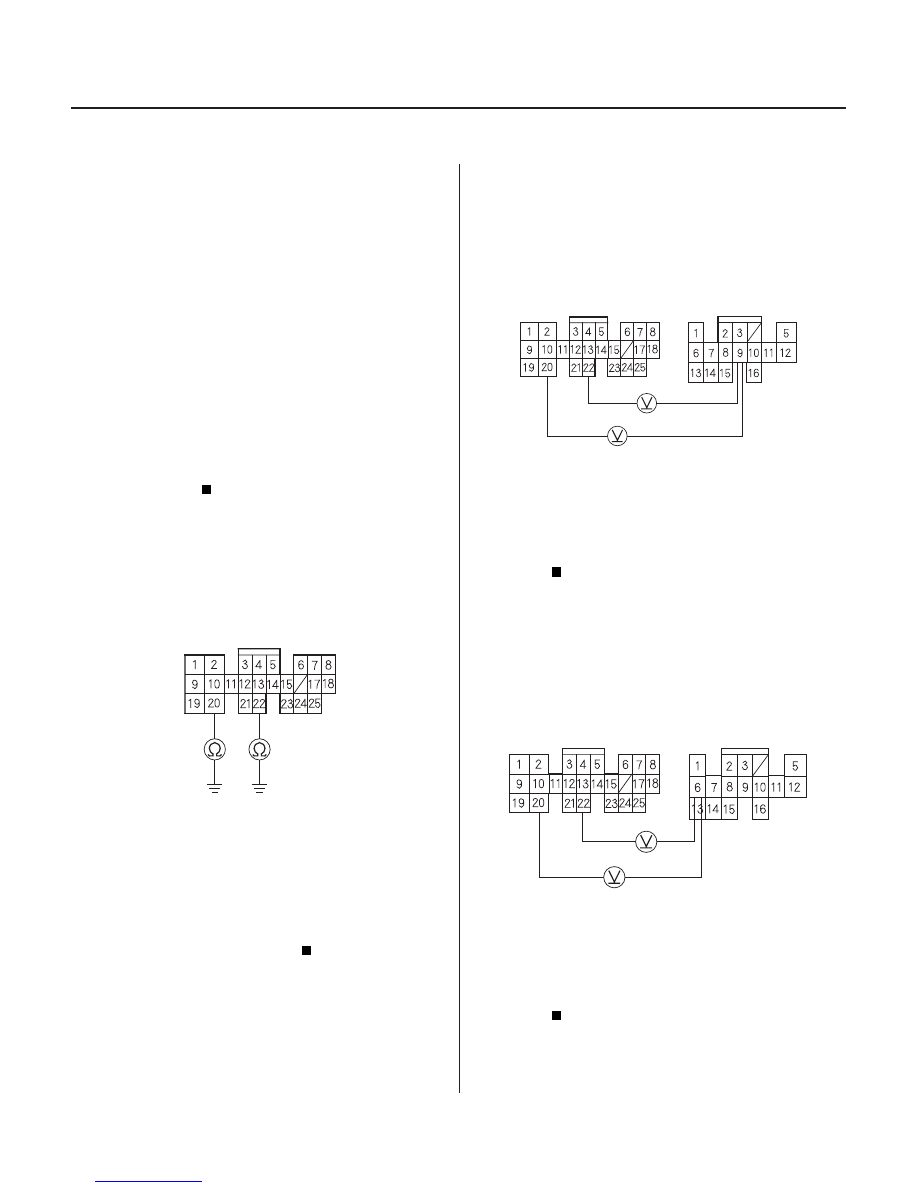

*01

01

02

S0X4AA1K77100091706FAAT00

DTC P1706:

YES

NO

YES

NO

YES

NO

YES

NO

14-346

Automatic Transmission

DTC Troubleshooting (cont’d)

PCM CONNECTOR B (25P)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

LG2 (BRN/YEL)

ATP R (WHT)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

LG2 (BRN/YEL)

ATP D5 (YEL)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

Open in Transmission Range

Switch Circuit

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-247)
before you troubleshoot.

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Test the transmission range switch (see page 14-

403).

Go to step 2.

Replace the transmission range switch (see

page 14-404).

2. Turn the ignition switch OFF.

3. Check for continuity between PCM connector

terminals B20 and body ground, and between B22
and body ground.

Go to step 4.

Repair open in the wire between PCM

connector terminals B20, B22, and ground (G101),
or repair poor ground (G101).

4. Turn the ignition switch ON (II).

5. Shift to the D position.

6. Measure the voltage between PCM connector

terminals D9 and B20 or B22 .

Repair open in the wire between PCM

connector terminal D9 and the transmission range
switch.

Go to step 7.

7. Shift to the R position.

8. Measure the voltage between PCM connector

terminals D6 and B20 or B22 .

Repair open in the wire between PCM

connector terminal D6 and the transmission range
switch.

Go to step 9.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is the switch OK ?

Is ther e continuity?

Is ther e voltage?

Is ther e voltage?

03/07/29 09:39:14 61S0X050_140_0349

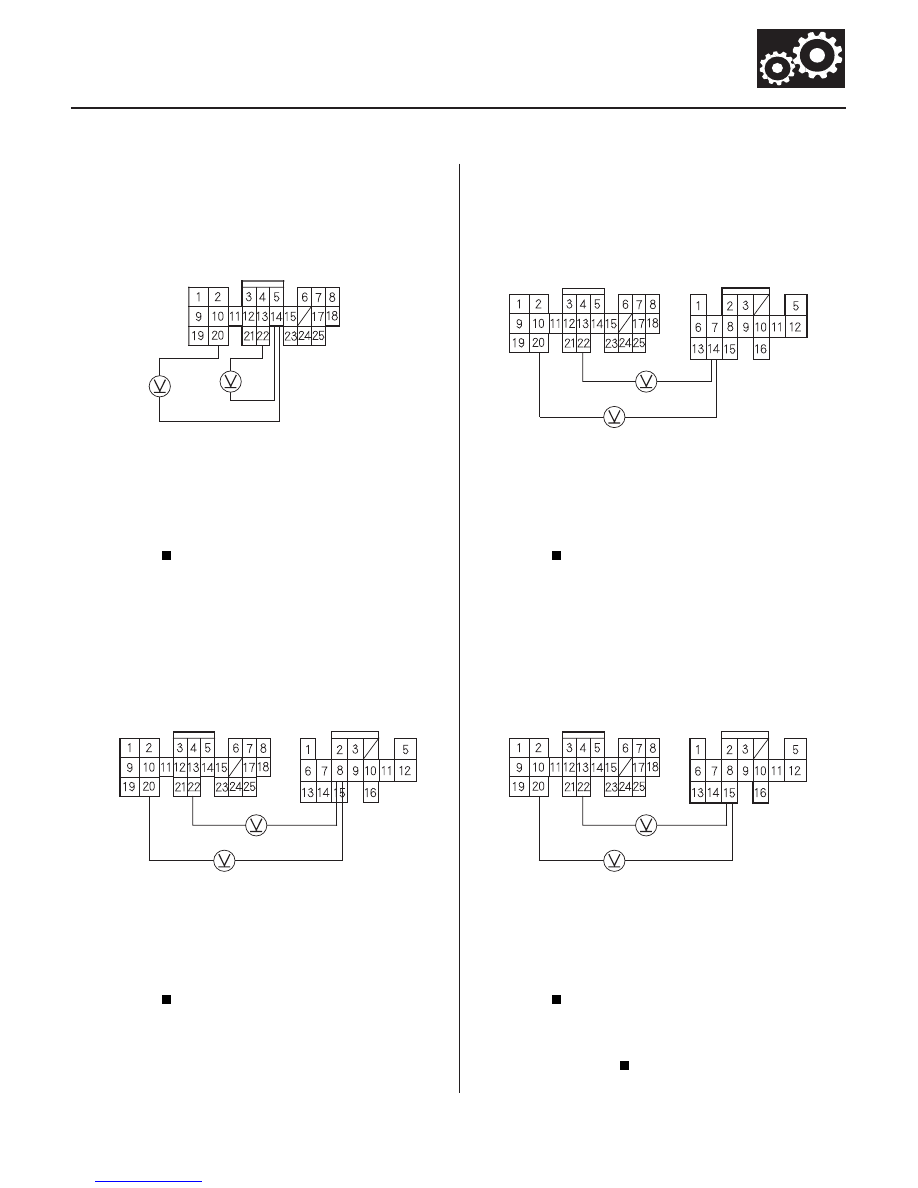

*02

03

04

05

YES

NO

YES

NO

YES

NO

YES

NO

14-347

LG2 (BRN/YEL)

LG1 (BRN/YEL)

ATP NP (BLU/WHT)

PCM CONNECTOR B (25P)

LG2 (BRN/YEL)

ATP D3 (RED)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

LG2 (BRN/YEL)

ATP 2 (BLU)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

LG2 (BRN/YEL)

ATP 1 (BRN)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

9. Shift to the P and N position.

10. Measure the voltage between PCM connector

terminals B14 and B20 or B22.

Repair open in the wire between PCM

connector terminal B14 and the transmission range
switch.

Go to step 11.

11. Shift to the D3 position.

12. Measure the voltage between PCM connector

terminals D8 and B20 or B22.

Repair open in the wire between PCM

connector terminal D8 and the transmission range
switch.

Go to step 13.

13. Shift to the 2 position.

14. Measure the voltage between PCM connector

terminals D14 and B20 or B22.

Repair open in the wire between PCM

connector terminal D14 and the transmission range
switch.

Go to step 15.

15. Shift to the 1 position.

16. Measure the voltage between PCM connector

terminals D15 and B20 or B22.

Repair open in the wire between PCM

connector terminal D15 and the transmission range
switch.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e voltage?

Is ther e voltage?

Is ther e voltage?

Is ther e voltage?

03/07/29 09:39:15 61S0X050_140_0350

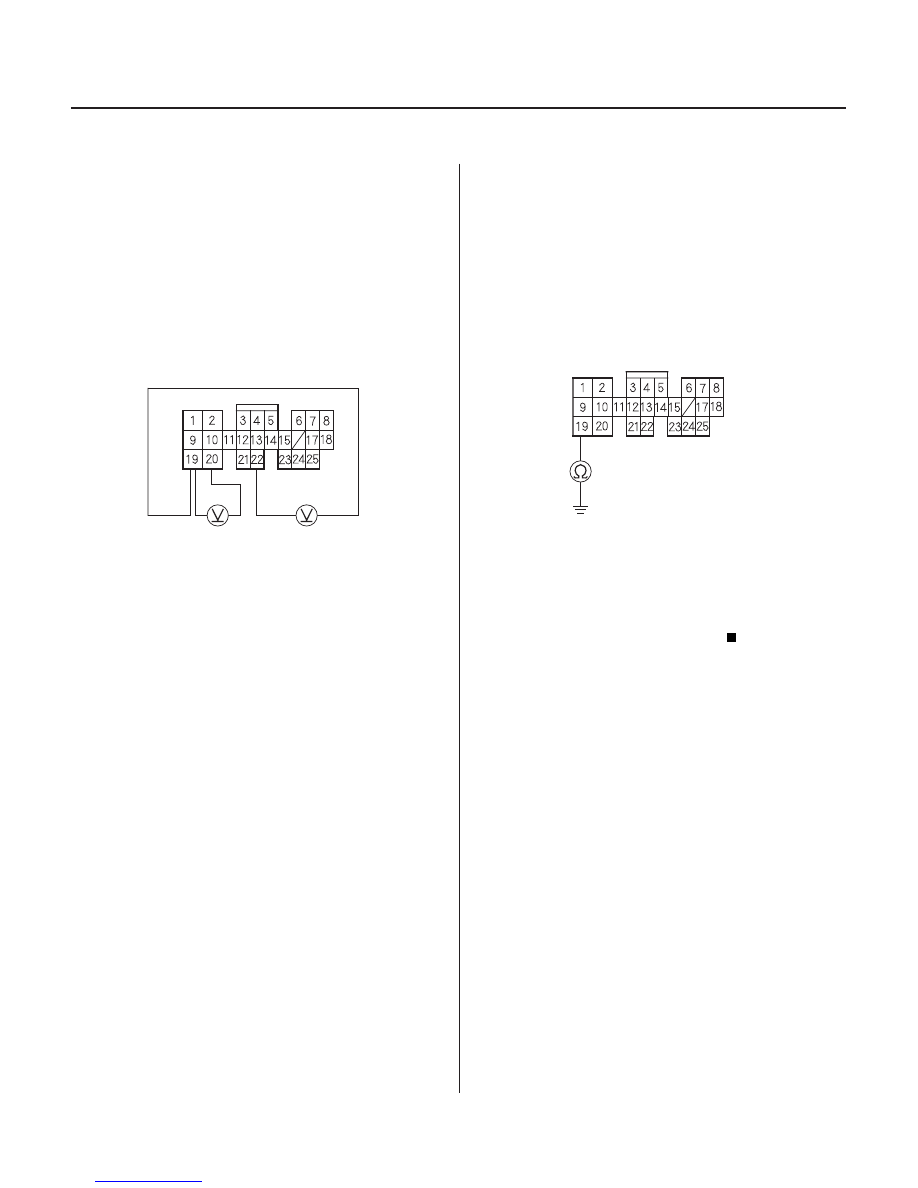

*01

*02

S0X4AA1K77100091740FAAT00

DTC P1740:

YES

NO

YES

NO

14-348

Automatic Transmission

DTC Troubleshooting (cont’d)

PCM CONNECTOR B (25P)

OP4SW
(BLU/YEL)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

PCM CONNECTOR B (25P)

OP4SW (BLU/YEL)

Problem in 4th Clutch

Transmission Fluid Pressure Switch Circuit

NOTE: Record all freeze data and review General
Troubleshooting Information (see page 14-247) before
you troubleshoot.

1. Turn the ignition switch ON (II).

2. Measure the voltage between PCM connector

terminals B19 and B20 or B22.

Go to step 7.

Go to step 3.

3. Turn the ignition switch OFF.

4. Disconnect PCM connector B (25P).

5. Disconnect the 4th clutch transmission fluid

pressure switch connector.

6. Check for continuity between PCM connector

terminal B19 and body ground.

Repair short to ground in the wire between

PCM connector terminal B19 and the 4th clutch
transmission fluid pressure switch.

Disconnect the 4th clutch transmission fluid

pressure switch connector, and go to step 15.

Wire side of female terminals

Wire side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

03/07/29 09:40:09 61S0X050_140_0351

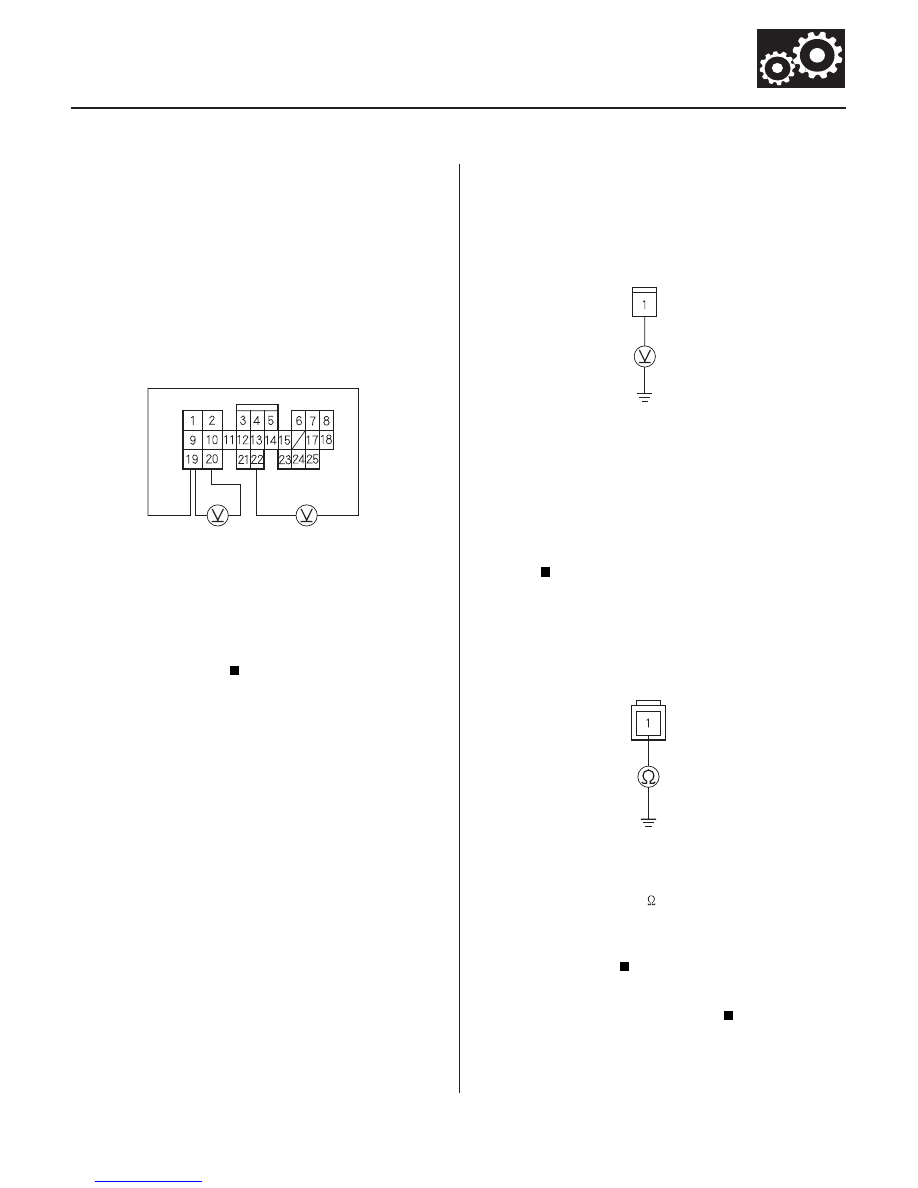

*03

*04

*05

YES

NO

YES

NO

YES

NO

14-349

PCM CONNECTOR B (25P)

OP4SW
(BLU/YEL)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

BLU/YEL

4TH CLUTCH TRANSMISSION FLUID
PRESSURE SWITCH CONNECTOR

4TH CLUTCH TRANSMISSION FLUID
PRESSURE SWITCH CONNECTOR

7. Raise the front of the vehicle, and make sure it is

securely supported.

8. Set the park brake, and block the rear wheels

securely.

9. Start the engine, then shift to the D position and let

the wheels spin in 4th gear for more than 5 seconds.

10. Measure the voltage between PCM connector

terminals B19 and B20 or B22.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Go to step 11.

11. Turn the ignition switch OFF.

12. Disconnect the 4th clutch transmission fluid

pressure switch connector.

13. Turn the ignition switch ON (II).

14. Measure the voltage between the 4th clutch

transmission fluid pressure switch connector
terminal and body ground.

Go to step 15.

Repair open in the wire between the 4th

clutch transmission fluid pressure switch and the
PCM.

15. Measure the resistance between the 4th clutch

transmission fluid pressure switch connector
terminal and body ground.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Replace the 4th clutch transmission fluid

pressure switch (see page 14-365).

Wire side of female terminals

Wire side of female terminal

Terminal side of male terminal

Is ther e about 0 V ?

Is ther e batter y voltage?

Is the r esistance 10 M

or mor e?

03/07/29 09:40:10 61S0X050_140_0352
