Honda Odyssey 2004. Manual - part 192





01

01

03

S0X4AA0E10411412281MBAT00

14-162

Automatic Transmission

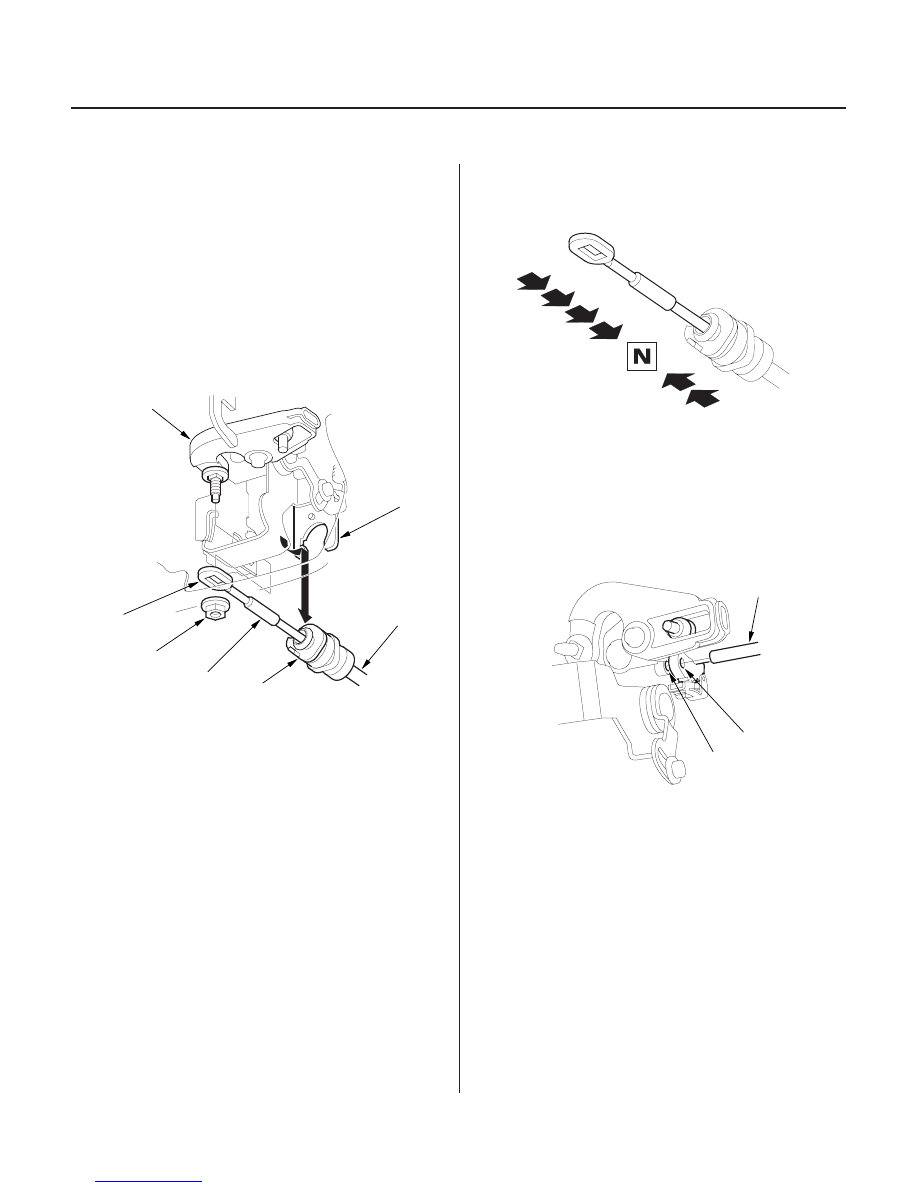

Shift Cable Adjustment

D

B

A

G

E

C

F

A

B

C

SRS components are located in this area. Review the
SRS component locations (see page 23-18), and the
precautions and procedures (see page 23-21) in the SRS
before performing repairs or service.

1. Remove the steering column covers (see page 17-

25).

2. Shift the transmission into the N position.

3. Remove the nut (A) securing the shift cable end (B),

then separate the shift cable (C) from the shift lever
assembly (D).

4. Rotate the socket holder (E) on the shift cable

counterclockwise a quarter turn, then slide the
holder to remove the shift cable from the shift cable
bracket (F).

NOTE: Do not remove the shift cable by twisting
the shift cable guide (G).

5. Push the shift cable until it stops, then release it.

Pull the shift cable back two steps so that the shift
lever position is in the N.

6. Turn the ignition switch ON (II), and verify that the

N position indicator comes on.

7. Turn the ignition switch OFF.

8. Insert a 6.0 mm (0.24 in.) pin (A) through the

positioning hole (B) on the detent plate and into the
positioning hole (C) on the control bracket.

03/07/29 09:33:58 61S0X050_140_0165

02

04

03

14-163

E

D

G

F

H

A

B

C

Properly Installed:

Improperly Installed:

A

B

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

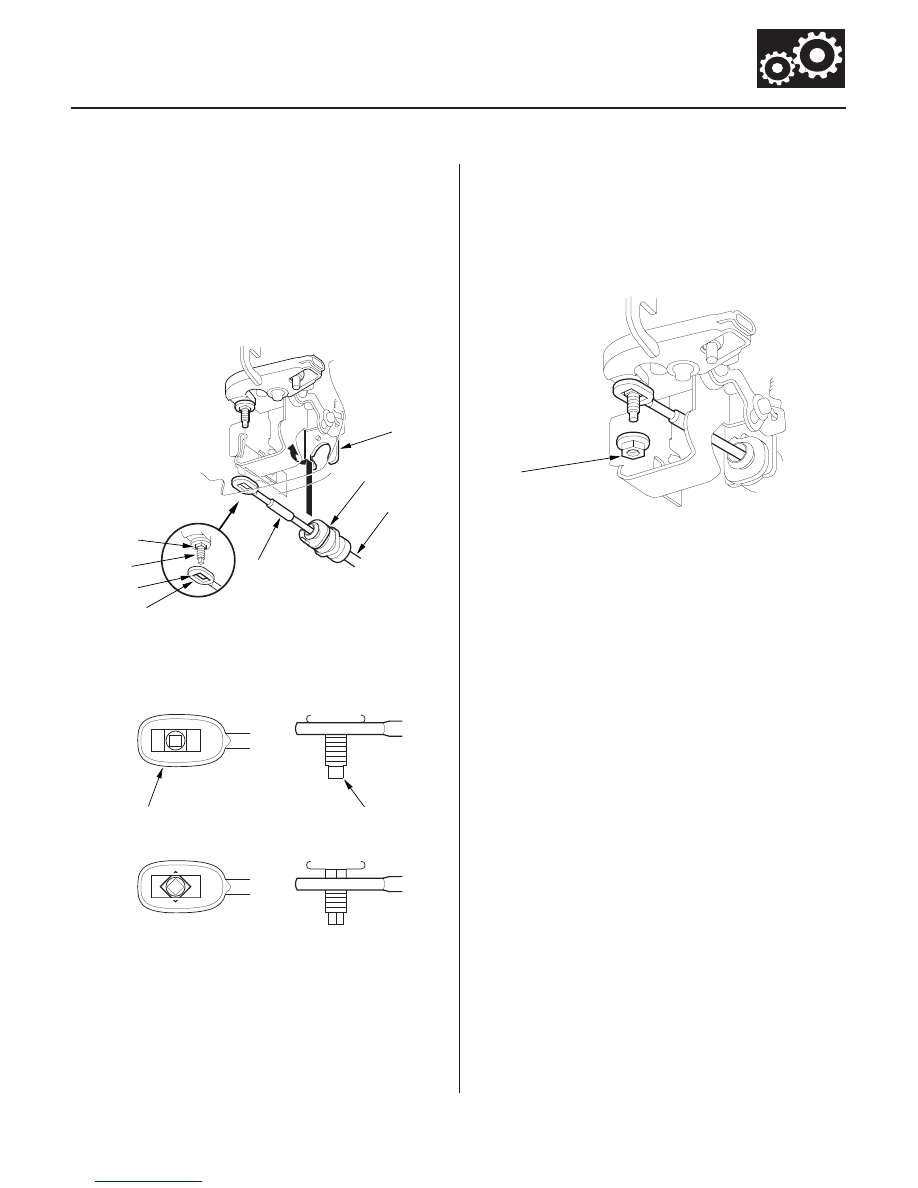

9. Align the socket holder (A) on the shift cable (B)

with the slot in the shift cable bracket (C), then slide
the holder into the bracket. Install the shift cable
end (D) over the mounting stud (E) by aligning its
square hole (F) with the square fitting (G) at the
bottom of the stud, and rotate the holder clockwise
a quarter turn to secure the shift cable.

NOTE: Do not install the shift cable by twisting the
shift cable guide (H).

10. Verify that the shift cable end (A) is properly

installed on the mounting stud (B).

11. If improperly installed, remove the shift cable from

the shift cable bracket, and reinstalled the shift
cable. Do not install the shift cable end on the
mounting stud while the shift cable is on the shift
cable bracket.

12. Install and tighten the nut to the specified torque.

13. Remove the 6.0 mm (0.24 in.) pin that was installed

to hold the shift lever.

14. Move the shift lever to each gear, and verify that

the A/T gear position indicator follows the
transmission range switch.

15. Push the shift lock release, and verify that the shift

lever releases.

Cable end rides on the bottom
of the mounting stud.

03/07/29 09:33:58 61S0X050_140_0166

*01

*02

S0X4AA0E10410700000DAAT00

14-164

A/T Gear Position Indicator

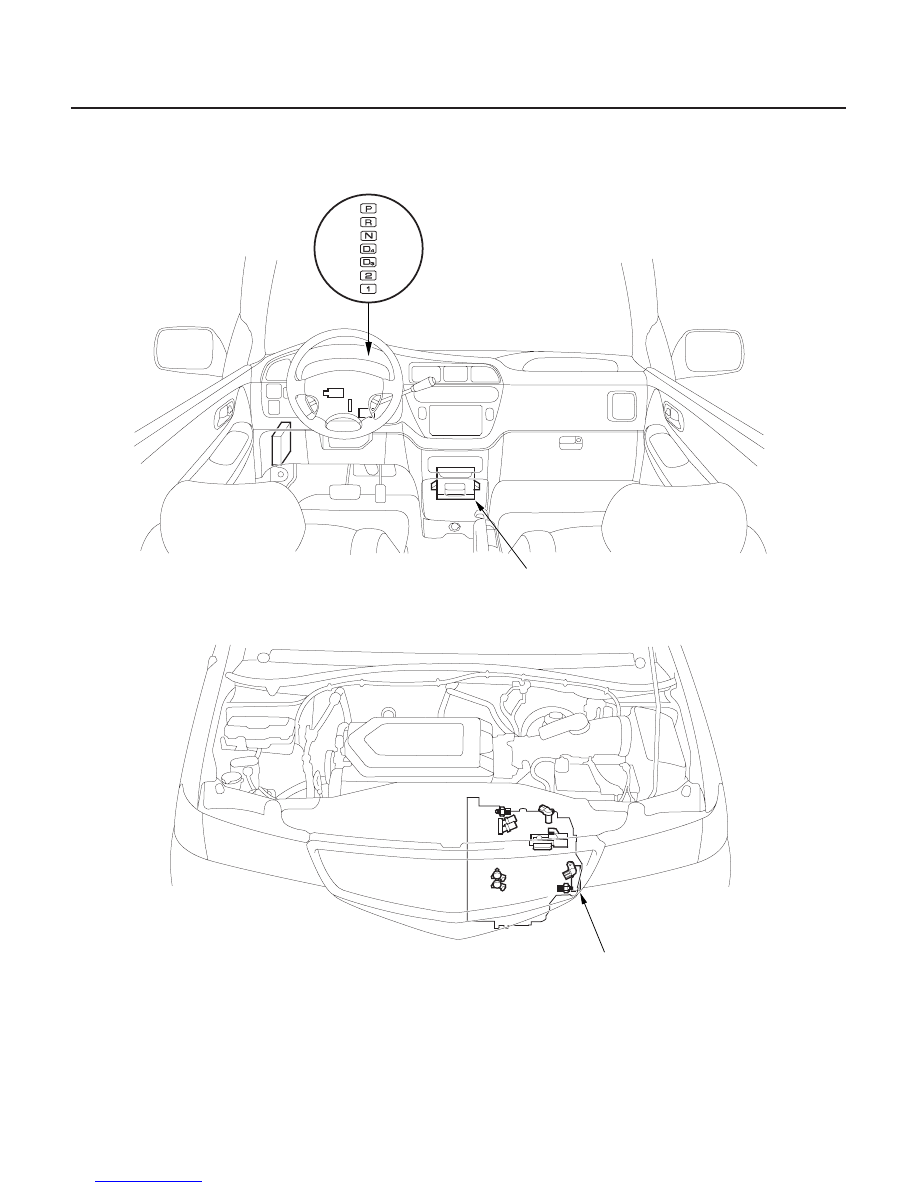

Component Location Index

A/T GEAR POSITION INDICATOR

POWERTRAIN CONTROL MODULE (PCM)

TRANSMISSION RANGE SWITCH

D4 Indicator Cicuit Troubleshooting

1999-2000 models, page 14-166
2001 model, page 14-169

Indicator Input Test, page 14-172

Test, page 14-173
Replacement, page 14-174

03/07/29 09:34:00 61S0X050_140_0167

Indicator Bulb Replacement, page 14-176

*01

S0X4AA0E10410700000EAAT00

14-165

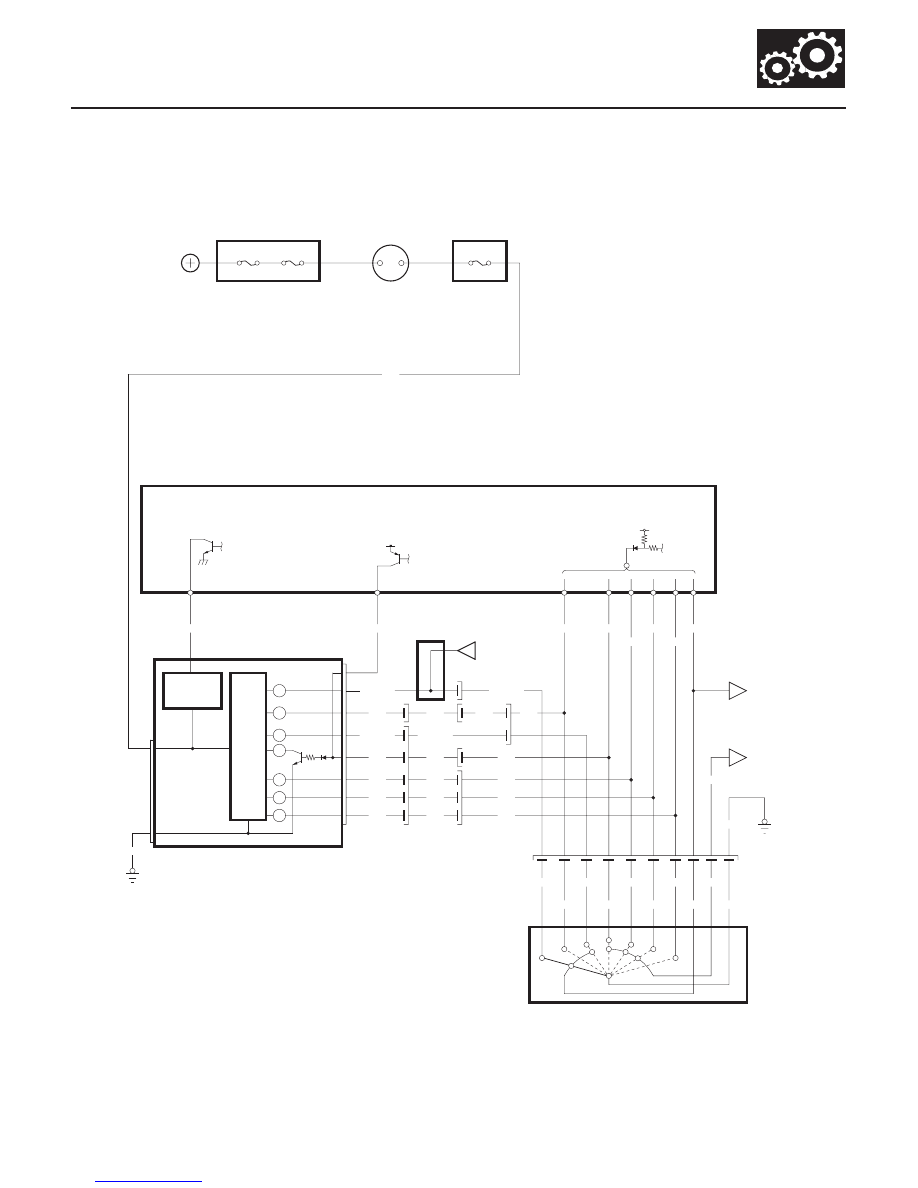

Circuit Diagram

RELAY

C22

C20

C12

C4

C13

B14/

D9/

D15/

D14/

D8/

WHT

YEL

YEL

YEL

CIRCUIT

SPEEDOMETER

WHT

BOX

DRIVER’S

FUSE/RELAY BOX

(DRIVER’S)

UNIT

CONTROL

MULTIPLEX

UNDER DASH
FUSE/RELAY

CUT

STARTER

BLU/WHT

NP

ATP

BRN

BLU

PNK

RED/BLK

WHT

RED/BLK

PNK

BLU

BRN

BLU/WHT

VSS

A9/E26

OUT

LT BLU

E

ST

A

No.9 (10A)

IG1

BAT

CONTROL

BLK

G503

YEL

IND

R

1

2

UNIT

CRUISE

BLK

G101

RED/WHT

PNK

GRY

BLK/BLU

WHT

RED

YEL

GRN

BLU

BRN

BRN

BLU

PNK

RED/BLK

WHT

BLK/BLU

GRN/BLK

BRN

BLU

PNK

YEL

WHT

POWERTRAIN CONTROL MODULE (PCM)

DRIVER’S
UNDER DASH

IGNITION
SWITCH

No.41 (120A)

D

D3

D4

ATP

1

ATP

D

2

UNDER HOOD FUSE/RELAY BOX

D6/C21

A14/E5

ATP

ATP

ATP

D4

TRANSMISSION RANGE SWITCH

1

2

N

R

P

D

D

N

R

BATTERY

GAUGE ASSEMBLY

P

CIRCUIT

DIMMING

No.42 (50A)

C17

B2

P

3

2

1

4

5

6

7

8

9

10

C5

B11

B16

C7

C6

C16

C4

C15

C12

4

3

3

4

PCM terminal number shows the number of the 1999

2000 models/2001 models.

NOTE:

03/07/29 09:34:01 61S0X050_140_0168
