14-154

Automatic Transmission

Transmission Installation (cont’d)

B

A

C

12 x 1.25 mm
54 N·m (5.5 kgf·m,
40 lbf·ft)

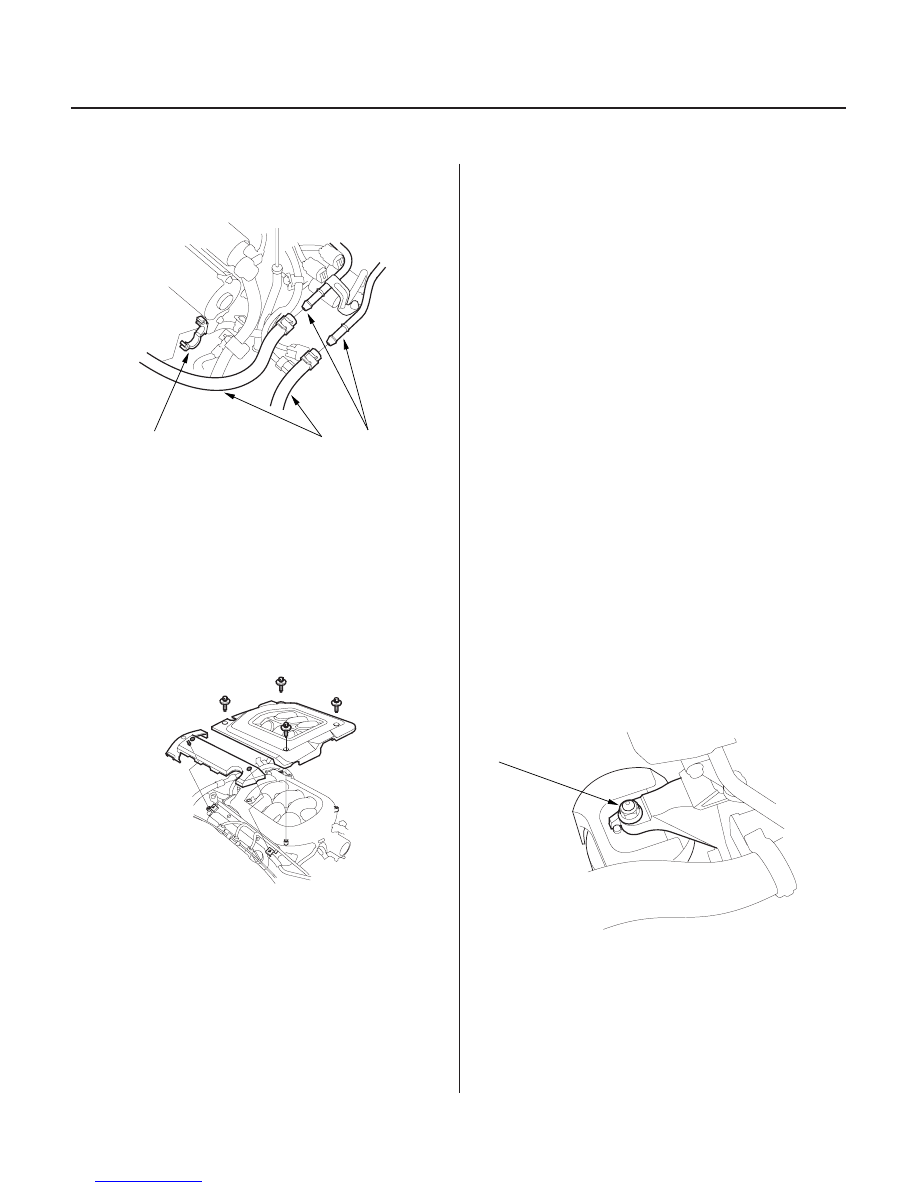

45. Connect the ATF cooler hoses (A) to the ATF cooler

lines (B) (see page 14-156). Clamp the ATF cooler
hose with the clamp (C) on the starter.

46. Install the battery base bracket and battery base.

47. Install the battery cable clamps, connector, and

relay bracket on the battery base.

48. Install the battery tray and battery, then secure the

battery with its hold-down bracket.

49. Install the intake air duct, resonator cover, and air

cleaner housing assembly.

50. Install the engine covers.

51. Refill the transmission with ATF (see step 5 on page

14-137).

52. Connect the battery positive terminal, then connect

the negative terminal.

53. Set the parking brake. Start the engine, and shift

the transmission through all gears three times.

54. Check the shift lever operation, A/T gear position

indicator operation, and shift cable adjustment.

55. Check and adjust the front wheel alignment (see

page 18-5).

56. Reinstall the support rod of the hood to the proper

location, and secure the windshield washer
reservoir opening with the bolt.

57. Start the engine and let it reach normal operating

temperature (the radiator fan comes on) with the
transmission in the P or N position, then turn it off
and check the ATF level (see page 14-136).

58. Do the PCM idle learn procedure (see page 11-202).

59. Do a road test (see page 14-125).

60. Enter the anti-theft code for the radio, then enter

the radio station presets, and set the clock.

61. Loosen the front mount nut after the road test, then

retighten the nut to the specified torque.

03/07/29 09:33:53 61S0X050_140_0157

01

*01

S0X4AA0E10400013011LBAT00

Special Tools Required

Air Pressure:

MAX 845 kPa (8.45 kgf/cm ,
120 psi)

2

14-155

ATF Cooler Flushing

B

A

D

C

A

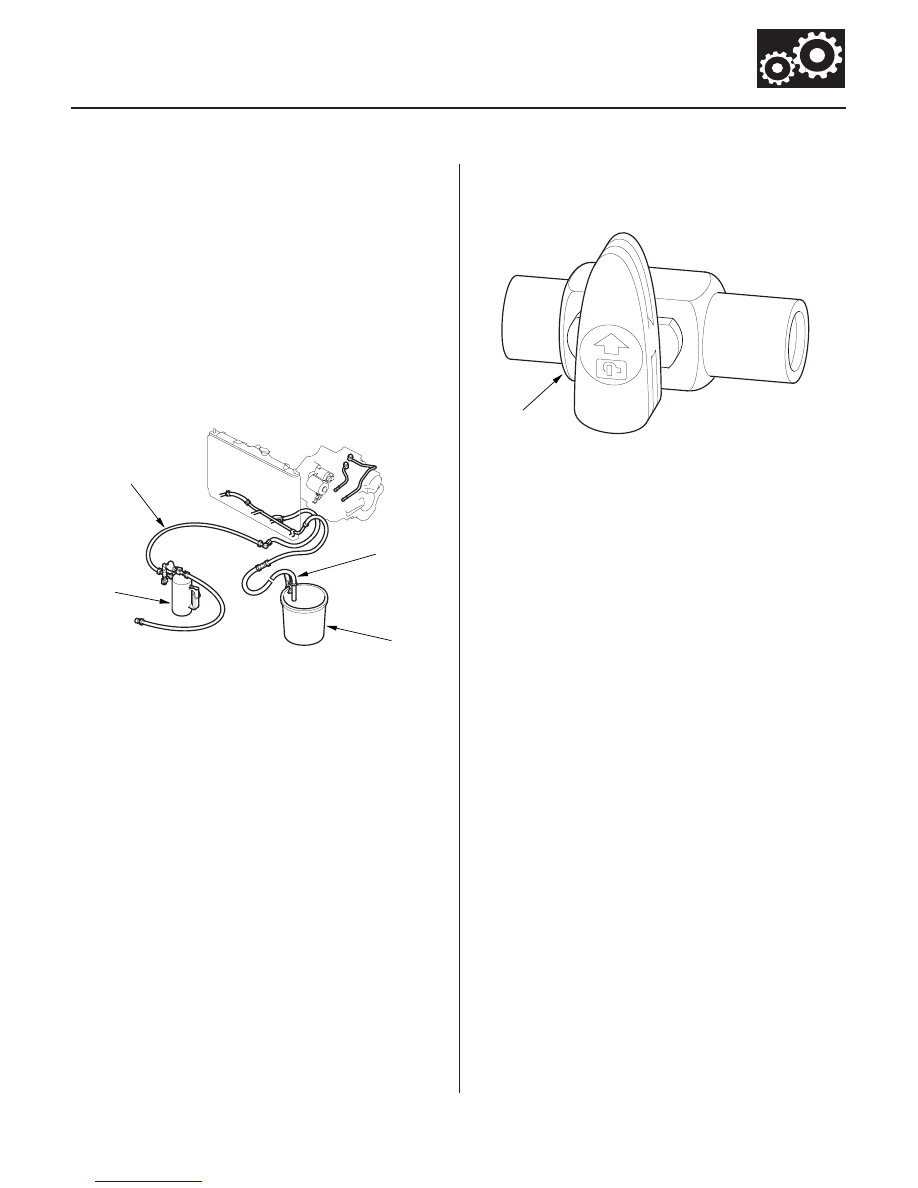

Commercially Available Transmission Cooler Flusher

Kent-Moore J38405-A or equivalent

This procedure should be performed before reinstalling
the transmission.

1. Check equipment for wear and cracks before using.

Replace any worn or cracked components.

2. Using the measuring cup, fill the flusher (A) with 21

ounces (approximately 2/3 full) of biodegradable
flushing fluid (J35944-20). Do not substitute with
any other fluid. Follow the handling procedure on
the fluid container.

3. Secure the flusher filler cap, and pressurize the

flusher with compressed air to 550

829 kPa (5.6

8.45 kgf/cm , 80

120 psi). The air line should be

equipped with a water trap to ensure a dry air
system.

4. Hang the flusher under the vehicle.

5. Attach the flusher discharge hose (B) to the return

line of the ATF cooler using a clamp.

6. Connect the drain hose (C) to the inlet line on the

ATF cooler using a clamp. Securely clamp the
opposite end of the drain hose to a bucket (D) or
floor drain.

7. With the water and air valves (A) off, attach the

water and air supplies to the flusher. (Hot water if
available.)

8. Turn on the water valve for 10 seconds. If water

does not flow through the cooler, it is completely
plugged, cannot be flushed, and must be replaced.

9. Press the trigger to mix the flushing fluid into the

water flow. Use the wire clip to hold the trigger
down.

10. While flushing with the water and flushing fluid for

two minutes, turn the air valve on for five seconds
every 15

20 seconds to create a surging action.

11. Turn the water valve off. Release the trigger, then

reverse the hoses to the cooler so you can flush in
the opposite direction. Repeat step 8 through 10.

12. Release the trigger, and rinse the cooler with water

for one minute.

13. Turn the water valve and the water supply off.

14. Turn the air valve on for two minutes, or until no

moisture is visible leaving the drain hose. Residual
moisture in the cooler or lines can damage the
transmission.

15. Remove the flusher from the cooler line. Attach the

drain hose to an ATF container.

16. Install the transmission, and leave the drain hose

attached to the cooler line.

(cont’d)

2

03/07/29 09:33:53 61S0X050_140_0158

01

S0X4AA0E10400013012KBAT00

14-156

14-156

Automatic Transmission

ATF Cooler Flushing (cont’d)

ATF Cooler Hose Replacement

A

C

C

B

A

E

D

B

2

8 mm

(0.2

0.3 in.)

2

4 mm

(0.1

0.2 in.)

17. Make sure the transmission is in the P position.

Fill the transmission with ATF, and run the engine
for 30 seconds or until approximately 0.95
(1.0 US qt) is discharged.

18. Remove the drain hose, and reconnect the cooler

return hose to the transmission.

19. Refill the transmission with ATF to the proper level

(see step 5 on page 14-137).

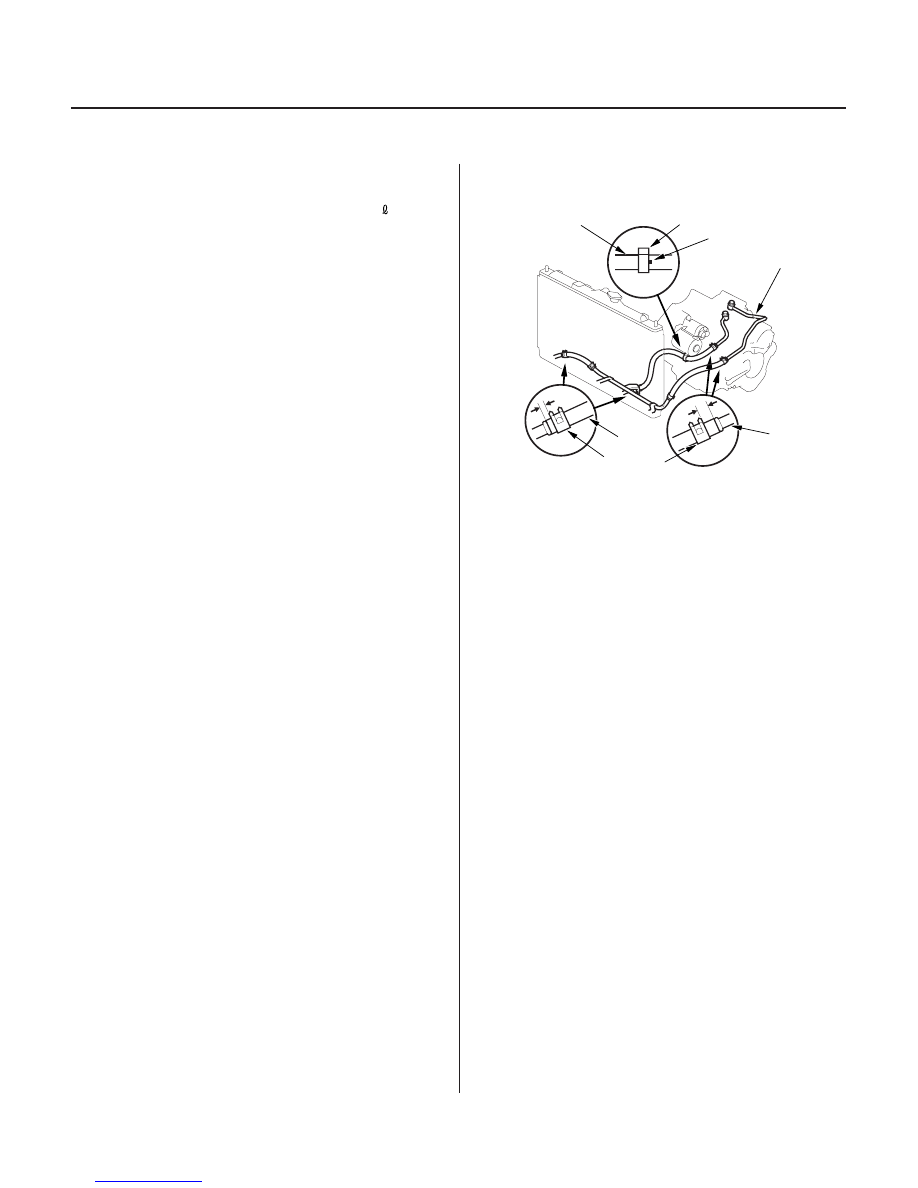

1. Connect the cooler hoses (A) to the lines (B) and the

ATF cooler, and secure them with the clips (C).

2. Clamp the ATF cooler hose with the yellow mark

(D) on the clamp (E).

03/07/29 09:33:54 61S0X050_140_0159

01

02

S0X4AA0E10411412282KAAT00

14-157

Shift Lever Removal

D

B

A

G

E

C

F

A

C

B

D

SRS components are located in this area. Review the
SRS component locations (see page 23-18), and the
precautions and procedures (see page 23-21) in the SRS
before performing repairs or service.

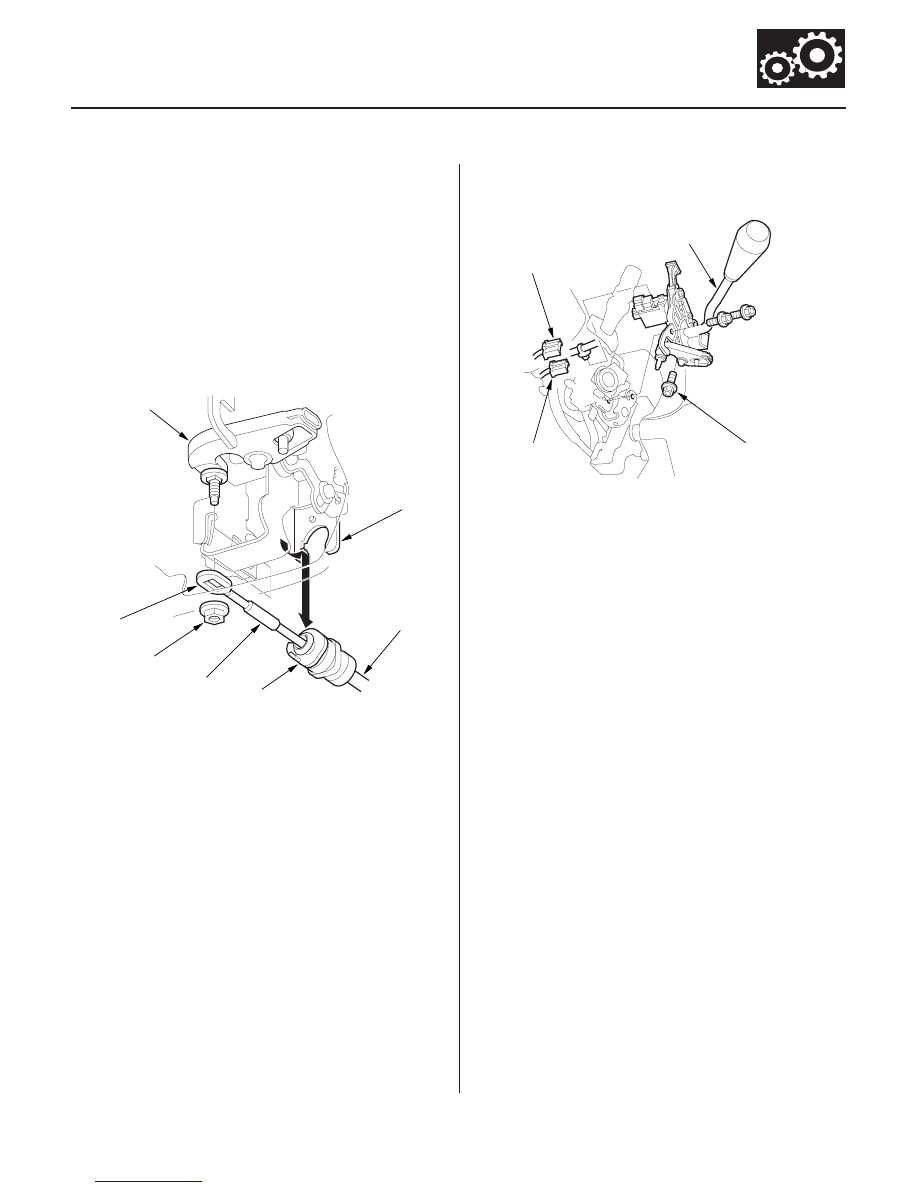

1. Remove the steering column upper and lower

covers (see page 17-25).

2. Shift the transmission into the N position.

3. Remove the nut (A) securing the shift cable end (B),

then separate the shift cable (C) from the shift lever
assembly (D).

4. Rotate the socket holder (E) on the shift cable

counterclockwise a quarter turn, then slide the
holder to remove the shift cable from the shift cable
bracket (F).

NOTE: Do not remove the shift cable by twisting
the shift cable guide (G).

5. Disconnect the shift lock solenoid connector (A)

and the park pin switch connector (B).

6. Remove the three bolts (C) securing the shift lever

assembly, then remove the shift lever assembly (D).

03/07/29 09:33:54 61S0X050_140_0160
