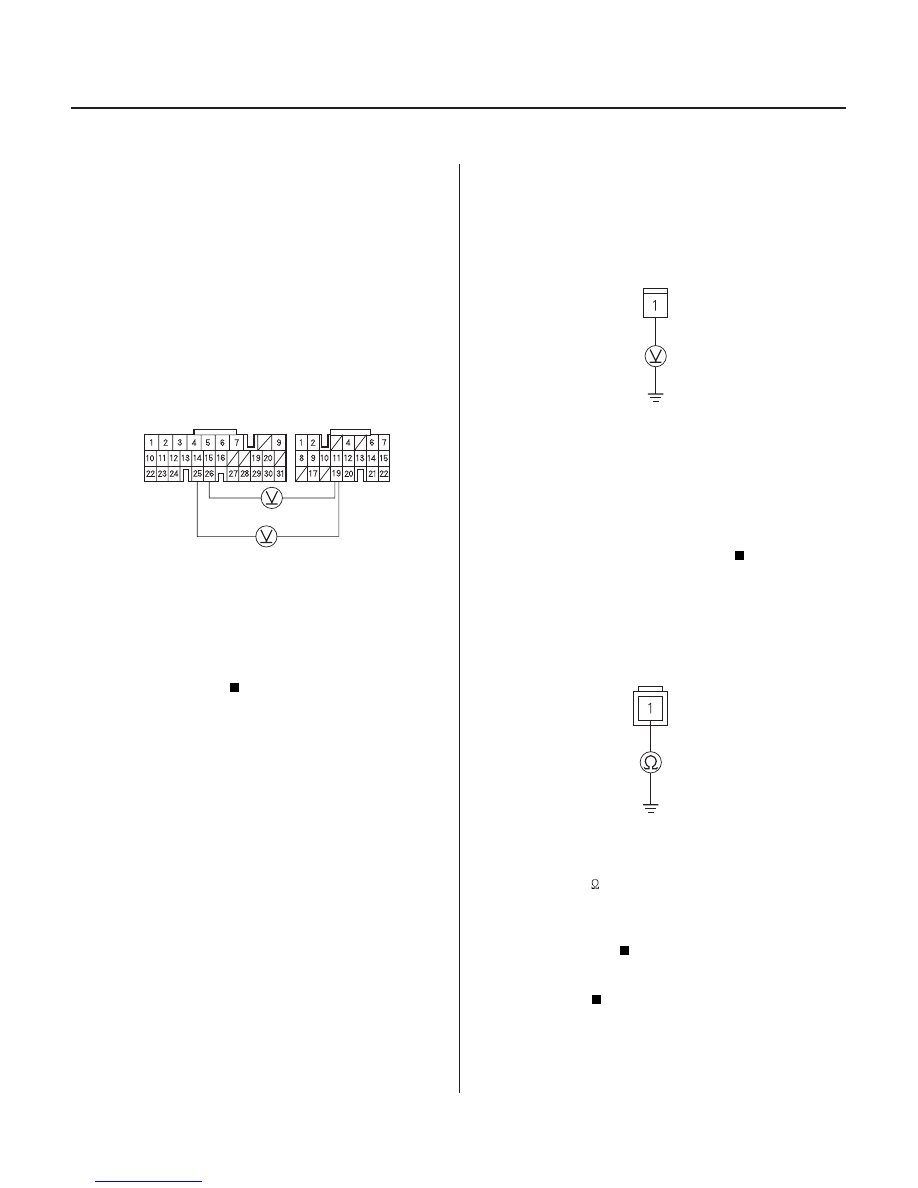

14-114

Automatic Transmission

DTC Troubleshooting (cont’d)

LG1 (BRN/BLK)

LG2 (BRN/BLK)

A (31P)

C (22P)

PCM CONNECTORS

OP2SW (BLU/BLK)

BLU/BLK

2ND CLUTCH PRESSURE
SWITCH CONNECTOR

2ND CLUTCH PRESSURE
SWITCH CONNECTOR

7. Raise the front of the vehicle, and make sure it is

securely supported.

8. Set the parking brake, and block the rear wheels

securely.

9. Start the engine, cancel the TCS, then shift to 2

position, and drive for more than 5 seconds.

10. Measure the voltage PCM connector terminals C11

and A25 or A26.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Go to step 11.

11. Turn the ignition switch OFF.

12. Disconnect the 2nd clutch pressure switch

connector.

13. Turn the ignition switch ON (II).

14. Measure the voltage between the 2nd clutch

pressure switch connector terminal and body
ground.

Go to step 15.

Repair open in the wire between the 2nd

clutch pressure switch and the PCM.

15. Measure the resistance between the 2nd clutch

pressure switch connector terminal and body
ground.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Replace the 2nd clutch pressure switch (see

page 14-135).

Wire side of female terminals

Wire side of female terminal

Terminal side of male terminals

Is ther e about 0 V ?

Is ther e batter y voltage?

Is ther e 10 M

or mor e?

03/07/29 09:32:28 61S0X050_140_0117

01

02

S0X4AA3K77100091739FAAT00

2001 Model

DTC P1739:

YES

NO

YES

NO

14-115

LG1 (BRN/BLK)

LG2 (BRN/BLK)

A (31P)

C (22P)

PCM CONNECTORS

OP3SW (WHT/RED)

PCM CONNECTOR C (22P)

OP3SW (WHT/RED)

Problem in 3rd Clutch Pressure

Switch Circuit

NOTE: Record all freeze data and review General
Troubleshooting Information (see page 14-3) before
you troubleshoot.

1. Turn the ignition switch ON (II).

2. Measure the voltage between PCM connector

terminals C19 and A25 or A26.

Go to step 7.

Go to step 3.

3. Turn the ignition switch OFF.

4. Disconnect PCM connector C (22P).

5. Disconnect the 3rd clutch pressure switch

connector.

6. Check for continuity between PCM connector

terminal C19 and body ground.

Repair short to ground in the wire between

PCM connector terminal C19 and the 3rd clutch
pressure switch.

Disconnect the 3rd clutch pressure switch

connector and go to step 15.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

03/07/29 09:32:29 61S0X050_140_0118

03

*01

*02

YES

NO

YES

NO

YES

NO

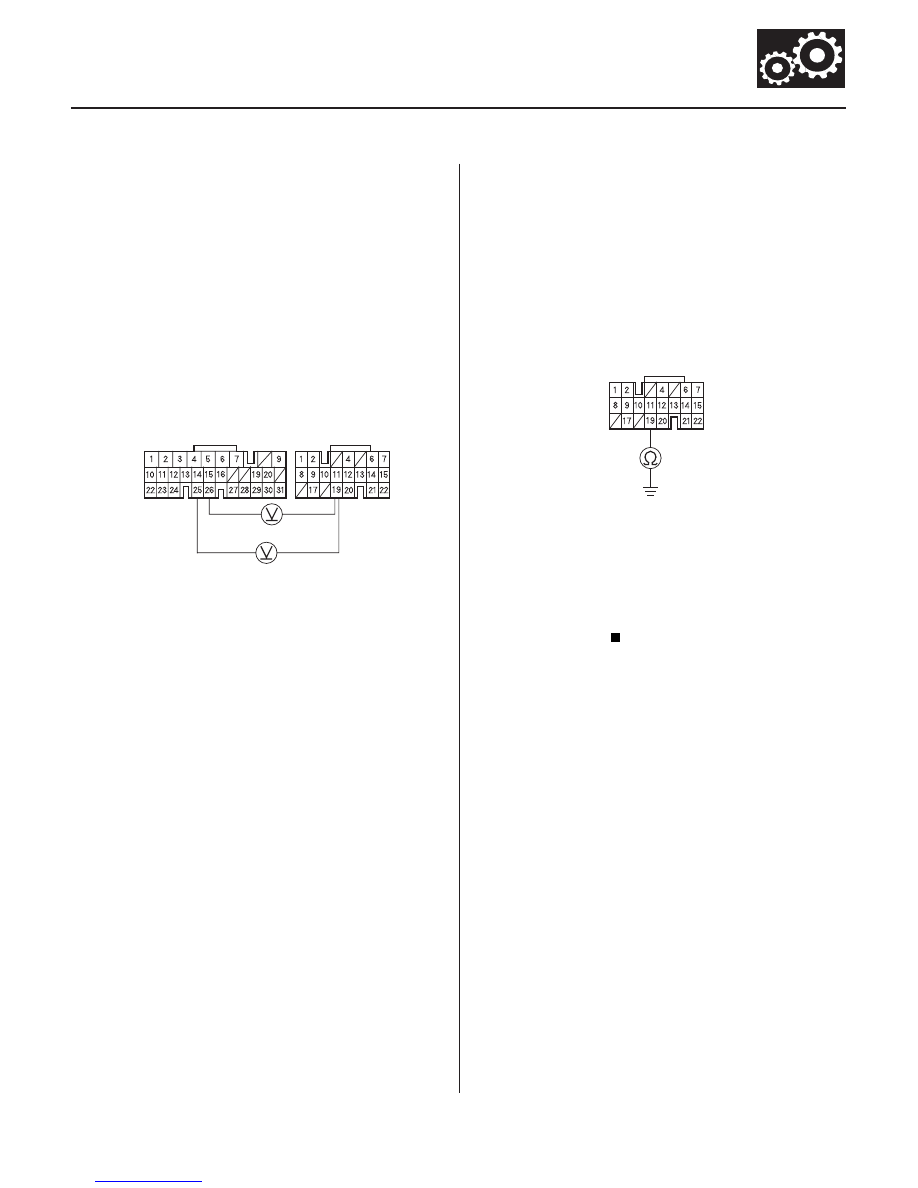

14-116

Automatic Transmission

DTC Troubleshooting (cont’d)

LG1 (BRN/BLK)

LG2 (BRN/BLK)

A (31P)

C (22P)

PCM CONNECTORS

OP3SW (WHT/RED)

WHT/RED

3RD CLUTCH PRESSURE
SWITCH CONNECTOR

3RD CLUTCH PRESSURE
SWITCH CONNECTOR

7. Raise the front of the vehicle, and make sure it is

securely supported.

8. Set the parking brake, and block the rear wheels

securely.

9. Start the engine, cancel the TCS, then shift to D3

position, and drive in 3rd gear for more than 5
seconds.

10. Measure the voltage between PCM connector

terminals C19 and A25 or A26.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Go to step 11.

11. Turn the ignition switch OFF.

12. Disconnect the 3rd clutch pressure switch

connector.

13. Turn the ignition switch ON (II).

14. Measure the voltage between the 3rd clutch

pressure switch connector terminal and body
ground.

Go to step 15.

Repair open in the wire between the 3rd

clutch pressure switch and the PCM.

15. Measure the resistance between the 3rd clutch

pressure switch connector terminal and body
ground.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Replace the 3rd clutch pressure switch (see

page 14-135).

Wire side of female terminals

Wire side of female terminal

Terminal side of male terminal

Is ther e about 0 V ?

Is ther e batter y voltage?

Is ther e 10 M

or mor e?

03/07/29 09:32:30 61S0X050_140_0119

S0X4AA3K77100091750FAAT00

2001 Model

DTC P1750:

YES

NO

YES

NO

14-117

Mechanical Problem in Hydraulic

Control System for A/T Clutch Pressure
Control Solenoid Valves A and B, or Problem
in Hydraulic Control System

NOTE: Record all freeze data and review General
Troubleshooting Information (see page 14-3) before
you troubleshoot.

1. Check whether the scan tool or the HDS indicates

another code.

Perform the Troubleshooting Flowchart for

the indicated Code(s). Recheck for code P1750 after
troubleshooting.

Go to step 2.

2. Turn the ignition switch OFF.

3. Replace the A/T clutch pressure control solenoid

valves A and B (see page 14-133).

4. Clear the DTC with the scan tool or the HDS.

5. Drive the vehicle for several minutes in 1st, 2nd,

3rd, and 4th gears in D4 position.

6. Recheck for code P1750.

Replace the transmission.

The problem has been corrected.

Does the scan tool or the HDS indicate another
code?

Does the scan tool or the HDS indicate code
P17 50?

03/07/29 09:32:30 61S0X050_140_0120
