Electronic Control System (cont’d)

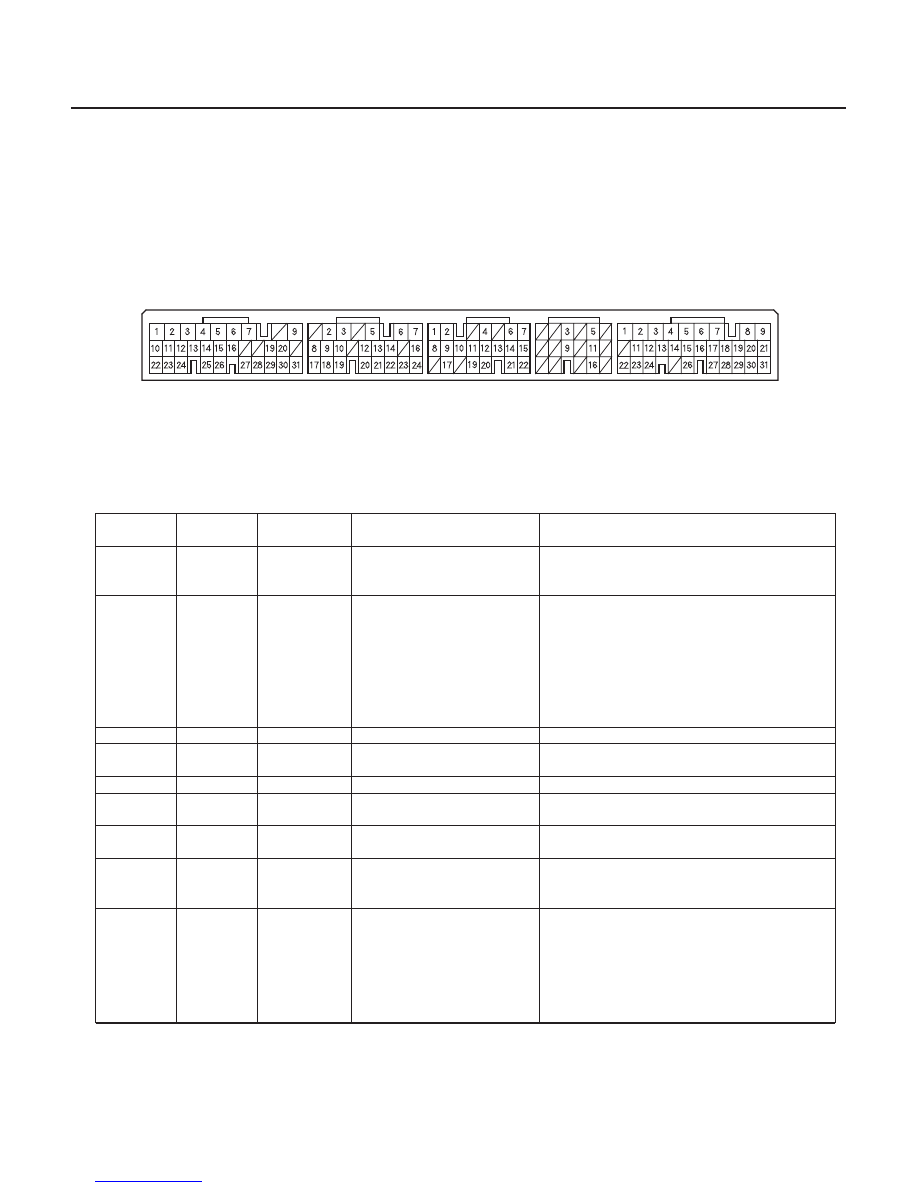

PCM Inputs and Outputs (1999-2000 models)

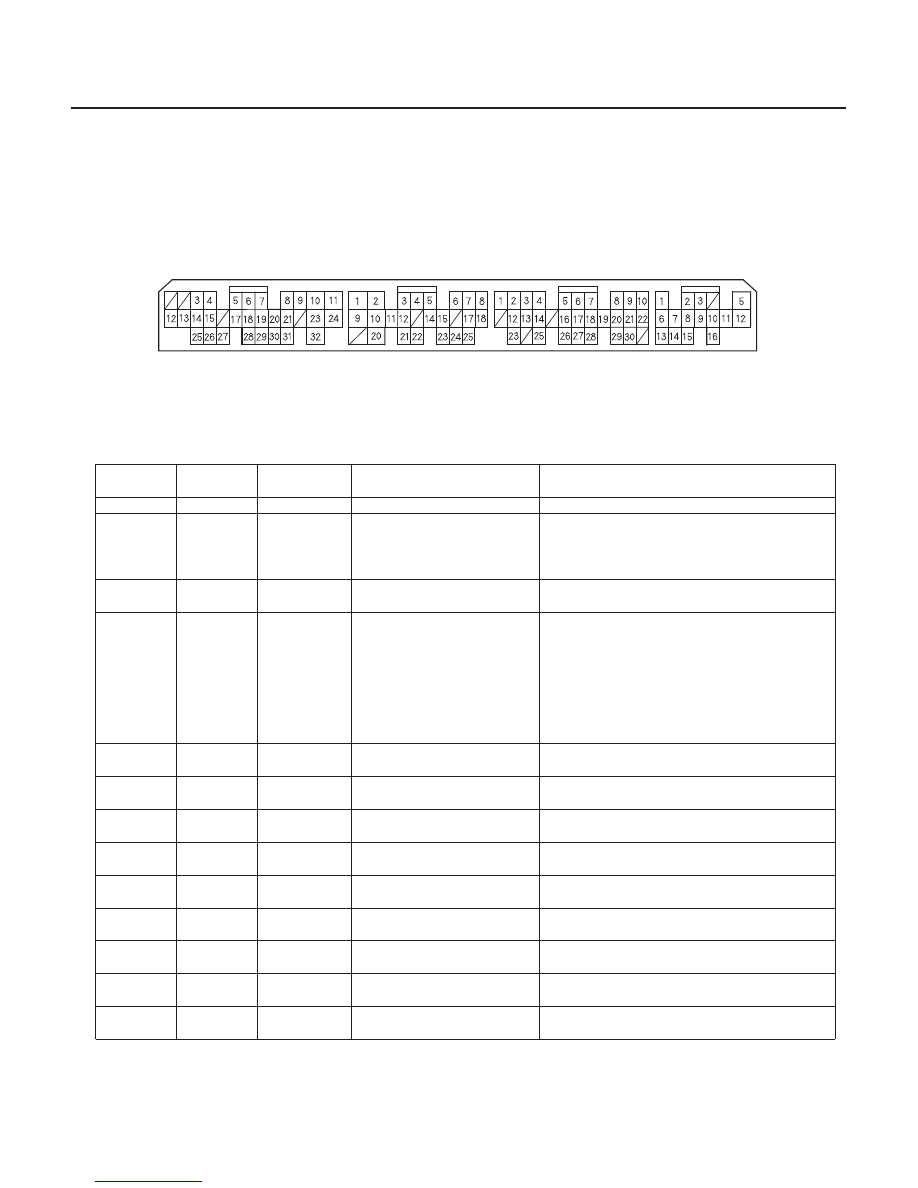

PCM CONNECTOR D (16P)
Terminal
Number
Wire color
Signal
Description
Measuring Conditions/Terminal Voltage
14-38
Automatic Transmission
System Description (cont’d)

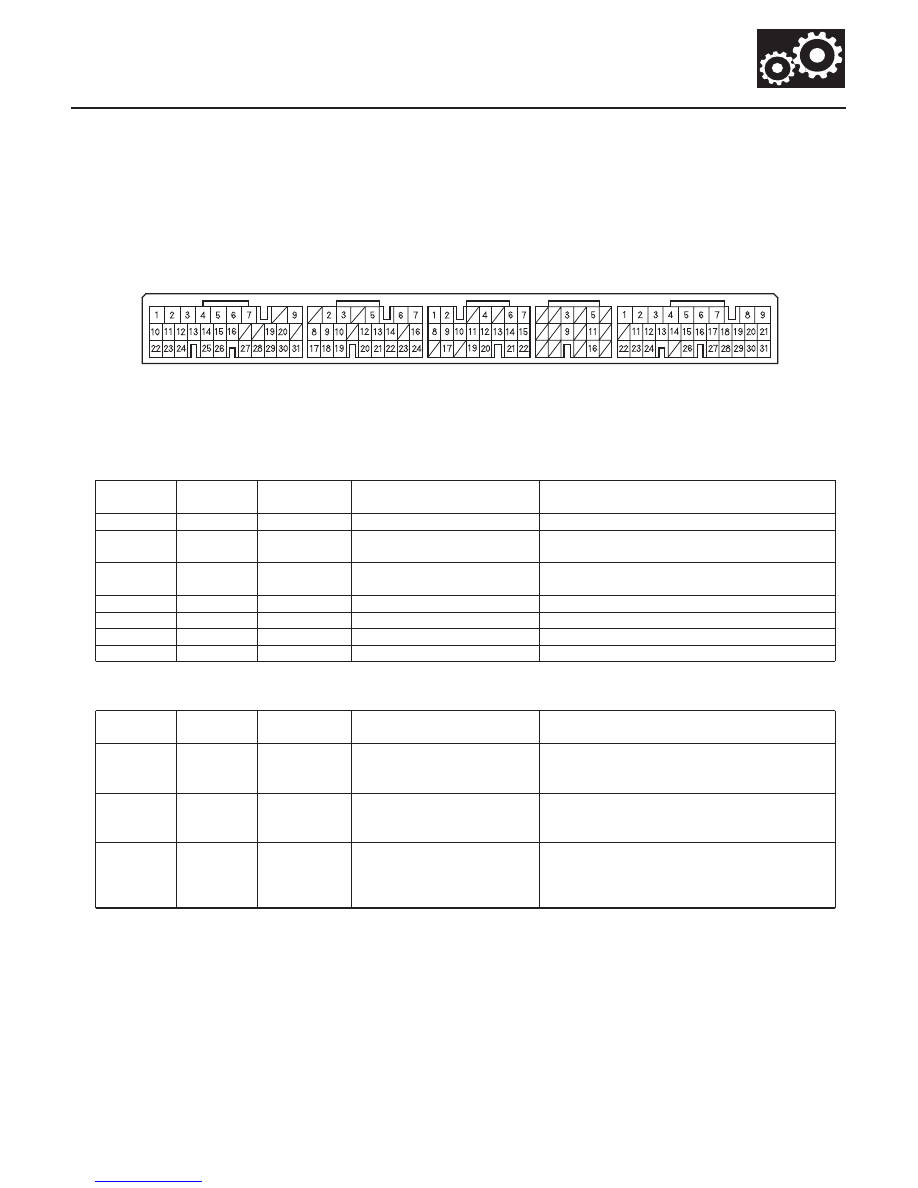

PCM Connector Terminal Locations
A (32P)
B (25P)
C (31P)
D (16P)
•
•
•
•
•
•
D4
Not used
D5
BLK/YEL
VB SOL
Power supply for solenoid
valves (Fuse No. 6 in
driver’s under-dash fuse/
relay box)
With ignition switch ON (II): Battery voltage
With ignition switch OFF: 0 V
D6
WHT
ATP R
A/T gear position switch R
position input
In R position: 0 V
In other than R position: Battery voltage
D7
BLU/YEL
SH A
Shift control solenoid valve
A control
Battery voltage in these positions:
2
D4 and D3 in 2nd and 3rd gear
0 V in these positions:
1
D4 and D3 in 1st gear
D4 in 4th gear
P, R, and N
D8
PNK
ATP D3
A/T gear position switch D3
position input
In the D3 position: 0 V
In other than the D3 position: Battery voltage
D9
YEL
ATP D4
A/T gear position switch D4
position input
In the D4 position: 0 V
In other than the D4 position: Battery voltage
D10
BLU
NC
Countershaft speed sensor
input
Depending on vehicle speed: Pulsing signal
When vehicle is stopped: About 0 V
D11
RED
NM
Mainshaft speed sensor
input
Depending on vehicle speed: Pulsing signal
When engine is stopped: About 0 V
D12
WHT
NMSG
Mainshaft speed sensor
ground
D13
BLU/BLK
OP2SW
A/T 2nd clutch pressure
switch signal input
With ignition switch ON (II): Battery voltage
(No 2nd clutch pressure)
D14
BLU
ATP 2
A/T gear position switch 2
position input
In the 2 position: 0 V
In other than the 2 position: Battery voltage
D15
BRN
ATP 1
A/T gear position switch 1
position input
In the 1 position: 0 V
In other than the 1 position: Battery voltage
D16
GRN
NCSG
Countershaft speed sensor
ground
