Honda Odyssey 2004. Manual - part 144





01

01

02

YES

NO

EVAP Canister Purge Valve Test

YES

NO

YES

NO

YES

NO

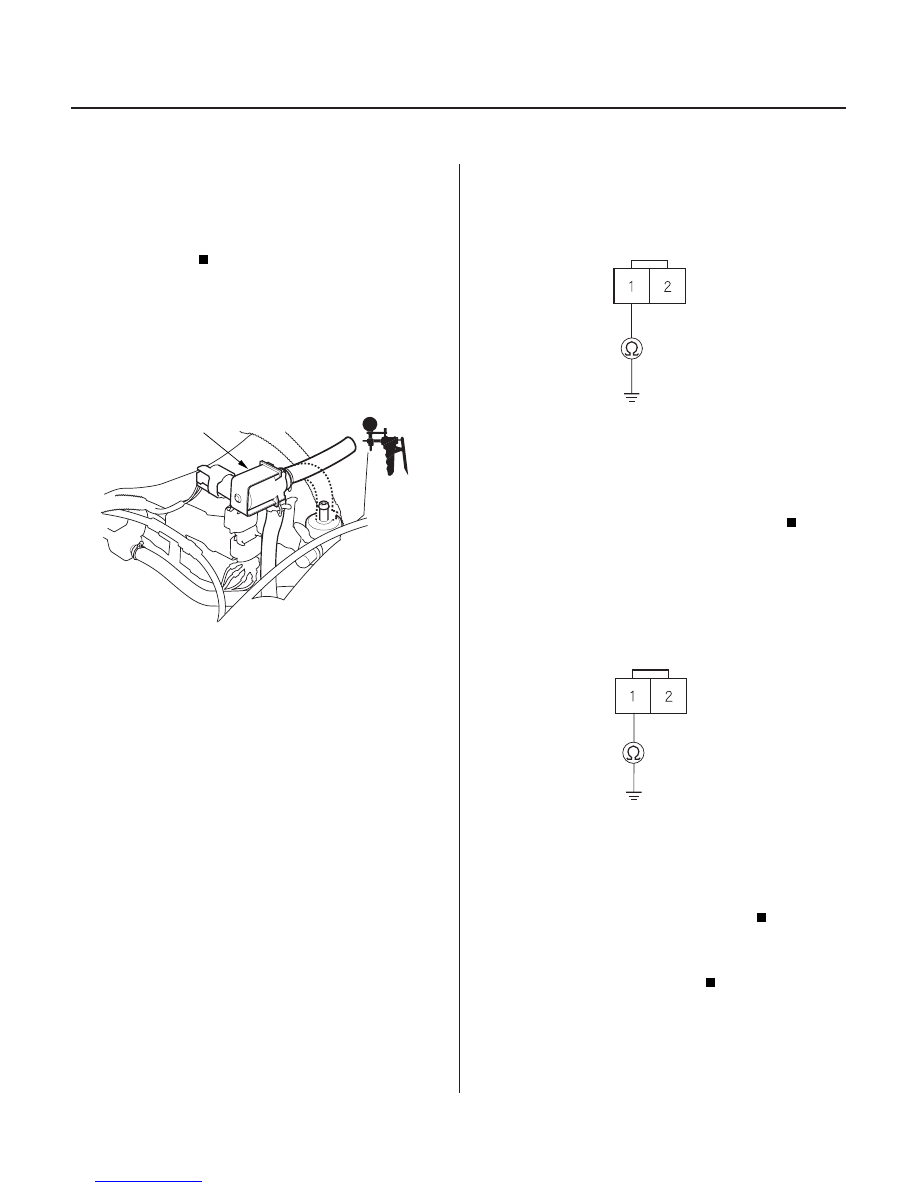

11-274

EVAP System

DTC Troubleshooting (cont’d)

A973X-
041-XXXXX

A

EVAP CANISTER PURGE VALVE

PCS (RED/YEL)

EVAP CANISTER PURGE
VALVE 2P CONNECTOR

PCS (RED/YEL)

2. Check the fuel fill cap seal.

Replace the fuel fill cap (gray or black

colored cap).

The fuel fill cap is OK. Go to step 3.

3. Disconnect the vacuum hose from the EVAP

canister purge valve (A), and connect a vacuum
pump to the hose.

4. Turn the ignition switch ON (II).

5. Apply vacuum to the hose.

The EVAP canister purge valve is OK. Go to

step 11.

Go to step 6.

6. Turn the ignition switch OFF.

7. Disconnect the EVAP canister purge valve 2P

connector.

8. Check for continuity between EVAP canister purge

valve 2P connector terminal No. 1 and body ground.

Go to step 9.

Replace the EVAP canister purge valve.

9. Disconnect PCM connector E (31P).

10. Check for continuity between EVAP canister purge

valve 2P connector terminal No. 1 and body ground.

Repair short in the wire between the EVAP

canister purge valve and the PCM (E11).

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

Wire side of female terminals

Wire side of female terminals

Is the f uel f ill cap seal missing or damaged?

Does the valve hold vacuum?

Is ther e continuity?

Is ther e continuity?

03/07/29 09:26:08 61S0X050_110_0274

03

04

11

*01

08

EVAP Bypass Solenoid Valve Test

YES

NO

YES

NO

YES

NO

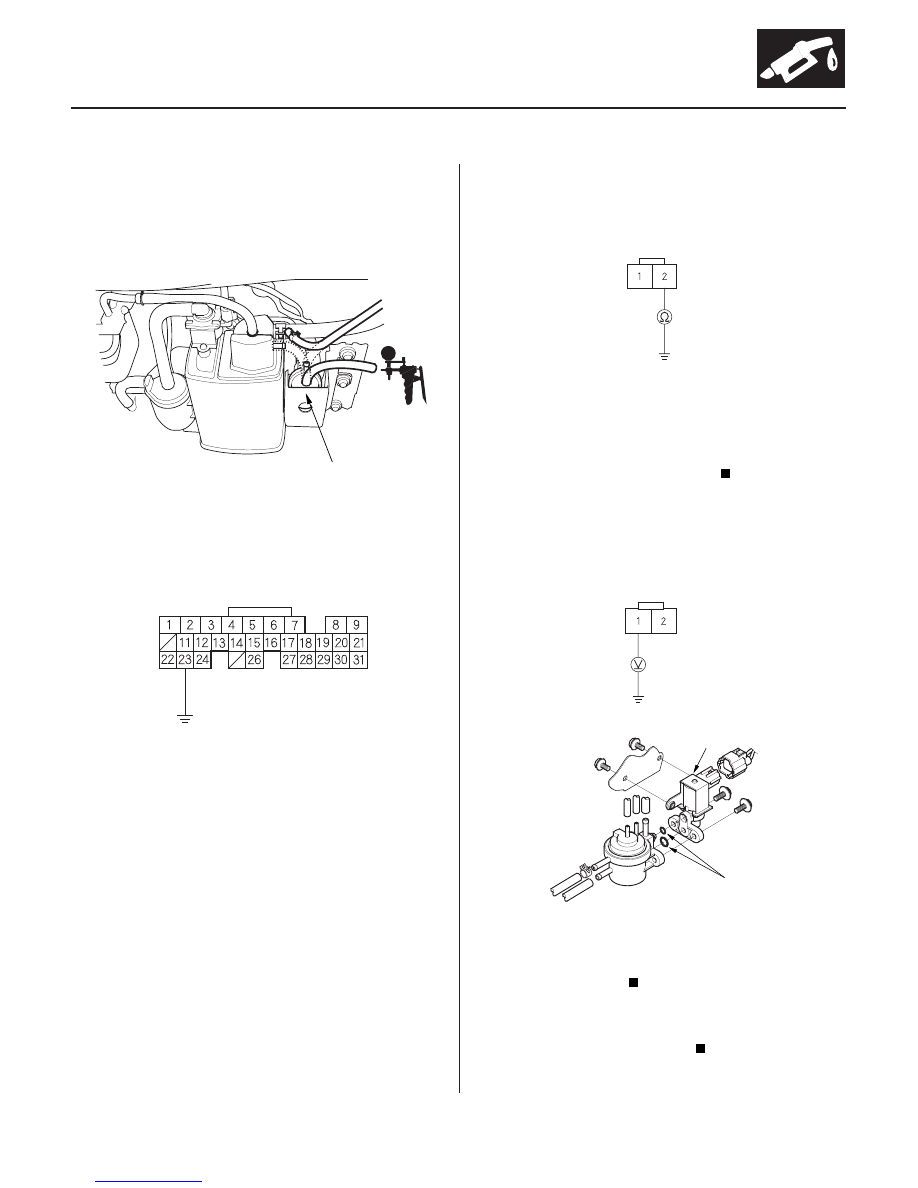

11-275

A973X-041-
XXXXX

A

PCM CONNECTOR E (31P)

2WBS (BLU)

JUMPER WIRE

EVAP BYPASS SOLENOID
VALVE 2P CONNECTOR

2WBS (BLU)

EVAP BYPASS SOLENOID
VALVE 2P CONNECTOR

IG1 (BLK/YEL)

A

B

11. Disconnect both vacuum hoses from the EVAP two

way valve (A), and connect a vacuum pump to the
canister port on the two way valve.

12. Turn the bypass solenoid valve on with the HDS, or

connect PCM connector terminal E23 to body
ground with a jumper wire.

13. Turn the ignition switch ON (II).

14. Apply vacuum to the hose.

Go to step 15.

Go to step 20.

15. Turn the ignition switch OFF.

16. Disconnect the EVAP bypass solenoid valve 2P

connector.

17. Check for continuity continuity between EVAP

bypass solenoid valve 2P connector terminal No. 2
and body ground.

Go to step 18.

Repair open in wire between the EVAP bypass

solenoid valve and the PCM (E23).

18. Turn the ignition switch ON (II).

19. Measure voltage between EVAP bypass solenoid

valve 2P connector terminal No. 1 and body ground.

Replace the EVAP bypass solenoid valve (A)

and the O-rings (B).

Repair open in the wire between the EVAP

bypass solenoid valve and No. 6 ECU (PCM)
CRUISE CONTROL (15A) fuse.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Does the valve hold vacuum?

Is ther e continuity?

Is ther e batter y voltage?

03/07/29 09:26:09 61S0X050_110_0275

05

06

07

08

YES

NO

EVAP Canister Vent Shut Valve Test

YES

NO

YES

NO

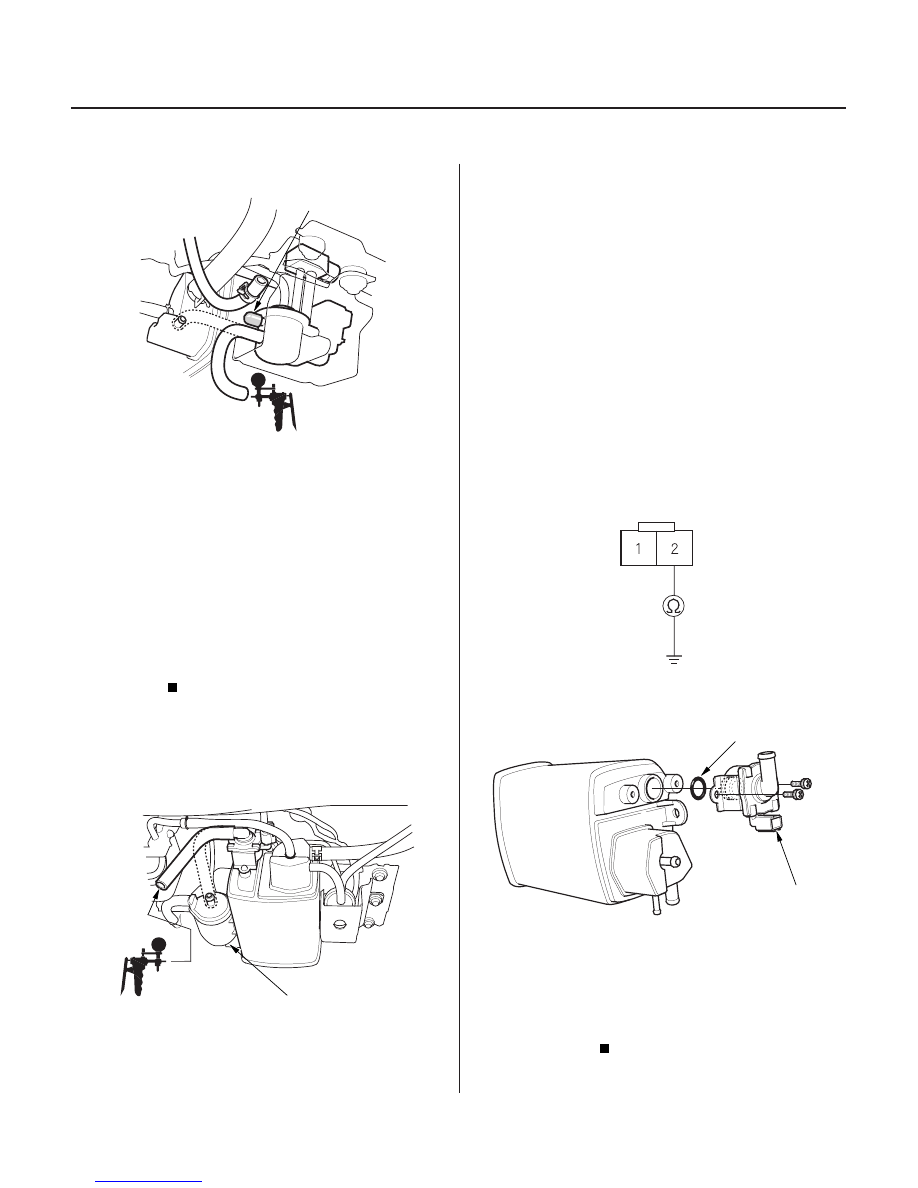

11-276

EVAP System

DTC Troubleshooting (cont’d)

A

A973X-041-XXXXX

A

A973X-041-XXXXX

EVAP CANISTER VENT
SHUT VALVE 2P CONNECTOR

VSV
(LT GRN/WHT)

B

A

20. Plug the upper port (A) of the EVAP two way valve.

21. While monitoring the FTP sensor voltage with the

HDS, or while measuring the voltage between PCM
connector terminals E3 and E28, slowly pump the
vacuum pump until the voltage drops to about
1.5 V.

The EVAP bypass solenoid valve/EVAP two

way valve is OK. Go to step 22.

Repair leakage from the EVAP bypass

solenoid valve, EVAP two way valve, FTP sensor, or
O-rings.

22. Disconnect the vacuum hose from the EVAP

canister filter (A), and connect a vacuum pump to
the hose.

23. Turn the ignition switch ON (II).

24. Apply vacuum to the hose with 5 strokes of the

pump.

Go to step 25.

The EVAP canister vent shut valve is OK. Go

to step 30.

25. Turn the ignition switch OFF.

26. Disconnect the EVAP canister vent valve 2P

connector.

27. Check for continuity between EVAP canister vent

shut valve 2P connector terminal No. 2 and body
ground.

Go to step 28.

Replace the EVAP canister vent shut valve (A)

and O-ring (B).

Wire side of female terminals

Does the voltage dr op to 1.5 V and hold f or at
least 20 seconds?

Does the valve hold vacuum?

Is ther e continuity?

03/07/29 09:26:10 61S0X050_110_0276

09

10

YES

NO

Vacuum Hoses and Connections Test

YES

NO

YES

NO

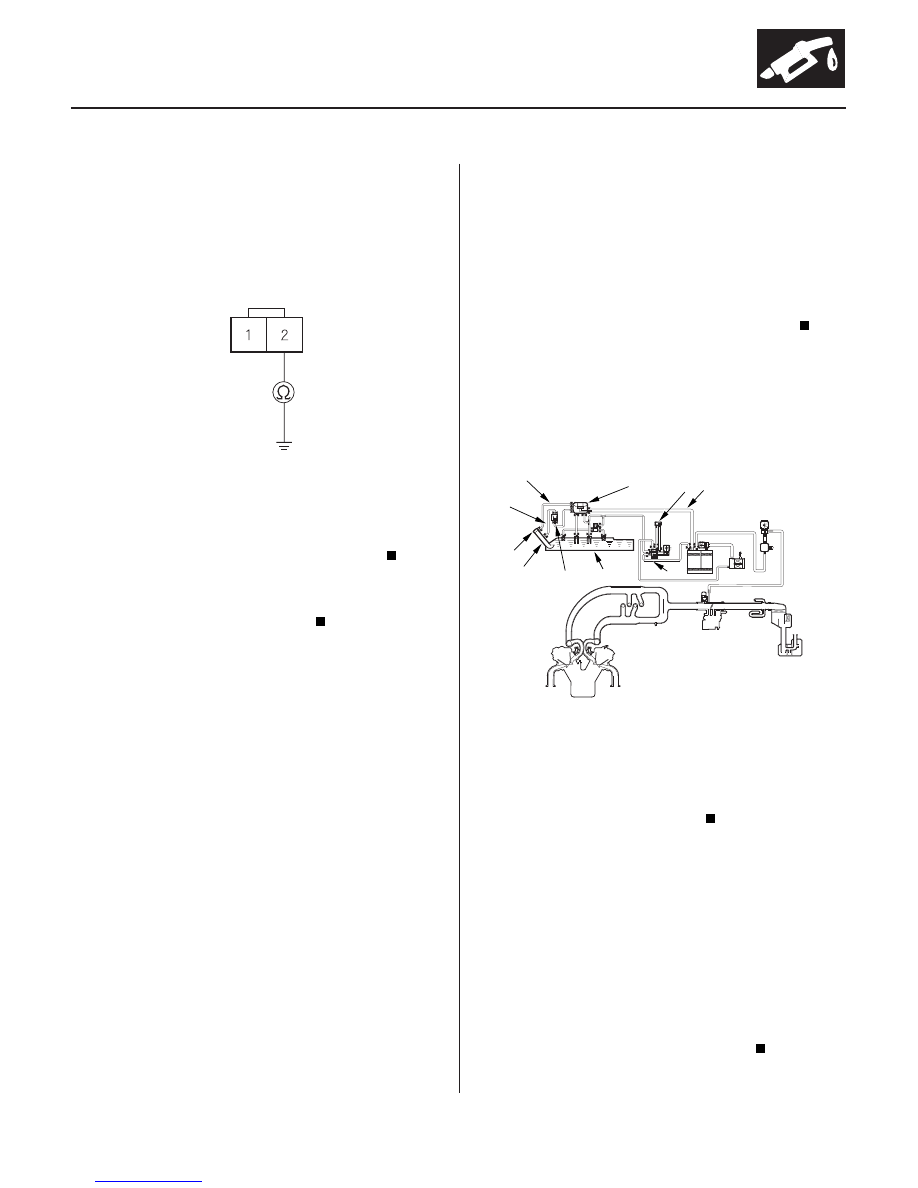

11-277

EVAP CANISTER VENT
SHUT VALVE 2P CONNECTOR

VSV
(LT GRN/WHT)

D

G

F

B

C

A

E

I

H

J

28. Disconnect PCM connector E (31P).

29. Check for continuity between EVAP canister vent

shut valve 2P connector terminal No. 2 and body
ground.

Repair short in the wire between the EVAP

canister vent shut valve and the PCM (E22).

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

30. Do the fuel tank vapor control valve test (see page

11-298).

Go to step 31.

Replace the fuel tank vapor control valve.

31. Tighten the fuel cap 3 ‘‘clicks’’, then monitor the

fuel tank pressure readings with the HDS.

32. Start the engine. Let the engine idle for 5 minutes.

33. Check the FTP sensor readings.

Substitute a known-good PCM and retest

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

Check these parts for leaks:

• Fuel tank (A)
• Fuel fill cap (B)
• Fuel fill pipe (C)
• Fuel tank vapor control valve (D)
• Fuel tank vapor recirculation valve (E)
• Fuel tank vapor recirculation tube (F)
• Fuel tank vapor signal tube (G)
• Fuel tank vapor vent tube (H)
• EVAP two way valve (I)
• FTP sensor (J)

– Repair or replace any leaking parts.

Wire side of female terminals

Is ther e continuity?

Is the f uel tank vapor contr ol valve OK ?

Is the r eading above 0.5 kPa ( 0.16 in.Hg, 4 mmHg)
pr essur e or below

0.5 kPa ( 0.16 in.Hg, 4 mmHg)

vacuum?

03/07/29 09:26:11 61S0X050_110_0277
